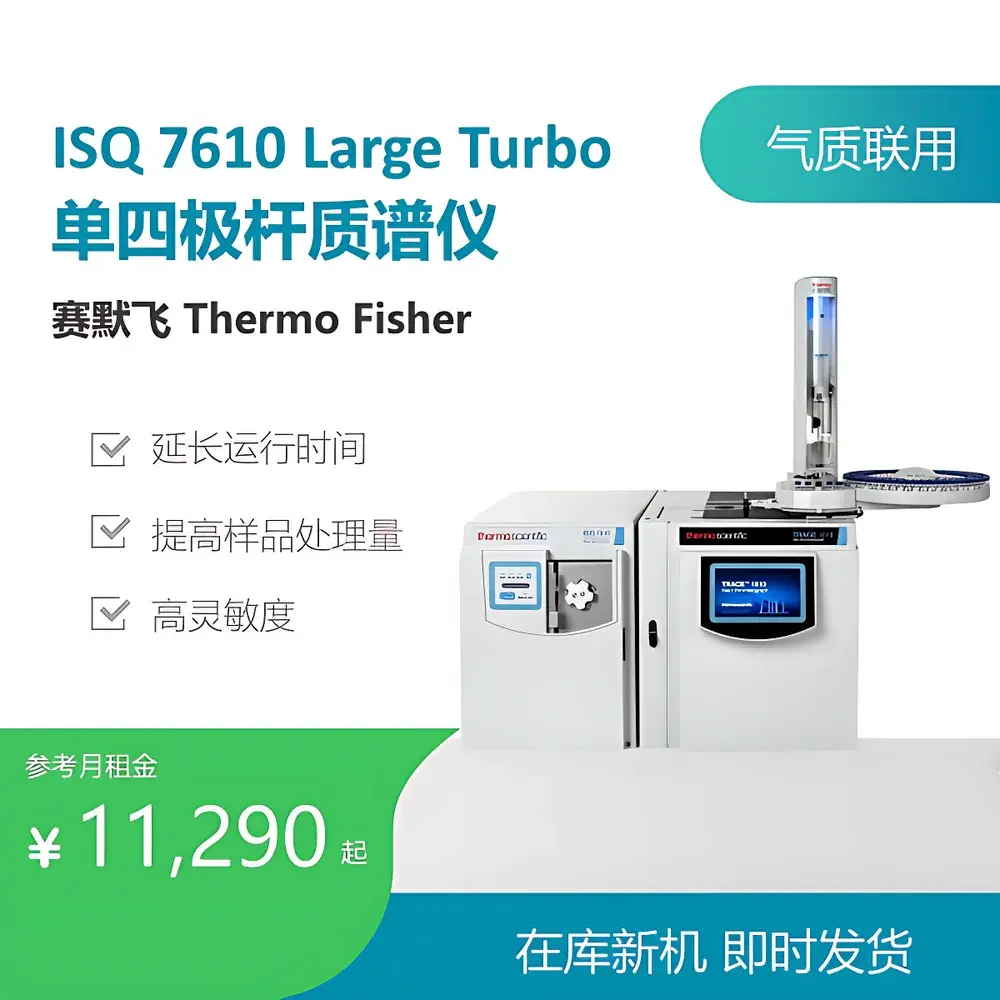

Thermo Scientific ISQ 7610 Large Turbo Single Quadrupole GC-MS System (Rental Unit)

Overview

The Thermo Scientific ISQ 7610 Large Turbo Single Quadrupole Gas Chromatography–Mass Spectrometry (GC-MS) system is an engineered solution for laboratories requiring robust, regulatory-compliant small-molecule analysis with high throughput and operational continuity. Built on a proven single quadrupole mass filter architecture, the system employs electron ionization (EI) to generate reproducible fragment spectra across a mass range of 1.2–1100 Da. Its core design integrates a high-capacity turbo molecular pump—enabling rapid vacuum recovery and stable operation during frequent column changes or source maintenance—without venting the mass spectrometer. This NeverVent™ capability significantly reduces instrument downtime and preserves analytical integrity across multi-day sequences. The system’s ultra-inert ExtractaBrite ion source ensures consistent ion transmission for trace-level analytes in complex matrices, while its mass stability (<0.1 u over 48 h at ΔT ≤2 K) supports long-duration unattended runs under GLP/GMP-aligned workflows.

Key Features

• Large-capacity turbo molecular pumping system for rapid vacuum restoration and uninterrupted operation during GC column swaps or source cleaning
• ExtractaBrite ultra-inert ion source with enhanced surface passivation to minimize active site adsorption and improve sensitivity for labile compounds
• DynaMax XTEND XR detection system featuring a triple off-axis electron multiplier configuration: 10 kV off-axis dynode, discrete electron multiplier, and integrated picoammeter—delivering linear response from 0 to 110 µA
• SmartStatus™ real-time instrument health monitoring via Chromeleon CDS, providing visual alerts for readiness, maintenance due dates, and consumable replacement thresholds
• Simultaneous full-scan (FS) and selected-ion monitoring (SIM) acquisition within a single injection—enabling both qualitative screening and quantitative confirmation without method duplication
• Scan speed up to 20,000 u/s with unit mass resolution, supporting fast GC gradients and narrow peak elution windows

Sample Compatibility & Compliance

The ISQ 7610 is validated for routine analysis of volatile and semi-volatile organic compounds—including pesticides, environmental contaminants, residual solvents, flavor/aroma volatiles, and pharmaceutical impurities—in compliance with ASTM D5845, EPA Method 8270, USP <621>, and ICH Q2(R2) guidelines. Its hardware architecture meets mechanical and electromagnetic compatibility requirements per IEC 61326-1 and safety standards per IEC 61010-1. For regulated environments, Chromeleon CDS supports 21 CFR Part 11-compliant audit trails, electronic signatures, and role-based access control—fully traceable to instrument events, method parameters, and raw data files. All firmware and software updates are distributed through Thermo Fisher’s validated release cycle, ensuring continued alignment with ISO/IEC 17025 and GxP data integrity expectations.

Software & Data Management

Controlled exclusively via Thermo Scientific Chromeleon Chromatography Data System (CDS) v7.3 or later, the ISQ 7610 leverages embedded SmartMethod™ templates for rapid method development and transfer across instruments. Raw data files (.RAW) are stored in open-format, vendor-neutral structures compatible with third-party processing tools including Compound Discoverer and Mass Frontier. Batch processing workflows support automated calibration verification, peak integration validation, and report generation with configurable templates (PDF, Excel, CSV). Instrument diagnostics—including vacuum pressure logs, detector gain history, and filament emission profiles—are archived alongside analytical data for full forensic traceability. Remote monitoring and alerting via Chromeleon Cloud Connect enables proactive service dispatch and predictive maintenance scheduling.

Applications

This GC-MS platform serves as a primary analytical tool in environmental testing laboratories performing PFAS, PCBs, and PAHs quantification; in pharmaceutical QC labs verifying residual solvents per ICH Q3C; in food safety units detecting mycotoxins and pesticide residues; and in forensic toxicology for rapid drug metabolite screening. Its extended linear dynamic range allows co-analysis of major components and trace impurities in a single run—reducing method count and cross-contamination risk. The large turbo pump configuration is especially advantageous for high-flow carrier gas applications (e.g., hydrogen carrier), reactive matrix analyses requiring frequent source cleaning, and laboratories operating multiple GC inlets or parallel columns.

FAQ

What rental terms are available for the ISQ 7610 Large Turbo system?

We offer three structured rental models: short-term (1–6 months) for project-based capacity expansion; rent-to-own (12–36 months) with flexible buyout options and capital expense treatment; and lease-to-own (36–60 months) with title transfer upon final payment and full tax depreciation eligibility.
Is preventive maintenance included in the rental agreement?

Yes—comprehensive service coverage includes quarterly remote diagnostics, biannual on-site performance verification, and priority response for critical failures. All consumables (filaments, ion sources, pump oils) are supplied under the agreement.
Can the system be upgraded during the rental term?

Absolutely. Hardware upgrades—including autosampler enhancements, additional GC inlets, or software modules (e.g., AutoQual, TraceFinder)—can be deployed without contract renegotiation, subject to pre-approved technical validation.
How is data security managed for rented instruments in regulated labs?

Chromeleon CDS enforces encrypted local storage, network-level TLS 1.2+ communication, and configurable data retention policies. Audit logs capture every user action—including method edits, data reprocessing, and report exports—with immutable timestamps aligned to NIST-traceable time servers.
What documentation is provided upon installation?

Customers receive a full IQ/OQ package compliant with ISO/IEC 17025 Annex A.2, including as-delivered specifications, factory calibration certificates, system suitability test records, and a signed URS (User Requirement Specification) sign-off document.
