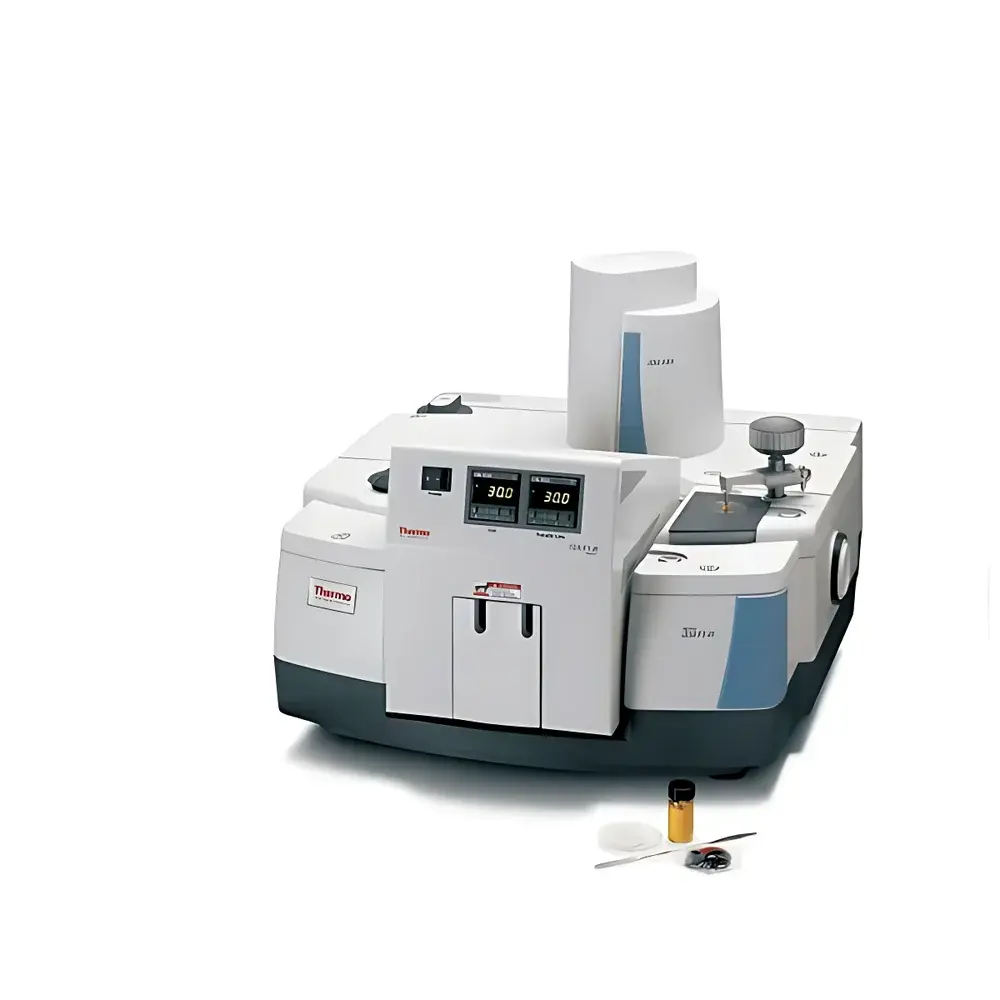

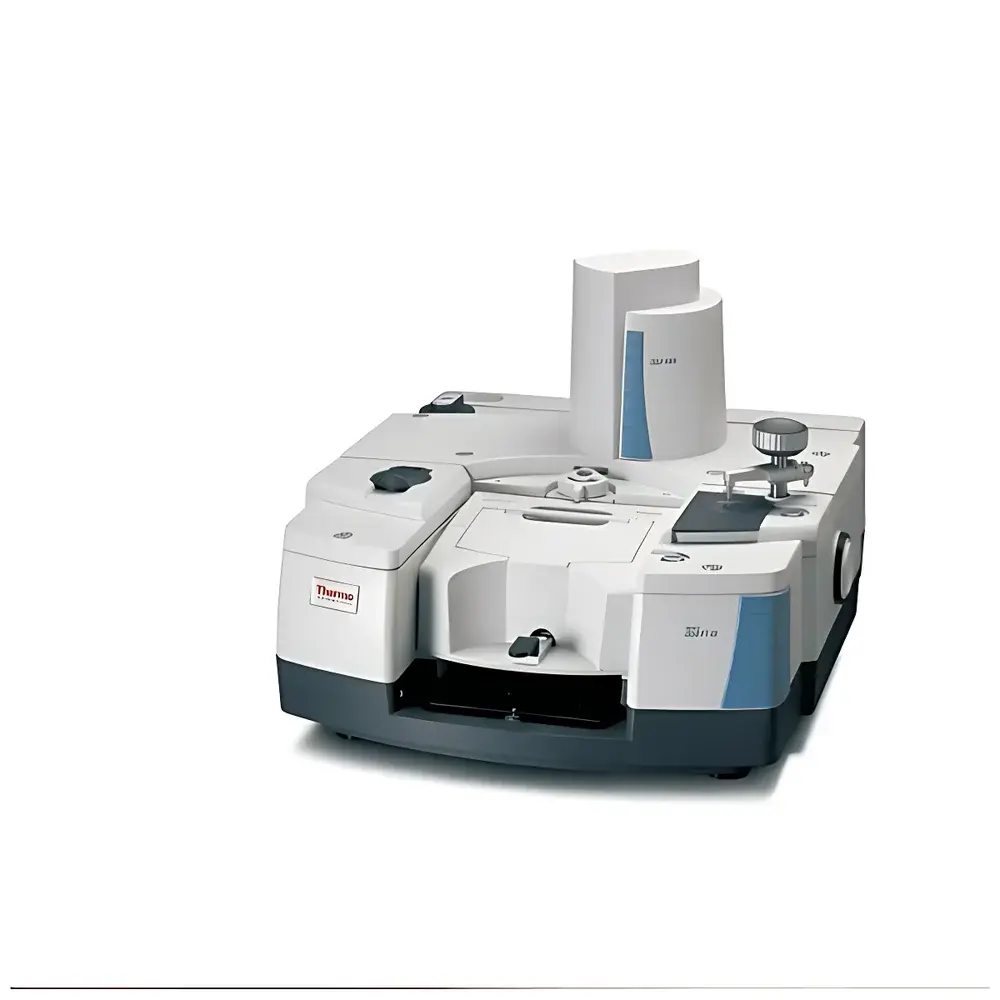

Thermo Scientific Nicolet iS50 FTIR Spectrometer

Overview

The Thermo Scientific Nicolet iS50 FTIR Spectrometer is a modular, research-grade Fourier transform infrared spectrometer engineered for precision, flexibility, and long-term analytical reliability in regulated and academic laboratories. Based on Michelson interferometry with high-stability laser referencing and thermally compensated optics, the iS50 delivers high signal-to-noise ratio (SNR), excellent wavenumber accuracy (< ±0.01 cm⁻¹), and exceptional spectral reproducibility across its standard 4000–370 cm⁻¹ mid-IR range—with optional extension to 12,000–10 cm⁻¹ via integrated far-IR and NIR modules. Its monolithic optical bench design minimizes alignment drift, while the fully gold-coated optical path ensures maximum throughput and corrosion resistance—critical for routine analysis of aggressive samples or humid environments. Unlike legacy benchtop systems requiring manual reconfiguration, the iS50 employs an intelligent optical architecture that enables seamless switching between measurement modes—including transmission, reflectance, ATR, DRIFTS, and specular reflection—without realignment or hardware swapping.

Key Features

• Modular multi-spectral platform supporting mid-IR, far-IR, NIR, and Raman spectroscopy through field-upgradable hardware inserts
• Dual-source illumination system: Polaris™ long-life IR source (rated >10,000 h) and tungsten-halogen visible/NIR source for hybrid characterization
• Three independent detector ports accommodating DTGS, MCT, and bolometer detectors simultaneously for parallel acquisition strategies
• Automated Beamsplitter Exchange (ABX) mechanism enabling rapid, software-controlled transition between KBr, quartz, CaF₂, and Mylar beamsplitters—eliminating manual intervention and contamination risk
• Integrated diamond ATR accessory with motorized pressure control and real-time contact monitoring for quantitative surface analysis of polymers, pharmaceuticals, and biological films
• Standard calibration wheel with NIST-traceable polystyrene and polyethylene standards for daily performance verification per ASTM E1421 and ISO 18382
• Compact footprint (62.6 × 69.8 × 27.6 cm base unit) optimized for space-constrained labs without compromising optical path length or resolution capability

Sample Compatibility & Compliance

The iS50 accommodates a broad spectrum of sample forms—solids (pellets, films, powders), liquids (neat, solutions, emulsions), gases (flow cells, sealed cells), and heterogeneous materials (coatings, composites, biological tissues)—through its universal sample compartment and extensive Smart Accessory ecosystem. All accessories are auto-recognized via RFID, triggering appropriate instrument parameter presets and spectral processing algorithms. The system complies with international analytical standards including ASTM E1421 (FTIR instrument qualification), ISO 18382 (spectral data format), and USP <1119> (infrared identification). When configured with OMNIC Enterprise software and Thermo Fisher Connect cloud services, the platform supports full 21 CFR Part 11 compliance—including electronic signatures, role-based access control, immutable audit trails, and secure data retention—meeting GxP requirements for pharmaceutical QC, forensic casework, and contract research organizations.

Software & Data Management

Controlled by the OMNIC Spectroscopy Suite, the iS50 provides intuitive method-driven operation—from automated baseline correction and peak deconvolution to multivariate chemometric modeling (PCA, PLS, SIMCA). OMNIC Anywhere extends functionality beyond the lab: users access .spa files, annotate spectra, generate reports, and perform library searches from any web-enabled device via Thermo Fisher Connect. Data is encrypted in transit and at rest using AES-256, hosted on Amazon Web Services (AWS) infrastructure compliant with ISO 27001, SOC 2, and HIPAA. Initial 10 GB cloud storage scales on demand; all spectral metadata—including instrument configuration, operator ID, timestamp, and environmental logs—is embedded in each file for full traceability under GLP and ISO/IEC 17025 accreditation frameworks.

Applications

• Pharmaceutical: Polymorph screening, excipient compatibility studies, counterfeit drug detection, and raw material identity testing per USP <197> and Ph. Eur. 2.2.24
• Polymers & Materials Science: Crosslink density quantification, oxidation index calculation, additive migration analysis, and degradation kinetics modeling
• Forensics: Fiber and paint chip identification, explosive residue profiling, and ink differentiation using spectral library matching (e.g., ASTM E2926)
• Food & Agriculture: Fat/oil composition analysis (iodine value, trans-fat content), adulterant detection (e.g., melamine in dairy), and authenticity verification of botanical extracts
• Academic Research: In situ catalysis monitoring, thin-film growth characterization, and molecular dynamics studies via time-resolved FTIR

FAQ

Does the iS50 support automated quantitative analysis for regulatory submissions?
Yes—when paired with OMNIC Enterprise and validated methods, the system meets FDA and EMA requirements for quantitative IR analysis, including linearity, LOD/LOQ determination, and system suitability testing.

Can existing Smart accessories from older Nicolet models be used with the iS50?
All Smart accessories manufactured since 2008 are fully compatible, including Smart Orbit, Smart iTR, and Smart Performer ATR units, with automatic firmware updates delivered via OMNIC.

Is vacuum purging required for high-resolution far-IR measurements?
A purge interface is optional but recommended for measurements below 600 cm⁻¹; dry air or nitrogen purge reduces atmospheric water vapor interference and improves SNR in the far-IR region.

How is spectral data integrity maintained during cloud synchronization?
Each .spa file includes digital signatures, checksums, and hierarchical metadata; cloud sync uses TLS 1.3 encryption and maintains version history with rollback capability for audit readiness.
