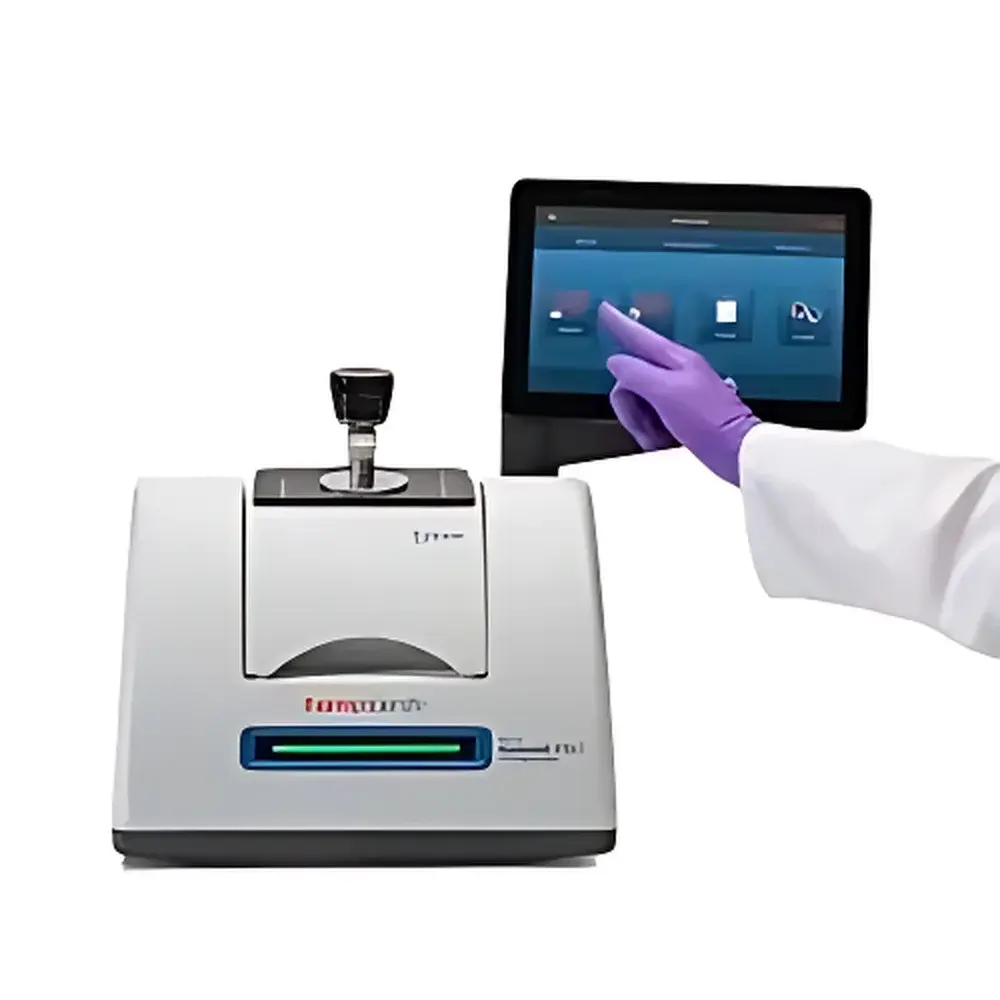

Thermo Scientific Nicolet Summit Fourier Transform Infrared (FT-IR) Spectrometer
| Brand | Thermo Fisher |
|---|---|
| Origin | USA |
| Manufacturer | Thermo Fisher Scientific |
| Product Type | Imported Laboratory FT-IR Spectrometer |
| Model | Summit |
| Instrument Type | Benchtop FT-IR |
| Wavenumber Range | 8,000–350 cm⁻¹ |
| Spectral Resolution | < 0.6 cm⁻¹ (optimizable to 0.4 cm⁻¹) |
| Signal-to-Noise Ratio | 45,000:1 (standard), up to 48,000:1 (optional) |
| Wavenumber Accuracy | ±0.05 cm⁻¹ at 2,000 cm⁻¹ |
Overview
The Thermo Scientific Nicolet Summit Fourier Transform Infrared (FT-IR) Spectrometer is an engineered solution for laboratories requiring high-fidelity spectral acquisition, rapid method deployment, and long-term operational reliability. Based on Michelson interferometry with a permanently aligned, solid-state LightDrive™ optical engine, the Summit delivers exceptional stability and repeatability across daily analytical workflows. Its core architecture eliminates moving mirrors and mechanical recalibration dependencies—replacing traditional air-bearing interferometers with a monolithic, vibration-resistant optical path. This design ensures consistent spectral fidelity over time, critical for quantitative batch release, raw material verification, and regulatory submissions in pharmaceutical, polymer, and materials science applications. With a broad wavenumber range spanning 8,000–350 cm⁻¹ and resolution configurable down to 0.4 cm⁻¹, the instrument supports both wide-scan qualitative screening and high-resolution peak deconvolution for complex mixtures.
Key Features
- LightDrive™ Optical Engine: A patented, solid-state interferometer with integrated HeNe laser reference and stabilized IR source—engineered for zero drift and 10-year limited warranty on optical subsystems.
- Real-Time Spectral Quality Feedback: Integrated LED light bar provides immediate visual indication (0–100%) of signal strength and sample transmission quality prior to scan completion.
- Intelligent Background Acquisition: System autonomously collects background spectra during idle periods, reducing total analysis cycle time by up to 50% without user intervention.
- Factory-Verified Performance: Every unit undergoes full spectral validation against traceable NIST SRM standards; published specifications reflect measured, not theoretical, performance.
- Modular Software Architecture: OMNIC™ Paradigm software suite offers desktop, touchscreen, and cloud-based (OMNIC Anywhere) interfaces—all sharing identical spectral processing algorithms and database structure.
- Regulatory-Ready Configuration: Optional 21 CFR Part 11-compliant software package includes electronic signatures, audit trail logging, role-based access control, and data integrity safeguards aligned with ALCOA+ principles.
Sample Compatibility & Compliance
The Summit features an open, unobstructed sample compartment accommodating >100 third-party and Thermo Scientific accessories—including diamond ATR, transmission cells, gas cells, microscopes, and diffuse reflectance modules. Its optical design maintains consistent throughput and alignment across all sampling modes. The system complies with pharmacopeial requirements outlined in USP , EP 2.2.24, JP 2.07, and ChP 0401 for infrared identification testing. Full GxP readiness is supported through validated IQ/OQ protocols, documented change control procedures, and integration into laboratory-wide LIMS or ELN environments. All firmware and software revisions are version-controlled and archived per ISO/IEC 17025 and FDA guidance on computerized systems.
Software & Data Management
OMNIC Paradigm serves as the unified analytical platform—supporting spectral preprocessing (ATR correction, baseline subtraction, vector normalization), multivariate analysis (PCA, PLS), and library search against a built-in collection of >10,000 reference spectra. Data files (.spa) are structured, metadata-rich, and natively compatible with Thermo Fisher’s Chromeleon CDS and third-party chemometric tools. Audit trails record every user action—including spectrum acquisition parameters, processing steps, and report generation—with immutable timestamps and operator IDs. Cloud synchronization via OMNIC Anywhere enables secure remote access to instruments, methods, and results while maintaining local data sovereignty and encryption-at-rest compliance (AES-256).
Applications
- Pharmaceutical QC/QA: Identity testing of APIs and excipients per ICH Q5C and compendial monographs; detection of polymorphic forms and hydration states.
- Materials Characterization: Quantification of carbonyl index in polyolefins; degree of cure in thermosets; surface oxidation in nanocomposites.
- Forensic Analysis: Discrimination of paint layers, adhesives, and synthetic fibers using spectral subtraction and hierarchical clustering.
- Academic Research: Time-resolved reaction monitoring via rapid-scan mode; low-concentration detection in catalytic studies using liquid nitrogen-cooled MCT detectors (optional).
- Environmental Screening: Identification of microplastics in environmental matrices using focal plane array (FPA) imaging coupled with automated particle classification.
FAQ
What is the warranty coverage for the LightDrive optical engine?
The LightDrive interferometer, laser, and IR source are covered under a 10-year limited warranty—subject to standard laboratory use conditions and routine preventive maintenance.
Can the Summit be integrated into an existing LIMS or ELN infrastructure?
Yes. The instrument supports ASTM E1384-compliant data export, HL7 messaging, and direct ODBC connectivity for seamless bidirectional integration with major LIMS/ELN platforms.
Is method transfer between Summit units reproducible?
Method portability is ensured through standardized spectral acquisition parameters, identical optical path lengths, and OMNIC’s cross-platform calibration file compatibility—validated per ASTM E1421.
Does the system support GLP-compliant electronic records?
When configured with the 21 CFR Part 11 software option, the Summit meets GLP requirements for electronic records and signatures—including full audit trail retention, data backup verification, and user authentication protocols.
How does the Summit handle ambient humidity and temperature fluctuations?
The optical bench is sealed and purged via optional dry air or nitrogen supply; internal temperature stabilization maintains interferometer alignment within ±0.1°C across 15–30°C ambient ranges.
