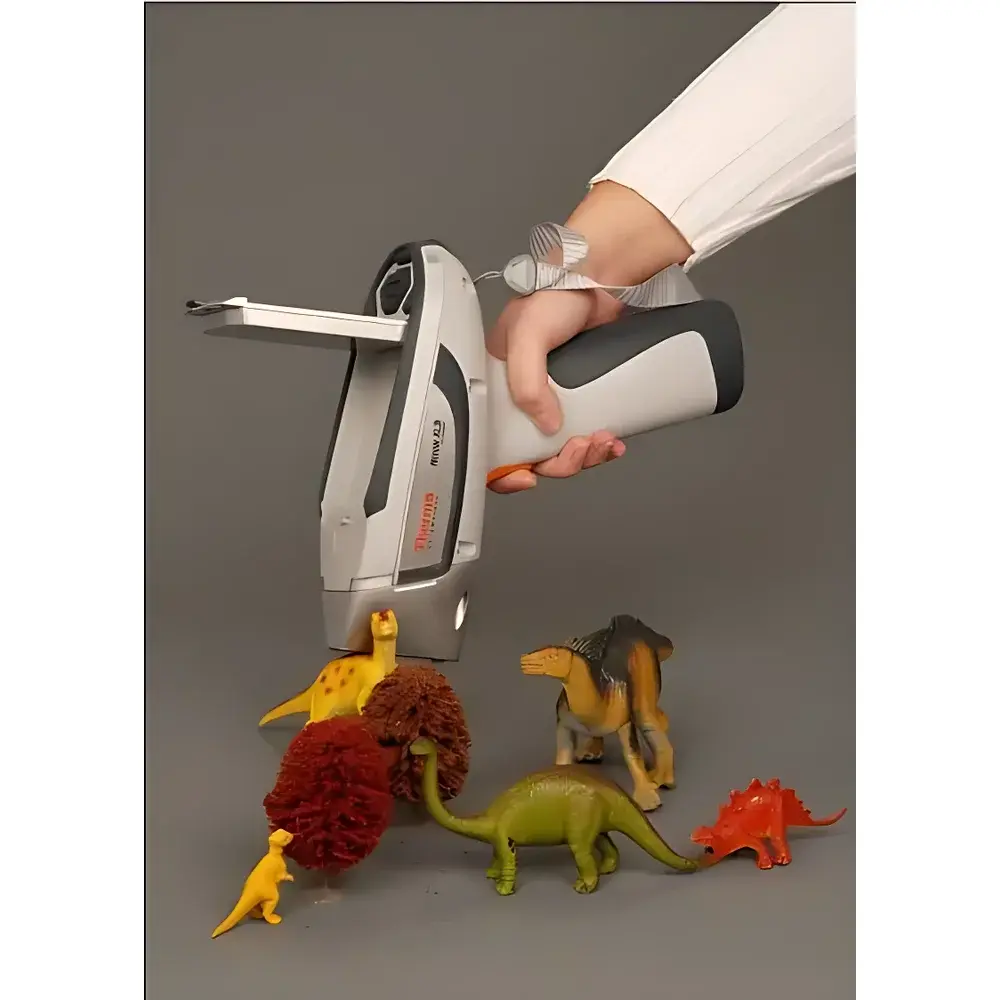

Thermo Scientific Niton XL3t700 Handheld Energy Dispersive X-Ray Fluorescence (EDXRF) Analyzer

Overview

The Thermo Scientific Niton XL3t700 is a field-deployable, handheld energy dispersive X-ray fluorescence (EDXRF) spectrometer engineered for rapid, non-destructive elemental analysis of solid materials at the point of need. Utilizing a high-brightness micro-focus X-ray tube and a high-efficiency silicon PIN diode detector, the XL3t700 operates on fundamental principles of XRF spectroscopy: incident X-rays excite inner-shell electrons in sample atoms; subsequent relaxation emits characteristic secondary X-rays whose energies and intensities are uniquely correlated to elemental identity and concentration. Its optimized geometry, spectral deconvolution algorithms, and factory-calibrated empirical models enable laboratory-grade precision under real-world conditions — without requiring sample preparation, vacuum chambers, or external cooling. Designed specifically for regulatory compliance screening in global supply chains, the XL3t700 delivers trace-level detection (sub-ppm to low-ppm LODs depending on matrix and element) for restricted substances mandated by U.S. CPSIA (HR 4040), EU RoHS/WEEE, EN 71-3, and other international product safety directives.

Key Features

• Lightweight ergonomic design (<1.3 kg) with balanced center-of-gravity for extended single-hand operation during field inspections or production line audits.
• VGA-resolution color touchscreen with mechanical tilt adjustment (0–90°), enabling optimal viewing in diverse lighting environments — including direct sunlight and low-illumination warehouse settings.
• Robust IP54-rated housing with reinforced magnesium alloy frame, meeting MIL-STD-810G shock and vibration requirements; rated for operation across –10 °C to 50 °C ambient temperatures.
• Integrated dual-anode X-ray source (Au standard; Ag optional) supporting both heavy-metal screening and light-element extension via helium purge accessory.
• Real-time spectrum acquisition and on-device quantitative analysis using empirically validated calibrations for metals, polymers, coatings, and consumer goods matrices.
• No radioactive isotopes: fully compliant with IAEA RS-G-1.9 and national radiation safety regulations governing portable analytical devices.
• Onboard diagnostics, automatic calibration verification, and self-reporting fault logging ensure measurement integrity and support GLP/GMP documentation requirements.

Sample Compatibility & Compliance

The XL3t700 accommodates heterogeneous, irregular, and coated samples — including metal alloys, plastic housings, painted surfaces, textiles, ceramics, and electronic components — without physical contact or surface modification. Its 3-mm collimated beam option enables spatially resolved analysis of fine features such as solder joints, plating layers, or printed circuit board traces. The analyzer meets ASTM F2853–22 (standard test method for determining lead, cadmium, mercury, and chromium in polymer and electronic materials) and ASTM E1621–21 (standard guide for XRF analysis of environmental and industrial samples). It supports full traceability per FDA 21 CFR Part 11 when operated with NDT software configured for electronic signatures, audit trails, and role-based access control. Instrument performance is validated against NIST SRM reference materials (e.g., SRM 2582, SRM 2583) and certified reference samples traceable to ISO/IEC 17025-accredited laboratories.

Software & Data Management

NITON Data Transfer (NDT) software v4.x provides secure, scalable data lifecycle management. It enforces ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) through encrypted local storage, time-stamped spectral logs, and immutable audit trails. Users can define custom reporting templates aligned with CPSC Form 7100, RoHS Declaration of Conformity, or internal QA checklists. Remote instrument configuration, firmware updates via HTTPS, and live telemetry monitoring are supported. Data export formats include CSV, PDF, XML, and proprietary .ndt files compatible with LIMS integration (via ODBC or REST API). All spectral raw data and processed results are retained locally on the device until explicitly transferred — eliminating reliance on cloud infrastructure or third-party servers.

Applications

• Supplier incoming inspection: Rapid verification of material declarations (e.g., RoHS-compliant brass vs. leaded bronze).
• In-process quality assurance: Real-time monitoring of plating thickness and composition on electroplated fasteners or connectors.
• Finished goods compliance testing: Screening toys, apparel, cosmetics packaging, and children’s products for regulated elements per CPSIA Section 101 and EN 71-3.
• Recycling stream sorting: Identification of alloy grades (e.g., 304 vs. 316 stainless) and detection of hazardous contaminants in e-waste streams.
• Environmental compliance: On-site soil and dust wipe testing for Pb, As, Cd in manufacturing facilities subject to EPA TSCA or EU REACH obligations.
• Forensic failure analysis: Corrosion product identification, counterfeit component detection, and coating delamination root cause investigation.

FAQ

Does the XL3t700 require annual calibration certification?
No — it performs automatic daily calibration checks using internal reference sources. However, periodic verification against certified reference materials (e.g., quarterly or per ISO/IEC 17025 requirements) is recommended for regulated environments.
Can the instrument analyze liquids or powders?
It is optimized for solid, flat, or gently curved surfaces. Powders may be analyzed in pressed pellets; liquids require containment in XRF-compatible cups with Mylar film windows — both methods fall outside factory-supported configurations and require method validation.
Is helium purge necessary for chlorine detection in PVC?
Yes — Cl Kα emission (2.62 keV) is strongly absorbed by air. Helium purging reduces absorption path length and improves signal-to-noise ratio, enabling reliable quantification below 100 ppm in polymer matrices.
How does the XL3t700 handle overlapping spectral peaks (e.g., Pb M-lines interfering with Sb L-lines)?
Its high-resolution Si-PIN detector combined with proprietary peak deconvolution algorithms (based on fundamental parameter modeling) resolves complex overlaps with <5% relative error in certified reference materials.
What cybersecurity protocols are implemented in NDT software?
NDT employs TLS 1.2+ encryption for data transmission, AES-256 encryption for local database storage, and Windows-native Active Directory integration for enterprise authentication and group policy enforcement.
