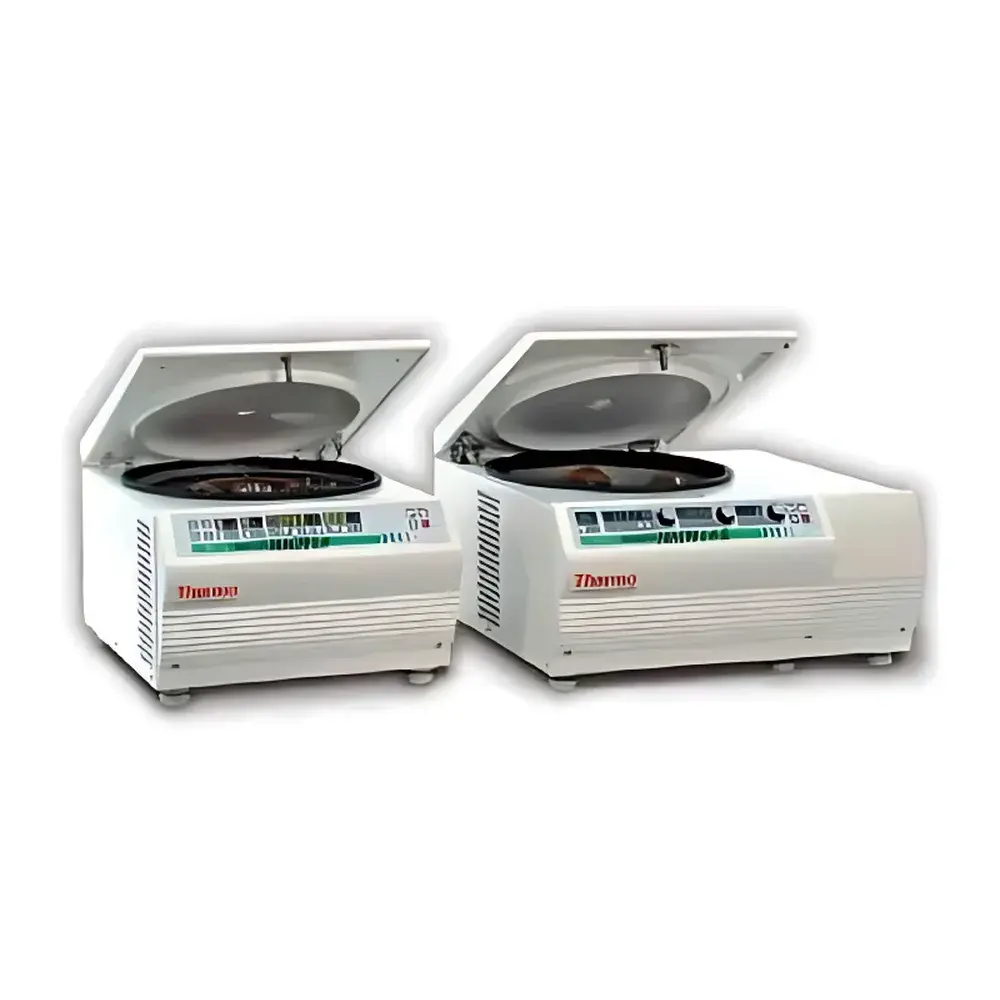

Thermo Scientific Sorvall Legend Mach 1.6/R Centrifuge
| Brand | Thermo Fisher |
|---|---|
| Origin | USA |
| Model | Sorvall Legend Mach 1.6/R |
| Maximum Speed | 15,000 rpm |
| Relative Centrifugal Force (RCF) | 24,652 × g |
| Maximum Capacity | 1.6 L |
| Rotor Compatibility | Fixed-angle, swing-bucket, microplate, high-conicity, and shielded swing-bucket rotors |
| Regulatory Compliance | Designed to meet ISO 13485 design control principles |
Overview
The Thermo Scientific Sorvall Legend Mach 1.6/R is a high-performance refrigerated benchtop centrifuge engineered for reproducible, high-throughput separation in demanding life science, clinical diagnostics, and quality control laboratories. Utilizing brushless induction motor technology and active refrigeration (operating range: –9 °C to +40 °C), the system maintains precise temperature control during extended runs—critical for thermolabile biomolecules such as plasmid DNA, exosomes, and enzyme complexes. Its rotor recognition system automatically identifies installed rotors and enforces speed/temperature safety limits per ISO 21501-4 and IEC 61010-2-020 standards. The 1.6 L maximum capacity accommodates up to four 400 mL bottles or 96 × 1.5/2.0 mL tubes in a single run, significantly reducing batch processing time without compromising gravitational uniformity across the chamber.
Key Features
- Refrigerated operation with rapid cooldown (<15 min from ambient to –9 °C) and ±1 °C temperature accuracy at setpoint
- Intelligent rotor detection via embedded RFID tags—prevents overspeeding and ensures protocol integrity
- Three-stage braking system with adjustable deceleration profiles (soft, medium, fast) to minimize sample resuspension
- Ergonomic, tool-free rotor exchange mechanism compliant with ISO 14155 human factors guidelines
- Touchscreen interface with multi-language support (English, Spanish, German, French, Chinese) and user-level access control (admin/operator/guest)
- Acoustic noise level ≤57 dB(A) at maximum speed—designed for shared lab environments
Sample Compatibility & Compliance
The Sorvall Legend Mach 1.6/R accepts a broad spectrum of sample formats through certified Thermo Scientific rotors: fixed-angle rotors (e.g., F14–6×50, 15,000 rpm), swing-bucket rotors (e.g., S6M-1000, 5,000 rpm), high-conicity angle rotors for pelleting viscous lysates, microplate carriers (96-well deep-well and PCR plates), and shielded swing-bucket configurations for biohazard containment (BSL-2 compliance). All rotors are validated per ASTM F2119 for mechanical fatigue and burst testing. The instrument’s firmware architecture supports audit trails, electronic signatures, and exportable run logs—fully compatible with FDA 21 CFR Part 11 requirements when deployed with Thermo Fisher Connect software and appropriate IT infrastructure.
Software & Data Management
Control and monitoring are enabled via the integrated touchscreen or optionally through Thermo Fisher Connect—a cloud-enabled platform that facilitates remote instrument status checks, method synchronization across multiple devices, and automated report generation in PDF or CSV. Each centrifugation run generates a timestamped metadata record including rotor ID, speed profile, temperature history, acceleration/deceleration curves, and door cycle events. Data exports include ISO/IEC 17025-compliant calibration certificates and can be imported into LIMS systems using HL7 or ASTM E1384 interfaces. Firmware updates are delivered via secure HTTPS and require dual-authentication approval before installation.
Applications
This centrifuge serves core workflows across molecular biology (nucleic acid purification, virus concentration), cell culture (harvesting adherent and suspension cells), clinical chemistry (serum/plasma separation), biopharmaceutical QC (clarification of monoclonal antibody harvests), and environmental microbiology (waterborne pathogen concentration). Its high RCF capability enables rapid pelleting of subcellular organelles (mitochondria, nuclei) and nanoparticle suspensions (e.g., liposomes, polymeric NPs), while its large-volume capacity supports process development scale-up studies under cGMP-aligned operating procedures.
FAQ
What is the minimum rotor clearance required for safe operation?
The instrument requires ≥2 mm radial clearance between rotor outer diameter and chamber wall—automatically verified during rotor installation.
Does the Legend Mach 1.6/R support continuous operation at 4 °C for >8 hours?
Yes—thermal management system is rated for uninterrupted 24/7 operation within the specified temperature range, with compressor duty cycle monitored and logged.
Can third-party rotors be used?
No—only Thermo Fisher-certified rotors with embedded RFID identifiers are recognized and permitted by the safety interlock system.
Is validation documentation available for IQ/OQ/PQ protocols?
Yes—factory-issued validation kits include test scripts, acceptance criteria aligned with USP , and blank templates for user-executed qualification.
How is vibration isolation achieved during high-speed runs?
The unit employs a dual-spring suspension system coupled with dynamic imbalance compensation algorithms that adjust motor torque in real time to suppress harmonic resonance.
