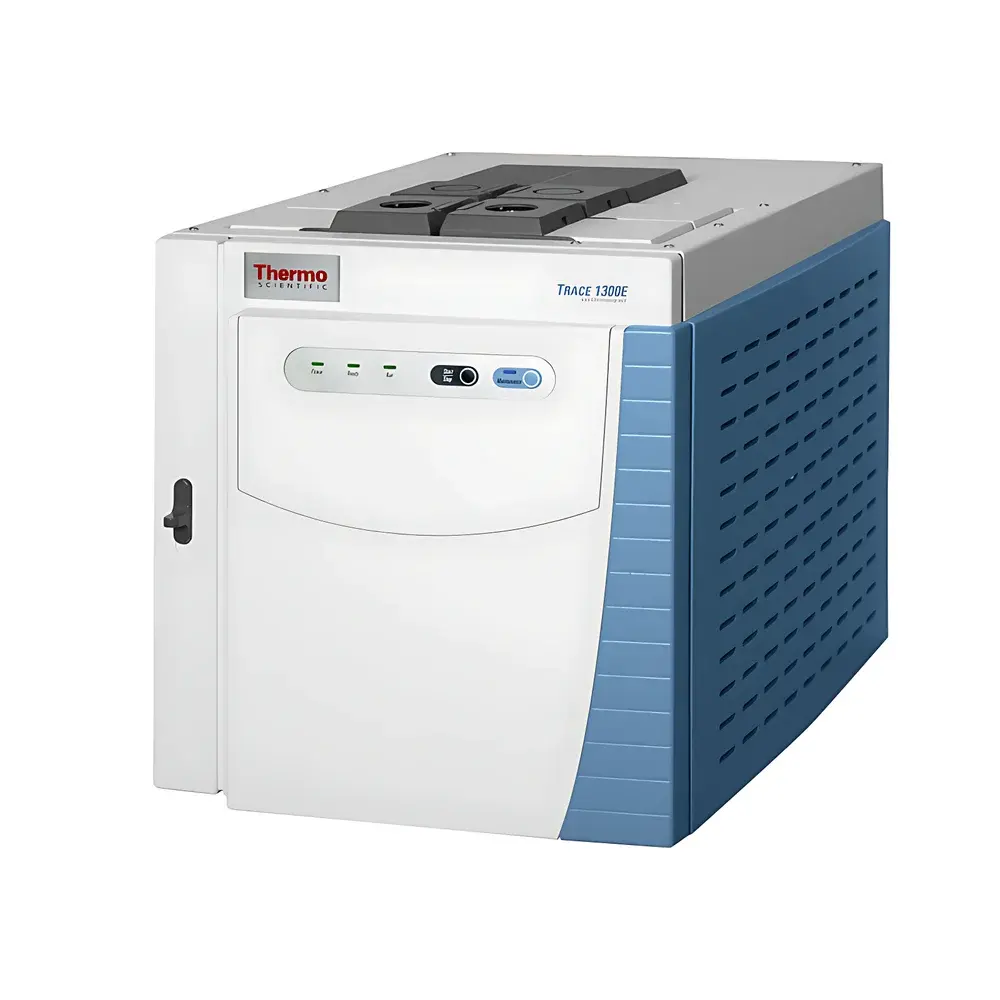

Thermo Scientific TRACE 1300E Gas Chromatograph

Overview

The Thermo Scientific™ TRACE™ 1300E Gas Chromatograph is a modular, high-performance benchtop GC system engineered for precision, operational robustness, and long-term analytical reliability in regulated and non-regulated laboratory environments. Built upon the proven architecture of the TRACE 1300 platform, the 1300E integrates digitally controlled electronic pneumatic control (EPC) modules for carrier gas, make-up gas, and detector gases—ensuring sub-milliliter-per-minute flow stability and pressure resolution down to 0.1 kPa. Its core separation principle relies on differential partitioning of volatile and semi-volatile analytes between a mobile phase (inert carrier gas, e.g., He, H₂, or N₂) and a stationary phase coated inside a fused-silica capillary column. Temperature-programmed elution within the thermally insulated oven enables high-resolution separation across complex matrices—critical for applications ranging from residual solvent analysis per ICH Q3C to hydrocarbon profiling in petrochemical feedstocks.

Key Features

• Modular inlet and detector architecture with plug-and-play connectivity—no tools required for SSL inlet liner or septum replacement
• Digital EPC with real-time feedback control across all gas channels (carrier, split, purge, detector make-up), supporting method transfer reproducibility per ASTM D3699 and ISO 17025 requirements
• Oven temperature range from ambient to 450 °C with programmable ramp rates up to 125 °C/min and thermal uniformity ±0.1 °C across the column bed
• Compatible with multiple detection modalities: FID, ECD, TCD, NPD, and FPD—all featuring integrated EPC and factory-calibrated response factors
• SSL inlet supports both split and splitless injection modes; optional backflush capability minimizes column contamination during analysis of dirty samples
• Gas Sampling Valve (GSV) module enables automated, quantitative injection of gaseous standards or process streams without liquid-phase conversion
• Compact Auxiliary Valve Box (AVB) provides additional pressure- and flow-controlled valving for heart-cutting, column switching, or multidimensional GC (GC×GC) configurations

Sample Compatibility & Compliance

The TRACE 1300E accommodates a broad spectrum of sample types—including aqueous extracts, organic solvents, polymer leachates, refinery gases, and environmental air canisters—when paired with appropriate inlet modules and column chemistries. Its design conforms to international safety and electromagnetic compatibility directives: EN 61010-1:2010 (3rd edition), IEC 61010-1:2010 (3rd edition), CAN/CSA C22.2 No. 61010-1-12, and UL 61010-1:2012. While the instrument itself does not carry FDA 21 CFR Part 11 certification out-of-the-box, its integration with Thermo Scientific™ Dionex™ Chromeleon™ 7.3 or later software—configured with audit trail, electronic signatures, and role-based access control—enables full compliance with GLP, GMP, and regulatory data integrity expectations.

Software & Data Management

Controlled exclusively via Chromeleon Chromatography Data System (CDS), the TRACE 1300E leverages a unified, browser-accessible interface for method development, sequence definition, real-time monitoring, and report generation. Chromeleon supports AIA/CDF export, LIMS integration via ODBC or RESTful APIs, and automated calibration verification workflows aligned with USP and EP 2.2.47. All hardware modules store embedded calibration metadata (e.g., flow vs. pressure curves, detector gain coefficients), enabling automatic parameter reapplication upon module swap—reducing manual recalibration frequency and minimizing inter-operator variability. Raw data files are stored in vendor-neutral .CDF format, ensuring long-term archival accessibility independent of software version.

Applications

• Residual solvent quantification in pharmaceuticals (ICH Q3C-compliant methods)
• Fatty acid methyl ester (FAME) profiling in biodiesel per ASTM D6584
• Volatile organic compound (VOC) analysis in drinking water (EPA Method 524.2)
• Hydrocarbon group-type analysis (PIONA) in gasoline and naphtha streams
• Pesticide multiresidue screening in food matrices using multi-detection strategies (e.g., FID + ECD)
• Environmental air monitoring for BTEX and chlorinated solvents (TO-17, TO-15)
• Polycyclic aromatic hydrocarbon (PAH) determination in soil and sediment extracts

FAQ

Does the TRACE 1300E support unattended operation with autosamplers?
Yes—it is fully compatible with the Thermo Scientific AI/AS 1310 Autosampler, supporting up to 162 vials with programmable wash cycles, temperature-controlled tray, and syringe leak detection.

Can the system be upgraded to support GC×GC configurations?
Yes—via the Compact Auxiliary Valve Box (AVB) and optional modulator modules, enabling comprehensive two-dimensional separations without external hardware integration.

What is the typical column bleed specification for standard 5% phenyl polysiloxane columns at 325 °C?
Column bleed remains below 2 pA baseline current when using certified low-bleed columns; actual values depend on column age, conditioning history, and carrier gas purity.

Is remote diagnostics and firmware updates supported?
Yes—Chromeleon CDS includes secure remote access capabilities (with customer-configured firewall rules), and firmware updates are distributed via Thermo Fisher’s validated release channel with version-controlled change logs.

Are consumables interchangeable with prior TRACE 1300 series instruments?
Yes—liners, septa, ferrules, and columns designed for the TRACE 1300 platform are fully compatible with the 1300E, preserving inventory continuity and reducing total cost of ownership.
