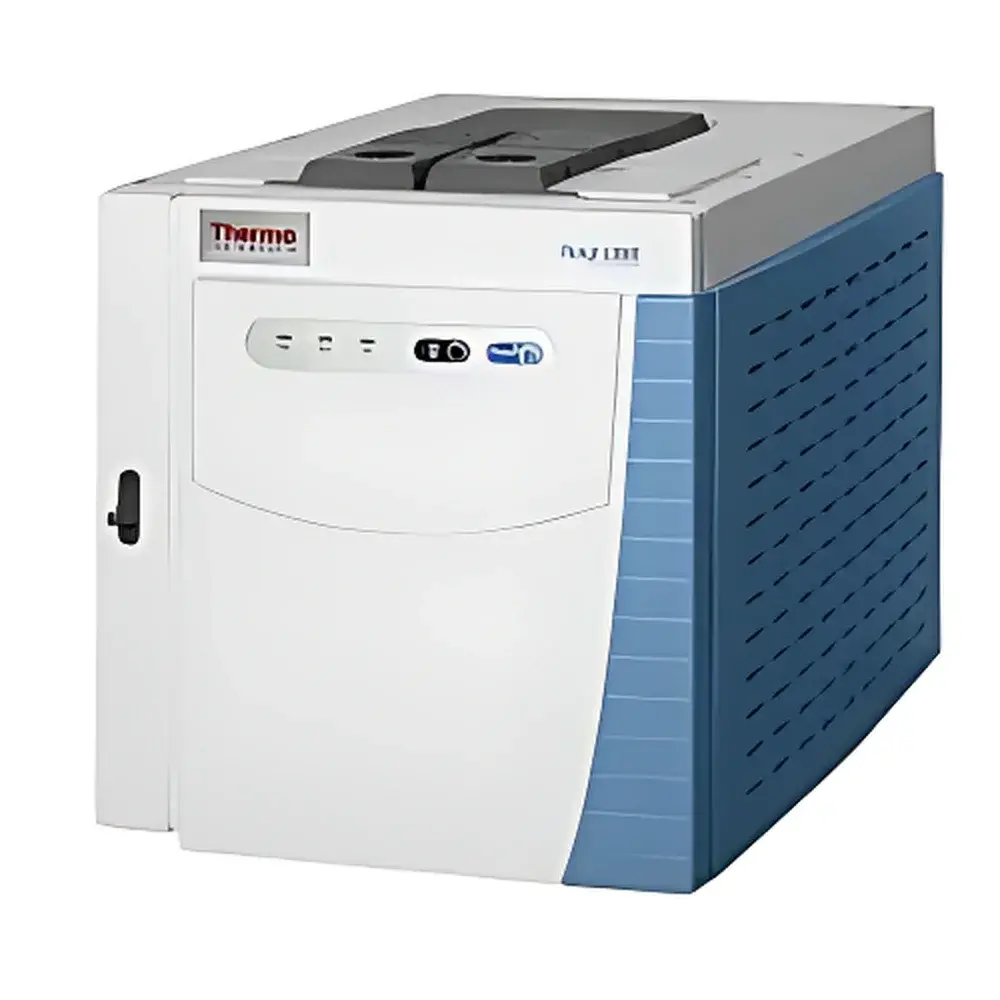

Thermo Scientific TRACE 1300E Gas Chromatograph
| Brand | Thermo Fisher |
|---|---|
| Origin | USA |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Origin Category | Imported Instrument |
| Model | TRACE 1300E |
| Price Range | USD 135,000 – 205,000 |
| Instrument Type | Laboratory Gas Chromatograph |
| Application Fields | Chemical Analysis, Petrochemical Analysis, Environmental Testing, Food & Flavor Analysis, Pharmaceutical QC |
Overview
The Thermo Scientific™ TRACE™ 1300E Gas Chromatograph is a modular, benchtop GC platform engineered for precision, operational resilience, and long-term analytical continuity in regulated and high-throughput laboratory environments. Built upon the proven architecture of the TRACE 1300 series, the 1300E implements advanced electronic pneumatic control (EPC) across all gas flow paths—carrier, makeup, and detector gases—ensuring sub-milliliter-per-minute flow stability and retention time reproducibility ≤ 0.008 min (RSD < 0.15% over 24 h). Its core separation principle relies on partition chromatography: analytes are volatilized in a heated inlet, transported through a fused-silica capillary column by an inert carrier gas (e.g., helium, hydrogen, or nitrogen), and differentially retained based on polarity, molecular weight, and stationary phase interaction. Detection occurs downstream via selective ionization or thermal conductivity mechanisms, depending on the installed detector module.
Key Features
- Modular inlet and detector architecture enabling tool-free, hot-swappable configuration—no recalibration or system purge required when exchanging modules.
- Instant-connect Split/Splitless (SSL) inlet with integrated septum and liner replacement mechanism; full maintenance completed in under 90 seconds without disassembling adjacent components.
- Electronic pressure and flow control (EPC/EFC) with real-time digital feedback loops for all gas channels, compliant with ISO/IEC 17025 method validation requirements.
- Pre-stored calibration metadata embedded in each module’s EEPROM—ensures consistent detector response factors and inlet activity profiles across instrument reconfigurations.
- Backflush-capable SSL inlet and optional gas sampling valve (GSV) for extended column life and reduced matrix interference in complex samples (e.g., refinery streams, biogas, polymer extracts).
- Compatible with Thermo Scientific AI/AS 1310 autosampler for unattended 162-sample operation, supporting vial agitation, programmable syringe wash, and dual-needle capability.
- Compact auxiliary valve box (AVB) for multi-dimensional GC (MDGC) and heart-cutting applications, supporting up to four independent solenoid-controlled flow paths.
Sample Compatibility & Compliance
The TRACE 1300E accommodates liquid, gaseous, and volatile solid samples via standardized 4-mm OD glass liners (0.75 mm ID), universal septa (red silicone/rubber composite), and industry-standard ferrule systems (Vespel/graphite, 0.4 mm ID). It supports ASTM D3606 (benzene/toluene in gasoline), EPA Method 8260D (volatile organic compounds in water/soil), USP (chromatographic separations), and ISO 17025-accredited workflows. Safety certification includes EN 61010-1:2010 (3rd edition), IEC 61010-1:2010, CAN/CSA C22.2 No. 61010-1-12, and UL 61010-1:2012—covering electrical safety, mechanical stability, and thermal hazard mitigation during unattended operation.
Software & Data Management
Controlled exclusively via Thermo Scientific™ Dionex™ Chromeleon™ 7.3 Chromatography Data System (CDS), the 1300E supports 21 CFR Part 11-compliant audit trails, electronic signatures, role-based user permissions, and secure data archiving. Chromeleon enables method templating, sequence scheduling, real-time peak tracking, and automated calibration curve generation (linear, quadratic, or weighted least-squares). Raw data (.RAW) files are stored in vendor-neutral format, exportable to CSV, PDF, or AIA/ANDI standards for LIMS integration. All instrument logs—including EPC setpoint deviations, temperature ramp histories, and detector baseline noise statistics—are timestamped and cryptographically hashed for GLP/GMP traceability.
Applications
- Petrochemical QA/QC: Hydrocarbon group-type analysis (PIONA), sulfur speciation (e.g., mercaptans, sulfides), and olefin saturation monitoring.
- Environmental testing: VOC screening in air canisters (TO-14A/TO-15), pesticide residue profiling in soil/water per EPA SW-846 methods.
- Food & flavor chemistry: Fatty acid methyl ester (FAME) profiling, residual solvent quantification (ICH Q3C), and aroma compound fingerprinting.
- Pharmaceutical impurity profiling: Genotoxic nitrosamine detection (e.g., NDMA, NDEA) at low-ppt levels using NPD or ECD.
- Materials science: Monomer purity assessment in polymer feedstocks, outgassing analysis of encapsulants and adhesives.
FAQ
Is the TRACE 1300E compatible with third-party columns and consumables?
Yes—it accepts standard 0.1–0.53 mm ID fused-silica capillary columns (Agilent, Restek, Shimadzu), universal inlet liners (0.75 mm ID), and septa meeting ASTM D6299 specifications.
Does the system support method transfer from legacy TRACE 1300 or Focus GC platforms?
Yes—Chromeleon 7.3 provides backward-compatible method import tools and automatic parameter mapping for retention time alignment and EPC setpoint conversion.
What level of preventive maintenance is required for routine operation?
Recommended quarterly checks include inlet liner inspection, detector jet cleaning (FID), and EPC sensor verification using certified flow standards; no annual recalibration is mandated if operating within specified environmental conditions (15–30 °C, <80% RH).
Can the 1300E be integrated into a networked laboratory environment with centralized data governance?
Yes—Chromeleon supports SQL Server-based enterprise deployment, LDAP/Active Directory authentication, and TLS 1.2-encrypted data transmission to central repositories.
