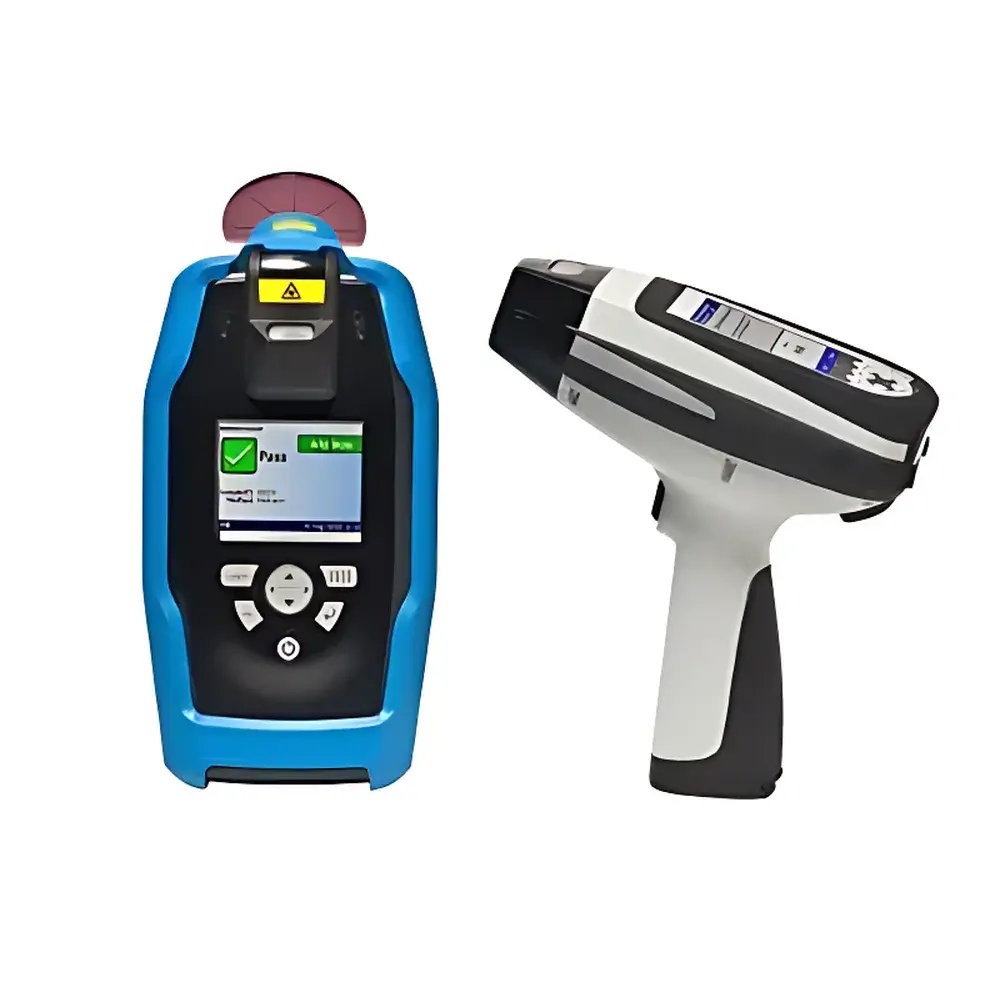

Thermo Scientific TruScan RM & microPHAZIR RX Handheld Raman and Near-Infrared Spectrometers for GMP Material Identification

Overview

The Thermo Scientific™ TruScan RM and microPHAZIR™ RX are purpose-built handheld spectroscopic analyzers engineered for rapid, non-invasive material identification in regulated pharmaceutical and consumer health manufacturing environments. The TruScan RM employs high-sensitivity Raman spectroscopy—based on inelastic light scattering—to generate molecular fingerprint spectra with high chemical specificity, enabling unambiguous identification of active pharmaceutical ingredients (APIs), excipients, and packaging polymers—even through transparent glass or plastic containers. The microPHAZIR RX utilizes near-infrared (NIR) spectroscopy (700–2500 nm range) optimized for rapid qualitative screening of bulk powders, tablets, capsules, and raw materials using diffuse reflectance and transmission modes. Both platforms operate on a library-matching algorithm architecture validated per ICH Q5E and USP , delivering results in under 5 seconds with no sample preparation required. Designed from inception for Good Manufacturing Practice (GMP) compliance, these instruments support full audit trails, electronic signatures, and secure user access control—making them suitable for use in quality control (QC), receiving inspection, and warehouse release workflows under FDA, EMA, and PMDA oversight.

Key Features

• Real-time, non-destructive analysis—no sampling, grinding, or dissolution required
• Through-container capability: identify APIs and excipients inside amber glass vials, HDPE bottles, blister packs, and sealed sachets
• GMP-ready software architecture compliant with 21 CFR Part 11, Annex 11, and USP Analytical Instrument Qualification (AIQ)
• Pre-validated spectral libraries for >3,500 pharmaceutical compounds, dietary supplement actives (e.g., vitamins B12, D3, curcumin, L-theanine), and common packaging polymers (e.g., PVC, PVDC, PP, PET, ALU)
• Ruggedized IP65-rated enclosure with MIL-STD-810G shock and drop resistance for field deployment in warehouses, loading docks, and cleanroom anterooms
• Integrated barcode scanner and RFID reader for automated sample traceability and batch record linkage
• Onboard data encryption (AES-256) and role-based user authentication with multi-level permission tiers (Operator, Supervisor, Administrator)

Sample Compatibility & Compliance

Both instruments are qualified for use across solid dosage forms, powdered APIs, herbal extracts, nutraceutical blends, and primary/secondary packaging components. The TruScan RM demonstrates superior performance for crystalline and amorphous small molecules with strong Raman cross-sections (e.g., paracetamol, ibuprofen, caffeine), while the microPHAZIR RX excels in detecting functional groups associated with carbohydrates, proteins, and lipids—ideal for botanicals, probiotics, and vitamin complexes. All spectral acquisition protocols adhere to ASTM E1840 (Standard Guide for Raman Spectroscopy) and ISO/IEC 17025:2017 requirements for testing laboratories. Instrument qualification documentation—including Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ)—is provided as part of the Thermo Scientific GMP Validation Package. Each system supports full lifecycle data integrity per ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Software & Data Management

Powered by Thermo Scientific™ OMNIC™ Mobile and SpectraAssure™ GMP Software Suite, both platforms deliver integrated instrument control, spectral acquisition, library search, result reporting, and electronic record management. The software enforces mandatory metadata capture—including operator ID, timestamp, location GPS tag (optional), environmental conditions (temperature/humidity), and instrument calibration status—at every measurement event. All raw spectra, processed results, and audit logs are stored in a tamper-evident SQLite database with SHA-256 hashing. Data export is supported in ASTM E1348-compliant .spc and .jdx formats, and seamless integration with LIMS (e.g., LabVantage, STARLIMS) and MES systems is enabled via RESTful API and HL7 v2.x interfaces. Electronic signature workflows comply with 21 CFR Part 11 Subpart B requirements, including biometric or PKI-based signing, signature justification fields, and irreversible record locking upon final approval.

Applications

• Raw material receipt inspection per 21 CFR Part 211.84(a): immediate identity verification of APIs, excipients, and packaging components prior to warehouse release
• In-process verification of blend uniformity and content consistency in granulation and compression suites
• Counterfeit drug detection: differentiation of authentic vs. adulterated or substituted products based on spectral deviation thresholds (±0.5% cosine similarity)
• Stability-indicating screening: detection of degradation products (e.g., oxidation, hydrolysis) in accelerated stability samples without chromatographic separation
• Supplier qualification support: spectral fingerprinting of incoming lots against master reference standards maintained in the corporate spectral library
• Regulatory submission support: inclusion of spectral validation reports in ANDA, NDA, and MAA dossiers per ICH M4Q(R2) and FDA Guidance for Industry on Analytical Procedures and Methods Validation

FAQ

Are these instruments compliant with 21 CFR Part 11 for electronic records and signatures?

Yes—both TruScan RM and microPHAZIR RX include fully validated software modules supporting audit trail generation, electronic signatures with identity verification, and record retention policies aligned with FDA expectations.
Can the analyzers distinguish between polymorphic forms of the same API?

The TruScan RM is capable of differentiating crystalline polymorphs (e.g., ritonavir Forms I and II) due to Raman’s sensitivity to lattice vibrations; microPHAZIR RX offers limited polymorph discrimination but is effective for hydrate/anhydrate differentiation in select cases.
Is method transfer between TruScan RM and microPHAZIR RX possible?

While spectral libraries are instrument-specific due to fundamental differences in scattering physics and detector response, Thermo provides cross-platform library alignment tools and supports co-validation studies per ICH Q5E.
What calibration and maintenance procedures are required for GMP use?

Daily performance verification using NIST-traceable polystyrene and silicon standards is recommended; full wavelength and intensity calibration is performed semi-annually by certified Thermo Field Service Engineers with documented PQ reports.
How are spectral libraries updated and version-controlled?

Libraries are managed centrally via SpectraAssure™ Cloud, with version history, change logs, and approval workflows enforced per change control SOPs. Updates require dual authorization and automatic backup prior to deployment.
