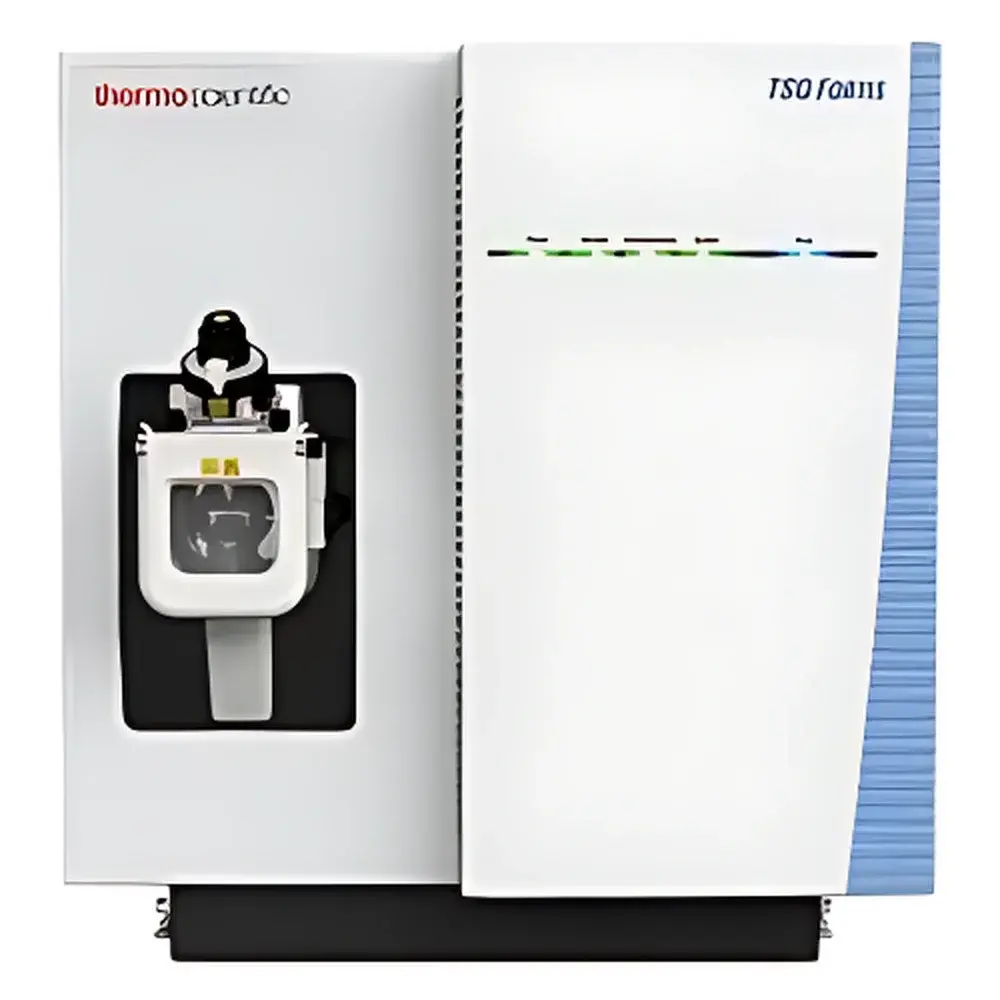

Thermo Scientific TSQ Fortis™ Triple Quadrupole Mass Spectrometer

Overview

The Thermo Scientific TSQ Fortis™ Triple Quadrupole Mass Spectrometer is a purpose-built platform engineered for high-throughput, robust, and reproducible quantitative analysis in regulated and non-regulated laboratories. Operating on the principle of tandem mass spectrometry (MS/MS) via three quadrupole mass filters—Q1 (mass selection), q2 (collision-induced dissociation cell), and Q3 (mass analysis)—the system delivers exceptional selectivity, sensitivity, and dynamic range for targeted quantitation across diverse molecular classes, including small molecules, peptides, lipids, and metabolites. Designed to integrate natively with Thermo Scientific Vanquish UHPLC and UltiMate 3000 HPLC systems, as well as automated sample preparation workflows, the TSQ Fortis supports method transfer, routine compliance, and scalable deployment in pharmaceutical QC, clinical research, environmental monitoring, and food safety laboratories.

Key Features

• Enhanced Duty Cycle Efficiency: Optimized RF/DC voltage control and fast polarity switching enable simultaneous positive/negative mode acquisition without compromising dwell time or cycle time—critical for multi-analyte assays requiring sub-second dwell times per transition.
• Robust Ion Optics Architecture: Features an ion transfer optics design resistant to matrix-induced signal suppression and contamination buildup, contributing to extended uptime (>95% instrument availability in validated 24/7 operation) and consistent inter-day precision (RSD < 8% over 72 h).
• Intelligent Source Design: The heated electrospray ionization (H-ESI) and advanced atmospheric pressure chemical ionization (APCI) sources incorporate real-time temperature and gas flow optimization, ensuring stable ion generation across variable mobile phase compositions and flow rates (0.05–2.0 mL/min).
• Quantitative Performance at Low Dwell Times: Maintains linear dynamic range (>5 orders of magnitude) and sub-pg/mL LLOQs even with dwell times as short as 5 ms—enabling high-multiplexing workflows without sacrificing accuracy or precision.
• Regulatory-Ready Platform: Fully compliant with 21 CFR Part 11 requirements when paired with Thermo Scientific Chromeleon™ CDS and TraceFinder™ software, supporting electronic signatures, audit trails, and role-based access control for GLP/GMP environments.

Sample Compatibility & Compliance

The TSQ Fortis accommodates liquid samples introduced via standard LC interfaces—including reversed-phase, HILIC, and ion-pairing chromatography—as well as direct infusion for rapid screening. It supports derivatized and underivatized analytes, polar and non-polar compounds, and thermally labile species through optimized source conditions. The system meets ISO/IEC 17025:2017 calibration traceability standards and is validated against ASTM D7622 (for environmental pesticide residue analysis) and USP <1225> (validation of analytical procedures). Instrument qualification documentation—including IQ/OQ/PQ protocols—is provided and compatible with laboratory quality management systems (QMS).

Software & Data Management

Thermo Scientific TraceFinder™ software serves as the unified data acquisition, processing, and reporting engine for the TSQ Fortis. It provides intuitive method setup wizards, automated peak integration with customizable retention time windows, and built-in compliance features including full electronic audit trail, user activity logging, and secure data archiving. Integration with Thermo Scientific Chromeleon™ Chromatography Data System enables centralized instrument control, sequence management, and cross-platform data correlation. All raw and processed data are stored in vendor-neutral .raw format and can be exported to LIMS or ELN platforms via standardized APIs compliant with ASTM E1578 and ISO 11171.

Applications

• Pharmaceutical impurity profiling and stability-indicating assays per ICH Q2(R2)
• Clinical toxicology screening for drugs of abuse, therapeutic drug monitoring (TDM), and newborn screening panels
• Environmental analysis of PFAS, pesticides, and emerging contaminants in water, soil, and biota
• Food safety testing for mycotoxins, veterinary drug residues, and allergen markers
• Metabolomics and lipidomics quantitation using isotope-labeled internal standards and scheduled MRM acquisition

FAQ

Is the TSQ Fortis compatible with non-Thermo LC systems?
Yes—the instrument supports industry-standard analog and digital I/O interfaces (e.g., TTL triggers, RS-232, Ethernet) for synchronization with third-party HPLC/UHPLC systems, though optimal performance and seamless method transfer are achieved with Thermo Vanquish or UltiMate platforms.
What regulatory documentation is included with the system?
Each TSQ Fortis shipment includes Factory Acceptance Test (FAT) reports, Certificate of Conformance, electrical safety certification (UL/CSA/CE), and a complete set of IQ/OQ protocols aligned with ASTM E2500 and EU Annex 11 guidelines.
Does the system support retrospective data reprocessing?
Yes—TraceFinder™ allows full reprocessing of acquired .raw files with updated calibration curves, integration parameters, or transition lists, maintaining full audit trail integrity and version-controlled metadata.
Can the TSQ Fortis be upgraded to support new application packages?
Yes—software updates, application-specific method libraries (e.g., EPA Method 1694, FDA Bioanalytical Method Validation Guidance), and firmware enhancements are delivered via Thermo Fisher’s Secure Software Update Portal under active support contracts.
What maintenance intervals are recommended for routine operation?
Source cleaning is recommended every 2–4 weeks depending on sample load; quadrupole tuning and calibration are performed daily or per sequence using automated calibration routines; annual preventive maintenance by certified Field Service Engineers ensures long-term mass accuracy and resolution stability.
