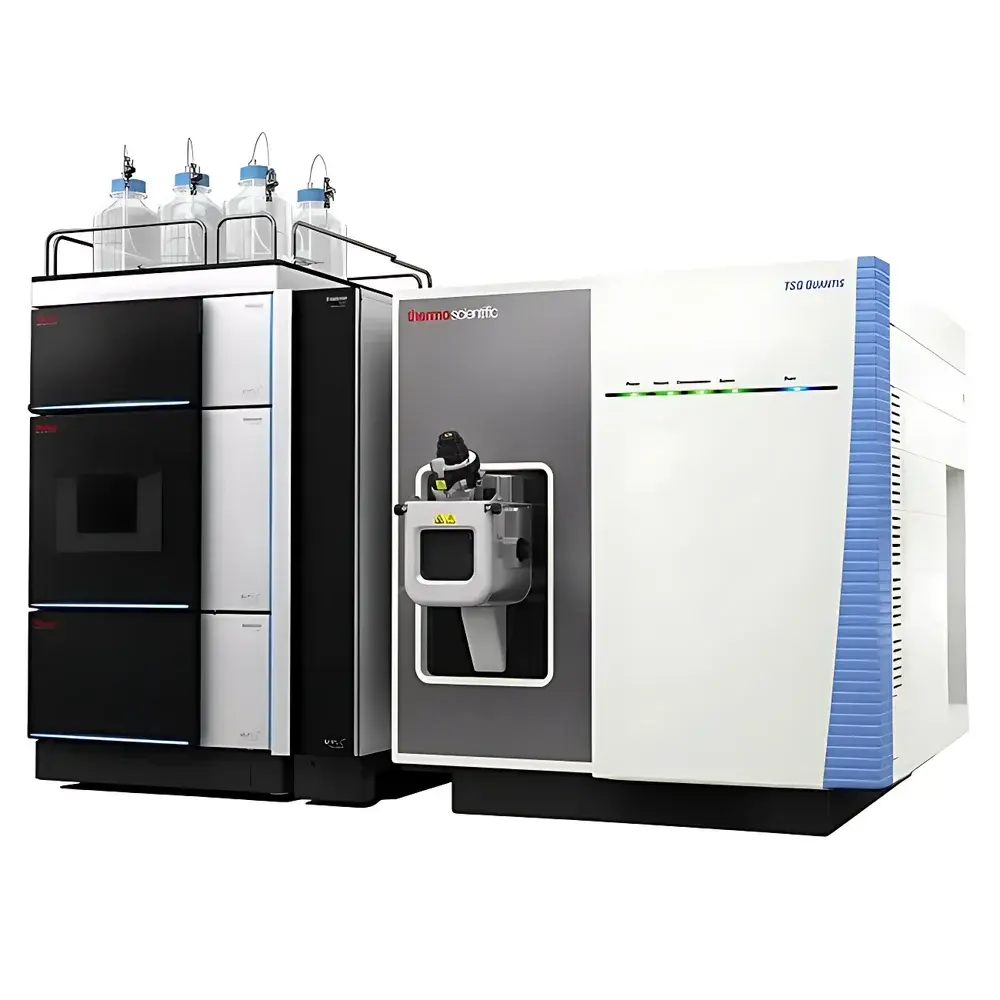

Thermo Scientific TSQ Quantis™ Triple Quadrupole Mass Spectrometer

Overview

The Thermo Scientific TSQ Quantis™ Triple Quadrupole Mass Spectrometer is a purpose-engineered platform for high-throughput, high-confidence quantitative analysis in regulated and research laboratories. Operating on the well-established tandem quadrupole (QqQ) mass filtering principle—where Q1 selects a precursor ion, q2 acts as a collision cell for controlled fragmentation, and Q3 isolates a specific product ion—the TSQ Quantis delivers robust, reproducible selected reaction monitoring (SRM) and multiple reaction monitoring (MRM) performance. Its design emphasizes analytical consistency across diverse sample matrices, making it especially suitable for applications requiring compliance with regulatory frameworks such as FDA 21 CFR Part 11, GLP, and GMP environments. Unlike high-resolution accurate-mass (HRAM) platforms, the TSQ Quantis prioritizes sensitivity, dynamic range, and duty-cycle efficiency over mass accuracy—making it the instrument of choice for targeted quantitation of small molecules, peptides, lipids, and metabolites in complex biological, environmental, and pharmaceutical samples.

Key Features

• Optimized ion optics and vacuum architecture engineered for sustained high sensitivity—achieving ≥150,000:1 signal-to-noise ratio under standardized SRM conditions (e.g., 1 pg reserpine on-column).
• Stable RF/DC voltage control across all three quadrupoles ensures consistent transmission efficiency and long-term retention of calibration parameters.
• Advanced heated electrospray ionization (H-ESI) and atmospheric pressure chemical ionization (APCI) sources support broad compound polarity coverage and reduced matrix suppression effects.
• Integrated Active Ion Management (AIM) technology dynamically adjusts source gas flows and voltages to maintain optimal ion yield across gradient LC methods.
• Rugged mechanical design and thermally stabilized electronics contribute to >95% instrument uptime in multi-shift laboratory operations.
• Front-panel touchscreen interface with context-aware workflows reduces operator dependency and minimizes procedural errors during method setup and routine runs.

Sample Compatibility & Compliance

The TSQ Quantis accommodates liquid samples introduced via HPLC, UHPLC, or microflow systems—including reversed-phase, HILIC, and ion-pairing chromatographic modes. It supports both positive and negative ionization modes without hardware reconfiguration. The system meets essential regulatory requirements for data integrity: audit trails are automatically generated and timestamped for all method edits, sequence changes, and calibration events; raw data files adhere to open, vendor-neutral formats (e.g., .raw) compatible with third-party review tools. Routine operation aligns with ISO/IEC 17025 method validation principles and supports documentation packages required for FDA inspections, EMA submissions, and internal quality audits.

Software & Data Management

Controlled by Thermo Scientific™ TraceFinder™ software (v5.1 or later), the TSQ Quantis enables end-to-end workflow automation—from peak integration and calibration curve generation to report export in PDF, CSV, or XML. TraceFinder incorporates built-in compliance features including electronic signatures, role-based access control, and 21 CFR Part 11–compliant audit trail logging. Raw data archiving follows hierarchical storage management (HSM) protocols, while metadata tagging supports searchable retrieval across large-scale study datasets. Integration with Thermo Scientific™ Chromeleon™ CDS allows direct method synchronization between LC and MS modules, eliminating manual parameter transfer errors.

Applications

• Pharmaceutical bioanalysis: PK/PD studies, therapeutic drug monitoring (TDM), and impurity profiling per ICH M10 guidelines.
• Clinical toxicology: Multi-analyte screening of drugs of abuse, antidepressants, and antipsychotics in serum, urine, and oral fluid.
• Food safety: Residue testing for pesticides, veterinary drugs, and mycotoxins at EU-MRL and FDA tolerance levels.
• Environmental analysis: Quantification of PFAS, pharmaceuticals, and endocrine disruptors in wastewater, soil extracts, and biota.
• Academic and industrial metabolomics: Targeted quantitation of central carbon metabolites, acylcarnitines, and bile acids using stable-isotope dilution assays.

FAQ

Does the TSQ Quantis support high-resolution mass measurement?
No. The TSQ Quantis is a unit-mass resolution triple quadrupole system optimized for SRM/MRM quantitation—not accurate mass determination. For exact mass workflows, consider Orbitrap-based platforms such as the Thermo Scientific Q Exactive series.
Can it be coupled with nano-LC or capillary-LC systems?
Yes. With appropriate source configuration (e.g., nanospray or micro-ESI emitters) and flow-splitting interfaces, the TSQ Quantis supports flow rates from 100 nL/min to 2 mL/min.
Is method transfer from other Thermo triple quads straightforward?
Yes. Method parameters—including dwell times, collision energies, and Q1/Q3 settings—are largely portable between TSQ Altis™, TSQ Endura™, and TSQ Quantis™ platforms due to shared firmware architecture and ion optic design philosophy.
What maintenance intervals are recommended for routine operation?
Source cleaning is advised every 2–4 weeks depending on sample load; quadrupole and detector calibration should be performed weekly or per batch, aligned with laboratory SOPs and regulatory validation requirements.
Does the system include remote diagnostics capability?
Yes. Integrated Thermo Scientific™ Connect™ cloud services enable secure remote health monitoring, predictive maintenance alerts, and firmware update notifications—subject to customer-configured network policies.
