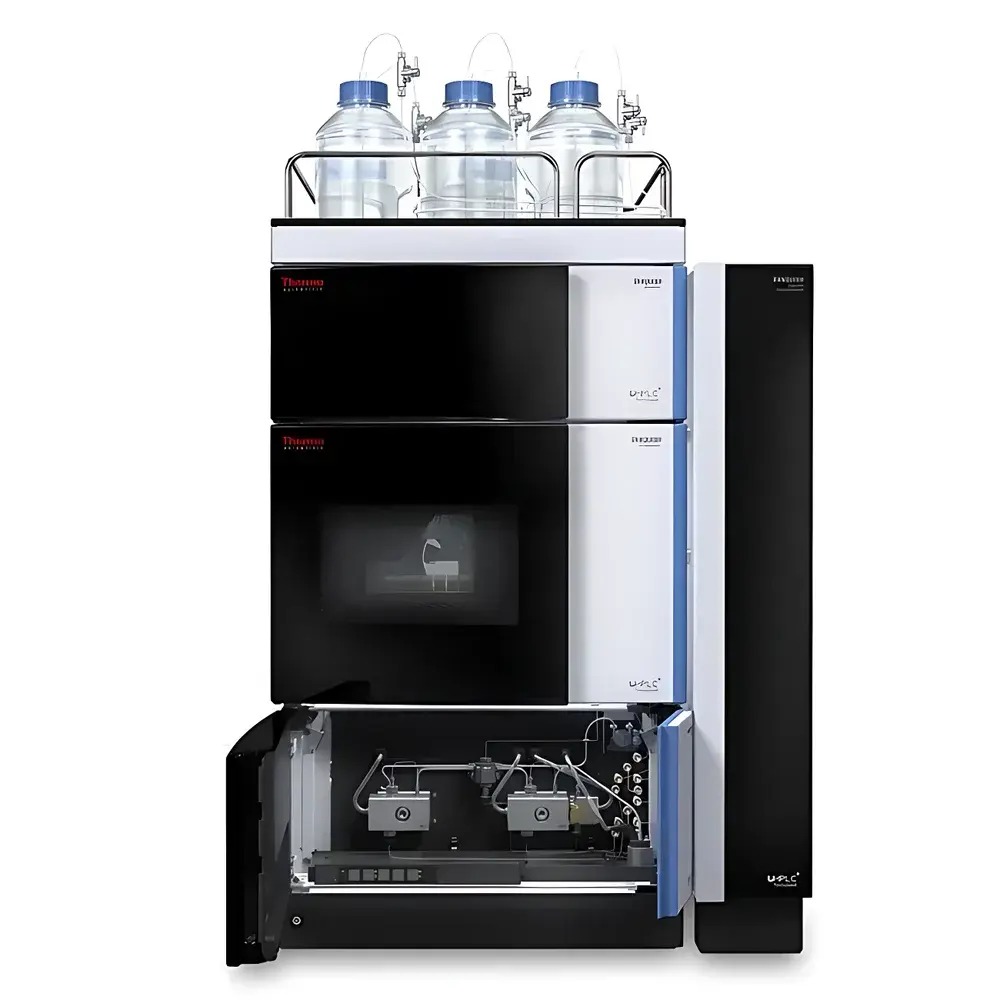

Thermo Scientific Vanquish Flex Binary UHPLC System

Overview

The Thermo Scientific Vanquish Flex Binary UHPLC System is an engineered platform for ultra-high performance liquid chromatography that delivers exceptional retention time reproducibility, gradient accuracy, and system robustness under demanding analytical conditions. Built upon the proven Vanquish architecture, this binary high-pressure mixing system operates at pressures up to 1000 bar and supports flow rates from 0.001 to 8.0 mL/min—enabling method scalability from analytical to preparative applications. Its core measurement principle relies on precise high-pressure solvent blending, real-time compressibility compensation via SmartFlow pump technology, and thermally stabilized fluidic pathways to eliminate retention drift caused by mobile-phase temperature or compressibility variations. Designed for laboratories requiring regulatory compliance, high-throughput operation, and seamless hyphenation with mass spectrometry, the Vanquish Flex Binary system meets the technical demands of pharmaceutical QC/QA, biopharmaceutical characterization, clinical research, and environmental analysis.

Key Features

• Binary High-Pressure Gradient Mixing: Six solvent channels enable flexible method development and robust gradient reproducibility with <±0.15% RSD gradient precision across full composition range (0–100% B).
• SmartFlow Pump Technology: Real-time dynamic compensation for mobile-phase compressibility ensures consistent flow delivery regardless of solvent composition, temperature, or backpressure—critical for retention time stability in long-sequence analyses.
• Viper Hand-Tight Fitting System: Tool-free, leak-free connections throughout the fluidic path reduce installation time, minimize dead volume, and support rapid system reconfiguration without specialized tools or torque wrenches.
• Vanquish Flex Split Injector FT Module: 208-injection capacity per vial; expandable to 8832 samples using the optional Vanquish Loader Module with 23-well plate support—optimized for unattended operation in regulated environments.
• Dual-Mode Column Compartment (H Module): Combines static air and forced-air circulation heating/cooling across 5–120°C; includes active pre-heating to equilibrate mobile phase temperature prior to column entry and post-column cooling to preserve peak shape.
• Integrated Air-Cooled Sample Cooling: Maintains sample integrity at 4–10°C in both injector and loader modules—validated for thermally labile compounds including peptides, oligonucleotides, and small-molecule APIs.

Sample Compatibility & Compliance

The Vanquish Flex Binary UHPLC system is compatible with all standard reversed-phase, HILIC, ion-exchange, and size-exclusion columns (1.0–4.6 mm ID, up to 250 mm length). Its bio-inert fluidic path—constructed from titanium, PEEK, and sapphire—ensures compatibility with aggressive solvents (e.g., TFA, HFIP) and biological matrices. The system conforms to key international regulatory requirements: it supports 21 CFR Part 11-compliant audit trails and electronic signatures when operated with Dionex Chromeleon CDS software; meets ISO/IEC 17025 traceability standards for calibration documentation; and aligns with ICH Q2(R2) guidelines for method validation parameters including precision, accuracy, and robustness. Routine PQ/OQ/IQ protocols are available through Thermo Fisher’s certified service network.

Software & Data Management

The Vanquish Flex system is natively controlled by Thermo Scientific Dionex Chromeleon Chromatography Data System (CDS) v7.3 or later—a validated, multi-user, enterprise-ready platform supporting centralized method management, instrument scheduling, and raw data archiving. Chromeleon implements Operational Simplicity™ design principles: intuitive workflow wizards for method setup, drag-and-drop sequence building, automated calibration reporting, and integrated report generation compliant with GLP/GMP templates. All acquisition and processing parameters—including gradient tables, valve switching events, and detector settings—are stored as metadata within the .raw file structure. Audit trail logging captures user actions, parameter changes, and instrument state transitions with immutable timestamps—fully auditable during FDA or EMA inspections.

Applications

• Pharmaceutical impurity profiling and stability-indicating assays per ICH Q5 and Q3B guidelines
• Monoclonal antibody subunit analysis (reduced/non-reduced CE-SDS alternatives)
• Peptide mapping workflows coupled to Orbitrap or Q-Exactive mass spectrometers
• Small-molecule quantification in plasma, urine, and tissue homogenates (LC-MS/MS bioanalysis)
• Environmental contaminant screening (PFAS, pesticides, pharmaceutical residues) per EPA Method 1694
• Food safety testing for mycotoxins, vitamins, and adulterants using DAD or CAD detection

FAQ

What is the maximum operating pressure of the Vanquish Flex Binary system?
The system is rated for continuous operation up to 1000 bar (15,000 psi), with pressure sensors calibrated and verified per ISO 17025-accredited procedures.

Can the Vanquish Flex Binary system be used for LC-MS coupling?
Yes—it features standardized ESI source interfaces, low-dead-volume capillary routing, and synchronized timing control for seamless integration with Thermo Scientific mass spectrometers including the Orbitrap Exploris, TSQ Altis, and Q Exactive series.

Is Chromeleon CDS required for operation?
While basic instrument control is possible via Thermo Fisher’s Vanquish Console utility, full regulatory compliance—including audit trail, electronic signatures, and method versioning—requires Dionex Chromeleon CDS v7.3 or higher.

How does SmartFlow technology improve gradient accuracy?
SmartFlow dynamically adjusts piston stroke volume and dwell time based on real-time solvent density and compressibility models—compensating for viscosity-induced delays and ensuring true gradient delivery at the column head, independent of flow rate or organic modifier percentage.

What column oven configurations are supported?
The Vanquish Flex H-module supports dual-mode thermal regulation (static air + forced-air circulation), active pre-heating, and column post-cooling; optional accessories include column switching valves, fraction collectors, and inline filters for extended runtime reliability.
