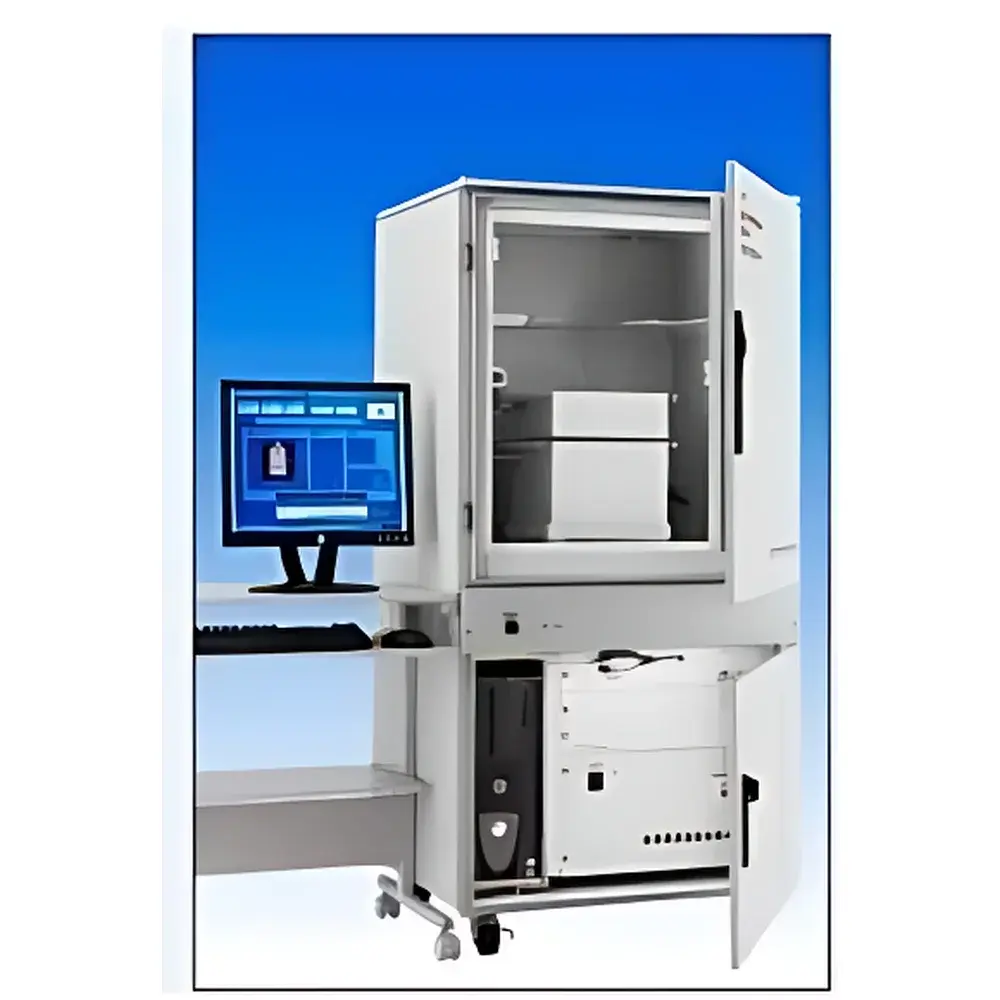

THT ES-ARC Accelerating Rate Calorimeter
| Brand | THT |
|---|---|
| Origin | United Kingdom |
| Model | ES-ARC |
| Compliance | ASTM E698, ISO 22517, UN Test Series 3 (H.2, H.3), IEC 60079-10-1 |
| Temperature Range | Ambient to 500 °C |
| Pressure Rating | Up to 200 bar |
| Sample Mass Capacity | 0.1–10 g |
| Heat Flow Resolution | <0.1 mW |
| Adiabatic Tracking Accuracy | ±0.02 °C/min |
| Data Acquisition Rate | 1 Hz |
Overview
The THT ES-ARC Accelerating Rate Calorimeter is a benchtop adiabatic calorimetric system engineered for high-fidelity thermal hazard assessment of reactive chemical systems under rigorously controlled, near-adiabatic conditions. Based on the principle of heat-wait-search (HWS) methodology, the ES-ARC actively monitors sample temperature and dynamically adjusts furnace power to maintain near-zero heat loss—achieving adiabatic tracking performance with an accuracy of ±0.02 °C/min. This enables quantitative determination of critical kinetic and thermodynamic parameters, including activation energy (Ea), pre-exponential factor (A), reaction order (n), adiabatic temperature rise (ΔTad), time-to-maximum-rate (TMR), and self-heating rate (dT/dt). These outputs are directly applicable to process safety studies, scale-up risk evaluation, and regulatory submissions per OSHA 29 CFR 1910.119, CCPS Guidelines, and EU REACH Annex VII requirements.
Key Features
- Patented dual-sensor adiabatic control architecture with real-time thermal feedback loop for superior tracking stability across wide temperature ranges (ambient to 500 °C)
- Integrated pressure-rated cell (up to 200 bar) with rupture disc protection and gas venting path compliant with UN Test Series 3 (H.2/H.3) protocols
- High-resolution thermocouple (Type K, ±0.1 °C) and precision heater control enabling detection of self-heating onset at <0.02 °C/min
- Automated HWS sequence execution with configurable wait times, search increments, and termination criteria per ASTM E698 and ISO 22517
- Rugged stainless-steel construction with electromagnetic shielding and intrinsically safe electronics suitable for Class I, Division 1 hazardous locations (IEC 60079-10-1 certified)
- Modular design supporting interchangeable sample holders for solids, liquids, slurries, and energetic formulations
Sample Compatibility & Compliance
The ES-ARC accommodates samples ranging from 0.1 g to 10 g—including organic peroxides, nitroaromatics, metal hydrides, battery electrolytes, polymerization initiators, and pharmaceutical intermediates. Its measurement protocol satisfies key regulatory frameworks: ASTM E698 for kinetic parameter derivation; ISO 22517 for thermal stability classification; UN Manual of Tests and Criteria, Part III, Subsection 38.3 (for transport safety); and EU CLP Regulation Annex VI criteria for self-reactive substance classification. All raw data files include embedded audit trails with user ID, timestamp, instrument ID, and calibration metadata—ensuring full traceability for GLP/GMP-aligned laboratories and FDA 21 CFR Part 11-compliant environments.
Software & Data Management
The proprietary ARCware™ software provides end-to-end workflow management—from method setup and real-time monitoring to automated kinetic modeling and report generation. It supports multi-step analysis using Ozawa-Flynn-Wall, Kissinger, and ASTM E698-based methods to extract Ea, A, and n values. Export formats include CSV, PDF, and XML with embedded metadata for LIMS integration. Audit trail functionality logs all user actions, parameter modifications, and calibration events with non-erasable timestamps. Software validation documentation (IQ/OQ/PQ) is available upon request to support regulatory inspections and internal quality audits.
Applications
- Thermal stability screening of raw materials during storage and logistics (e.g., identifying safe shelf-life limits per NFPA 400)
- Process safety evaluation for batch and semi-batch reactors, including identification of criticality thresholds for runaway reactions
- Scale-up support through adiabatic TMRad extrapolation to plant-scale scenarios using DIERS methodology
- Quality control of energetic materials (e.g., propellants, explosives, pyrotechnics) per MIL-STD-1751 and STANAG 4489
- Regulatory dossier preparation for REACH registration, EPA TSCA submissions, and transport classification under IMDG Code
- Root cause analysis of thermal incidents via comparative kinetic profiling of failed vs. qualified lots
FAQ
What distinguishes the ES-ARC from conventional DSC or DTA instruments?
Unlike differential scanning calorimeters, the ES-ARC operates under true near-adiabatic conditions—enabling direct measurement of self-heating rates and time-to-thermal-runaway under simulated worst-case scenarios. DSC provides relative enthalpy data but cannot reliably predict TMR or adiabatic behavior.
Can the ES-ARC be used for gas-generating reactions?
Yes—the pressure-rated cell and integrated venting path allow safe characterization of decomposition reactions accompanied by rapid gas evolution, including those relevant to lithium-ion battery thermal runaway studies.
Is remote operation supported?
The system supports secure Ethernet-based remote monitoring and method initiation via authenticated login; however, physical sample loading and cell sealing must be performed locally in accordance with lab safety protocols.
How frequently does the system require recalibration?
Temperature calibration is verified annually using NIST-traceable reference standards; adiabatic tracking performance is validated before each critical test series using certified reference material (e.g., potassium perchlorate).
