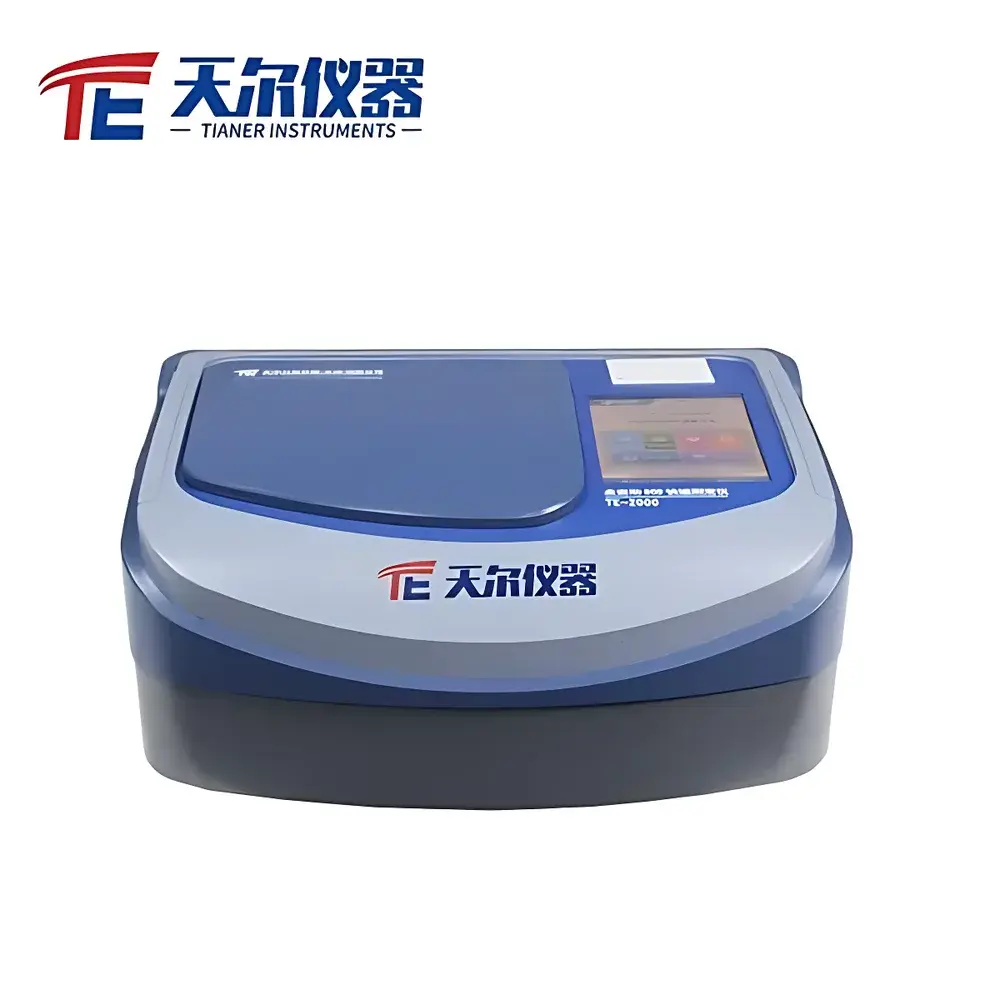

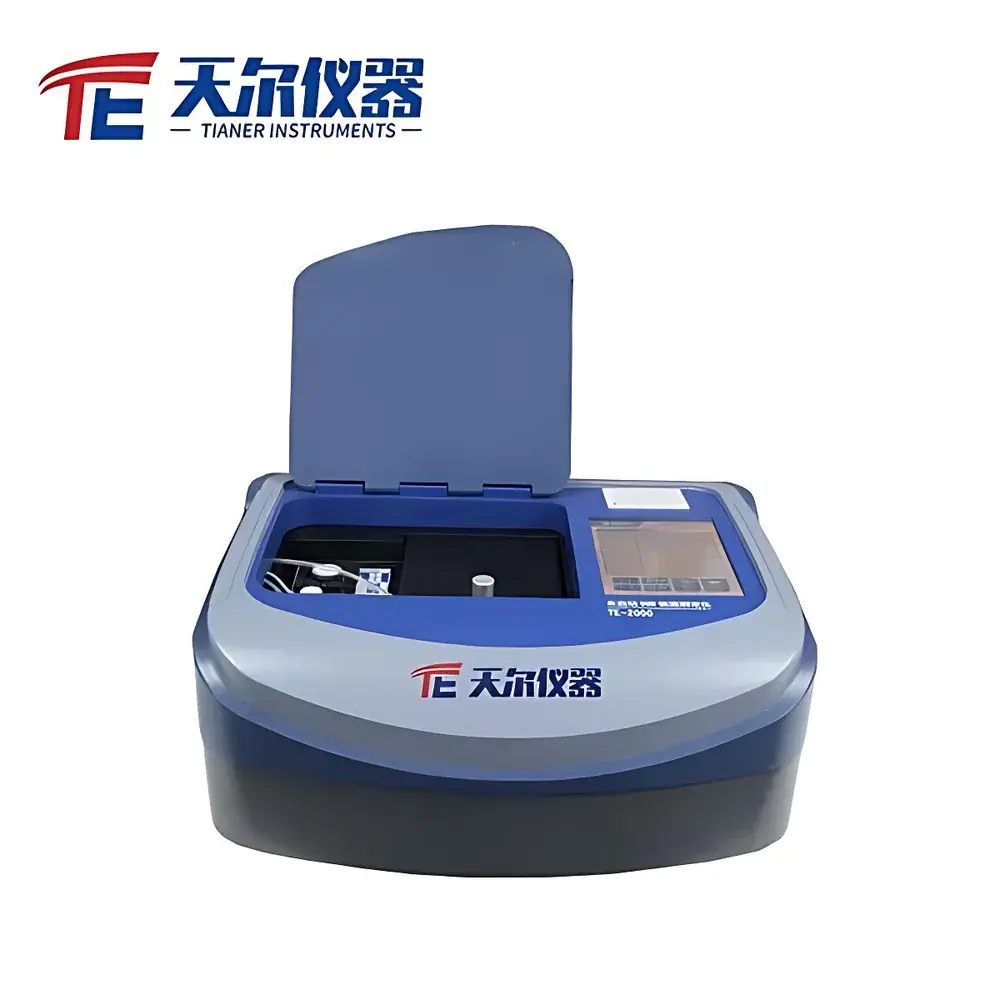

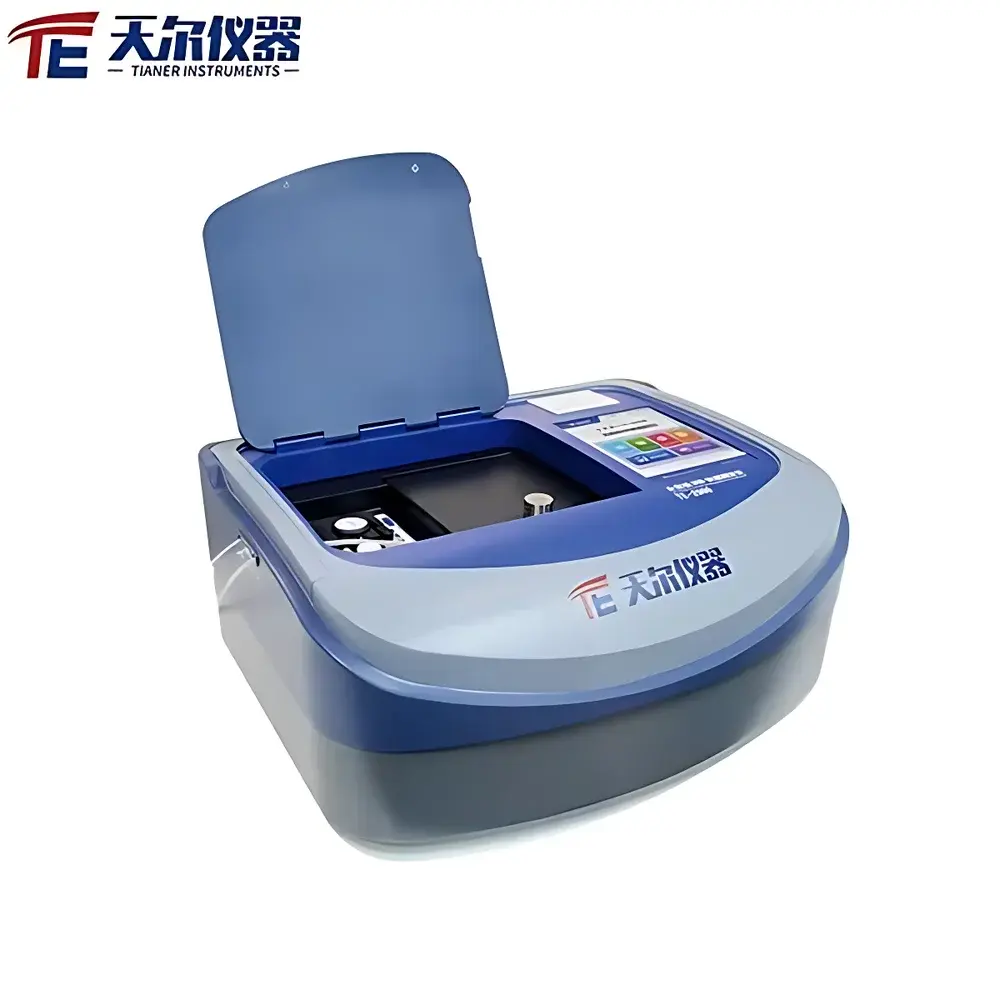

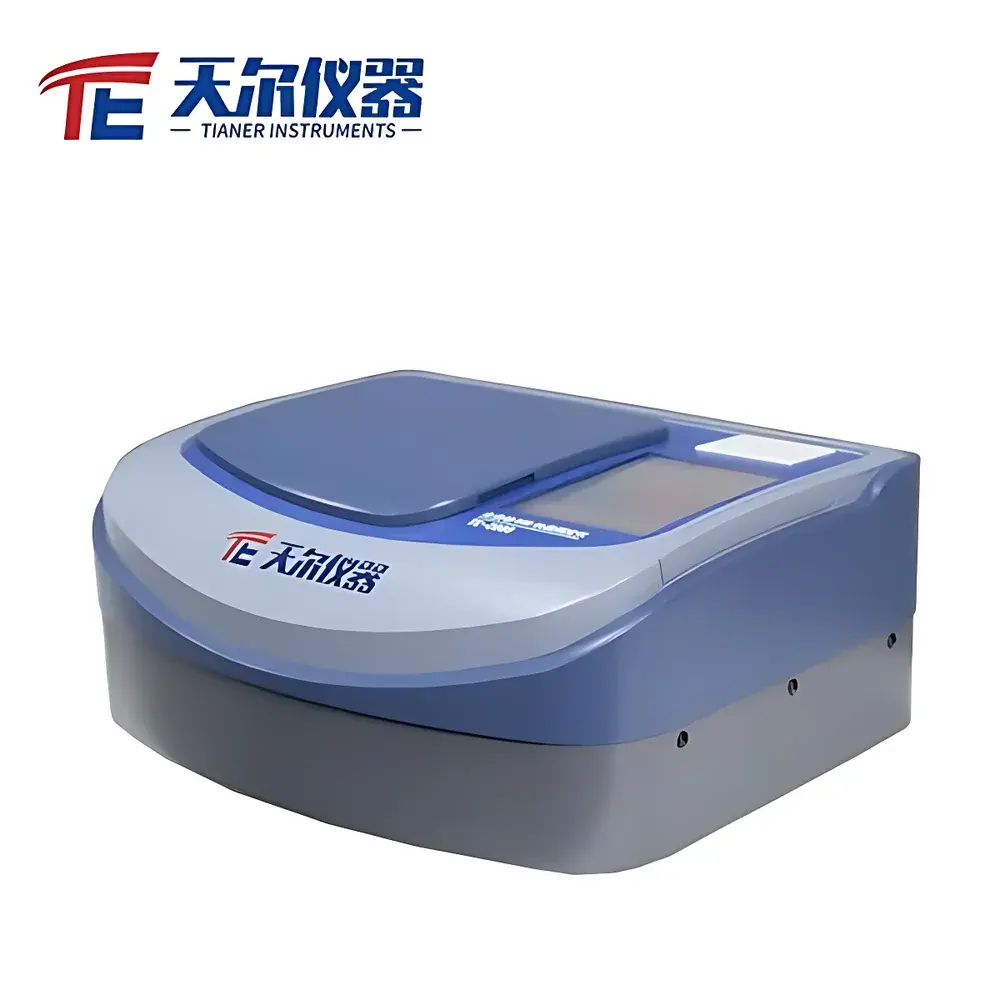

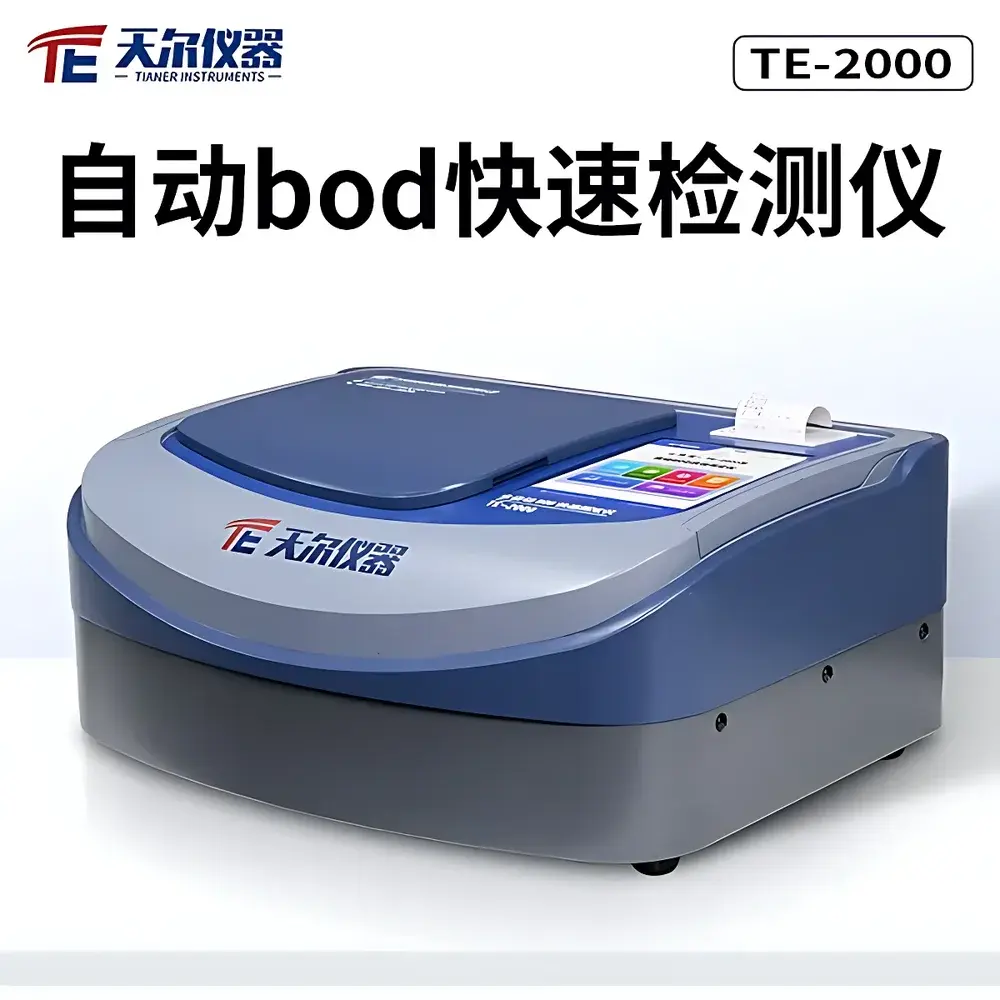

TIANER TE-2000 Automated BOD Analyzer

Overview

The TIANER TE-2000 Automated BOD Analyzer is a laboratory-grade instrument engineered for rapid, reliable quantification of biochemical oxygen demand (BOD) in water and wastewater samples using the standardized flow-through microbial electrode method. Unlike traditional 5-day dilution methods (e.g., ISO 5815-1:2019 or ASTM D5210), the TE-2000 employs an immobilized microbial biofilm on a dissolved oxygen (DO) sensing electrode. As microorganisms metabolize biodegradable organic matter in the sample, they consume oxygen proportionally—generating a measurable current signal directly correlated to BOD concentration. This electrochemical transduction enables real-time, continuous monitoring within a closed-flow cell, eliminating manual incubation and titration steps. The system conforms to HJ/T 86–2002, the official Chinese Environmental Protection Standard for rapid BOD determination by microbial sensor, and its methodology is documented in the fourth edition of *Methods for Examination of Water and Wastewater*. Designed for routine compliance testing and process control, the TE-2000 delivers regulatory-aligned results in just 8 minutes per sample—significantly accelerating turnaround for municipal wastewater treatment plants, industrial effluent monitoring labs, and environmental testing service providers.

Key Features

• Integrated 8-inch color TFT touchscreen interface with intuitive navigation and real-time graphical feedback
• Automated multi-channel fluidic system enabling sequential aspiration of sample, calibration standard, and cleaning solution without manual intervention
• Pulse-based temperature control system maintaining precise, stable incubation conditions (±0.3 °C) across ambient temperatures from 5 °C to 40 °C
• Self-contained oxygenation module with liquid-permeation-resistant membrane design ensuring consistent DO supply to the biofilm during measurement
• Onboard thermal printer supporting immediate hardcopy output of results, timestamps, and QC identifiers
• Comprehensive self-diagnostic suite with audible/visual error alerts for electrode status, flow blockage, temperature deviation, and membrane degradation
• Robust data architecture supporting storage of up to one million measurement records with embedded metadata (sample ID, operator, date/time, calibration history)
• Dual communication interfaces (USB 2.0 and RS-232) compliant with LIMS integration protocols and legacy lab infrastructure

Sample Compatibility & Compliance

The TE-2000 is validated for use with raw and treated municipal wastewater, surface water (rivers, lakes, reservoirs), industrial effluents (including food processing, pharmaceutical, and pulp/paper discharges), and groundwater. It accommodates turbid, colored, or mildly chlorinated samples without pretreatment—provided residual chlorine is below 0.5 mg/L (dechlorination via sodium thiosulfate is recommended if exceeded). All operational parameters align with HJ/T 86–2002 requirements for sensor response time (<10 min), linear dynamic range (2–4000 mg/L), and repeatability (RSD ≤3%). While not certified to ISO/IEC 17025 under third-party accreditation, the instrument supports GLP-compliant workflows through audit-trail-capable data logging, user-access controls, and electronic signature readiness. Its firmware architecture allows traceable calibration verification per US EPA Method 405.1 principles, facilitating internal QA/QC documentation.

Software & Data Management

The TE-2000 runs a dedicated embedded operating system optimized for environmental analysis tasks. Data files are stored in CSV and proprietary binary formats with embedded CRC checksums for integrity verification. Each record includes sample identifier, measurement timestamp (with NTP synchronization support), operator ID, electrode response curve snapshot, and system health flags. USB export enables direct transfer to Excel or statistical packages (e.g., JMP, Minitab) for trend analysis. Optional PC software (TIANER AquaLink v3.x) provides advanced features: automated report generation (PDF/HTML), calibration curve management, multi-instrument fleet monitoring, and audit-log review with user-action timestamps—fully compatible with FDA 21 CFR Part 11 requirements when deployed with role-based authentication and electronic signature modules.

Applications

• Routine BOD monitoring in municipal wastewater treatment plant influent/effluent streams for process optimization and discharge compliance
• Industrial pretreatment verification for facilities subject to NPDES or local sewer-use ordinances
• Environmental impact assessment (EIA) field laboratories requiring high-throughput screening of surface water bodies
• Academic and research laboratories conducting biodegradability studies of novel organic compounds or wastewater treatment additives
• Emergency response units assessing spill impacts where rapid BOD estimation informs containment strategy

FAQ

What is the expected lifetime of the microbial sensor membrane?
The immobilized biofilm is warranted for 1 year when sealed and stored at 4 °C; after activation, it maintains stable performance for ≥30 days under continuous operation or intermittent use.
Does the TE-2000 require daily recalibration?
A single-point calibration using 20 mg/L BOD standard is recommended before each analytical session; full 3-point calibration is required weekly or after sensor replacement.
Can the instrument measure samples with high suspended solids?
Yes—samples with TSS up to 150 mg/L may be analyzed directly; above this threshold, filtration through a 1.2 µm glass-fiber filter is advised to prevent flow-path clogging.
Is remote data access supported?
Via optional Ethernet/Wi-Fi adapter and TIANER AquaLink Cloud Gateway, users can configure secure remote viewing, alert notifications, and firmware updates—subject to local network security policies.
How is method validation documented for regulatory submissions?
The instrument generates ISO/IEC 17025-aligned validation reports including linearity assessment (r² ≥0.999), detection limit verification (3σ of blank), and precision evaluation (n=11 replicates per matrix), all exportable in PDF format with digital signatures.
