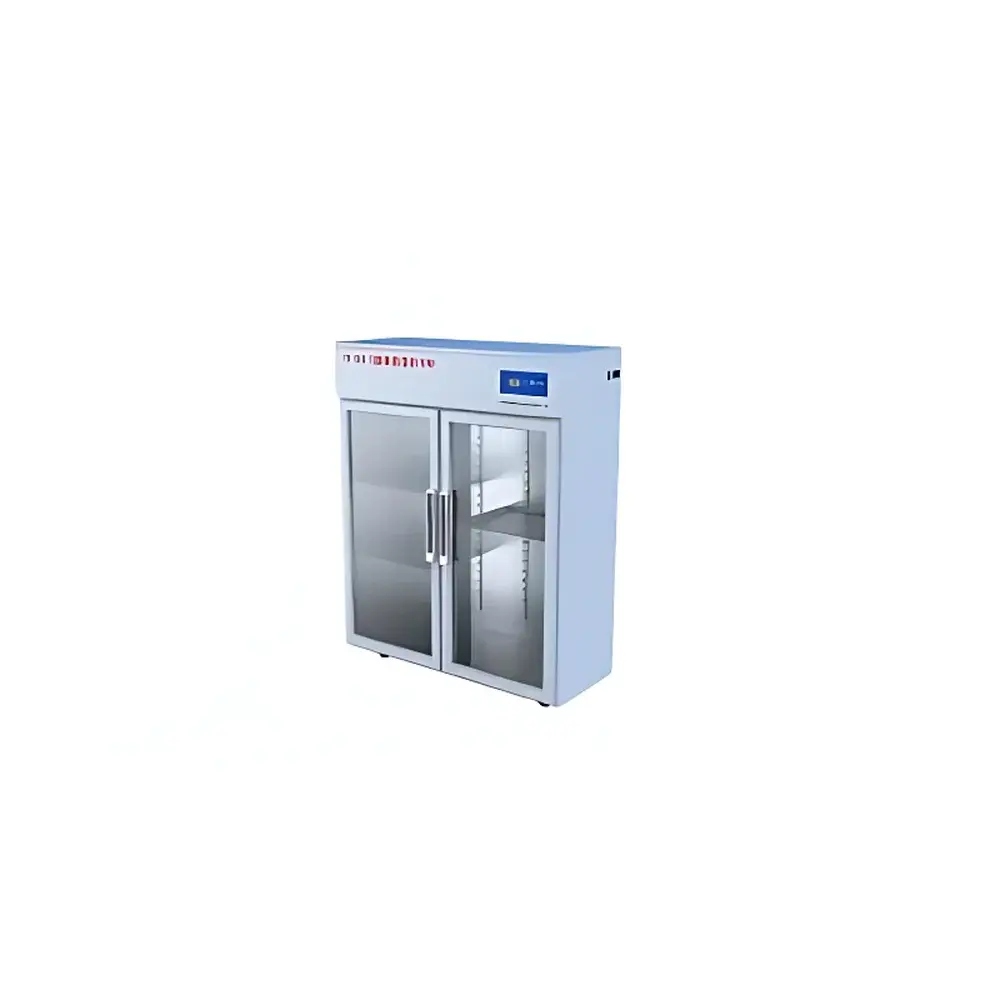

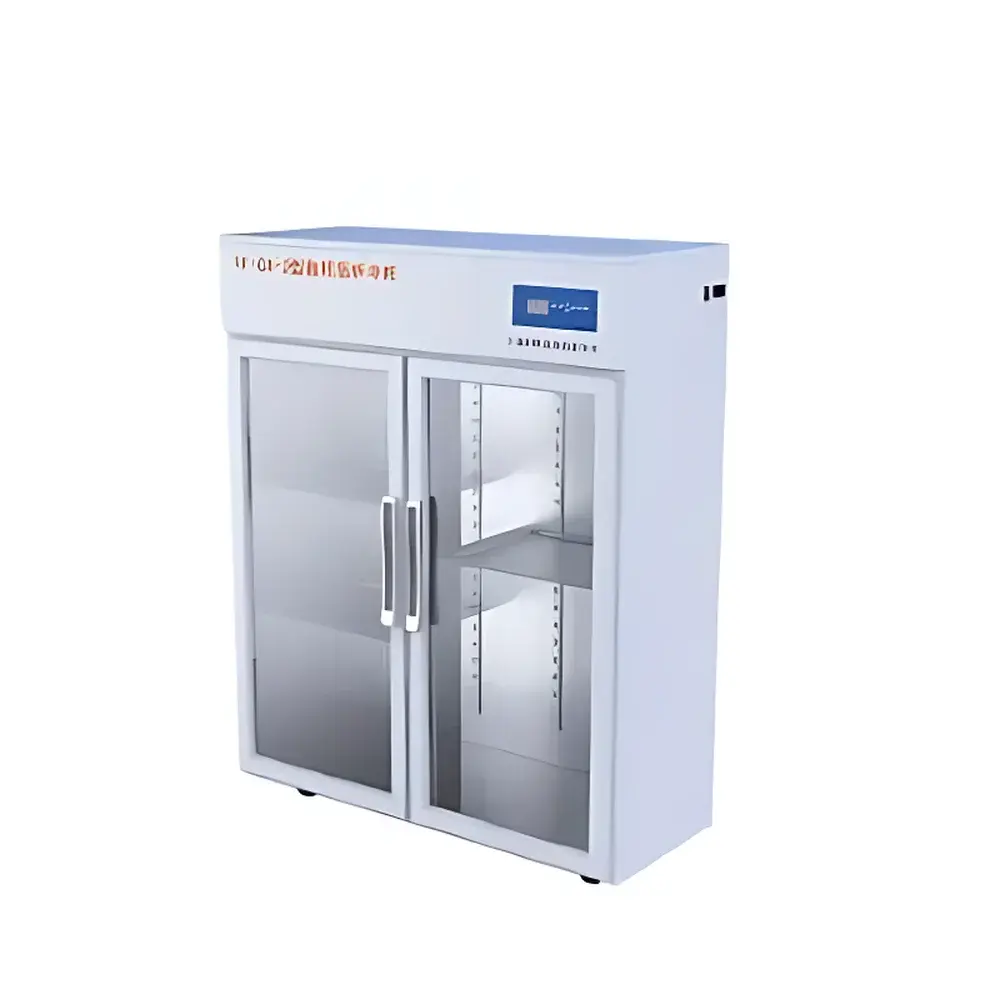

Tianfeng TF-CX-2 Dual-Door Chromatography Refrigerator

Overview

The Tianfeng TF-CX-2 Dual-Door Chromatography Refrigerator is an engineered environmental control system designed specifically for low-temperature chromatographic separation workflows in life science laboratories. Unlike general-purpose cold storage units, this refrigerator integrates precision thermal stability, structural adaptability for column mounting, and operational safety features essential for biomolecular purification—including enzymes, peptides, nucleic acids, and large-molecule therapeutics. Its refrigeration architecture follows the vapor-compression cycle: an imported hermetic compressor circulates refrigerant through a condenser, expansion valve, and evaporator—enabling consistent heat extraction from the insulated chamber. The air-cooled design eliminates dependency on external water supply or drainage infrastructure, making it suitable for installation in standard laboratory spaces without dedicated utility hookups. Operating continuously within a tightly controlled 1–10 °C range, the unit maintains temperature uniformity ±0.8 °C across its 1230 L internal volume—critical for preserving column integrity, preventing buffer crystallization, and minimizing analyte degradation during extended runs.

Key Features

• High-stability air-cooled refrigeration system with imported compressor, delivering low acoustic emission (<42 dB[A]) and long-term operational reliability under 24/7 duty cycles
• Full stainless-steel interior (AISI 304 grade) resistant to corrosion from organic solvents, acidic/basic buffers, and repeated sanitation protocols
• Dual full-view tempered glass doors with anti-frost heating elements ensure uninterrupted visual monitoring without condensation interference
• Two integrated vertical aluminum-alloy support columns (M10-threaded) and two load-rated open-frame trays accommodate standard chromatography hardware—including ÄKTA systems, peristaltic pumps, fraction collectors, and UV flow cells
• Two side-mounted 60 mm-diameter pass-through ports enable routing of tubing, electrical cables, or sensor leads without compromising thermal seal integrity
• Intelligent microprocessor-based temperature controller with LCD interface: real-time display of setpoint and actual chamber temperature, programmable deviation alarms, and auto-recall of last-used parameters after power interruption
• Onboard LED task lighting and germicidal UV-C lamp (254 nm) support safe sample handling and periodic chamber decontamination
• Locking heavy-duty casters (two with brakes) facilitate repositioning within shared lab environments while maintaining stable leveling on uneven floors

Sample Compatibility & Compliance

The TF-CX-2 supports a broad spectrum of chromatographic modalities—including size-exclusion (SEC), ion-exchange (IEX), affinity (AC), and hydrophobic interaction (HIC) chromatography—under conditions compliant with GLP-aligned laboratory practices. Its stainless-steel interior and non-porous surfaces meet ISO 14644-1 Class 8 cleanroom-compatible cleaning standards. While not certified to FDA 21 CFR Part 11 out-of-the-box, the system’s audit-ready temperature logging capability (via optional RS485/Modbus interface) enables integration into validated data acquisition networks supporting GMP documentation requirements. The unit conforms to IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and its mechanical design satisfies EN 61010-1 for laboratory electrical equipment safety. Temperature uniformity validation reports can be generated using calibrated NIST-traceable probes per ASTM E742-22 guidelines.

Software & Data Management

The embedded temperature controller provides local parameter management only; no proprietary software or cloud connectivity is included. However, the unit features a standard RS485 serial port with Modbus RTU protocol support, enabling third-party integration with SCADA platforms (e.g., Ignition, LabVIEW, or custom Python-based monitoring suites). Users may configure automated temperature logging at user-defined intervals (1–60 min), export timestamped CSV files via USB memory stick, and trigger external relay outputs upon alarm events (e.g., activating backup power or notifying facility management systems). For regulated environments, optional external data loggers compliant with 21 CFR Part 11—featuring electronic signatures, audit trails, and password-protected configuration—can be deployed in parallel without modifying the base unit.

Applications

• Preparative and analytical protein purification workflows requiring column temperature stabilization below ambient
• Long-duration gradient elutions where mobile phase viscosity and binding kinetics are temperature-sensitive
• Cold-chain storage of affinity resins, immobilized enzymes, and labile biological standards prior to use
• Low-temperature electrophoresis buffer reservoirs and native PAGE gel casting stations
• Controlled-environment housing for benchtop HPLC autosamplers, fraction collectors, and conductivity/pH detectors
• General-purpose cold storage of clinical specimens, tissue lysates, and primary cell suspensions in translational research settings

FAQ

What is the recommended maintenance schedule for the refrigeration system?
Compressor oil and refrigerant charge require verification every 24 months by authorized service technicians; condenser coil cleaning is advised quarterly in dust-prone environments.

Can the unit operate safely in rooms above 30 °C ambient temperature?
Yes—its air-cooled condenser is rated for continuous operation up to 35 °C ambient, though sustained exposure above 32 °C may reduce cooling capacity marginally.

Are replacement shelves and support columns available as spare parts?
Yes—stainless steel shelves (620 × 500 mm), M10 threaded support columns (750 mm height), and UV lamp modules are stocked and ship within 3 business days.

Does the cabinet meet UL or CE safety certification?
The unit carries CCC (China Compulsory Certification) and complies with GB 4706.1-2005 / GB 4706.13-2014; CE marking is available upon request for EU-bound shipments with additional EMC testing.

Is remote monitoring supported natively?
No native Ethernet/Wi-Fi interface is provided; however, the RS485 port allows integration with industrial gateways supporting MQTT or OPC UA protocols via external converters.
