Tianfeng TF-FD-1 Standard Benchtop Freeze Dryer

Overview

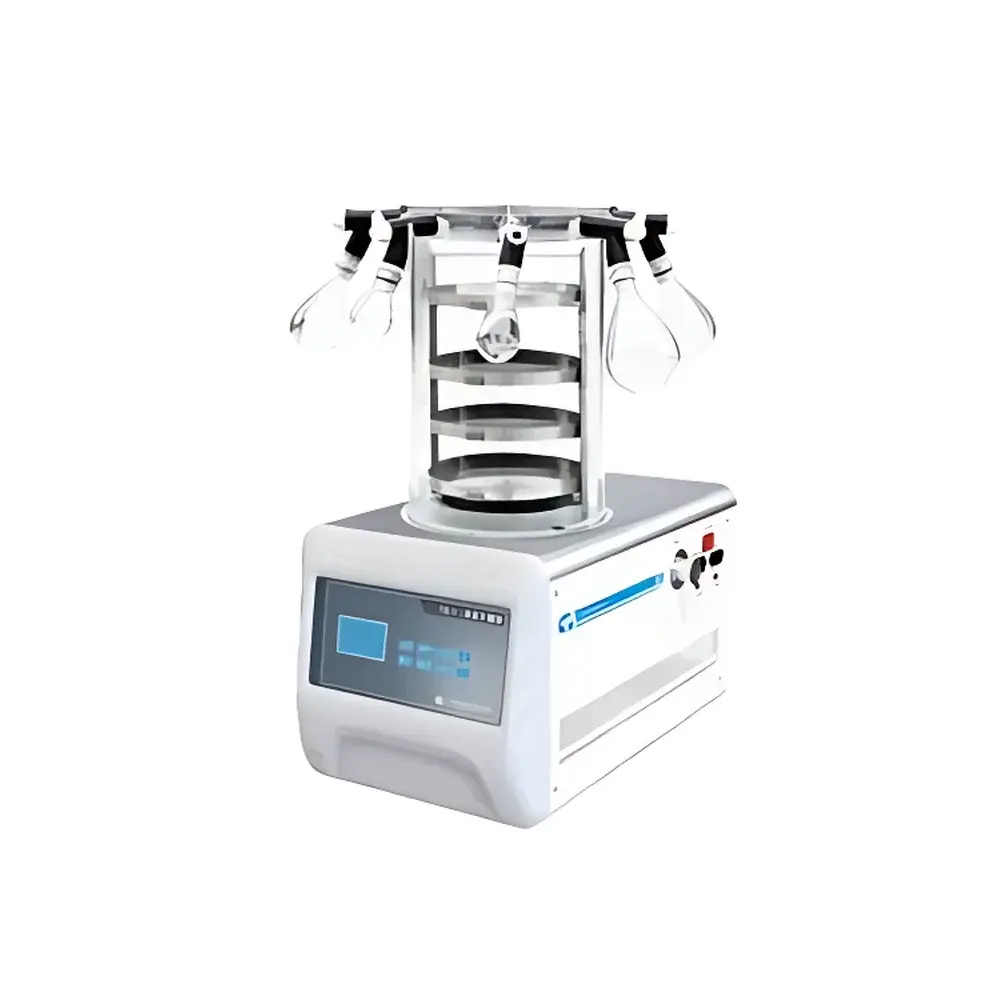

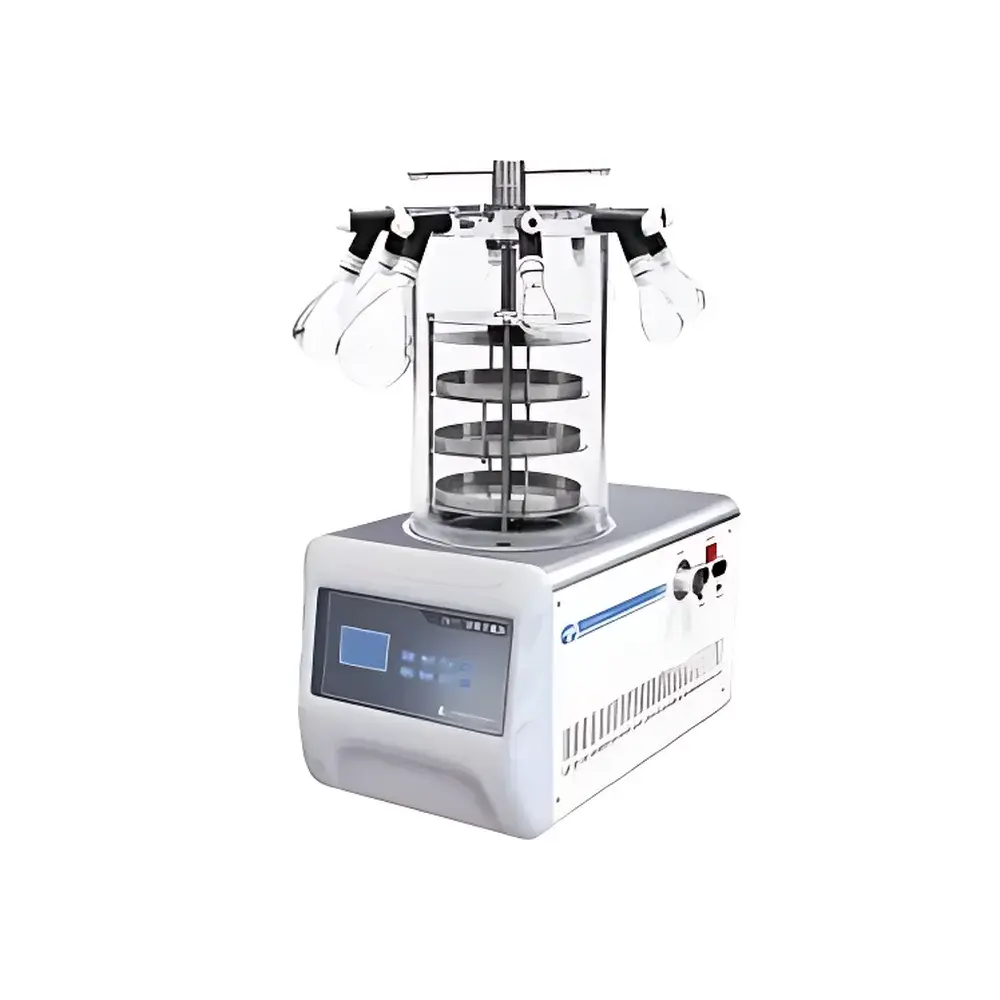

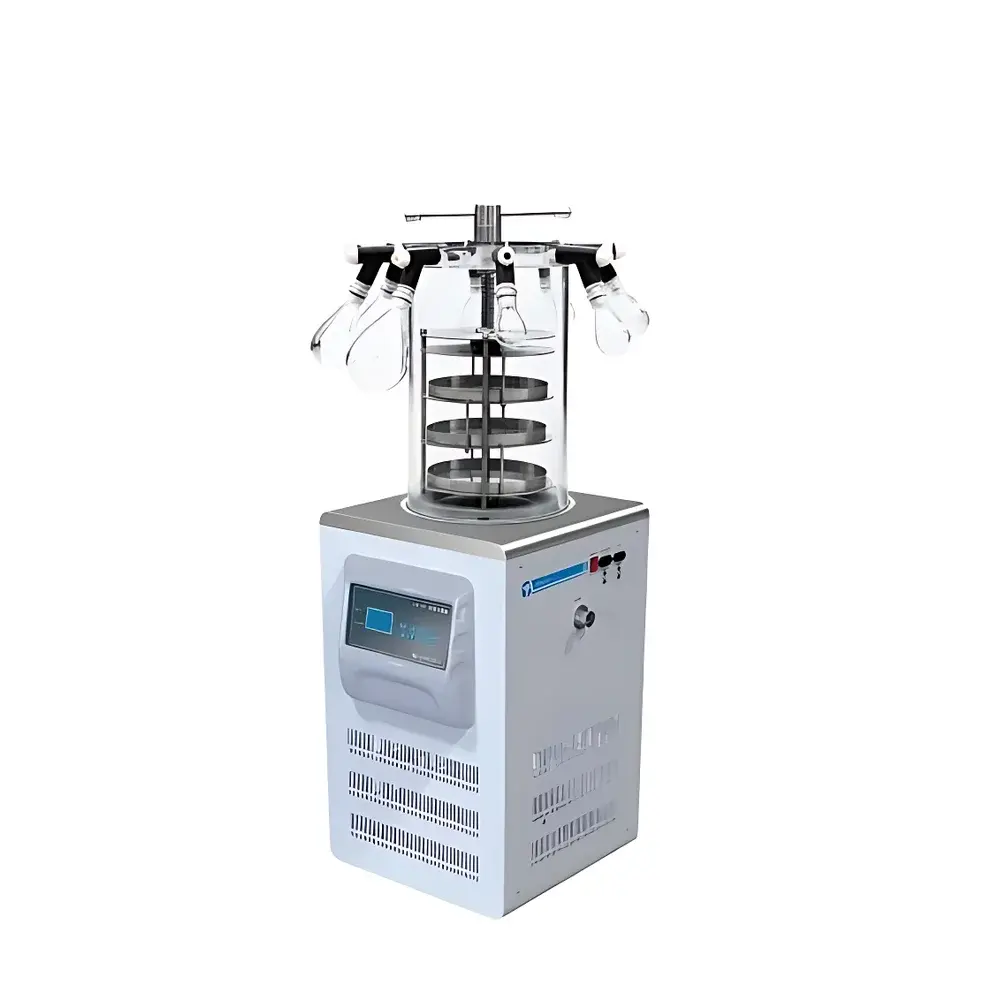

The Tianfeng TF-FD-1 Standard Benchtop Freeze Dryer is a laboratory-scale lyophilization system engineered for reliable, reproducible freeze-drying of heat-sensitive biological and pharmaceutical materials. It operates on the fundamental principle of sublimation: aqueous samples are first frozen solid at low temperature, then subjected to high vacuum to enable direct phase transition of ice into vapor—bypassing the liquid phase entirely. This process preserves structural integrity, bioactivity, and chemical stability of labile compounds such as proteins, enzymes, vaccines, antibiotics, and herbal extracts (e.g., leech-derived biomaterials). Unlike conventional thermal drying methods, freeze-drying minimizes denaturation, oxidation, and volatile loss, yielding reconstitutable, porous matrices with near-original morphology and solubility. The TF-FD-1 employs an air-cooled, single-stage refrigeration system with a stainless-steel condenser capable of reaching ≤−50 °C, enabling efficient water vapor capture during primary drying. Its compact footprint (370 × 650 × 360 mm) and 0.12 m² shelf area make it suitable for R&D labs, QC/QA workflows, and pilot-scale processing of vials, serum bottles, or bulk samples on standard Φ200 mm trays.

Key Features

• Stainless-steel construction (304 grade) throughout the drying chamber and condenser—corrosion-resistant, non-porous, and compliant with cleaning validation requirements under GLP/GMP environments.
• Transparent acrylic viewing door for real-time visual monitoring of ice formation, sublimation front progression, and cake morphology without breaking vacuum.
• Integrated touchscreen LCD interface with graphical drying curve display and numeric parameter logging—supports user-defined setpoints and PID-based temperature/vacuum control.
• On-board vacuum pump interface compatible with oil-lubricated or dry scroll pumps (not included); ultimate vacuum performance verified at <15 Pa under no-load conditions per ISO 27826:2019.
• Four-tier sample shelf configuration with uniform heat transfer characteristics; shelves are flat, rigid, and easy to decontaminate—ideal for consistent batch processing.
• Optional inert gas backfill valve (N₂ or argon) for oxygen-sensitive formulations, supporting stability testing per ICH Q1A(R2) guidelines.
• Compliance-ready architecture: supports optional temperature mapping probes, electronic audit trails, and data export (CSV/Excel) for regulatory documentation.

Sample Compatibility & Compliance

The TF-FD-1 accommodates a broad range of sample formats—including glass vials (10–20 mL), serum bottles, Petri dishes, and bulk containers—within its 0.12 m² drying area. It is routinely used for lyophilizing monoclonal antibodies, plasmid DNA, cell lysates, botanical extracts (e.g., dried leech powder for anticoagulant research), and diagnostic reagents. While not certified to FDA 21 CFR Part 11 out-of-the-box, the system’s data logging capability, timestamped event records, and password-protected parameter settings provide foundational support for ALCOA+ data integrity principles. When paired with validated accessories (e.g., calibrated PT100 sensors, external vacuum gauges), the unit meets ASTM F2375-04 (Standard Practice for Validation of Freeze Drying Processes) prerequisites for laboratory-scale process development. All wetted surfaces conform to USP <661> material compatibility standards.

Software & Data Management

The embedded control firmware enables continuous acquisition of shelf temperature, condenser temperature, chamber pressure, and elapsed time. Real-time curves are rendered on the 7-inch LCD with zoom/pan functionality and can be exported via USB to external storage. Optional RS485 or Ethernet connectivity allows integration with LIMS or SCADA systems for centralized monitoring. For regulated environments, users may configure up to 16 programmable drying stages with ramp/hold profiles, including controlled secondary drying ramps. Data files include operator ID, batch ID, and instrument serial number—facilitating traceability in accordance with ISO/IEC 17025:2017 clause 7.5.2. An optional external temperature recorder (not bundled) provides independent verification of critical process parameters for IQ/OQ/PQ documentation.

Applications

• Pharmaceutical R&D: Stabilization of sterile injectables, vaccine candidates, and peptide therapeutics prior to stability studies (ICH Q5C).
• Biotechnology: Preservation of microbial cultures, CRISPR reagents, and extracellular vesicles without cryoprotectant-induced artifacts.
• Academic Research: Lyophilization of plant-derived bioactives (e.g., hirudin from medicinal leeches), tissue homogenates, and enzyme preparations for enzymatic activity assays.
• Food Science: Pilot dehydration of probiotics, functional food ingredients, and nutraceutical concentrates while retaining viability and antioxidant capacity.
• Diagnostic Manufacturing: Production of lyophilized ELISA controls, lateral flow assay reagents, and PCR master mixes with extended room-temperature shelf life.

FAQ

What is the maximum sample volume this unit can handle per cycle?
The TF-FD-1 supports up to 3 kg of total ice load over 24 hours, corresponding to approximately 3–4 L of aqueous solution (assuming ~10–15% solids content) across four Φ200 mm trays.
Can this system be used for organic solvent-containing formulations?
It is not recommended for solvents with high vapor pressure (e.g., acetone, methanol, or DMSO) due to the −50 °C condenser limit; models with −80 °C condensers (e.g., TF-FD-1SL) are required for such applications.
Is pre-freezing required before loading samples?
Yes—samples must be fully frozen prior to chamber loading; the condenser is not designed for in-situ freezing of large volumes. A separate ultra-low temperature freezer (≤−40 °C) is advised for optimal nucleation control.
Does the system comply with ISO 9001 quality management standards?
Tianfeng holds ISO 9001:2015 certification for design, manufacturing, and service delivery; full compliance documentation is available upon request for audit preparation.
What maintenance intervals are recommended for long-term reliability?
Vacuum pump oil replacement every 3 months (or per pump manufacturer specifications), condenser defrosting after each cycle, and annual calibration of temperature sensors and vacuum transducers are advised per the user manual.
