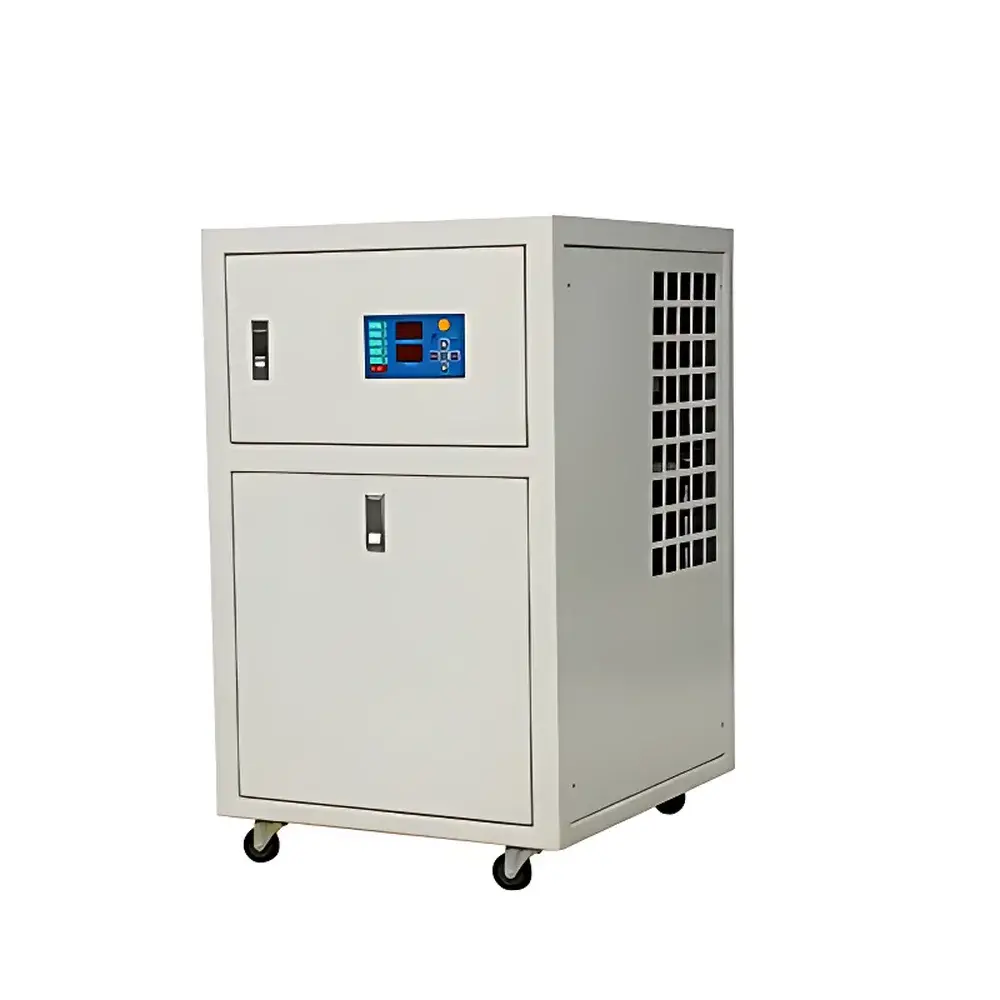

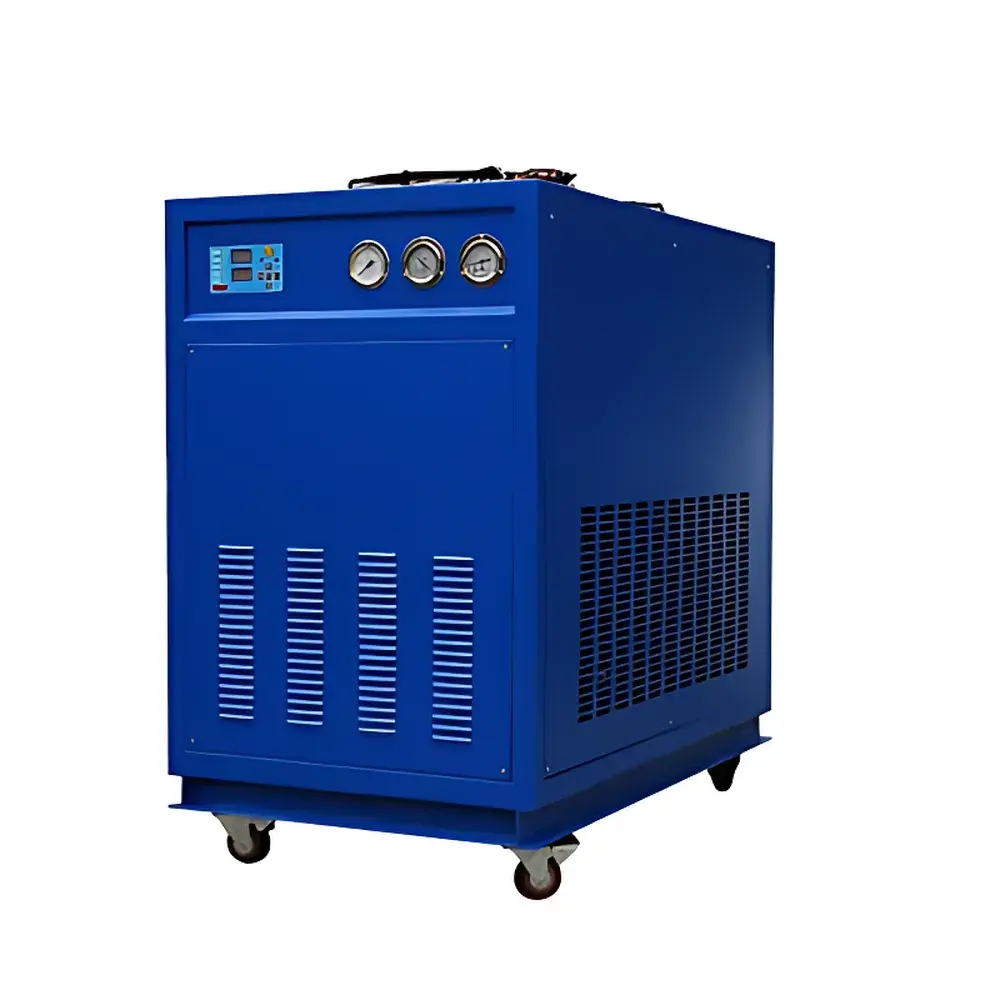

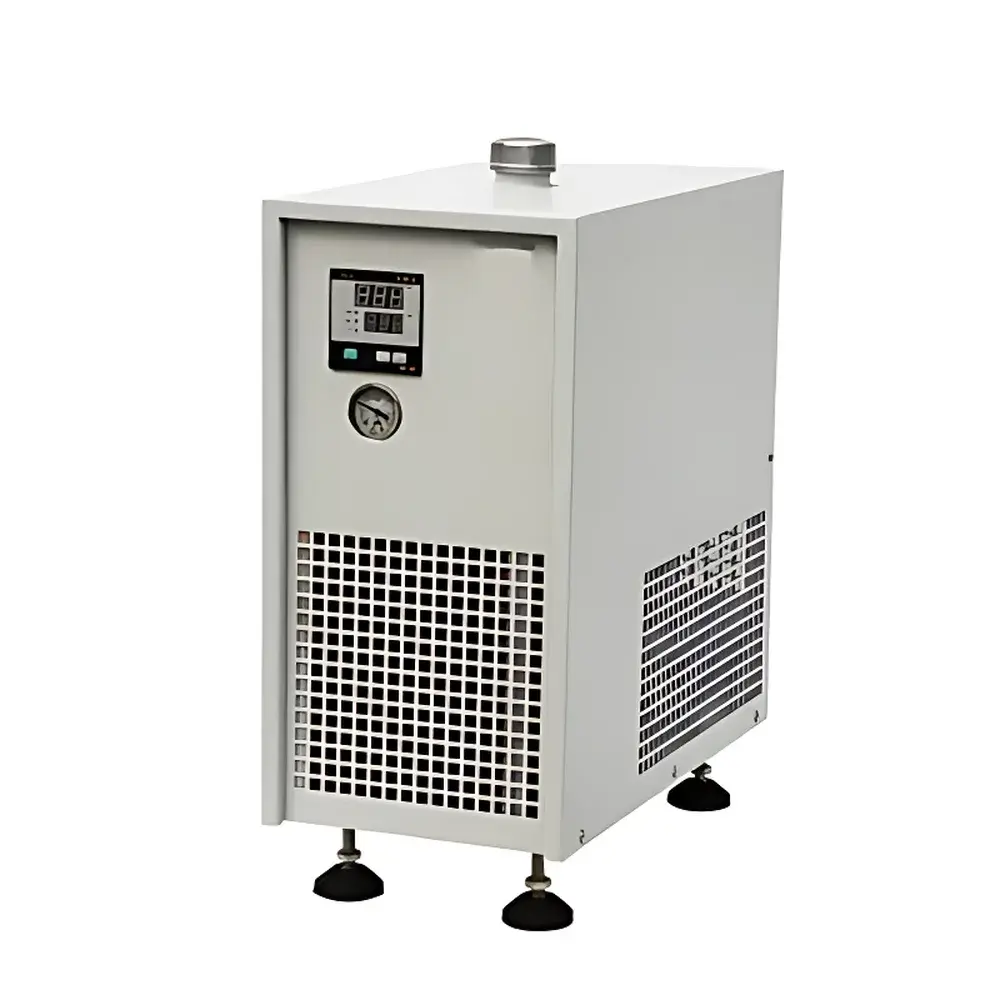

Tianfeng TF-LS-3HP Integrated Circulating Chiller

Overview

The Tianfeng TF-LS-3HP Integrated Circulating Chiller is a precision-engineered thermal management system designed for stable, continuous cooling of heat-generating components in analytical instrumentation and industrial equipment. Operating on the vapor-compression refrigeration cycle, it delivers consistent chilled water at precisely regulated temperatures—critical for maintaining operational integrity and measurement fidelity in sensitive laboratory instruments. Unlike air-cooled alternatives, this unit employs a water-cooled condenser configuration, enabling higher thermal efficiency and reduced ambient heat rejection—particularly advantageous in temperature-controlled lab environments where HVAC load minimization is essential. Its compact integrated architecture eliminates external piping complexity while supporting long-term unattended operation under variable thermal loads typical of spectroscopic, microscopy, and elemental analysis platforms.

Key Features

• High-efficiency scroll compressor from European OEM suppliers, delivering stable refrigeration output with low mechanical vibration and extended service life
• Stainless steel reservoir (60 L capacity) and circulation pump—corrosion-resistant, non-reactive, and compatible with deionized or inhibited coolant solutions
• Digital PID temperature controller with ±0.1 °C stability (at steady-state, 5–30 °C setpoint range), optionally upgradeable to RKC programmable controller for enhanced logging and ramp/soak profiles
• Intelligent dual-mode operation: fixed-temperature mode for static thermal load applications; adaptive temperature modulation mode that dynamically adjusts setpoint based on real-time inlet/outlet ΔT feedback
• Comprehensive safety architecture including high/low refrigerant pressure monitoring, compressor winding overtemperature detection, phase-loss protection, and overcurrent cutoff
• Modular electrical cabinet with CE-compliant components (Siemens, Schneider, Omron) and IP54-rated enclosure for dust/moisture resistance
• Low-noise design (<72 dB[A] at 1 m) achieved via acoustic insulation, anti-vibration mounting, and optimized fan blade geometry

Sample Compatibility & Compliance

The TF-LS-3HP is engineered for seamless integration with high-value laboratory instrumentation requiring stable coolant delivery—including graphite furnace atomic absorption spectrometers (GFAAS), inductively coupled plasma optical emission spectrometers (ICP-OES), inductively coupled plasma mass spectrometers (ICP-MS), X-ray fluorescence (XRF) analyzers, X-ray diffractometers (XRD), scanning electron microscopes (SEM), and transmission electron microscopes (TEM). Its stainless steel wetted parts meet ASTM A240 standards for 304-grade stainless, ensuring compatibility with ultrapure water and common glycol-based heat transfer fluids. The system conforms to ISO 9001:2000 quality management requirements across design, production, and calibration processes. While not intrinsically certified for GMP or FDA 21 CFR Part 11 compliance, its digital controller supports audit-trail-ready operation when paired with validated third-party data acquisition software—enabling traceability required under GLP and ISO/IEC 17025 laboratory accreditation frameworks.

Software & Data Management

The standard digital controller provides local setpoint adjustment, real-time display of supply/return temperatures, flow status, and alarm history. Optional RS485 Modbus RTU interface enables integration into centralized lab infrastructure monitoring systems (e.g., LabVantage, Thermo Fisher SampleManager). When configured with external data loggers or SCADA-compatible gateways, the chiller supports time-stamped recording of temperature deviation, pump runtime, and fault events—facilitating preventive maintenance scheduling and root-cause analysis during instrument qualification (IQ/OQ/PQ). No proprietary cloud platform is embedded; all communication protocols remain open and vendor-agnostic to ensure interoperability with existing laboratory information management systems (LIMS).

Applications

Beyond analytical instrumentation cooling, the TF-LS-3HP serves critical thermal regulation roles in semiconductor fabrication tools (e.g., plasma etch chill plates), laser systems (CO₂, fiber, and ultrafast lasers), vacuum deposition chambers, and high-speed machining spindles. In materials science labs, it stabilizes detector temperatures in XRD and DSC systems, minimizing thermal drift during long-duration scans. Its precise 5–30 °C control range supports cryo-stage precooling for TEM sample holders and maintains optimal operating temperature for CCD/CMOS detectors in confocal microscopes. In pharmaceutical QC labs, it cools autosampler trays and HPLC column ovens—contributing to retention time reproducibility per USP <621> chromatographic system suitability criteria.

FAQ

What is the recommended maximum return water temperature for continuous operation?
For sustained compressor longevity and system efficiency, the return water temperature should not exceed 40 °C. Higher return temperatures increase condensing pressure and reduce volumetric efficiency—potentially triggering high-pressure cutout protection.
Can this chiller be used with deionized water in high-purity applications?
Yes—the stainless steel reservoir, pump head, and tubing path are fully compatible with deionized water. However, corrosion inhibitors or biocides may be required for extended idle periods to prevent microbial growth or electrochemical pitting.
Is remote monitoring and control supported out-of-the-box?
The base model includes local digital interface only. Remote access requires optional RS485 Modbus RTU module and integration with external SCADA or building management systems.
Does the unit comply with electromagnetic compatibility (EMC) standards for laboratory use?
It meets IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emission) Class B limits, verified per factory test reports—ensuring minimal interference with adjacent sensitive instrumentation such as NMR consoles or lock-in amplifiers.
What maintenance intervals are recommended for optimal performance?
Condenser cleaning every 3 months (more frequently in dusty environments), refrigerant circuit leak inspection annually, and full system performance verification—including flow calibration and temperature sensor validation—every 12 months per ISO/IEC 17025 Clause 6.4.6.
