Tianyan TY-FK Series WiFi-Enabled Dual-Line Thermal Sealer with Touchscreen and Integrated Twin Dot-Matrix Printers

Overview

The Tianyan TY-FK Series is a CE-compliant, medical-grade thermal sealer engineered specifically for sterile barrier packaging in healthcare sterilization departments—including Central Sterile Supply Departments (CSSD), operating rooms, and outpatient sterilization units. It operates on the principle of controlled resistive heating applied through a precision-engineered flat-panel heating element, delivering consistent thermal energy to thermoplastic sealing layers in paper-plastic pouches (e.g., Tyvek®-polyethylene laminates) and medical-grade paper-paper combinations. Unlike general-purpose heat sealers, the TY-FK Series integrates dual independent dot-matrix printers, real-time parameter logging, and Wi-Fi-enabled bidirectional communication with hospital sterilization management systems—enabling full compliance with ISO 11607-1:2019 (packaging for terminally sterilized medical devices) and supporting audit readiness under GLP/GMP and FDA 21 CFR Part 11 requirements for electronic records and signatures.

Key Features

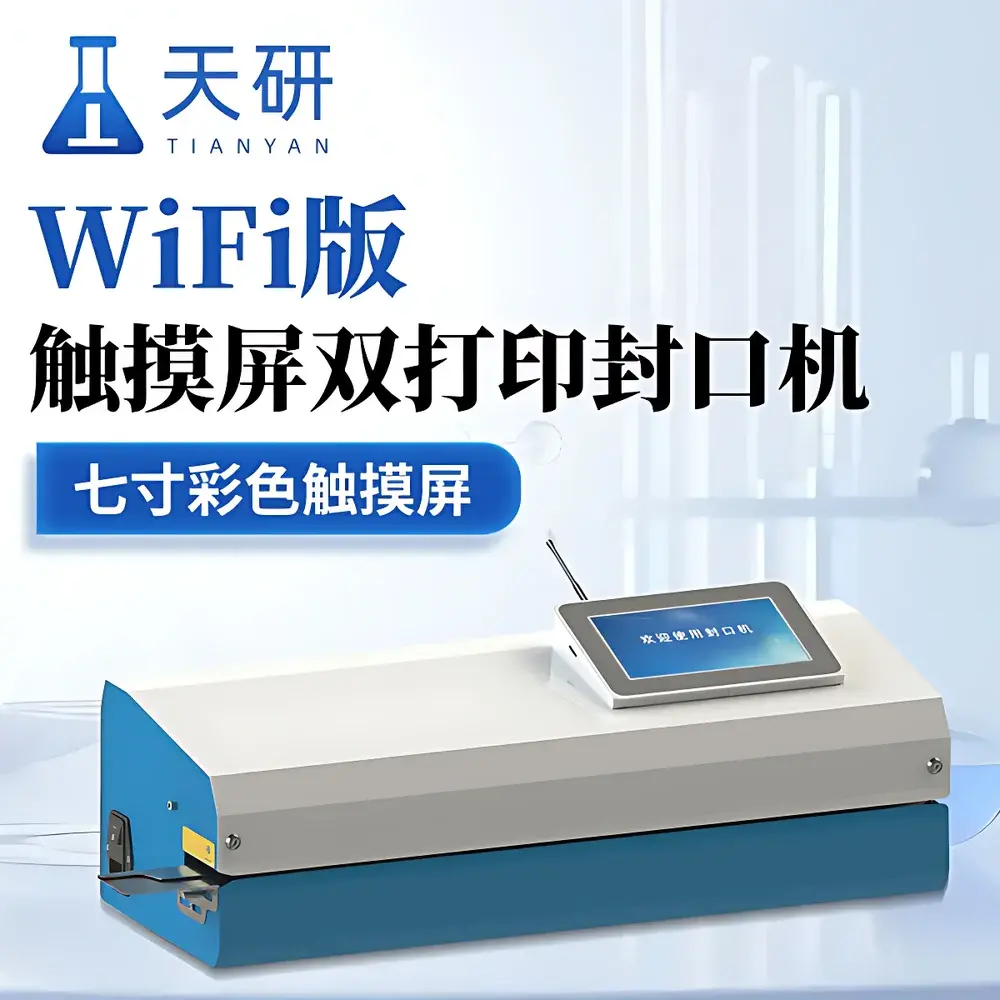

• 7-inch full-color touchscreen HMI with intuitive graphical interface, bilingual (Chinese/English) firmware, and integrated text-to-speech feedback for operator guidance without visual reliance.
• Dual independent dot-matrix printers supporting configurable dual-line output; each line independently assignable to fields such as sterilization date, expiry date, autoclave batch ID, operator ID, load number, item description, or user-defined text—fully compliant with YY 0466–2003 symbol standards.

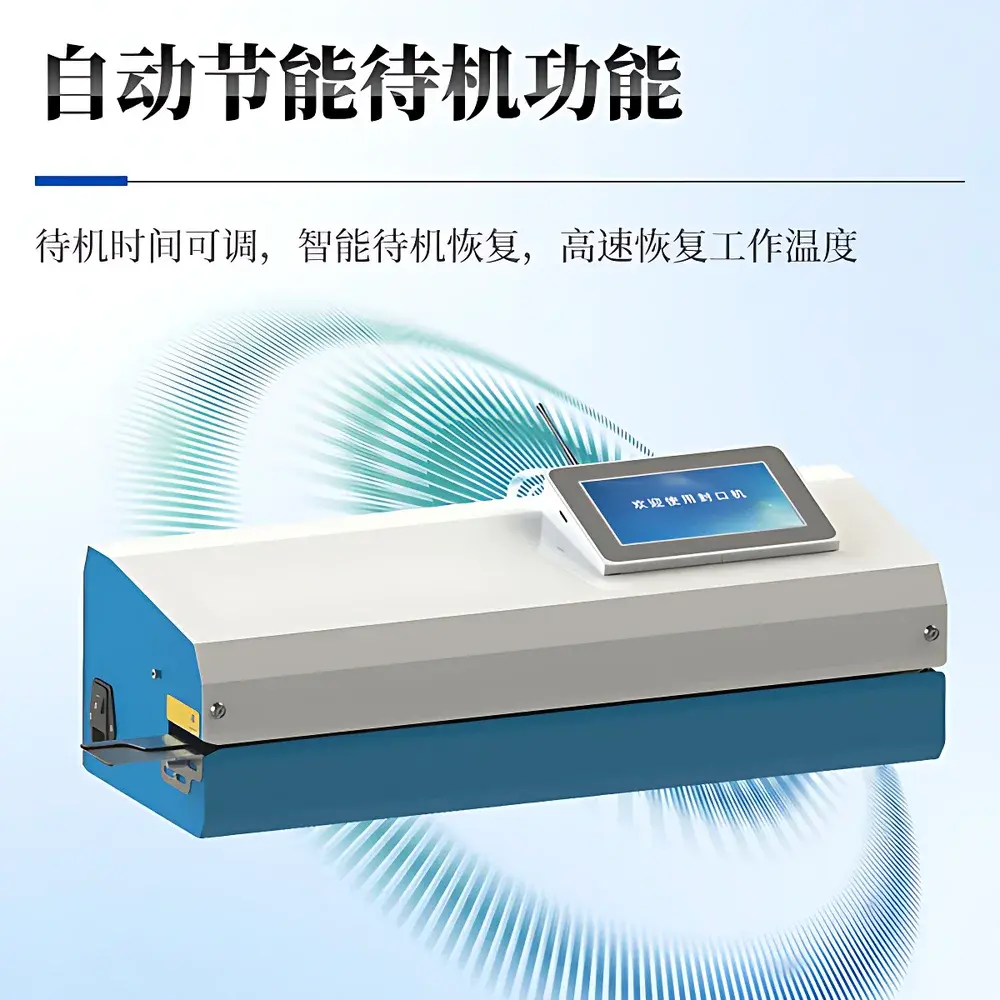

• Microprocessor-controlled temperature regulation (60–220 °C) with ±1% stability; four factory-preset profiles plus full manual adjustment; rapid thermal ramp-up (<40 s from ambient to 180 °C) and active cooling via temperature-synchronized exhaust fan.
• Floating pressure-compensation mechanism ensures uniform sealing force across variable substrate thicknesses—validated for paper-plastic pouches, Tyvek®-based sterile wraps, and multi-layered paper-paper configurations per YY/T 0698.5–2009 mechanical integrity testing.
• Intelligent sealing margin control (0–35 mm), dynamic print-content-to-bag-width matching algorithm, and reversible 180° print orientation to accommodate diverse pouch loading orientations.

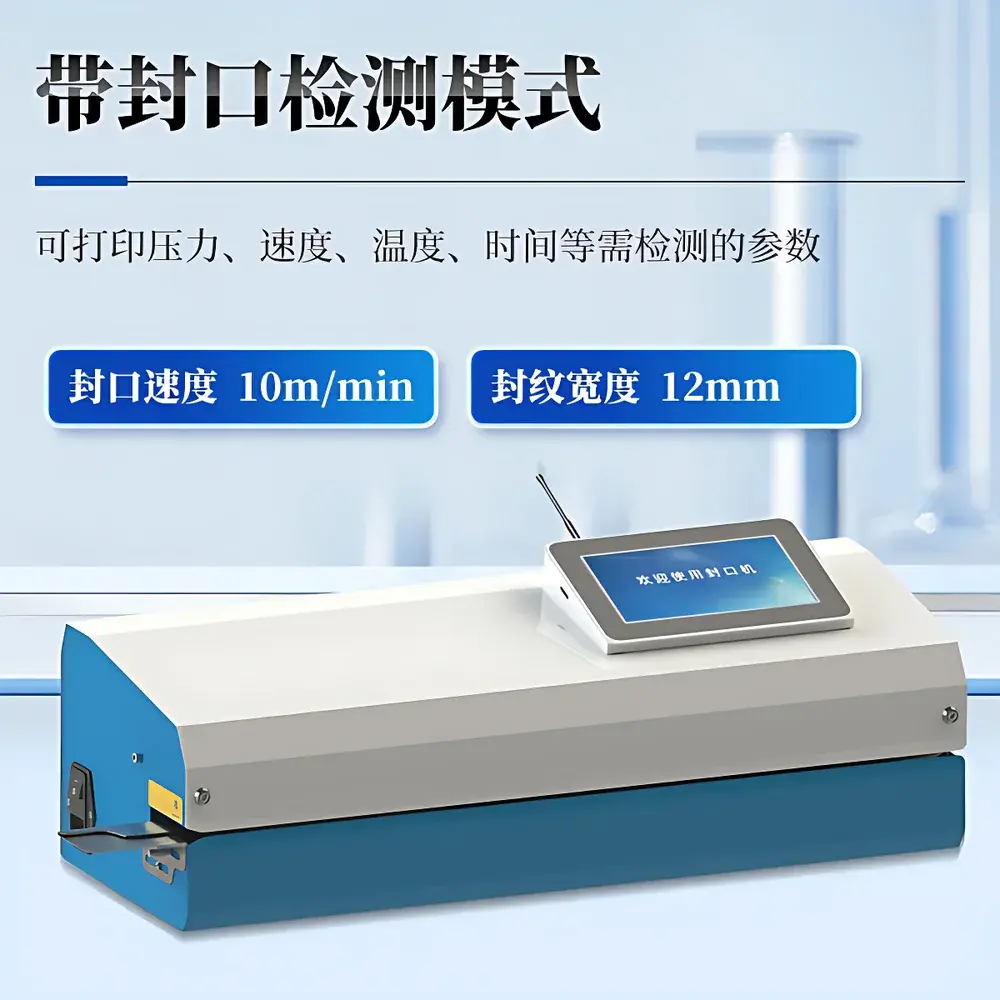

• Comprehensive operational logging: real-time display and printable record of sealing temperature, dwell time, linear speed, applied pressure, and equipment ID—captured during both routine operation and dedicated seal validation mode.
• Wi-Fi 802.11 b/g/n module enables secure TLS-encrypted transmission of sealing metadata to central traceability platforms (e.g., Steris Tracking System, Getinge eTrace, or custom HL7/FHIR-integrated HIS/PACS).

Sample Compatibility & Compliance

The TY-FK Series is validated for use with ISO 11607-2:2019–qualified packaging materials, including Class I and II medical device pouches composed of PET/PE, Tyvek®/polyethylene, and medical kraft paper laminates. Seal integrity meets minimum peel strength thresholds defined in YY/T 0698.5–2009 (≥1.2 N/15 mm for paper-plastic) and demonstrates no channeling or cold-seal defects under accelerated aging (ASTM F1980). All printed outputs conform to YY 0466–2003 symbol set requirements and support human-readable date formatting aligned with ISO 8601 (YYYY-MM-DD). The system supports configurable date logic—e.g., automatic expiry calculation based on sterilization date + shelf-life interval—and stores all metadata with immutable timestamps for regulatory review.

Software & Data Management

Embedded firmware includes local database storage (>10 million sealed-batch records), timestamped audit trails, and USB 2.0 mass-storage mode for encrypted CSV export. Each record contains device ID, operator login (optional RFID badge integration), seal parameters, printer output image hash, and environmental context (e.g., ambient humidity if external sensor is connected). Wi-Fi configuration supports WPA2-Enterprise authentication and certificate-based mutual TLS handshake. Software update delivery is signed and verified via SHA-256 checksums. Data retention policies are configurable per institutional policy—supporting auto-purge cycles or indefinite archival. Full export compliance with HIPAA-compliant de-identification protocols is achievable via optional middleware configuration.

Applications

• Routine sealing and labeling of instrument trays, laparoscopic sets, and single-use device pouches in CSSD workflows.
• Batch-level documentation for ISO 13485-certified contract sterilizers performing ethylene oxide or steam sterilization.
• Quality assurance validation runs requiring full parametric printouts for internal SOP adherence and third-party auditor verification.
• Integration into automated sterilization lines where PLC-triggered seal-and-print cycles synchronize with conveyor positioning and barcode scanning stations.
• Research laboratories validating new packaging material formulations under ASTM F88/F903 peel strength and burst testing protocols.

FAQ

Does the TY-FK Series support FDA 21 CFR Part 11 compliance?
Yes—when deployed with enterprise Wi-Fi authentication, digital signature enrollment, and audit-trail-enforced user roles, it satisfies electronic record and signature requirements for U.S. medical device manufacturers and reprocessors.
Can the dual printers operate independently—for example, one for internal tracking and one for external regulatory labels?
Yes. Each printer channel is fully programmable: fields, font size, position (line 1/line 2), and enable/disable state are configured separately per sealing job or preset profile.
Is stainless steel construction available for ISO 13485 cleanroom environments?

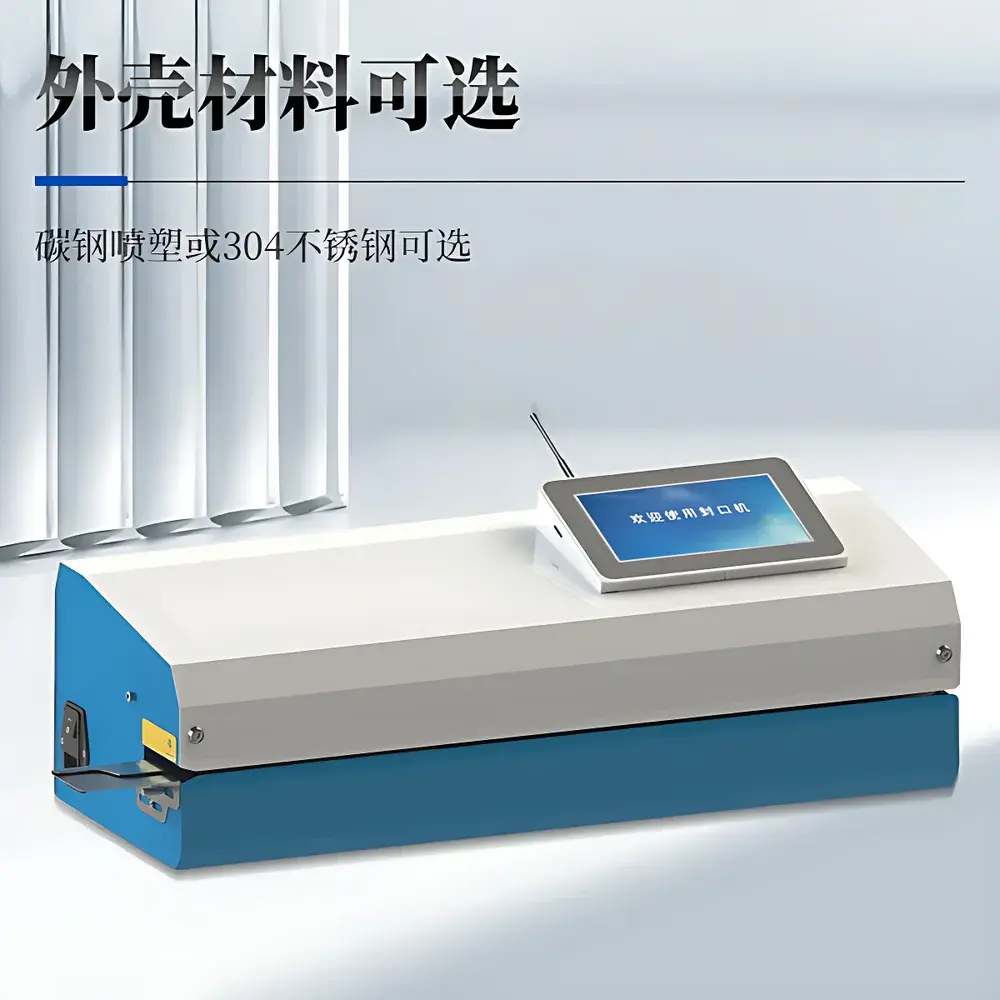

Yes—304 stainless steel enclosure option meets ISO 14644-1 Class 7/8 particulate control requirements and simplifies disinfectant compatibility validation.
How is temperature calibration verified and maintained?
The system includes built-in NIST-traceable reference thermistor monitoring; calibration certificates are provided at shipment, and field recalibration is supported via RS-232 service port using certified dry-block calibrators.
What happens to print and seal data during temporary Wi-Fi outage?
All operations continue uninterrupted; data queues locally and transmits automatically upon network restoration with sequence-consistent timestamps and duplicate-suppression logic.
