Tianyan TY-HA01 Hough Unit Analyzer for Egg Quality Assessment

Overview

The Tianyan TY-HA01 Hough Unit Analyzer is a dedicated benchtop instrument engineered for objective, repeatable assessment of egg freshness based on the internationally recognized Hough Unit (HU) metric. Developed in accordance with the U.S. Department of Agriculture’s Agricultural Marketing Service (USDA AMS) standards—widely adopted across China and ASEAN food safety regulatory frameworks—the analyzer quantifies albumen height (in millimeters) and egg mass (in grams) to compute HU values using the standardized logarithmic formula: HU = 100 × log₁₀[h + 7.57 − 1.7 × (w^0.37)], where h is thick albumen height (mm) and w is egg mass (g). Unlike subjective visual grading, this method provides traceable, operator-independent metrics directly correlated with albumen viscosity degradation over time. The instrument operates on a dual-sensor architecture: a precision linear encoder for non-contact albumen height profiling and a calibrated analytical balance for mass determination—both synchronized via embedded microcontroller logic to minimize procedural variability.

Key Features

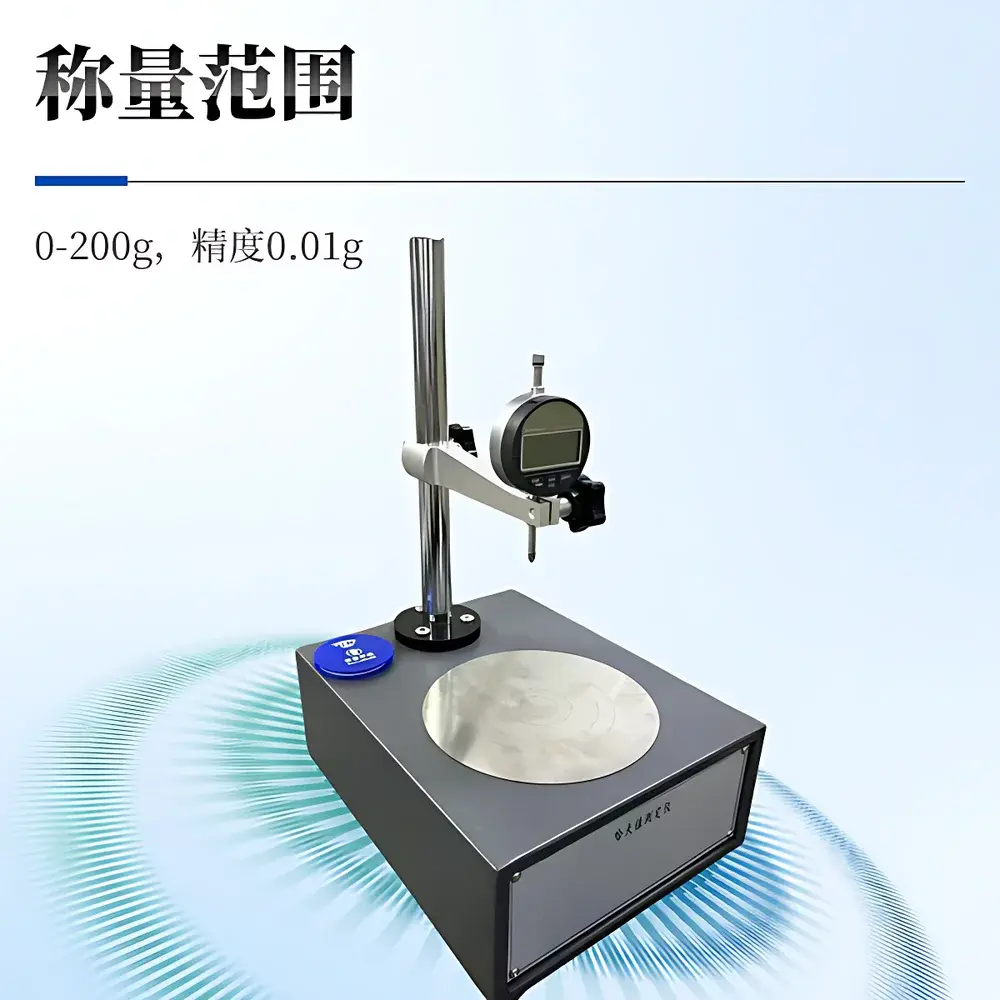

• High-resolution digital measurement system with 0.01 mm vertical resolution and 0.01 g mass resolution, ensuring compliance with USDA AMS P-1016 and GB/T 2749–2018 egg quality testing requirements.

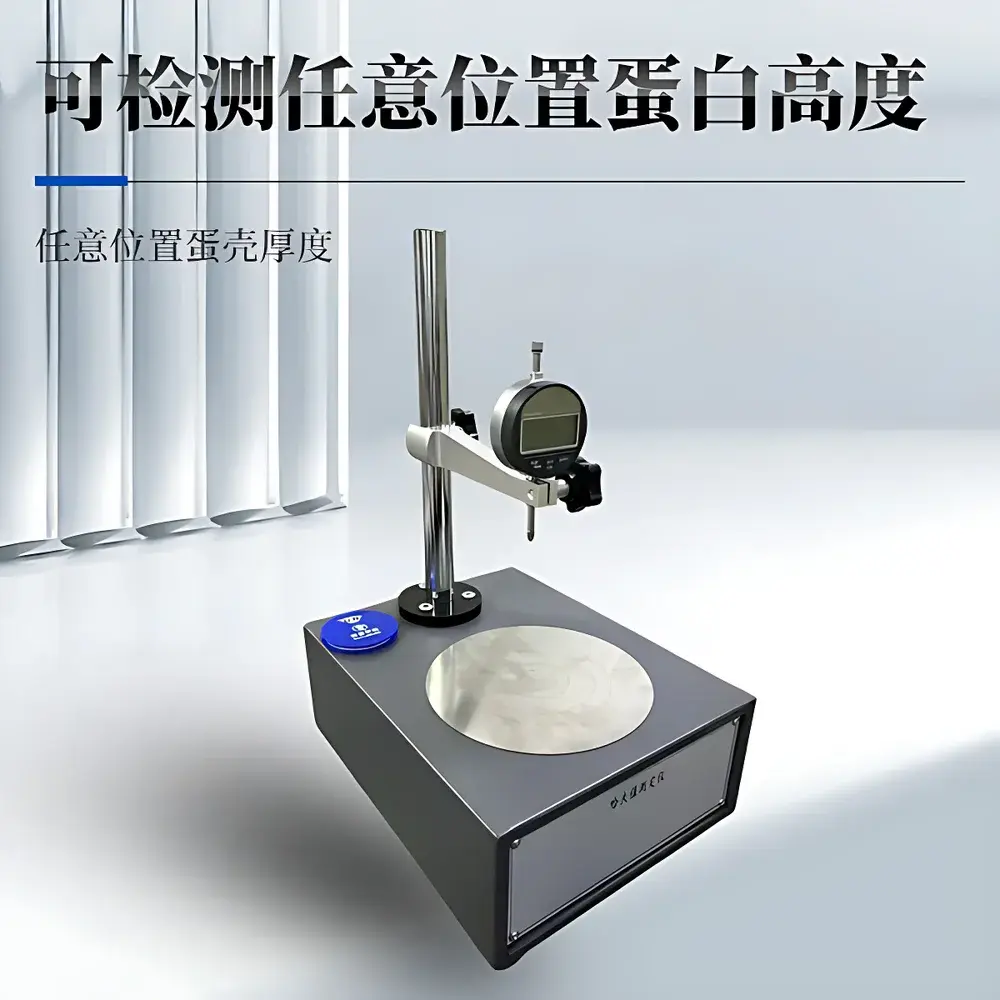

• Adjustable probe positioning mechanism enabling albumen height measurement at any radial location on the opened egg—critical for detecting localized thinning or heterogeneity in albumen structure.
• Dual-parameter acquisition: simultaneous capture of thick albumen height and net egg mass, eliminating manual transcription errors and reducing analysis time to under 45 seconds per sample.

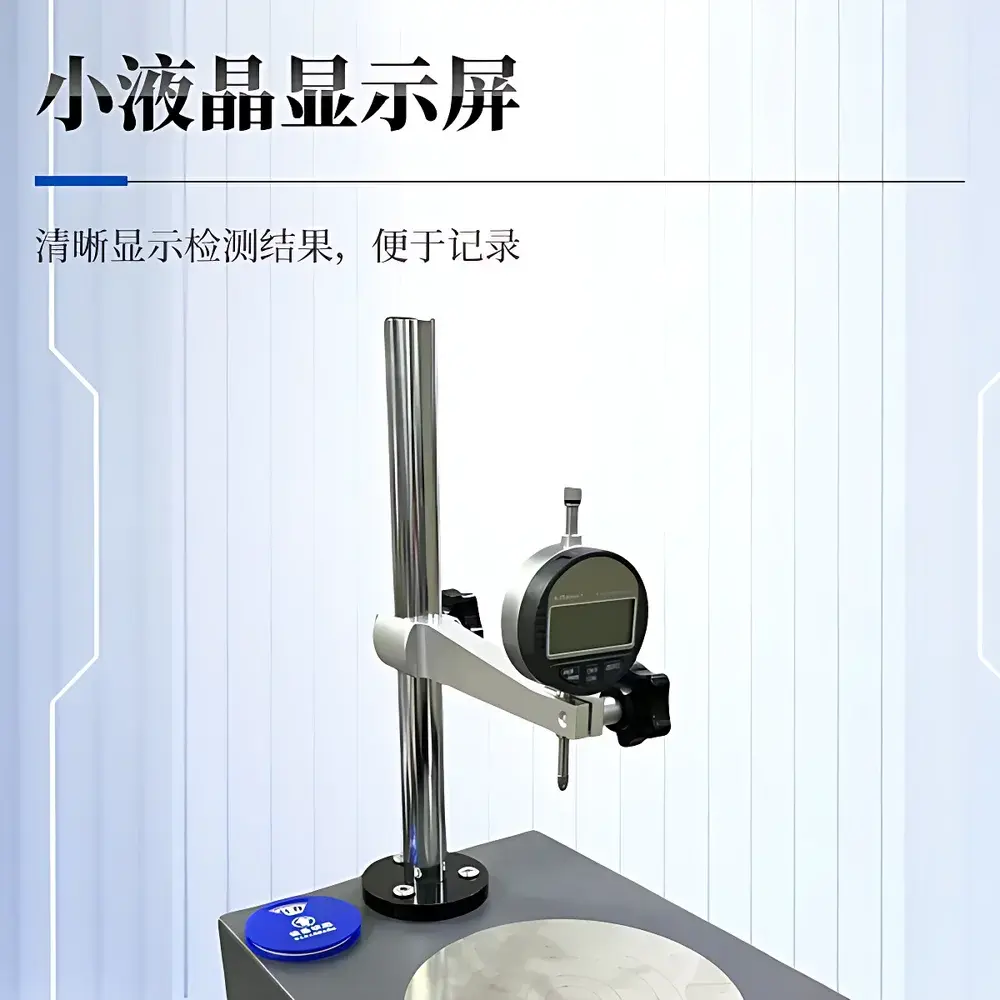

• Integrated LCD interface with real-time display of raw measurements (h, w) and automatically calculated HU value—no external PC required for basic operation.
• Compact footprint (400 × 300 × 180 mm) optimized for QC laboratories with limited bench space; constructed with corrosion-resistant anodized aluminum frame and food-grade stainless steel contact surfaces.

Sample Compatibility & Compliance

The TY-HA01 supports intact shell eggs (Grade A–C, 45–75 g), broken-out samples in standard petri dishes (diameter ≥ 90 mm), and washed/shell-free preparations used in industrial hatchery or processing line validation. It complies with measurement traceability requirements under ISO/IEC 17025:2017 for testing laboratories and aligns with the metrological principles outlined in ASTM E29–23 (Standard Practice for Using Significant Digits in Test Data). All firmware calculations are locked to the USDA-defined HU equation without user-modifiable coefficients—ensuring audit readiness for GLP-compliant egg grading facilities and third-party certification bodies (e.g., China National Certification & Accreditation Administration CNCA, SGS Food Lab audits).

Software & Data Management

While standalone operation is fully functional via the onboard LCD, optional USB-C connectivity enables data export to CSV format for integration into LIMS or Excel-based QA dashboards. The embedded firmware implements immutable audit logs: each test record includes timestamp, operator ID (if configured), raw h/w inputs, computed HU, and grade classification (AA/A/B/C per USDA thresholds). No cloud dependency or proprietary software installation is required. For regulated environments, the device supports 21 CFR Part 11–compliant electronic signature add-ons via optional external authentication modules (sold separately), fulfilling FDA-aligned documentation integrity requirements for export-oriented egg processors.

Applications

• Quality control in commercial layer farms and hatcheries for pre-shipping freshness verification.
• Research studies on storage conditions (temperature/humidity cycling), feed formulation impact on albumen stability, and genetic selection programs for improved egg shelf-life.
• Regulatory inspection by municipal food safety bureaus conducting routine surveillance of retail egg batches per GB 2749–2018.
• Product development labs evaluating enzyme inhibitors, antimicrobial coatings, or modified atmosphere packaging efficacy on albumen rheological retention.
• Educational use in food science curricula for hands-on demonstration of physicochemical indices linked to post-lay biochemical changes (e.g., CO₂ loss, pH rise, conalbumin denaturation).

FAQ

What is the calibration procedure for the TY-HA01, and how often must it be performed?
Calibration uses NIST-traceable gauge blocks (height) and certified weights (mass); full two-point calibration is recommended before each daily shift or after transport. Internal self-diagnostics verify sensor linearity prior to each measurement cycle.
Does the instrument require consumables or disposable parts?
No. The probe tip and weighing pan are cleaned with ethanol or food-grade sanitizer between samples; no wear-prone components or proprietary consumables are used.
Can the TY-HA01 measure eggs with cracked shells or abnormal shape?
Yes—provided the thick albumen remains structurally intact upon opening and spreads uniformly within the standard dish. Severely misshapen or double-yolked eggs should be flagged as outliers per internal SOP but remain measurable.
Is firmware upgrade support available for future regulatory updates?
Yes. Firmware revisions—including adjustments to grading thresholds per evolving national standards—are distributed free-of-charge via secure download portal with SHA-256 verified binaries and version-controlled release notes.
