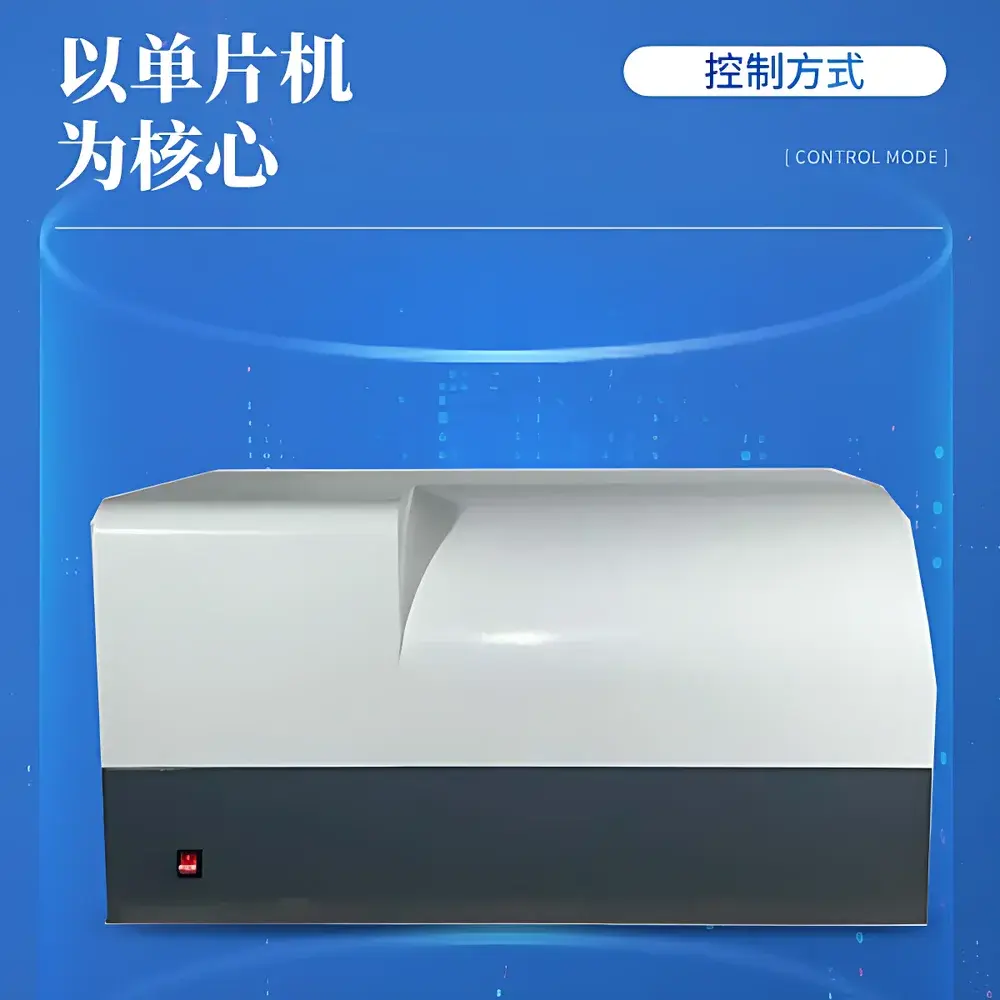

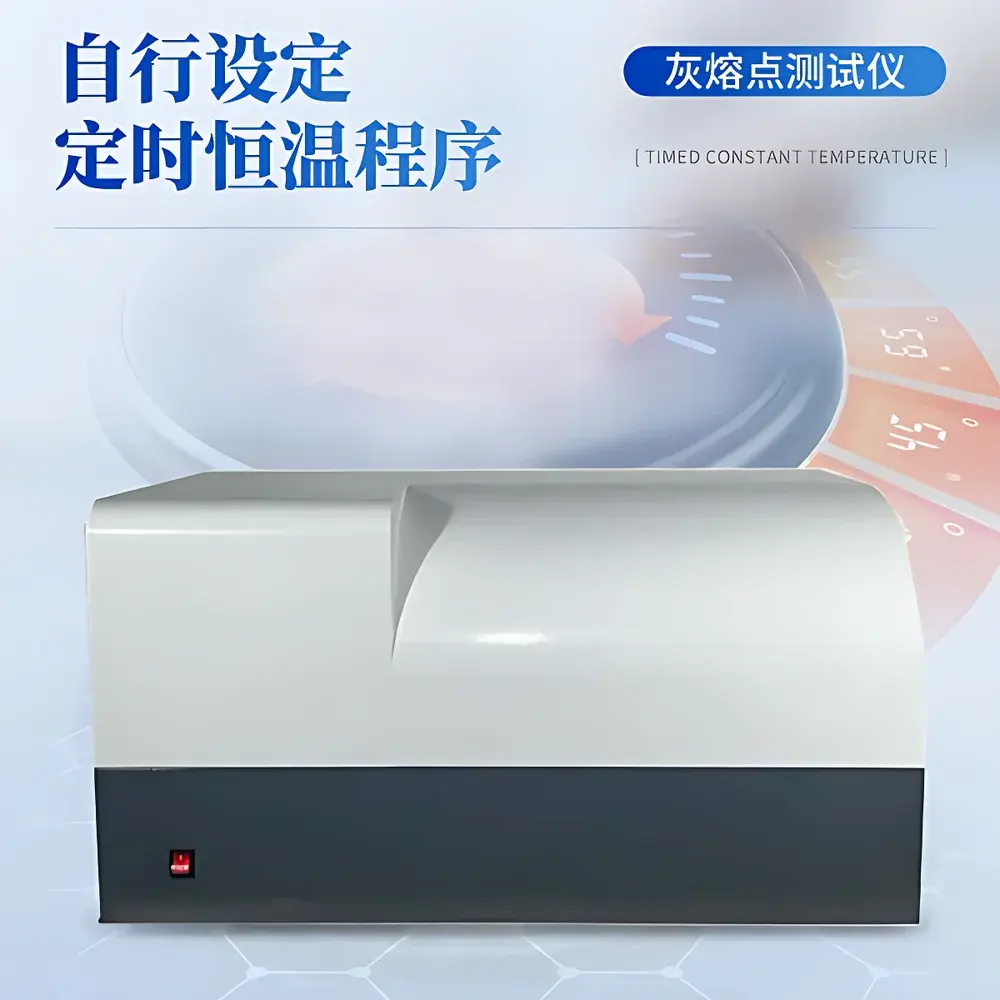

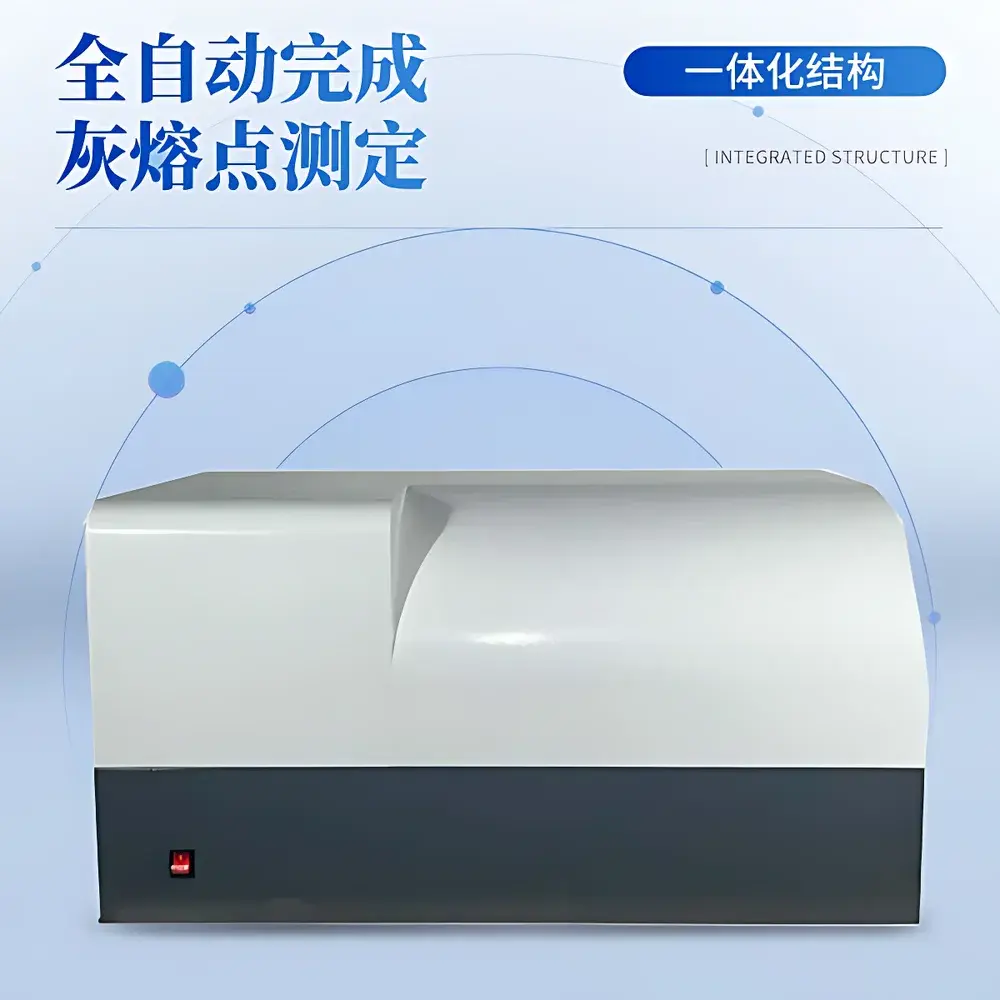

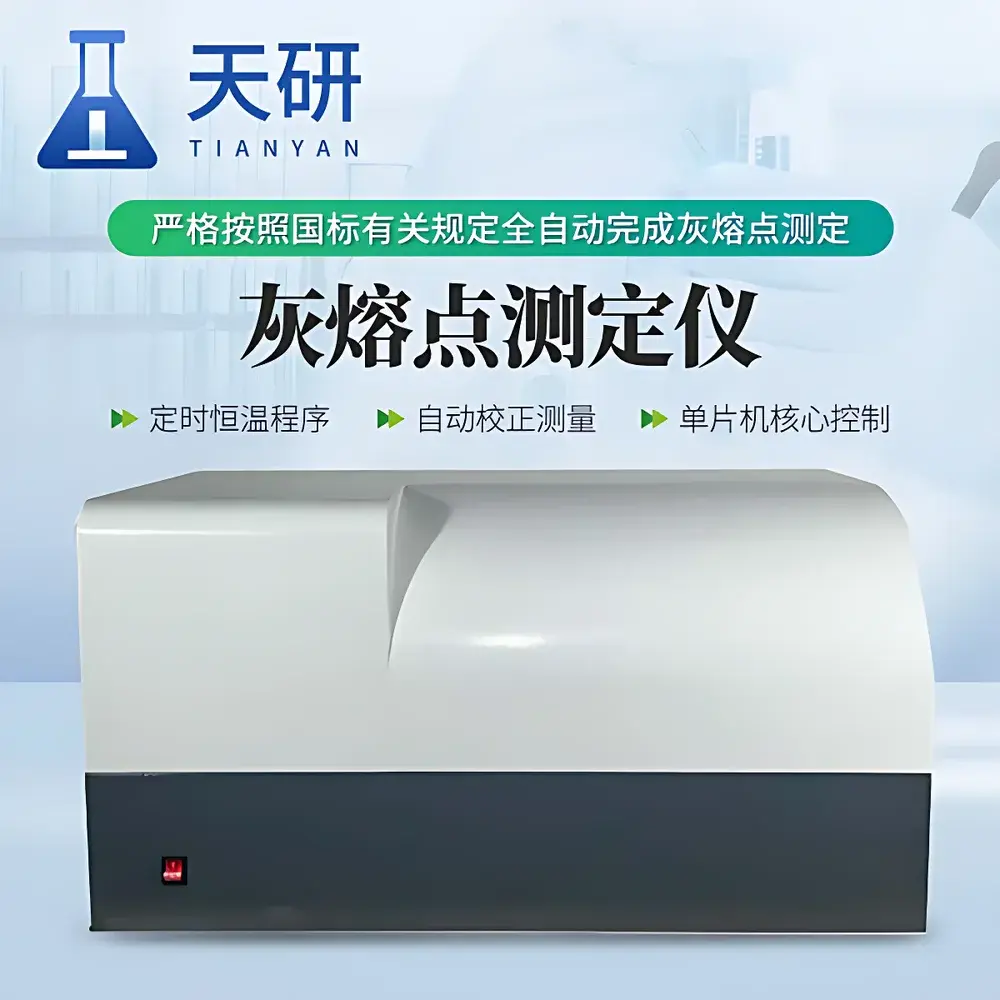

Tianyan TY-HRD Ash Fusion Temperature Tester
| Brand | Tianyan |
|---|---|
| Model | TY-HRD |
| Origin | Shandong, China |
| Temperature Range | 0–1600 °C (±3 °C accuracy) |
| Resolution | 1 °C (temperature), 1 min (time |
| Heating Rate | 15–20 °C/min up to 900 °C |
| Thermocouple Type | S-type (Platinum-Rhodium/Platinum) |
| Max Control Current | 30 A |
| Power Supply | 220 V ±10%, 50 Hz |
| Power Consumption | 10 W |
| Dimensions (W×H×D) | 305×390×120 mm |
| Operating Environment | 0–40 °C, RH ≤80% |
| Communication Interface | RS232 |
| Compliance | GB/T 219–2008 (Chinese National Standard for Coal Ash Fusibility) |
Overview

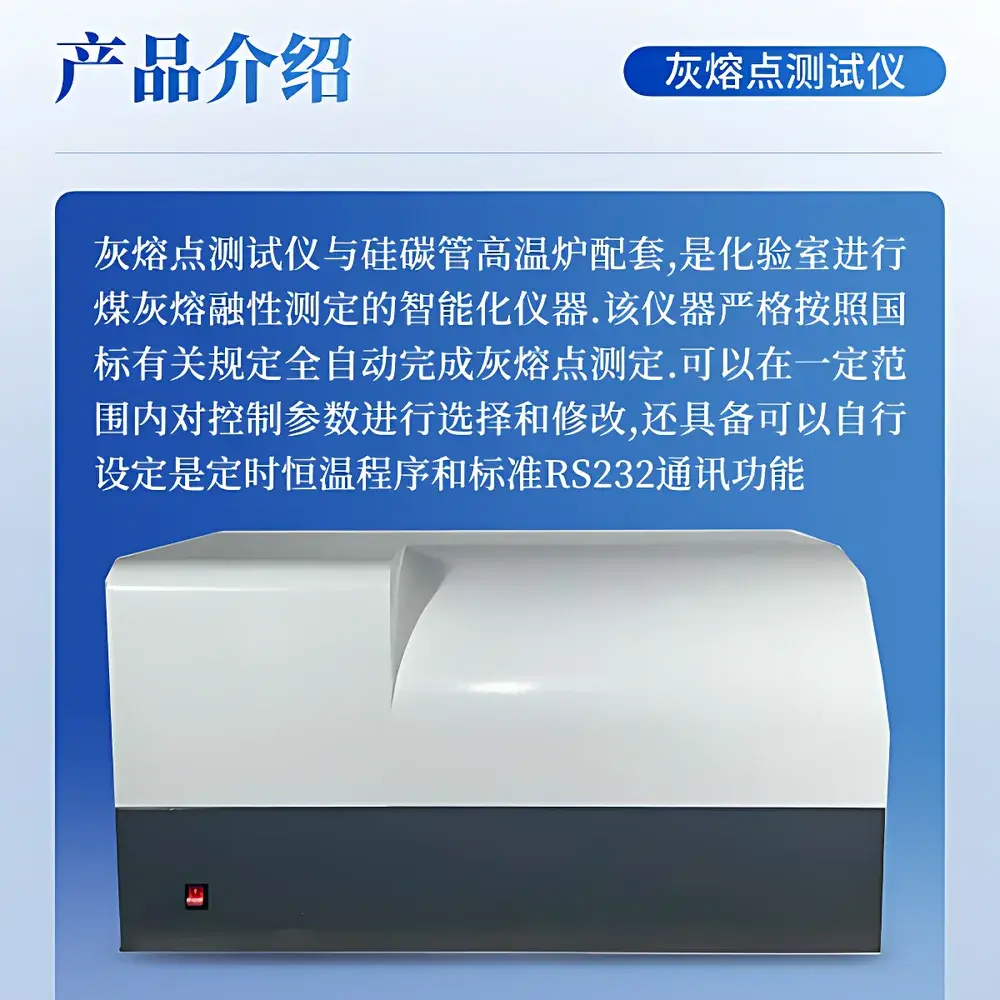

The Tianyan TY-HRD Ash Fusion Temperature Tester is a dedicated, microprocessor-controlled instrumentation system engineered for the precise determination of ash fusibility characteristics in coal and solid fuel analysis. It operates in conjunction with a high-temperature silicon carbide (SiC) tube furnace and conforms strictly to GB/T 219–2008 — the Chinese national standard equivalent to ISO 540:2008 and ASTM D1857 for ash fusion temperature (AFT) testing. The instrument implements automated thermal profiling based on standardized heating schedules, enabling reproducible measurement of four critical ash deformation temperatures: Initial Deformation Temperature (IDT), Softening Temperature (ST), Hemispherical Temperature (HT), and Flowing Temperature (FT). Its core architecture integrates closed-loop phase-angle control of AC power to the SiC heating element, ensuring stable ramp rates and minimal thermal overshoot during critical transition phases.
Key Features
- Microcontroller-based real-time temperature calibration and current compensation, eliminating manual drift correction.
- Programmable dual-stage heating protocol: adjustable ramp rate of 15–20 °C/min up to 900 °C, followed by precisely regulated 5 ±1 °C/min ramp above 900 °C.
- S-type (Platinum-Rhodium/Platinum) thermocouple with 1 °C resolution and ±3 °C total system uncertainty across 0–1600 °C range.
- RS232 serial interface compliant with standard PC communication protocols, supporting integration into laboratory data acquisition systems or LIMS environments.
- Robust mechanical design optimized for continuous operation in routine coal quality control laboratories, with low standby power consumption (10 W) and compact footprint (305 × 390 × 120 mm).
- Configurable timer resolution: 1 second for short-duration events (e.g., localized cone observation intervals), 1 minute for full-cycle thermal program logging.
Sample Compatibility & Compliance
The TY-HRD is designed exclusively for ash fusibility testing of coal, coke, biomass ash, and other mineral-rich solid fuels prepared according to GB/T 219–2008 sample conditioning procedures. It supports standard ash cone geometry (2 mm base, 1.5 mm height, equilateral triangular cross-section) formed using supplied alumina crucibles and graphite molds. All thermal profiles adhere to the reducing atmosphere (CO/CO₂/H₂ mixture) and oxidizing atmosphere (air) requirements specified in ISO 540:2008 Annex A. While not certified to IEC 61000-4 EMC standards or FDA 21 CFR Part 11 out-of-the-box, its RS232 output enables traceable data export for GLP/GMP-aligned reporting when paired with validated third-party software.
Software & Data Management
The instrument functions as a stand-alone hardware controller and does not include embedded graphical user interface or onboard data storage. Temperature-time profiles and event timestamps are transmitted via RS232 at configurable baud rates (default 9600 bps, 8N1). Users must connect to an external Windows-based PC running terminal emulation software (e.g., Tera Term) or custom data-logging applications. Raw output includes ASCII-formatted lines containing elapsed time (min:s), measured temperature (°C), and status flags (e.g., “IDT detected”, “ST reached”). For regulatory compliance, laboratories may implement audit-trail-capable middleware to record operator ID, calibration logs, and raw sensor outputs — satisfying minimum ALCOA+ data integrity principles.
Applications
- Routine assessment of coal slagging and fouling propensity in utility and industrial boiler design.
- Quality assurance of pulverized coal feedstocks in cement kiln and IGCC (Integrated Gasification Combined Cycle) operations.
- Research-grade evaluation of ash behavior under varying atmospheric conditions (oxidizing vs. weakly reducing).
- Inter-laboratory round-robin studies requiring strict adherence to GB/T 219–2008 and ISO 540:2008 procedural fidelity.
- Support for ASTM D3175 ash analysis workflows where fusibility data informs proximate and ultimate analysis interpretation.
FAQ
Does the TY-HRD include a furnace or require external hardware?
The TY-HRD is a controller unit only and requires pairing with a compatible silicon carbide tube furnace (not included). Users must supply a furnace capable of reaching ≥1600 °C with uniform hot-zone dimensions suitable for ash cone observation.
Is the instrument compatible with modern LIMS or SCADA platforms?
Yes — via its standard RS232 interface and ASCII-based output protocol, it can be integrated into most legacy and contemporary laboratory automation infrastructures using serial-to-IP gateways or custom OPC-UA wrappers.
What consumables require periodic replacement?
Silicon carbide tubes, alumina inner tubes, platinum-rhodium thermocouples, and ceramic boats are classified as wear items and should be inspected before each test series per GB/T 219–2008 Section 7.2.
Can heating rates be modified beyond the specified ranges?
No — firmware-enforced limits prevent deviation from the 15–20 °C/min (≤900 °C) and 5 ±1 °C/min (>900 °C) profiles mandated by GB/T 219–2008 for method validity.
Is technical support available in English?
Documentation is provided in Chinese only; however, configuration parameters and RS232 command syntax are language-agnostic and follow industry-standard serial communication conventions.
