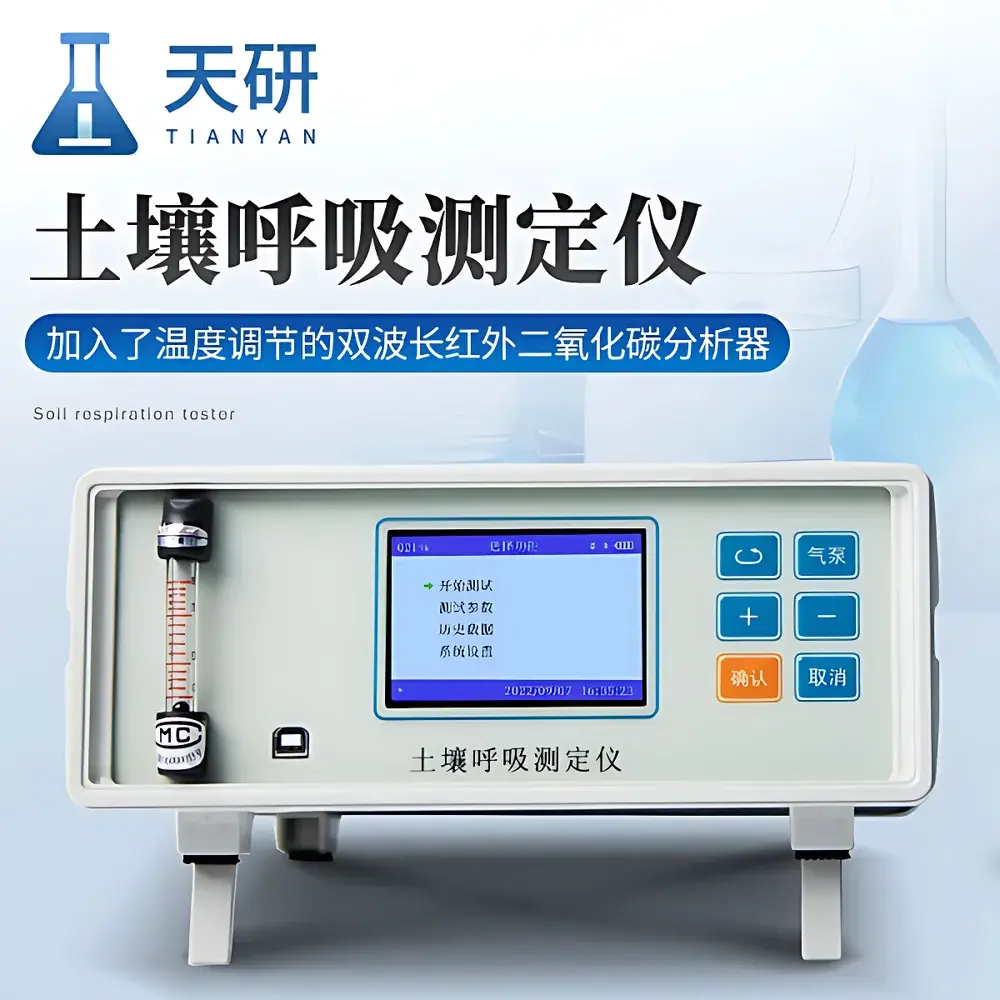

Tianyan TY-T80X Automated Soil Respiration and Carbon Flux Measurement System
| Brand | Tianyan |
|---|---|
| Model | TY-T80X |
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Instrument Category | Domestic |

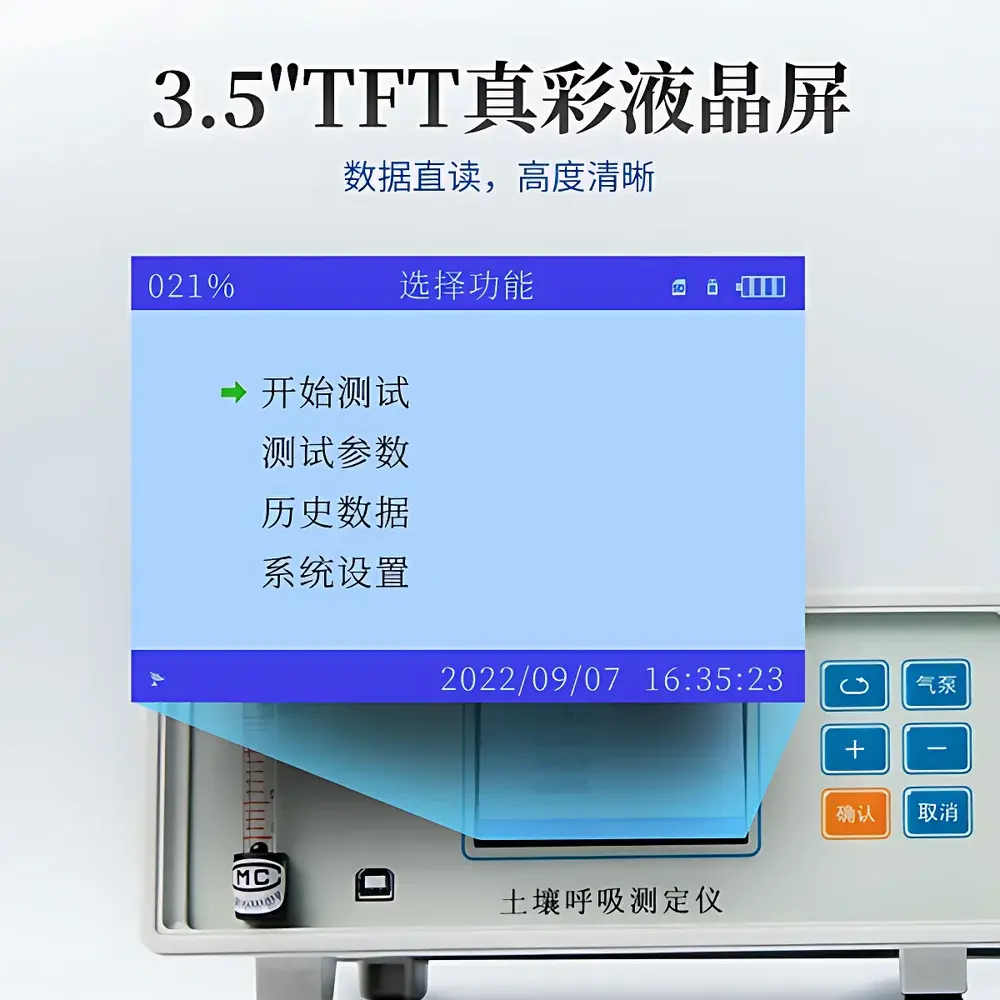

| Display | 3.5" TFT color LCD (800×480 resolution) |
| Power Supply | DC 8.4 V rechargeable lithium battery (10 h continuous operation) |
| Dimensions | 260 × 260 × 130 mm |
| Weight | 3.25 kg (main unit) |
| CO₂ Measurement | Dual-wavelength NDIR sensor, 0–5000 ppm range, 0.1 ppm resolution, ±3 ppm accuracy, temperature-compensated |
| Temperature Sensor | German Heraeus digital probe, –20 to +80 °C, 0.1 °C resolution, ±0.2 °C error |
| Relative Humidity Sensor | Swiss进口 digital sensor, 0–85 %RH, 0.1 %RH resolution, ≤1 %RH error |
| PAR Sensor | Calibrated silicon photodiode with optical filter (400–700 nm), 0–3000 µmol·m⁻²·s⁻¹, <1 µmol·m⁻²·s⁻¹ accuracy |

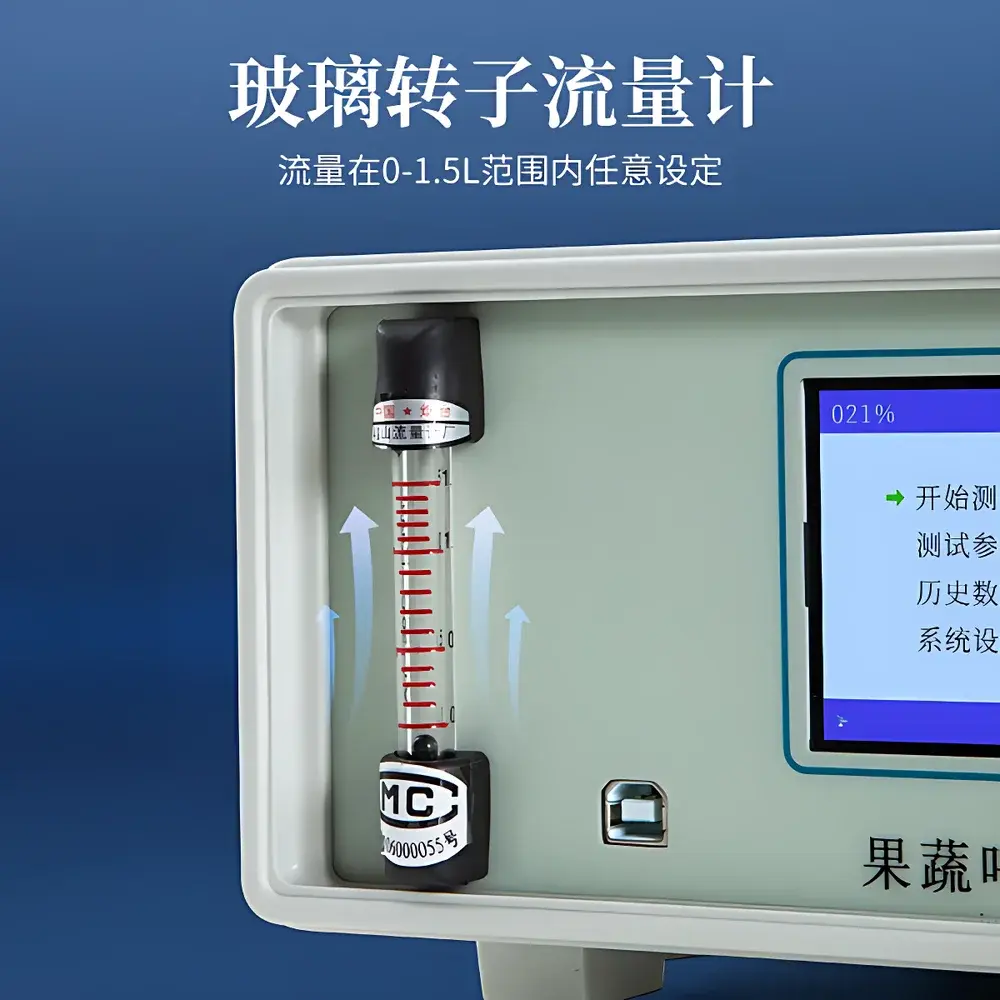

| Flow Control | Glass rotameter (0–1.5 L/min, ±1 % full scale |

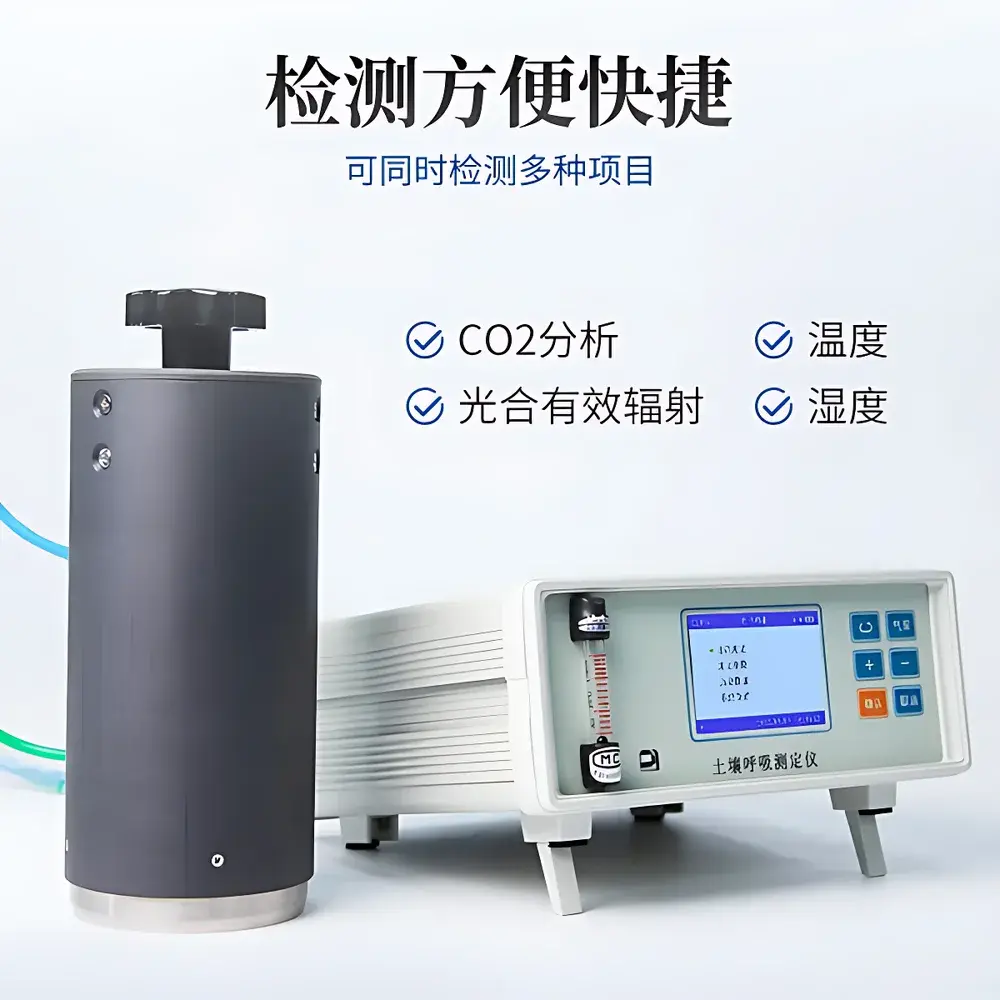

| Chamber | Standard cylindrical chamber (Ø110 mm × 200 mm height) |
| Operating Environment | –20 to +60 °C, 0–85 %RH (non-condensing) |

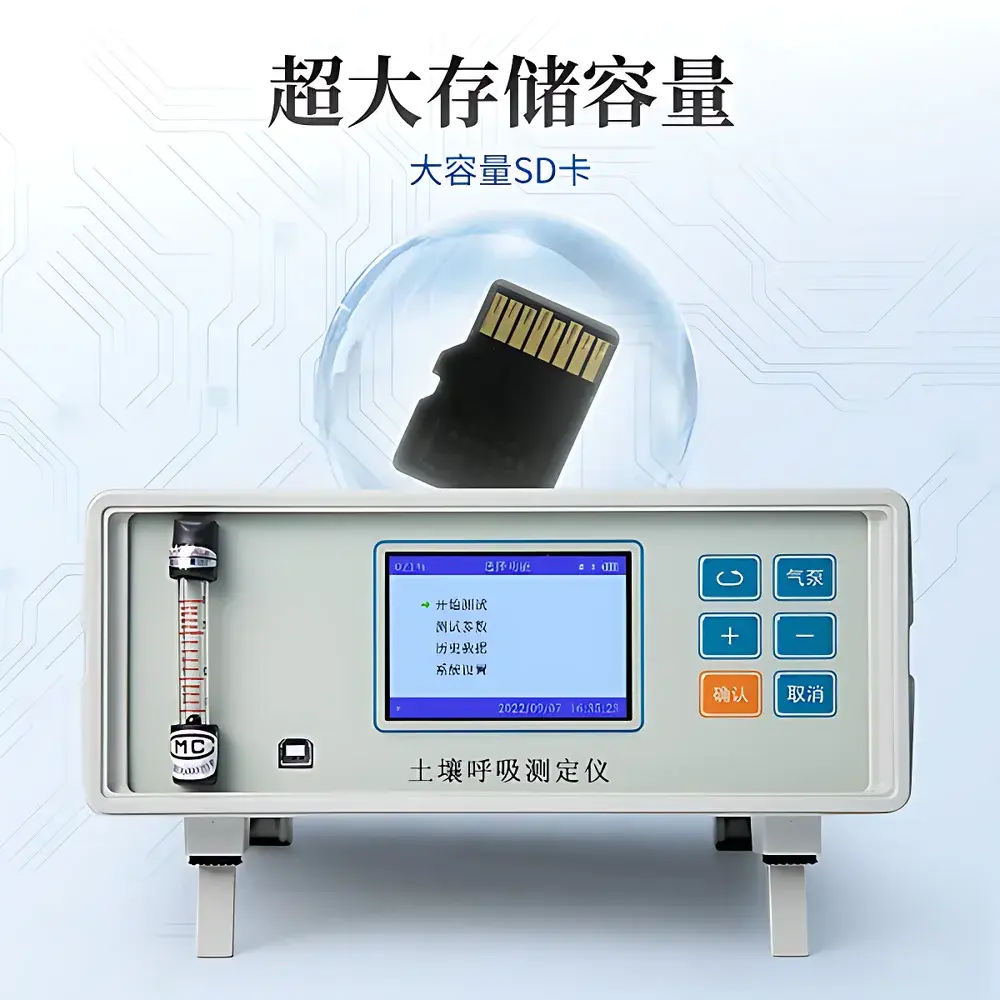

| Data Storage | Internal 16 GB flash memory (expandable to 32 GB) |
| Data Interface | USB 2.0 for direct PC export |
| Optional Add-ons | Soil moisture & temperature probes |
Overview
The Tianyan TY-T80X Automated Soil Respiration and Carbon Flux Measurement System is a field-deployable, closed-chamber gas exchange instrument engineered for high-temporal-resolution quantification of soil CO₂ efflux—the principal pathway for carbon return from terrestrial ecosystems to the atmosphere. It operates on the principle of dynamic closed-chamber infrared gas analysis, where real-time CO₂ concentration differentials across a sealed soil surface chamber are measured via dual-wavelength non-dispersive infrared (NDIR) spectroscopy. This method enables precise calculation of soil respiration rates (µmol CO₂·m⁻²·s⁻¹) while concurrently monitoring in-chamber microclimate parameters critical to biological and physical drivers: air temperature, relative humidity, and photosynthetically active radiation (PAR). The system’s temperature-stabilized NDIR sensor eliminates thermal drift artifacts—ensuring measurement integrity across diurnal and seasonal field conditions ranging from –20 °C to +60 °C. Its architecture supports long-term unattended deployment, making it suitable for eddy-covariance validation, flux tower calibration, and process-based modeling of carbon cycling in agricultural, forested, and restored ecosystems.
Key Features
- Temperature-compensated dual-wavelength NDIR CO₂ analyzer with 0.1 ppm resolution and ±3 ppm absolute accuracy—validated against traceable gas standards per ISO 17025-accredited protocols.
- Integrated environmental sensing suite: high-stability German Heraeus temperature probe (±0.2 °C), Swiss-made capacitive RH sensor (≤1 %RH error), and PAR sensor with spectral correction (400–700 nm) meeting ASTM E2932-14 requirements for photosynthetic photon flux density measurement.
- Flexible flow control architecture: user-selectable glass rotameter (0–1.5 L/min) or optional micro-electronic mass flow controller (0–1 L/min, 0.0001 L/min resolution) for precise chamber equilibration and pressure stabilization.
- Rugged, portable design: IP54-rated enclosure, 3.5″ sunlight-readable TFT display (800×480), six-button interface, and 10-hour battery life—optimized for repeated field campaigns without external power infrastructure.
- Onboard data management: 16 GB internal flash storage (expandable to 32 GB), timestamped at 1 Hz, compliant with FAIR data principles (Findable, Accessible, Interoperable, Reusable).
Sample Compatibility & Compliance
The TY-T80X accommodates standard Ø110 mm × 200 mm cylindrical chambers fabricated from inert acrylic or stainless steel—minimizing adsorption artifacts and enabling reproducible surface-area normalization. Custom chamber geometries (e.g., rectangular, root-exclusion variants) are supported upon request. All sensors meet IEC 61326-1 electromagnetic compatibility standards for field instrumentation. Data acquisition complies with GLP-aligned metadata tagging (including GPS coordinates, operator ID, chamber seal time, and ambient barometric pressure if externally logged). While not FDA 21 CFR Part 11-certified (as it is not used in regulated clinical or pharmaceutical environments), its audit-trail-capable firmware supports traceable data lineage required by ISO 14064-3 for greenhouse gas inventory reporting and IPCC Tier 2/3 verification workflows.
Software & Data Management
Raw sensor outputs are stored in CSV format with UTC-synchronized timestamps and embedded calibration coefficients. USB 2.0 interface enables drag-and-drop data extraction without proprietary drivers. Optional Tianyan DataLink software (Windows/macOS) provides automated flux calculation using linear, exponential, or Hsieh–Hanson regression models per AmeriFlux guidelines. Export modules support NetCDF-4 and CF-1.8 conventions for interoperability with ED2, CLM, and LPJ-GUESS ecosystem models. All firmware updates are digitally signed and delivered via secure HTTPS—ensuring integrity under NIST SP 800-53 Rev. 4 configuration management controls.
Applications
- Quantifying rhizospheric vs. heterotrophic respiration partitioning using trenching or root-exclusion treatments.
- Evaluating soil microbial metabolic response to land-use change (e.g., afforestation, tillage reduction, biochar amendment).
- Validating satellite-derived gross primary production (GPP) and ecosystem respiration (Reco) estimates from OCO-2 and Sentinel-5P.
- Assessing post-disturbance carbon recovery in mine reclamation, wildfire burn scars, and wetland restoration sites.
- Supporting IPCC AR6 Chapter 5 soil carbon stock change assessments under national GHG inventories.
- Calibrating chamber-based measurements against eddy covariance towers in heterogeneous terrain.
FAQ
What is the minimum detectable CO₂ flux resolution under field conditions?
Under typical midday soil temperatures (15–25 °C) and low-background atmospheric CO₂ (~415 ppm), the system resolves fluxes ≥0.12 µmol·m⁻²·s⁻¹ with ≤5 % coefficient of variation over 60-second integration periods.
Can the TY-T80X operate in flooded or high-humidity soils?
Yes—the chamber sealing gasket and sensor housing are rated for 0–85 %RH non-condensing operation; however, prolonged exposure to saturated vapor conditions (>95 %RH) may require periodic desiccant maintenance of the NDIR optical path.
Is the system compatible with third-party soil moisture and temperature probes?
Yes—via RS-485 Modbus RTU interface (optional adapter module), supporting Campbell Scientific CS650, Decagon EC-5, or METER TEROS-12 sensors for integrated water-carbon coupling analysis.
How is calibration traceability maintained?
Each unit ships with a factory calibration certificate referencing NIST-traceable CO₂ gas standards (±0.5 ppm uncertainty); users may perform field zero/span checks using certified 0 ppm (N₂) and 1000 ppm CO₂ reference gases.
Does the instrument support automated multi-chamber sequential measurement?
Not natively—but the open USB protocol and time-stamped data structure allow integration with external multiplexers (e.g., AM16/32B) and Python-based scheduling scripts for unattended rotational chamber networks.
