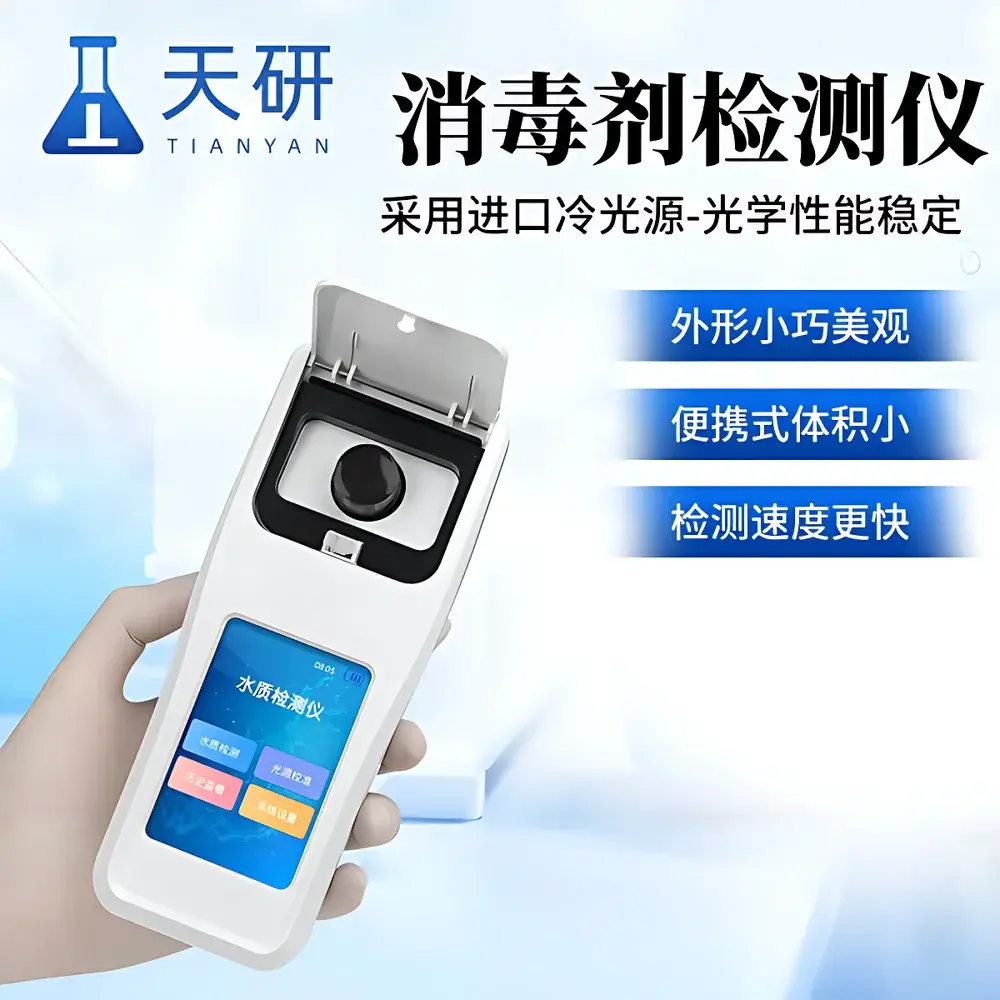

Tianyan TY-YXL Portable Free Chlorine Analyzer for Sodium Hypochlorite Solutions

Overview

The Tianyan TY-YXL Portable Free Chlorine Analyzer is a dedicated photometric instrument engineered for rapid, field-deployable quantification of available chlorine in sodium hypochlorite solutions and solid disinfectants (e.g., bleaching powder, calcium hypochlorite tablets). It implements standardized colorimetric detection per GB/T 5750.11–2023 — the national standard for drinking water quality analysis in China — replacing subjective visual comparison methods with objective, digitally calibrated absorbance measurement. The analyzer operates on the principle of dichloroquinone chloroimide (DPD) oxidation, where free chlorine reacts stoichiometrically with DPD reagent to form a stable pink-colored complex. Absorbance intensity at optimized wavelengths (automatically selected by the instrument’s optical engine) is linearly proportional to available chlorine concentration across two calibrated ranges: 0.5–300 mg/L for low-concentration aqueous solutions (e.g., diluted disinfectant stock or treated effluent), and 0.1–60% w/w for concentrated commercial sodium hypochlorite solutions (typically 5–15% active ingredient). Its compact, handheld architecture enables direct deployment in production floors, wastewater pump stations, aquaculture tanks, hospital sterilization units, and mobile environmental health laboratories.

Key Features

• Android-based embedded operating system with intuitive touchscreen interface — no operator training required; all assay protocols are preloaded and context-guided.
• Integrated cold LED optical source with spectral stability and 100,000-hour operational lifetime — eliminates lamp replacement and ensures long-term photometric reproducibility.

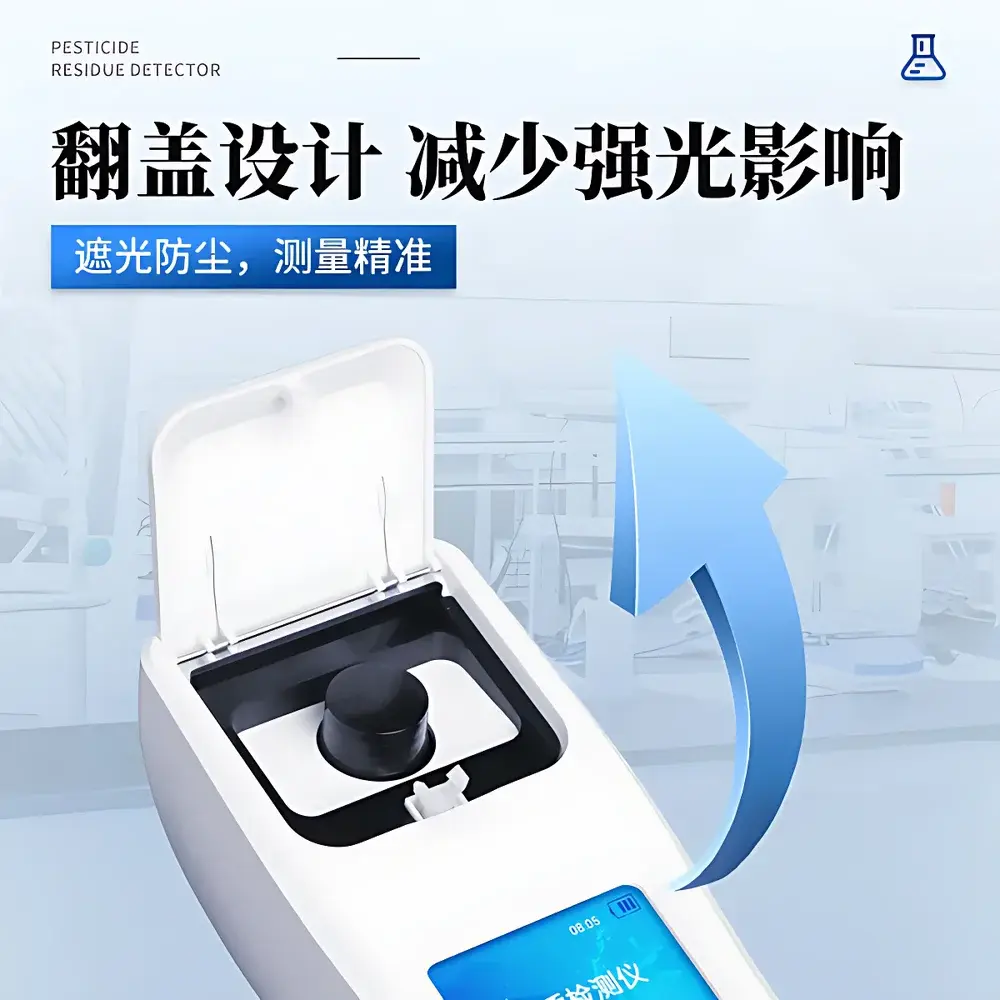

• Automatic wavelength selection and real-time baseline correction minimize interferences from turbidity or background coloration in complex matrices (e.g., pond water, wastewater influent).
• Onboard rechargeable 5600 mAh lithium-ion battery supports up to 8 hours of continuous operation — compatible with both AC adapters and portable power banks via 5 V DC input.
• Wireless data transmission via Wi-Fi and Bluetooth to cloud-based monitoring platforms — enabling centralized trend analysis, audit-ready reporting, and multi-site compliance tracking.
• Ruggedized housing (IP54-rated ingress protection), ergonomic grip design, and lightweight construction (325 g) facilitate extended use in humid, outdoor, or confined-space environments.

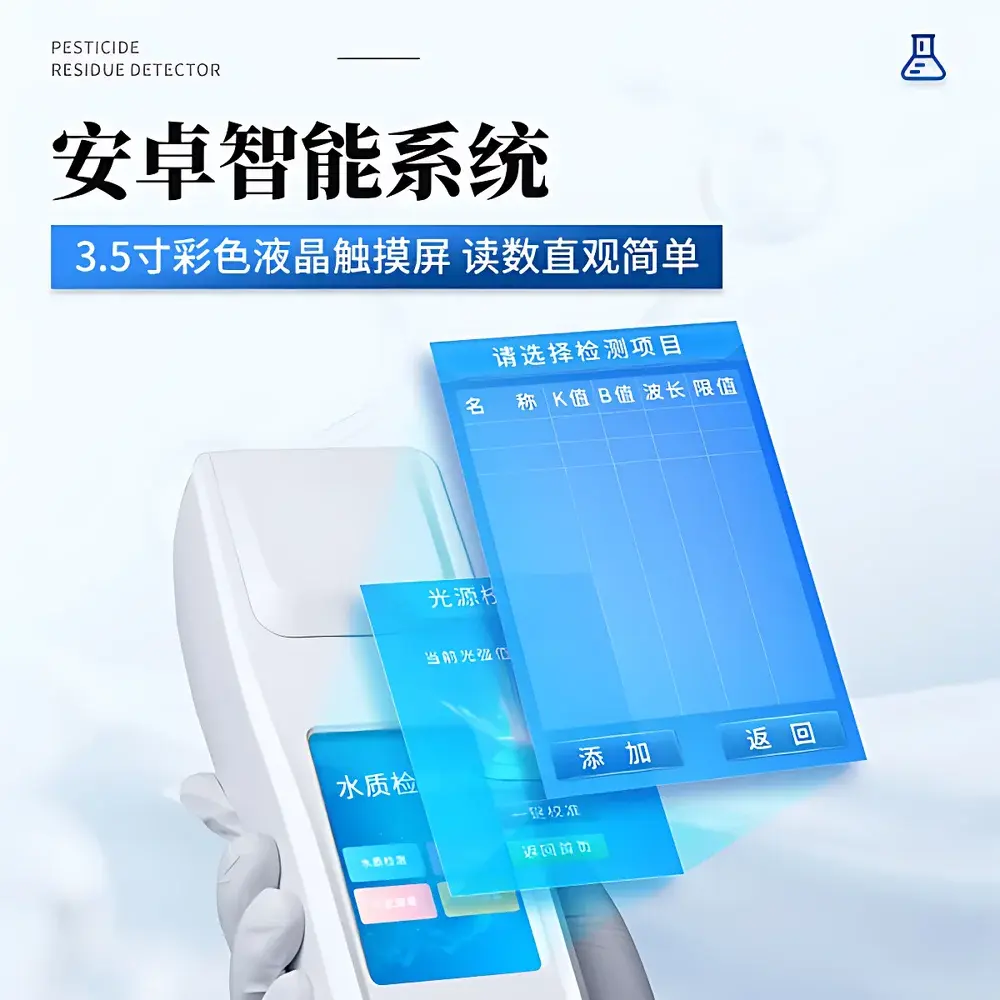

• High-resolution 3.5″ color LCD display with adjustable brightness — optimized for readability under direct sunlight or low-light conditions.

Sample Compatibility & Compliance

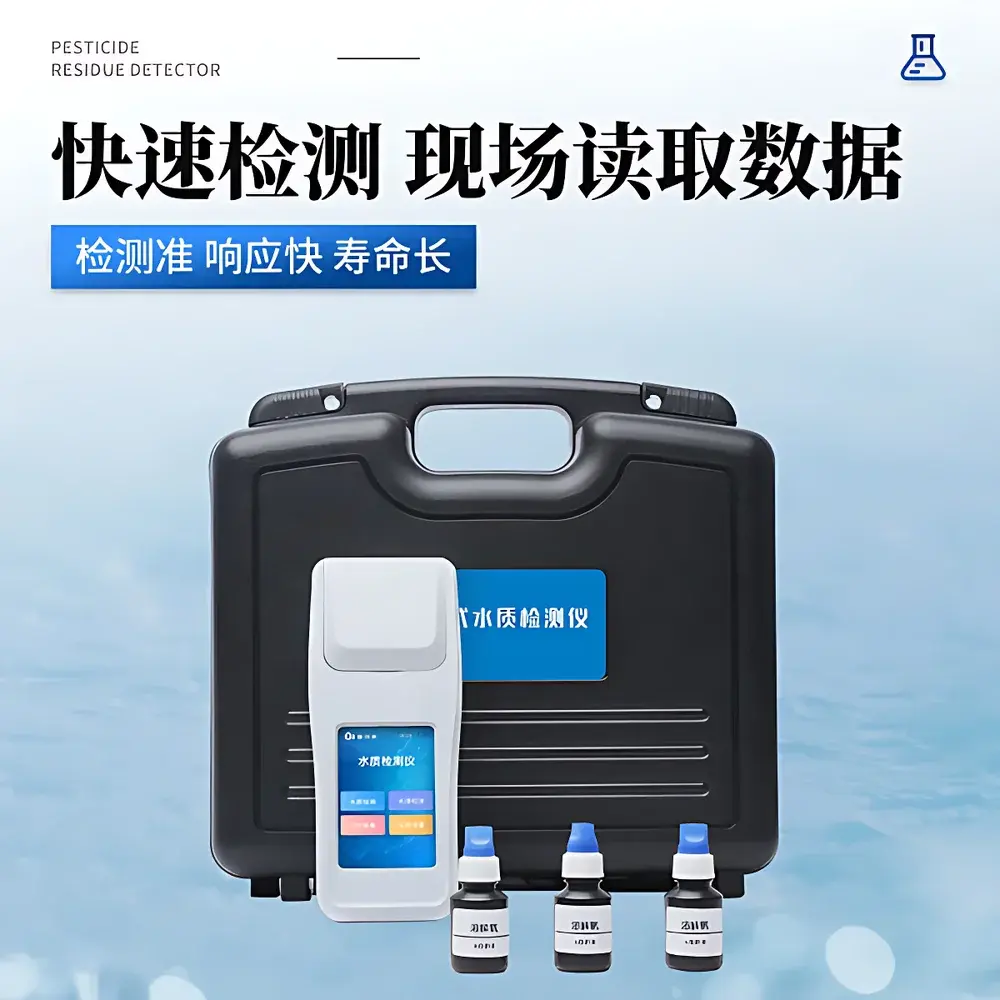

The TY-YXL analyzer accommodates liquid samples (aqueous sodium hypochlorite solutions, chlorinated tap water, swimming pool water, aquaculture effluent) as well as homogenized suspensions of solid disinfectants (bleaching powder, trichloroisocyanuric acid tablets, sodium dichloroisocyanurate granules). Sample volume requirement is 10 mL per test. All calibration and verification procedures align with GB/T 5750.11–2023 methodology, including reagent preparation, reaction timing (exactly 2 minutes post-DPD addition), and zero-point referencing using deionized water blanks. While not FDA 21 CFR Part 11–compliant out-of-the-box, the instrument’s audit trail functionality (timestamped results, user ID logging, and firmware version stamping) supports GLP/GMP-aligned documentation workflows when integrated into validated laboratory information management systems (LIMS). It is routinely deployed in facilities subject to HACCP, ISO 22000, and WHO Water Safety Plan requirements.

Software & Data Management

The analyzer runs a custom Android 9.0 OS with proprietary analytical firmware. All measurements are timestamped, geotagged (when GPS-enabled mobile device is paired), and stored locally with metadata (operator ID, sample ID, calibration status, ambient temperature/humidity). Data export is supported via USB Type-C (CSV/Excel format), Wi-Fi (to FTP or cloud REST API endpoints), or Bluetooth (to companion tablet applications). The optional Tianyan Cloud Platform provides role-based access control, automated report generation (PDF/HTML), historical concentration trending with statistical process control (SPC) charts, and configurable alert thresholds (e.g., SMS/email notifications upon deviation from target disinfectant concentration). Raw absorbance values and calibration curves are retained for retrospective review — essential for internal quality audits and regulatory inspections.

Applications

• Verification of sodium hypochlorite stock solution concentration prior to dilution in food processing plant CIP (clean-in-place) systems.
• Real-time monitoring of residual free chlorine in hospital central sterile supply departments (CSSD) and endoscope reprocessing units.
• Field validation of disinfectant dosing accuracy in municipal wastewater treatment plants and decentralized sewage stabilization ponds.
• Quality control of chlorine-based disinfectants during manufacturing and shelf-life stability testing.
• Routine surveillance of disinfection efficacy in aquaculture hatcheries and livestock barn sanitation programs.
• Emergency response deployment for rapid assessment of chlorine demand and residual levels following natural disasters or infrastructure failures.

FAQ

Does the TY-YXL require external calibration standards for routine use?
No — the instrument includes factory-calibrated reference curves traceable to NIM (National Institute of Metrology, China) standards. However, daily verification using a certified 10 mg/L chlorine standard is recommended before critical measurements.
Can it measure combined chlorine or total chlorine?
No — the TY-YXL is specifically configured for free available chlorine only, per DPD Method 1. Combined or total chlorine requires sequential reagent addition (DPD Methods 2 and 3), which is not supported by this model.
Is the instrument suitable for seawater or high-salinity samples?
Yes — the optical algorithm compensates for ionic strength effects up to 35 ppt salinity; however, samples with visible particulates must be filtered (0.45 µm) prior to analysis to avoid scattering artifacts.
What is the minimum detectable concentration and limit of quantitation?
The practical limit of detection (LOD) is 0.3 mg/L (S/N ≥ 3); limit of quantitation (LOQ) is 0.5 mg/L (CV ≤ 10%), consistent with GB/T 5750.11–2023 performance criteria.
How often does the light source require recalibration?
The imported cold LED exhibits negligible drift over time; no user recalibration is needed. Optical integrity is verified automatically during each startup sequence and before every measurement cycle.
