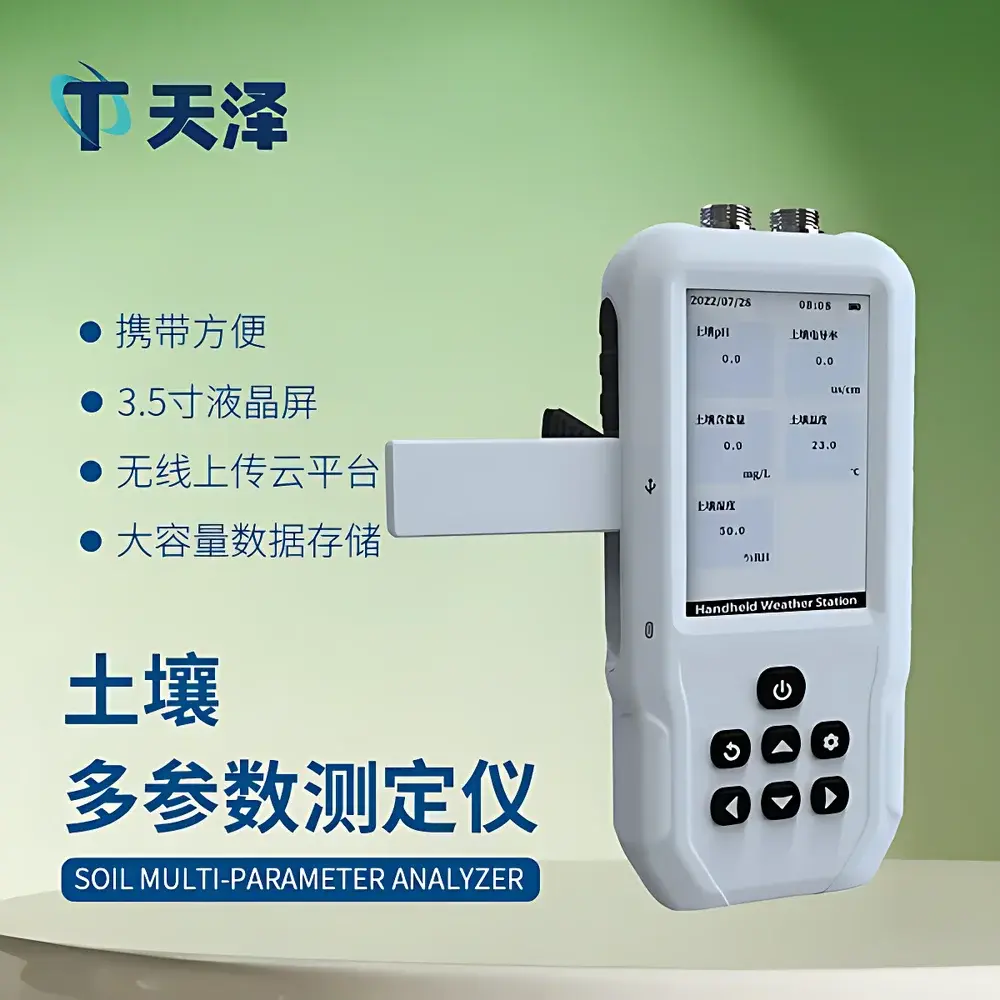

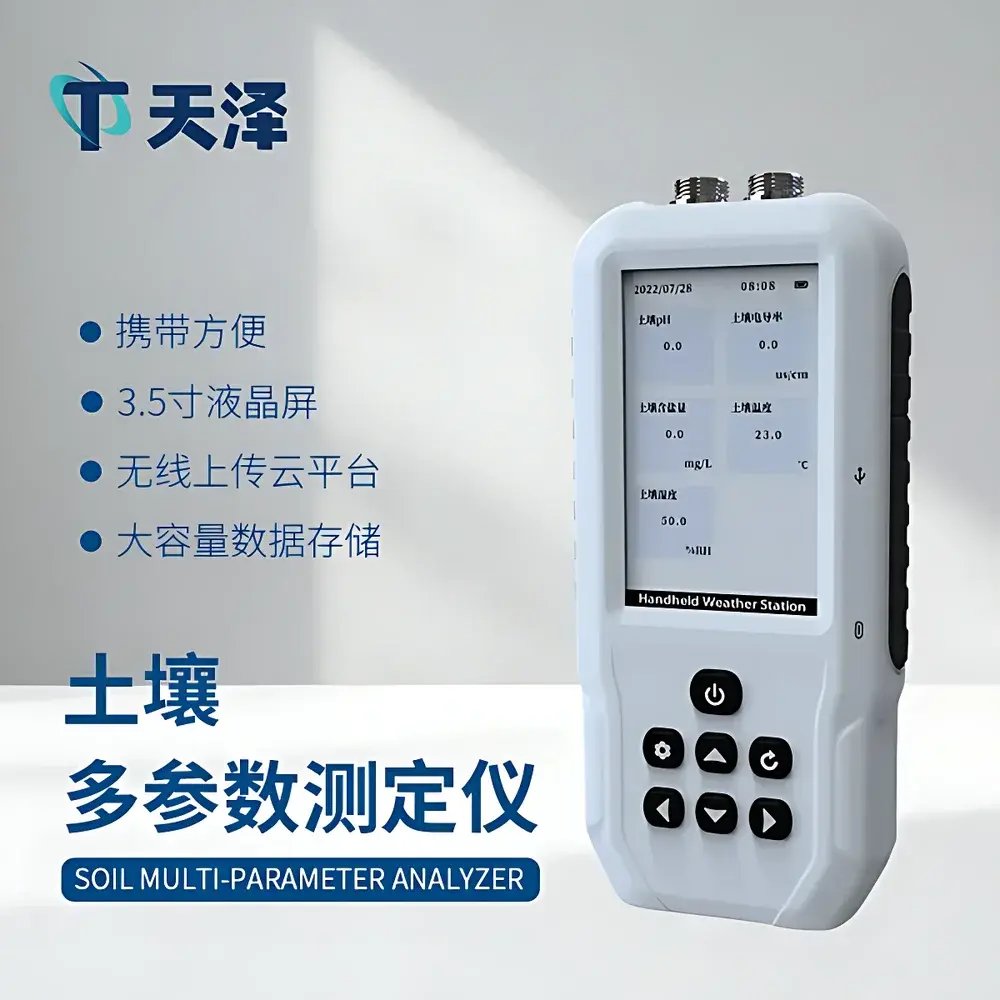

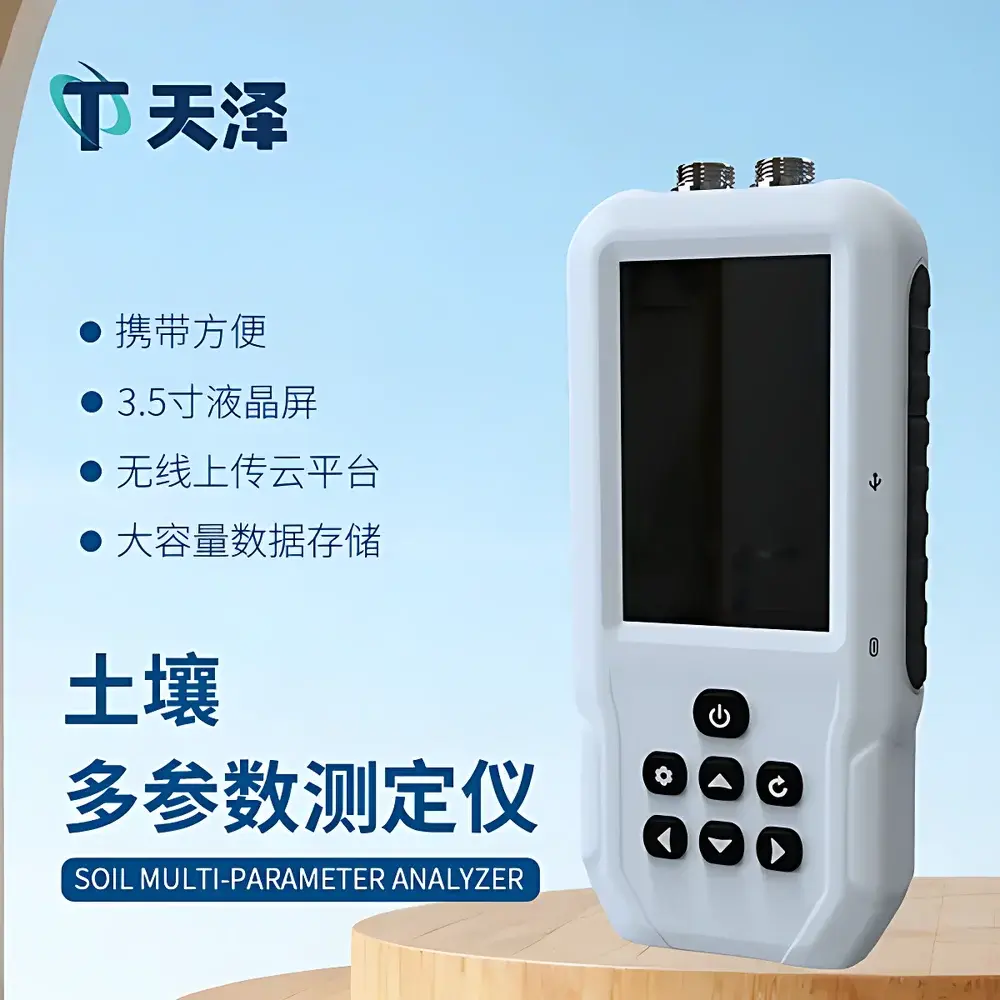

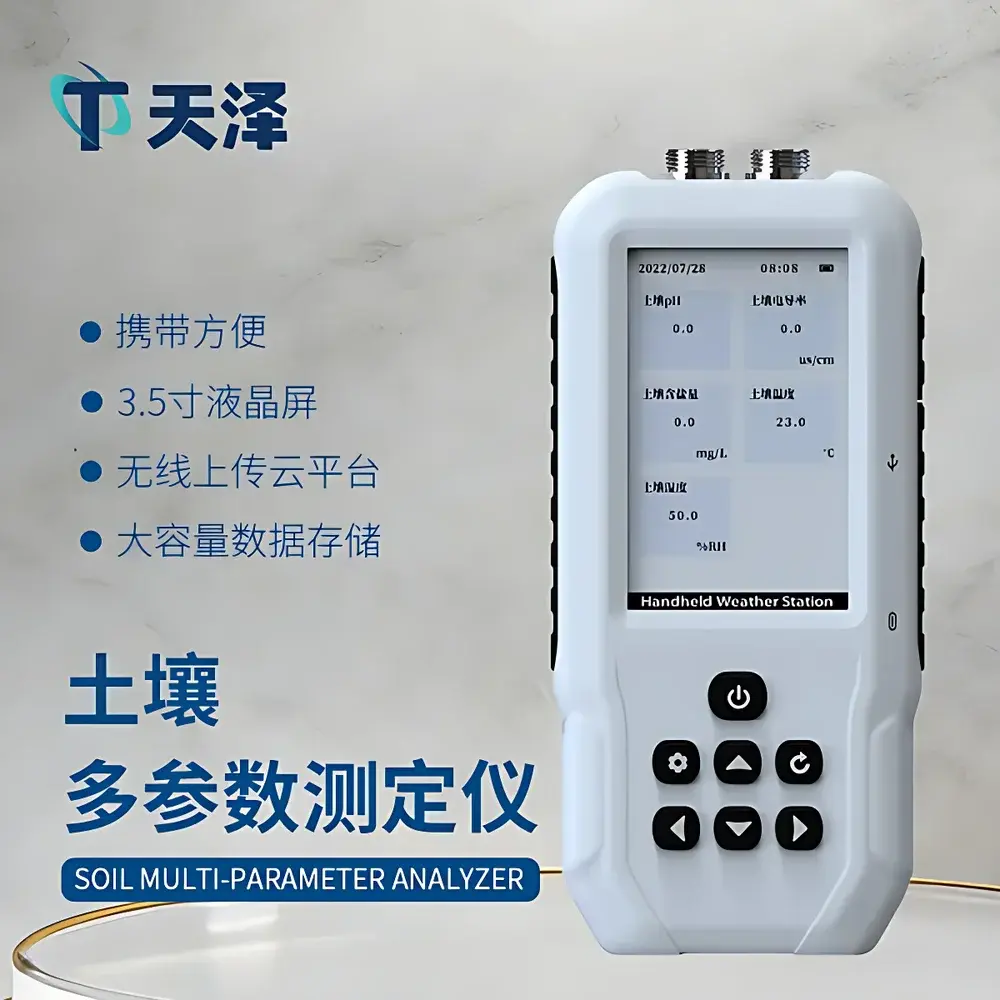

Tianze Environment TZ-TY Soil Electrical Conductivity and Salinity Analyzer

Overview

The Tianze Environment TZ-TY Soil Electrical Conductivity and Salinity Analyzer is a field-deployable, multi-parameter environmental monitoring instrument engineered for precision assessment of soil physicochemical status in real time. It operates on the principle of two-electrode or four-electrode conductivity measurement (configurable per probe type), converting bulk electrical conductivity (EC) into derived salinity estimates using temperature-compensated algorithms aligned with ISO 11265 and ASTM D512-22 standards. Unlike single-parameter handheld meters, the TZ-TY integrates calibrated sensing for volumetric water content (via capacitance or FDR), soil temperature (PT1000-grade thermistor), pH (glass electrode or solid-state ISFET), and optional ion-selective detection of nitrate, phosphate, and potassium—enabling simultaneous, co-located acquisition of interdependent soil health indicators. Its architecture supports both spot-check diagnostics and unattended long-term deployment, making it suitable for academic research, irrigation scheduling, salinity risk mapping, and regulatory soil quality monitoring under GLP-aligned workflows.

Key Features

• Multi-parameter fusion engine: Simultaneous acquisition of EC, salinity (g/kg or dS/m), temperature, volumetric water content, pH, and nutrient ions (N/P/K) via modular RS-485 probes—each independently calibrated and auto-recognized upon insertion.
• High-fidelity data integrity: 8 GB onboard flash memory retains ≥280 million timestamped records per parameter; built-in power-loss protection ensures zero data corruption during battery depletion or disconnection.

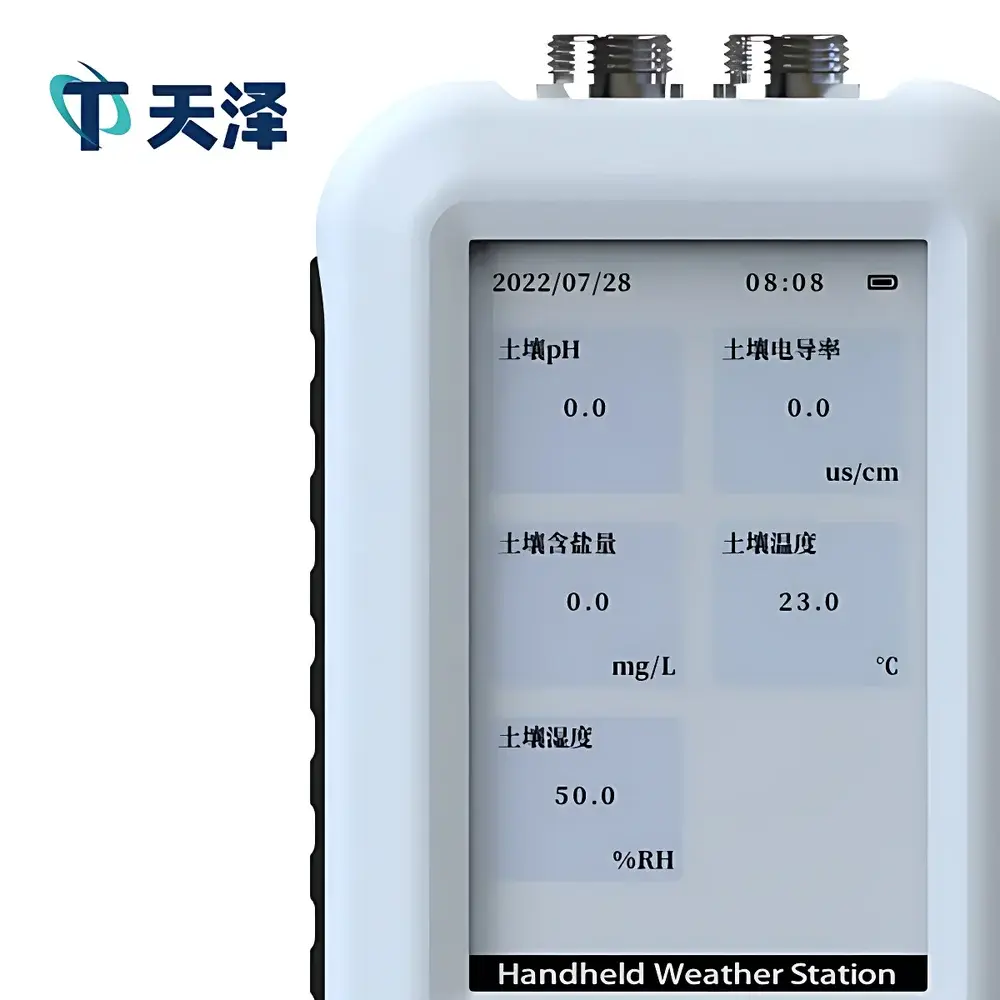

• Field-optimized human interface: 3.5-inch high-resolution color LCD (320×480) with sunlight-readable contrast, dual-language (English/Chinese) firmware, and tactile keypad designed for gloved or wet-hand operation.
• Flexible deployment architecture: Supports single-point profiling (0–20 cm depth typical), multi-depth vertical arrays (via daisy-chained 485 probes), and spatially distributed networks (up to 32 nodes per RS-485 bus).
• Regulatory-ready connectivity: Native Modbus RTU protocol enables integration into SCADA or LIMS systems; optional 4G DTU module provides TLS 1.2-secured data upload to Tianze Smart AgriCloud platform with audit-trail logging compliant with FDA 21 CFR Part 11 requirements.

Sample Compatibility & Compliance

The TZ-TY analyzer accommodates heterogeneous soil matrices—including sandy loam, clay, peat, and amended horticultural substrates—without recalibration when used with factory-matched probe sets. All electrochemical sensors meet IEC 60529 ingress protection specifications (IP68 for probes, IP65 for host), and temperature compensation follows the standard 25 °C reference curve per ISO 11265. The device complies with electromagnetic compatibility (EMC) requirements per EN 61326-1:2013 and carries CE marking for use within EU environmental monitoring frameworks. While not certified for GMP production environments, its data traceability features—including unique device ID, sensor serial binding, and UTC-synchronized timestamps—support GLP-compliant reporting for academic, extension, and municipal applications.

Software & Data Management

Data export occurs via USB mass-storage emulation: connecting the unit to a Windows/macOS/Linux PC mounts it as a removable drive, delivering daily CSV/Excel files (one per calendar day) with column headers conforming to FAO’s Soil Health Data Schema v2.0. The Tianze Smart AgriCloud platform provides RESTful API access, role-based user permissions, automated anomaly detection (e.g., EC drift >15% over 72 h), and export to GIS-ready GeoJSON or NetCDF formats. Audit logs record all configuration changes, firmware updates, and manual data deletions—retained for 180 days by default. Optional GNSS add-on enables georeferenced metadata tagging at sub-meter accuracy (SBAS-corrected), supporting spatial interpolation models in QGIS or ArcGIS Pro.

Applications

• Agricultural water management: Correlating real-time 0–20 cm EC and volumetric moisture enables dynamic irrigation triggering—e.g., initiating drip cycles only when θ < 60% VWC and no precipitation forecast, reducing water use by up to 40% in campus landscape trials.
• Salinization early warning: Continuous EC monitoring identifies thresholds (>2.5 mS/cm at 25 °C) predictive of Na⁺ accumulation and osmotic stress in vegetable production, prompting targeted leaching or amendment interventions.
• Soil fertility optimization: Co-monitoring of EC, pH, and N/P/K informs variable-rate fertilizer prescriptions, minimizing nutrient runoff while maintaining target cation exchange capacity (CEC) balance.
• Educational field studies: Used in university soil science curricula for hands-on validation of van Genuchten-Mualem hydraulic property estimation and solute transport modeling.
• Environmental impact assessment: Deployed pre- and post-construction to quantify salinity migration near road de-icing zones or landfill leachate plumes, supporting ISO 14040 life cycle impact reporting.

FAQ

What calibration standards are required for field use?
Factory calibration certificates are provided for all included probes. Field verification uses NIST-traceable KCl solutions (1.413 mS/cm @ 25 °C) and buffer solutions (pH 4.01/7.00/10.01). No user recalibration is needed under normal operating conditions.
Can the device operate autonomously for extended periods?
Yes—configured for 30-minute sampling intervals, the 3800 mAh battery sustains >14 days of continuous operation. With solar charging (optional accessory), deployments exceed 6 months without maintenance.
Is raw sensor data accessible for third-party analysis?
All exported Excel files contain unprocessed ADC counts alongside calibrated values, enabling reprocessing with custom temperature compensation or empirical correction models.
How does the system handle sensor drift over time?
Each probe logs internal diagnostic metrics (electrode impedance, reference junction potential); the cloud platform flags deviations exceeding ±3% from baseline, recommending verification or replacement.
Does the TZ-TY support integration with existing farm management software?
Yes—via Modbus TCP gateway or direct API ingestion, it interoperates with FarmLogs, Granular, and AgriWebb through documented JSON schema mappings.
