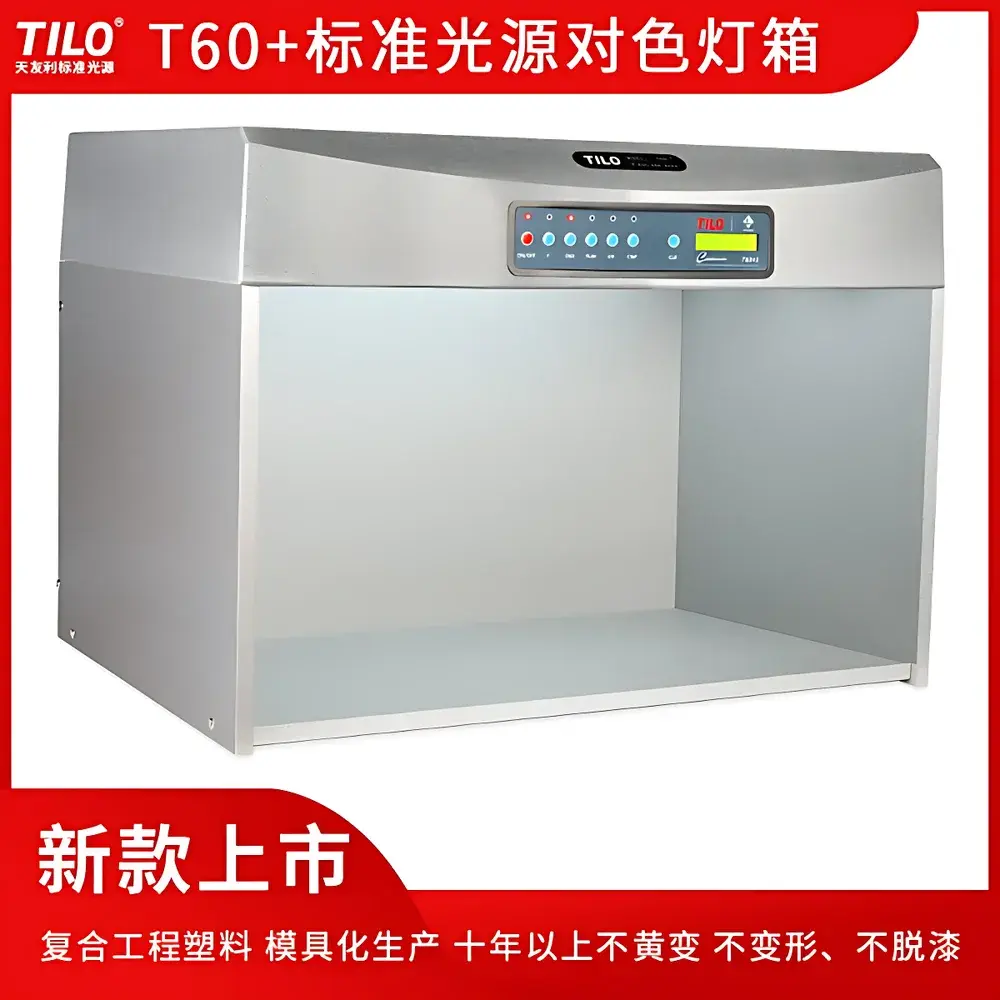

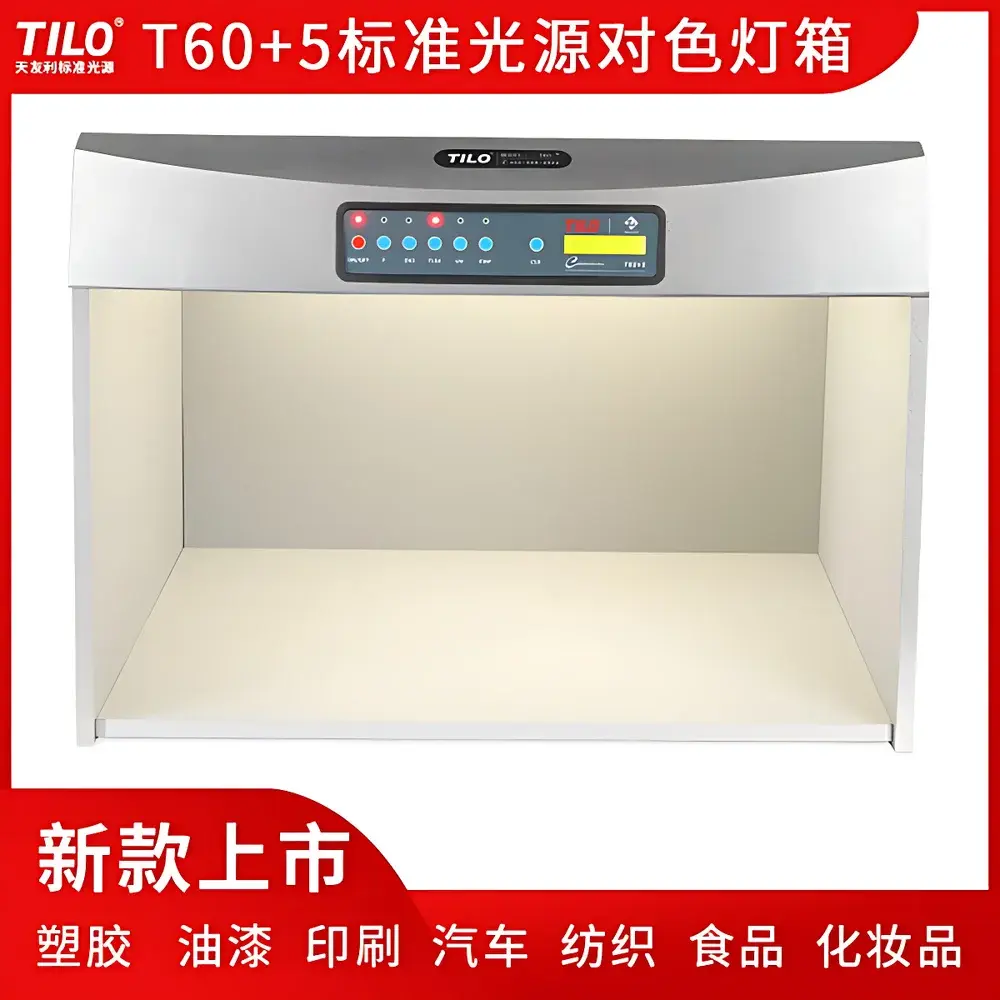

TILO T60+ Advanced 5-Source Standard Light Booth

Overview

The TILO T60+ Advanced 5-Source Standard Light Booth is an engineered color evaluation instrument designed for precise, repeatable, and standardized visual color assessment in quality control, R&D, and production environments. It operates on the principle of controlled spectral illumination—delivering stable, calibrated light outputs from five independently selectable light sources to simulate standardized viewing conditions defined by ISO 3664, ASTM D1729, and CIE S 002. Unlike conventional color booths relying on single or dual light sources, the T60+ integrates five internationally recognized illuminants—including D65 (daylight), TL84 (cool white fluorescent), CWF (cool white fluorescent, US retail), F/A (incandescent/tungsten), and UV (365 nm ultraviolet)—enabling comprehensive detection of metamerism and fluorescence. Its optical architecture eliminates inter-source leakage via a fully sealed, seamless enclosure, ensuring spectral purity during side-by-side or sequential comparisons. The unit requires no warm-up time, delivers flicker-free output, and maintains thermal stability under continuous operation—critical for high-throughput labs and textile, paint, plastic, and packaging industries subject to ISO/IEC 17025 or IATF 16949 compliance requirements.

Key Features

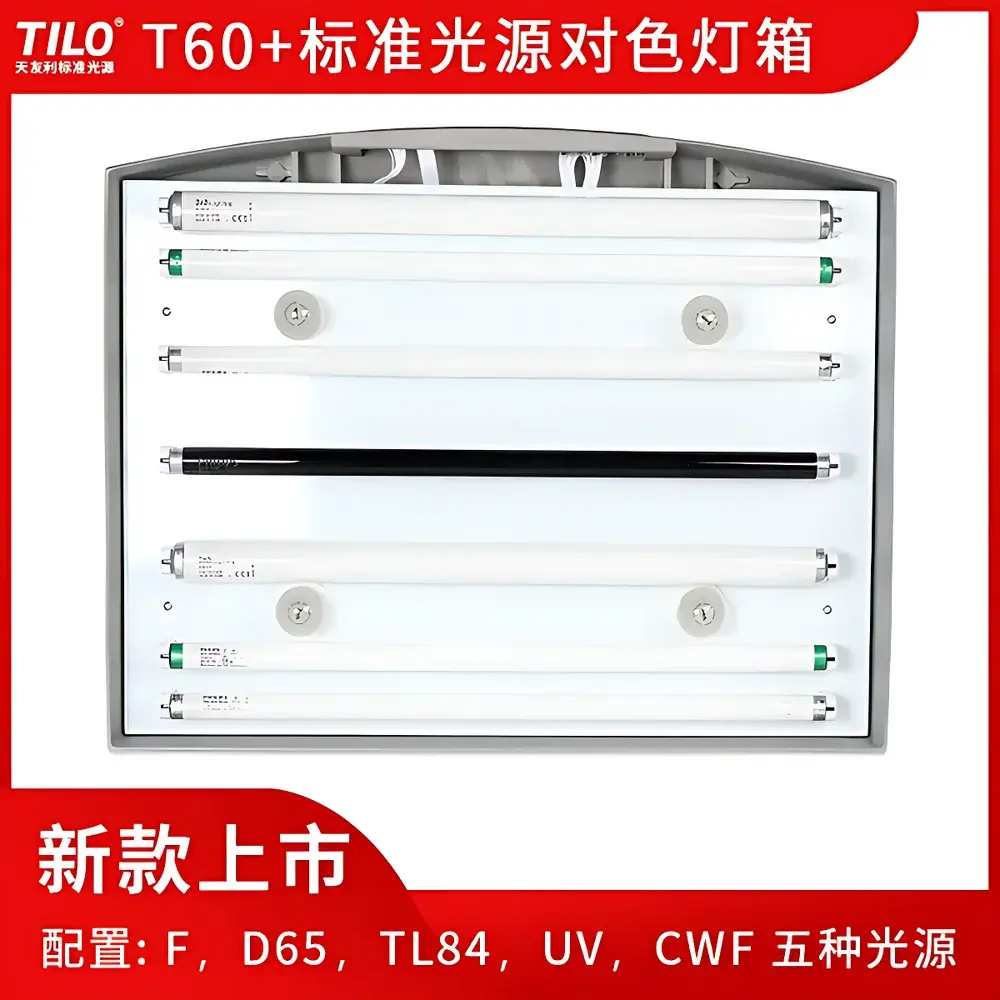

• Five pre-calibrated, independently switchable light sources: D65, TL84, CWF, F/A, and UV (365 nm)
• Flicker-free, instant-on LED-based illumination with zero warm-up delay
• Seamless, non-reflective matte-black interior and fully enclosed housing—100% light-tight to prevent spectral cross-contamination
• Durable composite engineering plastic chassis with UV-stabilized finish—resistant to yellowing, warping, or paint delamination for ≥10 years under normal lab use

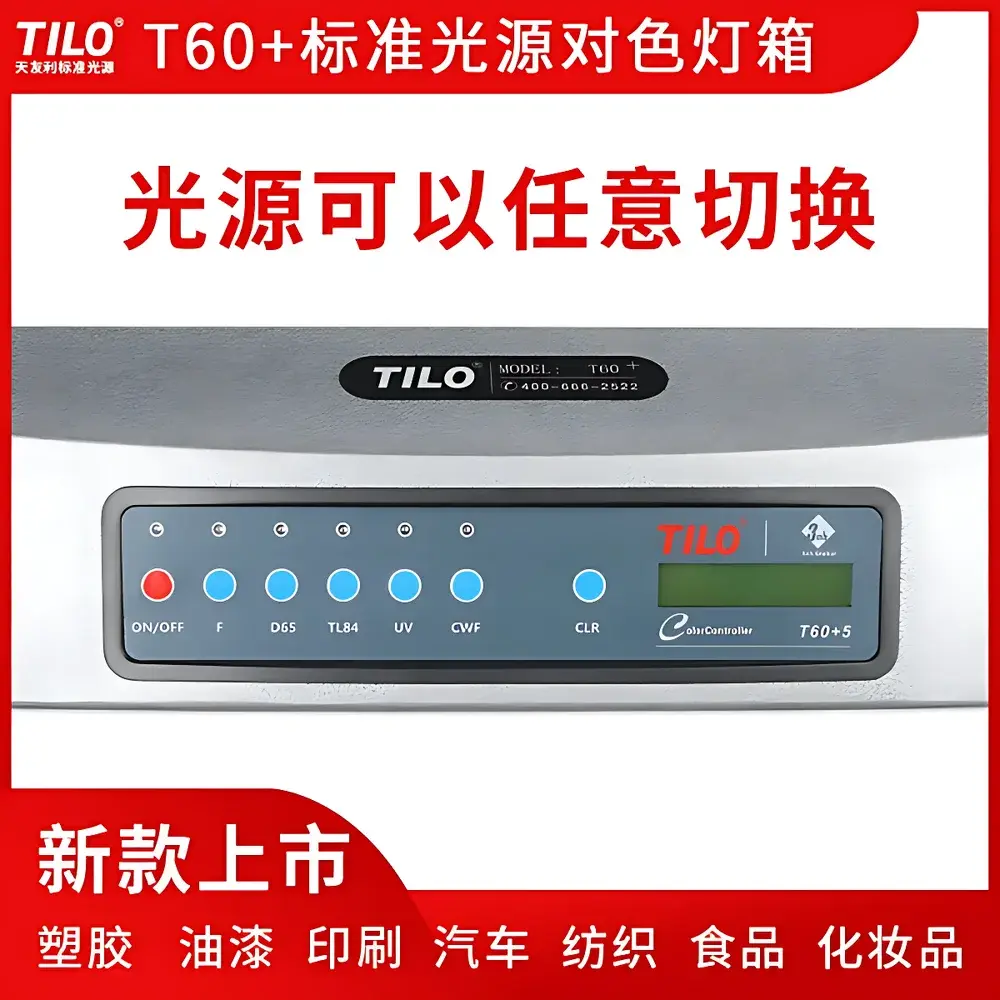

• Integrated usage monitoring: real-time display of cumulative operating hours and switch cycles per light source
• Programmable light source naming function—supports custom labeling for internal SOP alignment (e.g., “Retail Fluorescent” instead of “TL84”)
• Standard-fit adjustable elastomeric leveling feet—protects work surfaces and enhances mechanical stability on uneven benches
• Low power consumption (<35 W total) and minimal thermal emission—reduces ambient temperature drift during extended evaluations

Sample Compatibility & Compliance

The T60+ accommodates flat, rigid, or flexible specimens up to 400 × 300 mm, including fabric swatches, painted panels, printed labels, plastic injection-molded parts, and coated substrates. Its UV channel enables reliable detection of optical brightening agents (OBAs) in textiles, paper, and detergents—supporting conformity assessments per ISO 105-B02 (color fastness to artificial daylight) and AATCC TM15. All light sources comply with spectral power distribution (SPD) tolerances specified in ISO/CIE 11664-2:2019 and meet Class B requirements for color rendering index (CRI ≥ 90 for D65, TL84, CWF). The booth supports GLP-compliant documentation workflows when paired with external imaging systems and audit-trail-enabled software platforms.

Software & Data Management

While the T60+ operates as a standalone hardware platform, its digital interface supports integration with third-party color management ecosystems (e.g., X-Rite Color iMatch, Datacolor TOOLS, or HunterLab Universal Software) via RS-232 or USB virtual COM port. Firmware logs all light source activation events—including timestamps, duration, and user ID (when configured with optional access control)—facilitating traceability in regulated environments. Raw usage data can be exported in CSV format for trend analysis, preventive maintenance scheduling, and FDA 21 CFR Part 11–aligned record retention where electronic signatures and audit trails are mandated.

Applications

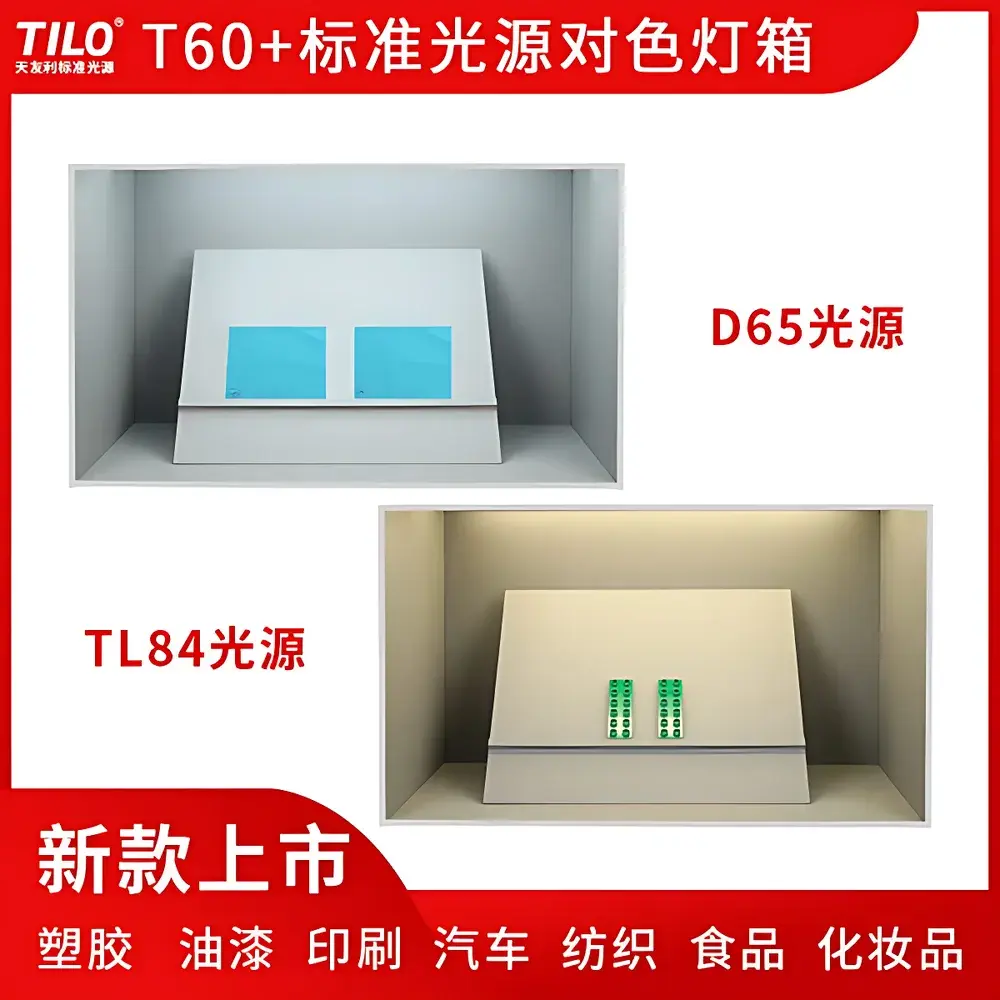

• Metamerism identification across textile dye lots, automotive trim components, and consumer electronics housings
• Fluorescence screening of OBA-treated papers, laundry detergents, and cosmetic formulations
• Color matching validation in paint formulation labs adhering to ASTM D2244 and ISO 12647-2
• Quality gate inspection for printed packaging under retailer-specific lighting (e.g., Walmart’s TL84 requirement)
• Calibration verification of spectrophotometers using reference standards under identical illuminants
• Educational training in color science curricula—demonstrating SPD effects on hue, chroma, and lightness perception

FAQ

Does the T60+ support calibration traceability to NIST or other national metrology institutes?
No—the T60+ is a visual assessment tool, not a radiometric or photometric measurement device; it does not require or provide NIST-traceable calibration certificates. Its light sources are factory-aligned to ISO-defined SPD targets.
Can the UV source be used simultaneously with other illuminants?
Yes—the UV channel operates independently and may be activated concurrently with any combination of visible-light sources to assess fluorescence under mixed-spectrum conditions.
Is firmware update capability available?
Yes—firmware updates are delivered via USB flash drive and maintain backward compatibility with existing hardware revisions.
What is the expected service life of the light sources?
LED modules are rated for ≥25,000 hours at nominal output; typical lab usage (4–6 hrs/day) ensures functional longevity exceeding 10 years without significant SPD shift.
Does the unit include a viewing mask or sample holder?
A removable black velvet viewing mask is included as standard equipment to minimize peripheral glare and enforce consistent observation geometry per ISO 3664.
