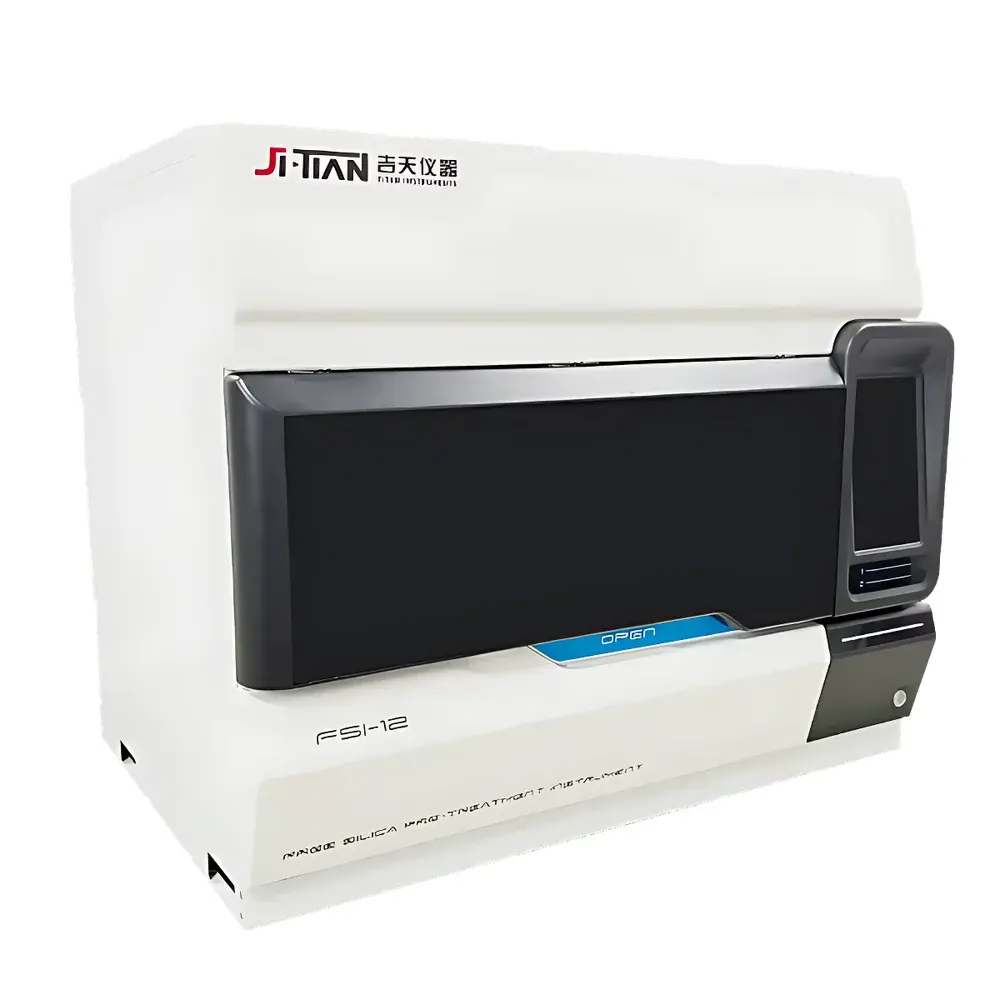

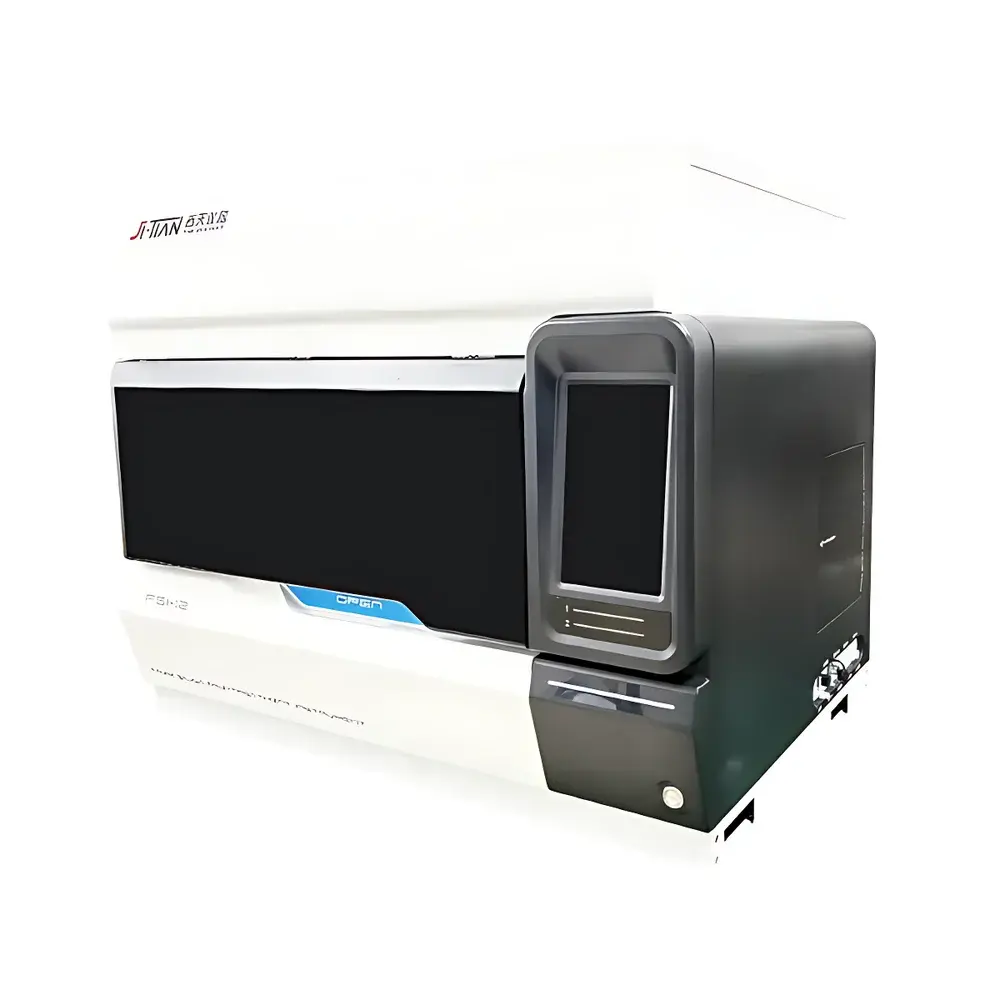

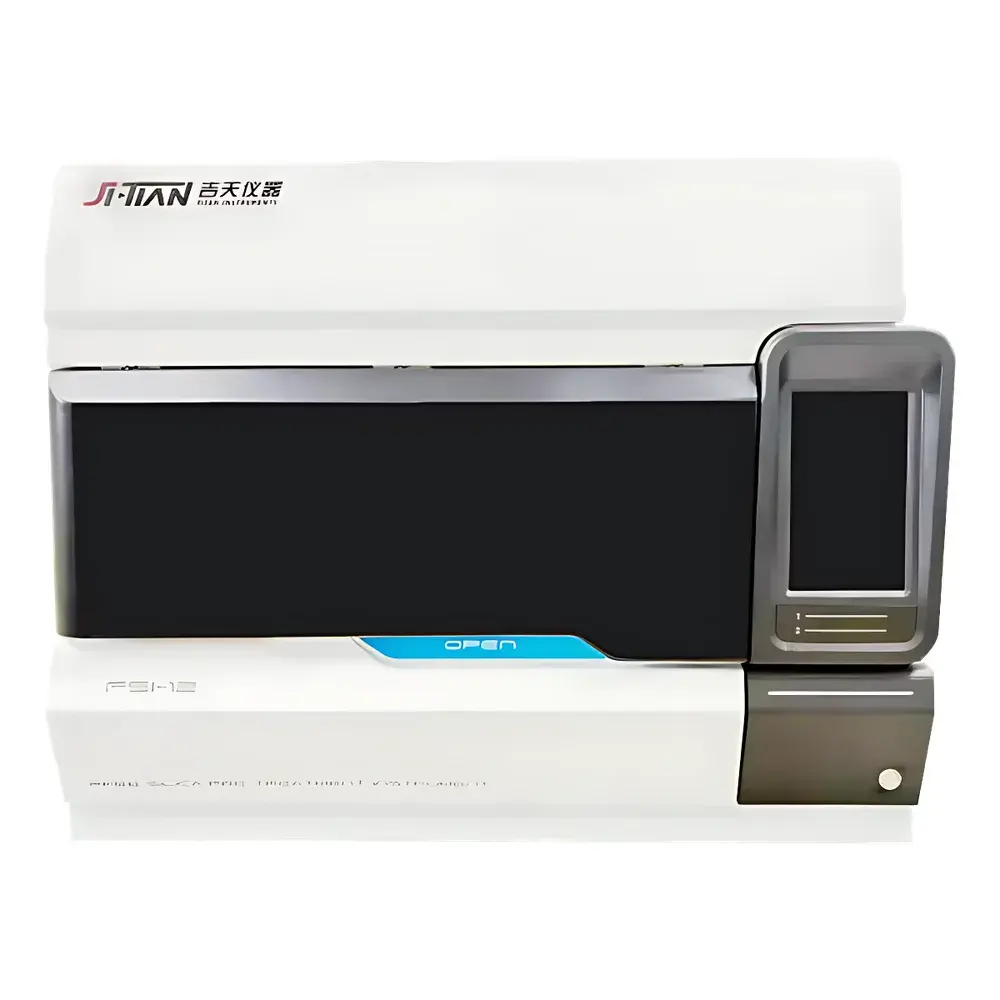

Titan Instruments FSI-12 Automated Free Silica Sample Preparation Workstation
| Brand | Titan Instruments |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | FSI-12 |
| Pricing | Upon Request |
Overview
The Titan Instruments FSI-12 Automated Free Silica Sample Preparation Workstation is an engineered solution for the standardized, high-reproducibility pretreatment of airborne dust samples prior to quantitative analysis of crystalline silica (quartz, cristobalite, tridymite) content. Designed specifically to execute the焦磷酸 (pyrophosphoric acid) digestion protocol outlined in GBZ/T 192.4–2007 — China’s national occupational health standard for airborne dust analysis — the FSI-12 replaces manual, labor-intensive, and operator-exposure-prone steps with a fully automated sequence: reagent dispensing, temperature-controlled digestion, mechanical agitation, vacuum-assisted filtration, and system self-cleaning. Its core operational principle relies on precise thermal management within sealed reaction vessels, coupled with gravimetric and volumetric fluid handling to ensure stoichiometric consistency across all 12 sample positions. This architecture minimizes inter-operator variability, eliminates inhalation and dermal exposure risks associated with pyrophosphoric acid handling, and supports GLP-aligned laboratory workflows where traceability and process control are essential.
Key Features
- Full automation of the GBZ/T 192.4–2007 pyrophosphoric acid digestion workflow: reagent addition, digestion, stirring, filtration, and rinsing — no manual intervention required after loading.
- 12-position high-throughput carousel with independent thermal control per channel, using dual Pt100 temperature sensors for real-time feedback and ±0.5 °C stability across the 100–250 °C operating range.
- Adjustable magnetic stirring speed (100–800 rpm) to prevent localized overheating and gelatinization of silicate residues during acid digestion.
- Patented funnel assembly with optimized flow-path geometry and integrated liquid-level detection sensors, enabling 2× faster filtration throughput and automatic overflow prevention.
- Onboard method library with pre-validated, editable protocols; all parameters (temperature ramp profiles, dwell times, stir speeds, reagent volumes) are digitally stored and timestamped.
- Corrosion-resistant construction: PTFE-coated heating blocks, borosilicate glass digestion tubes, and chemically inert fluidic pathways compatible with concentrated pyrophosphoric acid (H4P2O7) at elevated temperatures.
Sample Compatibility & Compliance
The FSI-12 accepts standard 25-mm or 37-mm mixed-cellulose-ester (MCE) or polyvinyl chloride (PVC) air sampling filters, mounted on reusable aluminum filter holders. It accommodates filter-loaded mass ranges from 0.5 mg to 15 mg total dust — covering typical occupational hygiene sampling scenarios in coal mining, thermal power generation, foundry operations, and construction environments. The instrument is validated for compliance with GBZ/T 192.4–2007 and aligns with the procedural intent of ISO 7708:2018 (airborne particles — size-selective sampling criteria) and ASTM D7686–15 (standard practice for quartz analysis by XRD). While not certified to FDA 21 CFR Part 11, its audit trail functionality (user log, method versioning, run timestamps, parameter logs) supports internal GLP/GMP documentation requirements.
Software & Data Management
The workstation operates via a dedicated Windows-based control interface with role-based access (Operator, Supervisor, Administrator). All method executions generate immutable digital records including start/stop time, actual vs. setpoint temperature curves per channel, stir speed logs, reagent dispense volumes, and filtration completion status. Data export is supported in CSV and PDF formats; raw logs include SHA-256 checksums for integrity verification. Software updates are delivered via secure USB import, with version history retained locally. No cloud connectivity or remote telemetry is implemented — data residency remains fully on-site per institutional IT policy requirements.
Applications
- Occupational hygiene laboratories conducting routine monitoring of respirable crystalline silica (RCS) in coal-fired power plants, cement manufacturing, and underground mining facilities.
- Center for Disease Control (CDC) and provincial Institute of Occupational Health and Occupational Disease Prevention laboratories performing statutory surveillance under China’s Occupational Disease Prevention Law.
- Third-party testing organizations accredited to CNAS-CL01 (equivalent to ISO/IEC 17025) requiring documented, repeatable sample preparation for X-ray diffraction (XRD) or infrared spectroscopy (FTIR) quantification of SiO2 polymorphs.
- Research institutions studying silica-induced pulmonary fibrosis mechanisms, where batch-to-batch consistency in digestate purity directly impacts downstream biochemical assay validity.
FAQ
Does the FSI-12 support alternative digestion reagents beyond pyrophosphoric acid?
No — the system is purpose-built for the GBZ/T 192.4–2007 pyrophosphoric acid method. It is not configured for hydrofluoric acid, sodium carbonate fusion, or other silica dissolution chemistries.
Can the instrument be integrated with LIMS or external analytical instruments?
It does not feature native API or HL7 connectivity; however, exported CSV reports can be ingested into LIMS via scheduled file watchers or manual upload.
What maintenance is required for long-term operation?
Routine tasks include quarterly calibration of temperature sensors, biannual replacement of vacuum pump oil, and periodic inspection of PTFE seals and filtration tubing — all documented in the included maintenance logbook.
Is validation documentation (IQ/OQ/PQ) provided?
Yes — Titan Instruments supplies a factory-verified Operational Qualification (OQ) report; Installation Qualification (IQ) and Performance Qualification (PQ) templates are included for site-specific execution.
