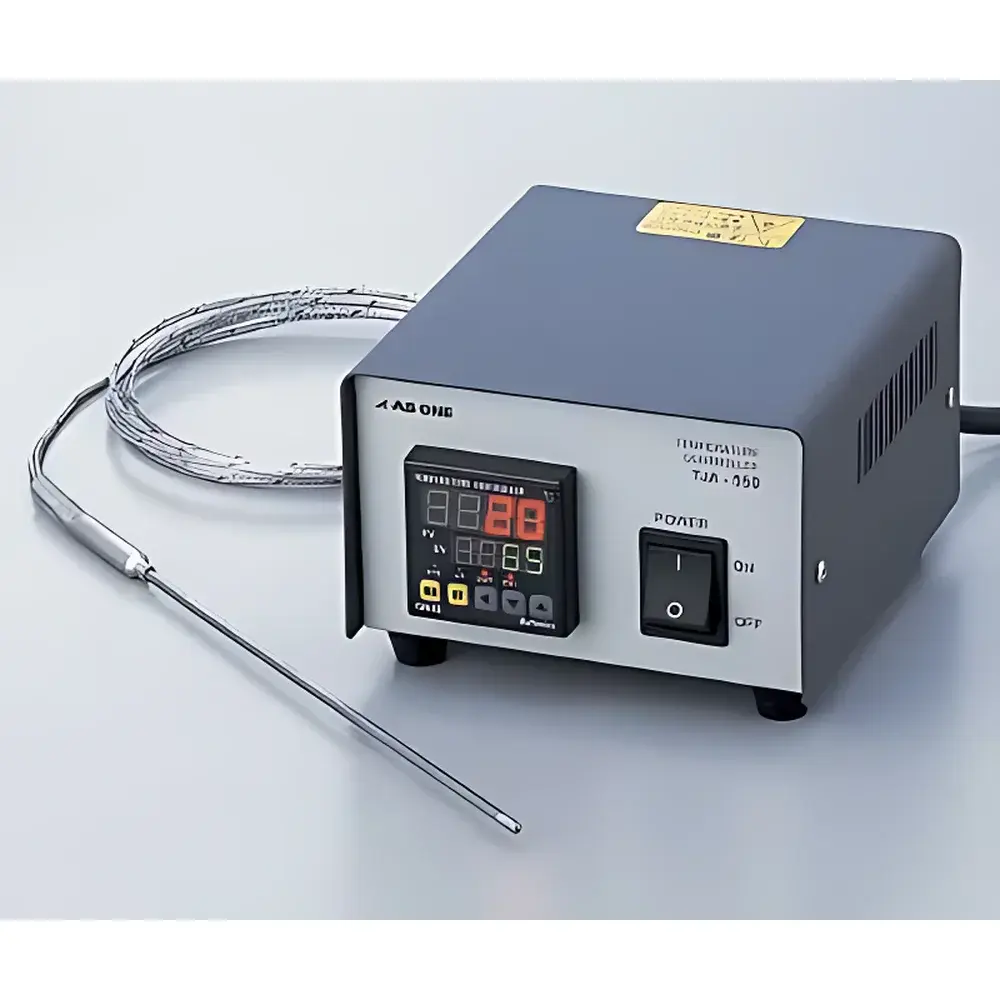

TKA-550K High-Precision Digital Temperature Controller by AS ONE

Overview

The TKA-550K High-Precision Digital Temperature Controller is an industrial-grade temperature regulation instrument engineered by AS ONE Corporation in Japan for stable, repeatable thermal process control in laboratory and light industrial environments. It operates on the principle of closed-loop feedback control using a K-type thermocouple as the primary sensing element, converting thermoelectric voltage into a calibrated temperature reading with traceable linearity per IEC 60584-1. The controller implements a full-featured PID algorithm—including auto-tuning, overshoot suppression, and integral windup protection—to maintain setpoint accuracy across dynamic thermal loads. Designed for integration into ovens, drying chambers, heating mantles, and custom thermal test fixtures, the TKA-550K delivers deterministic response behavior under variable ambient conditions and load impedance changes. Its compact chassis (135 × 110 × 82 mm) enables panel-mount or benchtop deployment without compromising thermal stability or electrical safety compliance.

Key Features

• PID control architecture with embedded auto-tuning function—reduces manual parameter optimization time and improves convergence consistency across diverse heater configurations
• Dual-segment LED display showing Process Value (PV) and Set Value (SV) simultaneously—minimizes operator error during parameter entry and real-time monitoring

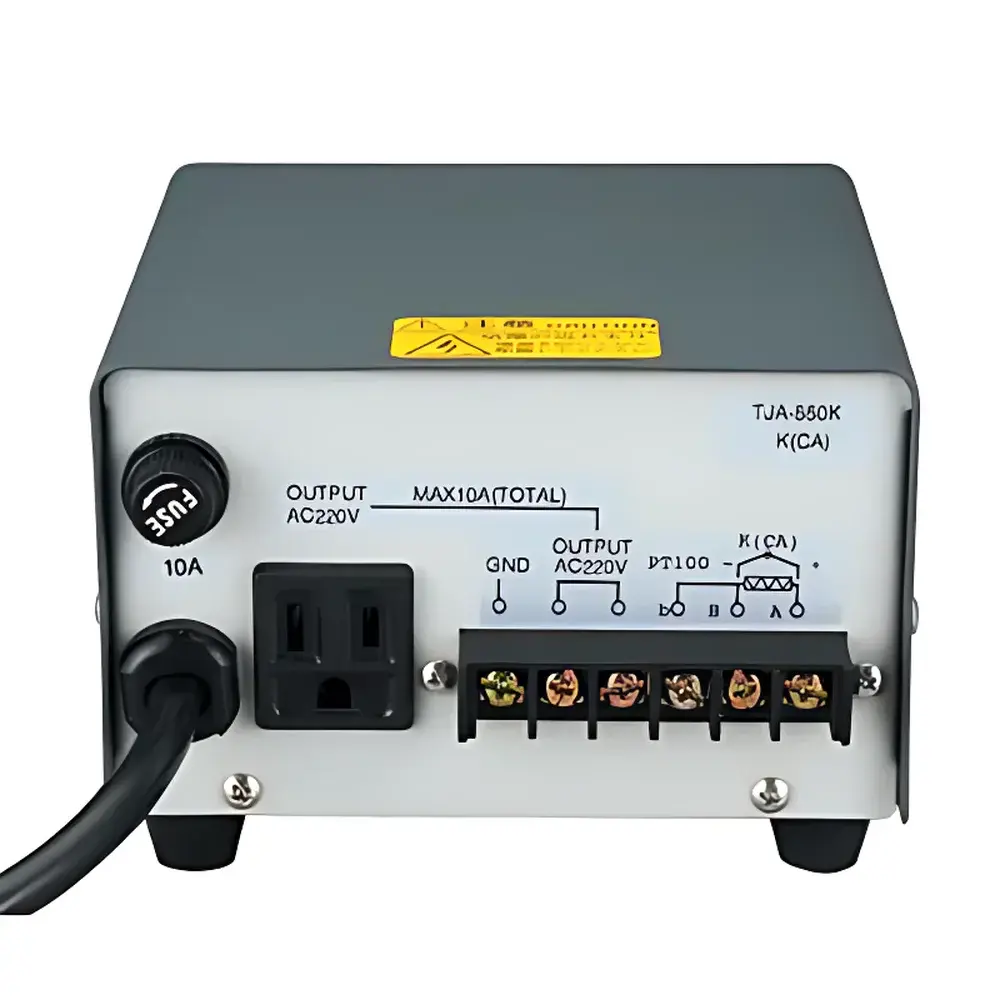

• Robust output interface supporting both plug-in 2P socket and screw-terminal (M4 internal thread) connections—ensures secure wiring for resistive loads up to 1000 W
• Integrated over-temperature protection circuitry that triggers cutoff when PV exceeds SV by a user-defined threshold—enhances equipment and sample safety
• Front-panel touch-button interface with tactile feedback—designed for gloved operation and long-term reliability in controlled environments
• Factory-calibrated K-type thermocouple included (SUS304 sheath, 1.9 m cable)—meets ASTM E230 Class 2 tolerance limits for general-purpose applications

Sample Compatibility & Compliance

The TKA-550K is compatible with any process requiring precise open-loop or closed-loop temperature stabilization between 0 °C and 500 °C. It interfaces directly with resistive heating elements (e.g., cartridge heaters, band heaters, ceramic heaters) and supports standard K-type thermocouples conforming to JIS C 1602 and IEC 60584-2. While not certified for hazardous locations, the unit complies with JIS B 7902 (Industrial Process Control Equipment — General Requirements) and meets EMC immunity requirements per IEC 61326-1 for laboratory use. Its construction adheres to IP20 ingress protection, making it suitable for cleanroom-adjacent and low-dust manufacturing QC labs. No intrinsic safety certification is provided; external isolation relays are recommended when interfacing with high-voltage or explosion-proof systems.

Software & Data Management

The TKA-550K is a standalone analog/digital hybrid controller with no built-in data logging, network interface, or PC connectivity. All configuration—including SV setting, PID gain values, alarm thresholds, and auto-tune initiation—is performed locally via front-panel controls. However, its analog-compatible output stage allows integration with third-party SCADA systems or PLCs through optional solid-state relay modules or 4–20 mA signal converters (not supplied). For regulated environments operating under GLP or GMP frameworks, users must implement external audit trails for setpoint changes and calibration records. The device supports periodic verification per ISO/IEC 17025 Clause 6.5.2 using traceable reference thermometers and dry-block calibrators.

Applications

• Temperature stabilization in benchtop heating ovens used for polymer annealing, catalyst activation, and moisture content validation (ASTM D4456)
• Thermal profiling of solder reflow stations and PCB preheating zones where ramp-soak-profile repeatability is critical
• Control loop component in custom-built environmental stress screening (ESS) chambers compliant with MIL-STD-810G methods
• Calibration station auxiliary controller for thermocouple verification rigs operating within Class II accuracy bands
• Research-grade heating control in materials science labs conducting thermal gravimetric analysis (TGA) sample prep or sintering trials

FAQ

What thermocouple types does the TKA-550K support?
The unit is factory-configured exclusively for K-type thermocouples per ITS-90 reference tables. Substitution with other thermocouple types (e.g., J, T, or S) will result in significant measurement deviation and is not supported.
Can the TKA-550K be used with non-resistive loads such as solenoids or motors?
No. Its output stage is rated only for resistive loads up to 1000 W. Inductive or capacitive loads require external contactors or SSRs rated for the specific load characteristics.
Is firmware update capability available?
The TKA-550K contains no field-upgradable firmware; all control logic resides in fixed-function ASICs. Functional updates are only available through hardware revision releases by AS ONE.
Does the unit meet FDA 21 CFR Part 11 requirements?
No. As a stand-alone analog controller without electronic recordkeeping, digital signatures, or audit trail functionality, it does not satisfy Part 11 criteria. Integration into Part 11-compliant systems requires external validation and procedural controls.
What is the recommended recalibration interval?
AS ONE recommends annual calibration against NIST-traceable references for applications governed by ISO/IEC 17025 or internal quality management systems. Frequency may increase based on usage intensity and thermal cycling exposure.
