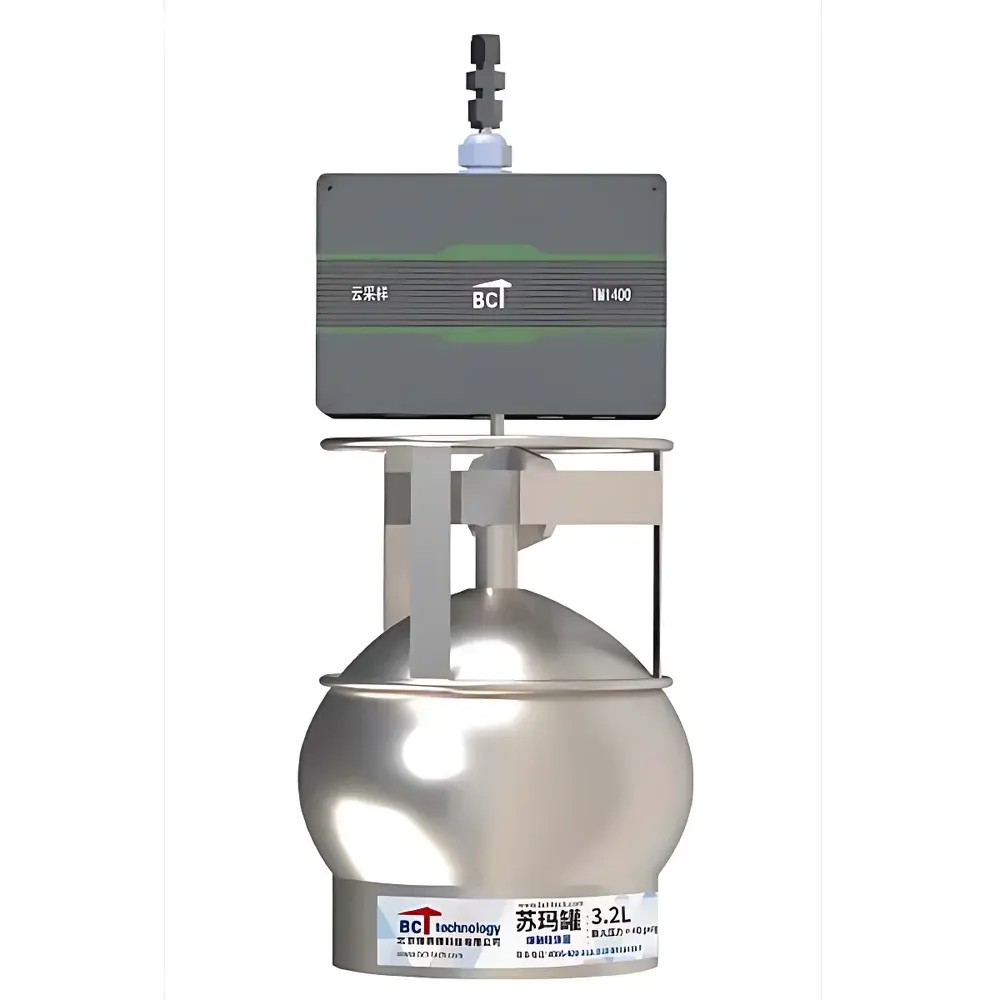

TM1400 Single-Channel Cloud Sampling System
| Brand | BCT |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Original Equipment Manufacturer (OEM) |
| Product Origin | Domestic (China) |
| Model | TM1400 |
| Pricing | Available Upon Request |
Overview
The TM1400 Single-Channel Cloud Sampling System is an engineered atmospheric pre-concentrator designed for unattended, time-resolved volatile organic compound (VOC) and trace gas collection into electropolished stainless-steel Summa® canisters. It operates on the principle of pressure-controlled, inertial-flow sampling—utilizing a precisely regulated diaphragm pump and integrated mass flow control to deliver consistent, calibrated sample volumes under variable ambient conditions. The system is purpose-built for remote deployment in ambient air monitoring networks, where long-term stability, chemical inertness, and environmental resilience are critical. Unlike passive diffusion samplers or thermal desorption-based concentrators, the TM1400 performs active, quantitative canister filling with programmable temporal resolution—enabling speciated VOC profiling across diurnal, weekly, or event-driven sampling campaigns.
Key Features
- Inertized fluid path: Electropolished 316L stainless-steel tubing, perfluoroalkoxy (PFA)-lined valves, and SilcoNert®-coated internal surfaces minimize adsorptive losses and carryover for reactive species including aldehydes, sulfur compounds, and halogenated VOCs.
- Programmable multi-segment scheduling: Supports up to 16 independent sampling events per week, each with user-defined start time, duration, flow rate (adjustable from 50–500 mL/min), and canister selection logic.
- Integrated particulate filtration: A replaceable 2.5 µm polytetrafluoroethylene (PTFE) membrane filter upstream of the canister inlet prevents particulate ingress without compromising VOC transmission efficiency.
- Environmental hardening: IP65-rated enclosure with UV-stabilized polycarbonate housing, passive solar shielding, and sealed gasketed access panels ensures operational integrity across −20 °C to +50 °C ambient ranges and high-humidity coastal or desert deployments.
- Power autonomy: Dual-mode operation—supports 12 V DC input (e.g., solar-battery systems) with intelligent power management enabling >30 days of continuous operation on a 24 Ah LiFePO₄ battery pack under typical field duty cycles.
Sample Compatibility & Compliance
The TM1400 is fully compatible with standard 6-L and 1-L SUMMA®-treated canisters (Restek, SilcoTek-certified), as well as alternative inert-coated canisters meeting EPA Method TO-14A/TO-15 specifications. All wetted materials comply with ASTM D5504 and ISO 16000-6 requirements for low-background VOC sampling. The system’s flow calibration traceability aligns with NIST-traceable primary standards, and its timing firmware supports GLP-compliant audit trails—including timestamped event logs, flow verification records, and canister ID tagging via optional RFID reader integration. While not certified to UL/CE for intrinsic safety, it meets IEC 61326-1 for electromagnetic compatibility in laboratory and field environments.
Software & Data Management
Local configuration and diagnostics are managed via a secure web interface accessible over Ethernet or LTE (optional module). The embedded firmware (v3.2+) logs all sampling events—including actual vs. target flow rates, battery voltage, ambient temperature/humidity (via onboard sensors), and pump runtime—with CSV export capability. Remote firmware updates and schedule reprogramming are supported via TLS-encrypted HTTP(S) endpoints. For enterprise integration, the system provides Modbus TCP and MQTT protocols to feed metadata into LIMS or centralized environmental data platforms. Audit trail records adhere to ALCOA+ principles and support FDA 21 CFR Part 11 compliance when deployed with validated user authentication and electronic signature workflows.
Applications
- Urban and regional air quality monitoring networks requiring speciated VOC data for ozone and secondary organic aerosol (SOA) precursor analysis.
- Industrial fence-line monitoring near petrochemical facilities, refineries, or solvent-use operations under EPA 40 CFR Part 63 Subpart HHHHH or EU Industrial Emissions Directive (IED) reporting mandates.
- Background station networks (e.g., GAW, EMEP) collecting baseline VOC profiles for climate modeling and long-term trend assessment.
- Field validation of real-time analyzers (e.g., PTR-MS, GC-MS) through co-located canister-based reference sampling.
- Indoor air quality studies in occupational or residential settings where time-integrated exposure assessment is required per ISO 16000-22 protocols.
FAQ
Does the TM1400 support dual-canister or sequential sampling within a single program?
Yes—firmware v3.1+ enables automatic canister switching based on elapsed time or volumetric threshold, allowing uninterrupted multi-canister campaigns without manual intervention.
Is calibration verification required before each deployment?
A full flow calibration using a NIST-traceable dry calibrator is recommended prior to initial deployment and every 90 days thereafter; the system stores calibration coefficients and auto-applies them during sampling.
Can the TM1400 be integrated with existing SCADA or telemetry infrastructure?
Yes—Modbus TCP and MQTT interfaces allow seamless connection to industrial telemetry gateways, PLCs, or cloud-based environmental dashboards without proprietary middleware.
What maintenance intervals are specified for the particulate filter and pump?
The PTFE filter should be replaced after 1,000 L of total sampled volume or every 3 months in high-dust environments; the diaphragm pump has a rated service life of 15,000 hours and includes runtime logging for predictive maintenance scheduling.
