TMAXTREE ASI Automated Sampling Instrument for Bioreactor Applications

Overview

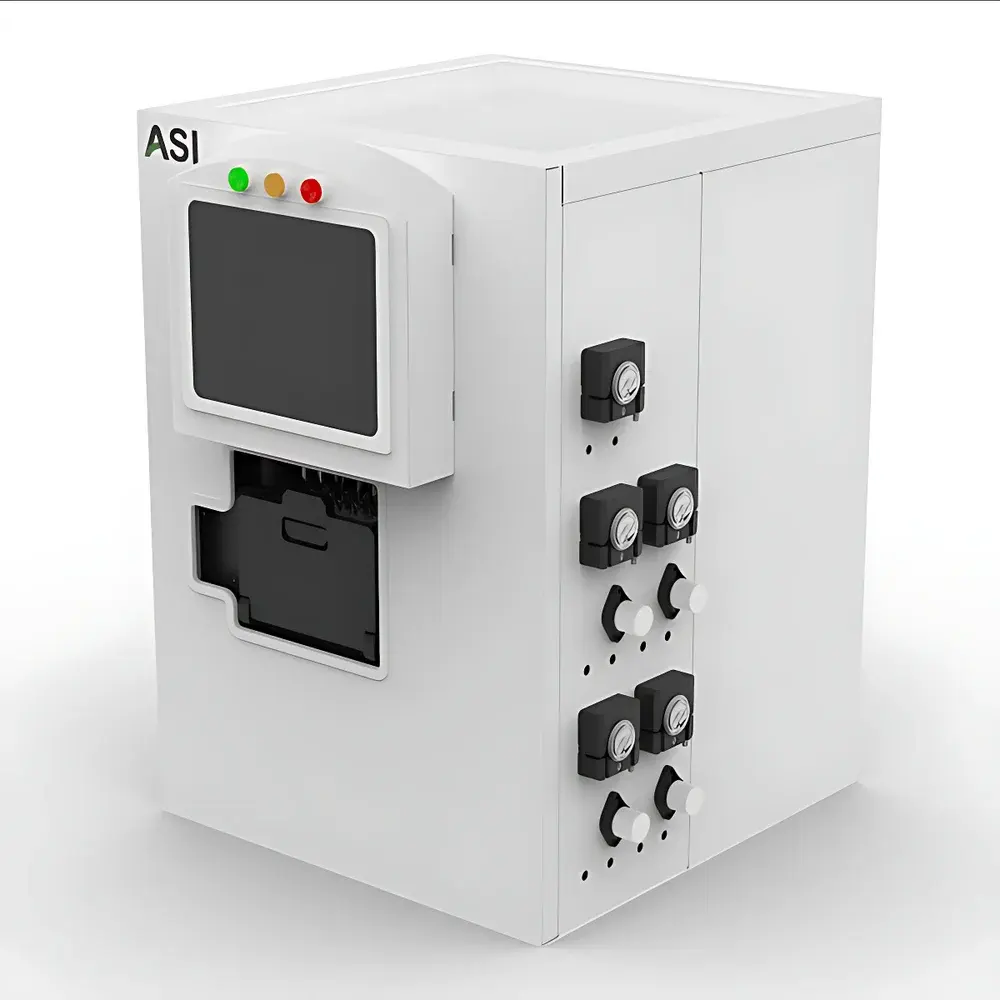

The TMAXTREE ASI Automated Sampling Instrument is an engineered solution for precise, aseptic, and unattended sampling in bioprocess development and manufacturing environments. Designed specifically for integration with stirred-tank bioreactors ranging from laboratory-scale (0.2 L) to industrial-scale (300,000 L), the ASI employs a closed-loop, peristaltic or diaphragm-based fluid handling architecture to withdraw representative process samples under controlled thermal conditions. All wetted components—including tubing, valves, and sampling manifolds—are compatible with steam-in-place (SIP) sterilization protocols, ensuring compliance with cGMP and ISO 13485-aligned bioprocess validation requirements. The system maintains sample integrity by holding withdrawn material at approximately 4 °C immediately post-collection, minimizing metabolic activity and microbial proliferation during interim storage. Unlike generic liquid handlers, the ASI is purpose-built for bioreactor interfacing—featuring pressure-balanced sampling ports, sterile break connectors, and real-time flow verification logic to prevent cross-contamination or vacuum-induced foaming.

Key Features

• Fully automated sampling, retention, and system rinse cycles—no operator intervention required between scheduled events
• Configurable channel count (1, 2, or 4) to support parallel sampling from multiple bioreactors or sequential multi-point sampling within a single vessel
• Programmable sampling volume (1–40 mL per draw) and interval (minimum 0.5-hour resolution), with dynamic parameter updates applied to subsequent cycles
• Dual retention rack support with four interchangeable configurations: 50 mL × 18, 25 mL × 18, 10 mL × 50, or 5 mL × 50—enabling rapid adaptation to analytical assay volume requirements
• Industrial-grade control unit featuring an 8.4-inch capacitive touchscreen, Windows-based HMI, and embedded data logging compliant with ALCOA+ principles
• SIP-compatible fluid path design validated for repeated 121 °C/30 min sterilization cycles without seal degradation or valve drift
• Native integration interface for TMAXTREE’s BODS platform, allowing centralized orchestration of sampling, online analytics (e.g., pH, DO, glucose), and data correlation

Sample Compatibility & Compliance

The ASI accommodates standard conical-bottom centrifuge tubes and screw-cap cryovials (1–40 mL), including those certified for low-temperature storage and downstream nucleic acid/protein analysis. Its 4 °C retention environment meets USP <1043> recommendations for biological sample stability during short-term hold periods. The system adheres to IEC 61000-6-2/6-4 for electromagnetic compatibility and conforms to ISO 14644-1 Class 5 cleanroom installation guidelines when deployed in classified manufacturing suites. All firmware and configuration files are version-controlled and support audit trail generation per FDA 21 CFR Part 11 requirements, including electronic signatures, time-stamped event logs, and immutable parameter change records.

Software & Data Management

The embedded Windows HMI provides intuitive configuration of sampling schedules, alarm thresholds (e.g., low-flow detection, temperature deviation > ±1.5 °C), and maintenance reminders (e.g., tubing replacement intervals). Raw sampling metadata—including timestamp, bioreactor ID, volume drawn, ambient cabinet temperature, and SIP cycle history—is exported in CSV or XML format via USB or Ethernet. When integrated with BODS, the ASI contributes time-synchronized sample identifiers to the central database, enabling traceability from bioreactor harvest to offline HPLC, qPCR, or cell viability assays. Optional OPC UA server support allows third-party MES/SCADA systems to subscribe to real-time status variables.

Applications

• Process analytical technology (PAT) implementation for mammalian, microbial, and yeast fermentation processes
• Design of experiments (DoE)-driven kinetic profiling during fed-batch and perfusion cultures
• GMP-compliant batch record generation for clinical-stage biologics manufacturing
• Automated sampling in single-use bioreactor (SUB) trains where manual intervention poses contamination risk
• Long-duration stability studies requiring consistent 4 °C sample preservation over multi-day campaigns
• Scalable deployment across R&D labs, pilot plants, and commercial manufacturing facilities

FAQ

Can the ASI be validated for use in GMP production environments?
Yes—the ASI supports IQ/OQ documentation packages, includes calibration certificates for volumetric accuracy (±2% full scale), and provides complete traceability for all sterilization cycles and configuration changes.
Does the system support sampling from pressurized bioreactors?
Yes—integrated pressure compensation ensures stable draw rates across operating pressures up to 1.5 bar(g), with optional pressure transducer feedback for closed-loop adjustment.
How is tubing wear managed during extended operation?
The system logs cumulative pump actuation cycles and triggers preventive maintenance alerts; consumable kits include pre-sterilized, gamma-irradiated tubing sets with lot-specific CoA documentation.
Is remote monitoring available?
Via optional Ethernet/Wi-Fi module and secure TLS-enabled web interface, operators can view real-time status, download logs, and adjust non-critical parameters remotely—subject to role-based access controls.
What regulatory standards does the ASI’s software comply with?
The control software implements 21 CFR Part 11-compliant audit trails, electronic signature workflows, and data integrity safeguards aligned with EU Annex 11 and WHO TRS 992 Annex 5 requirements.
