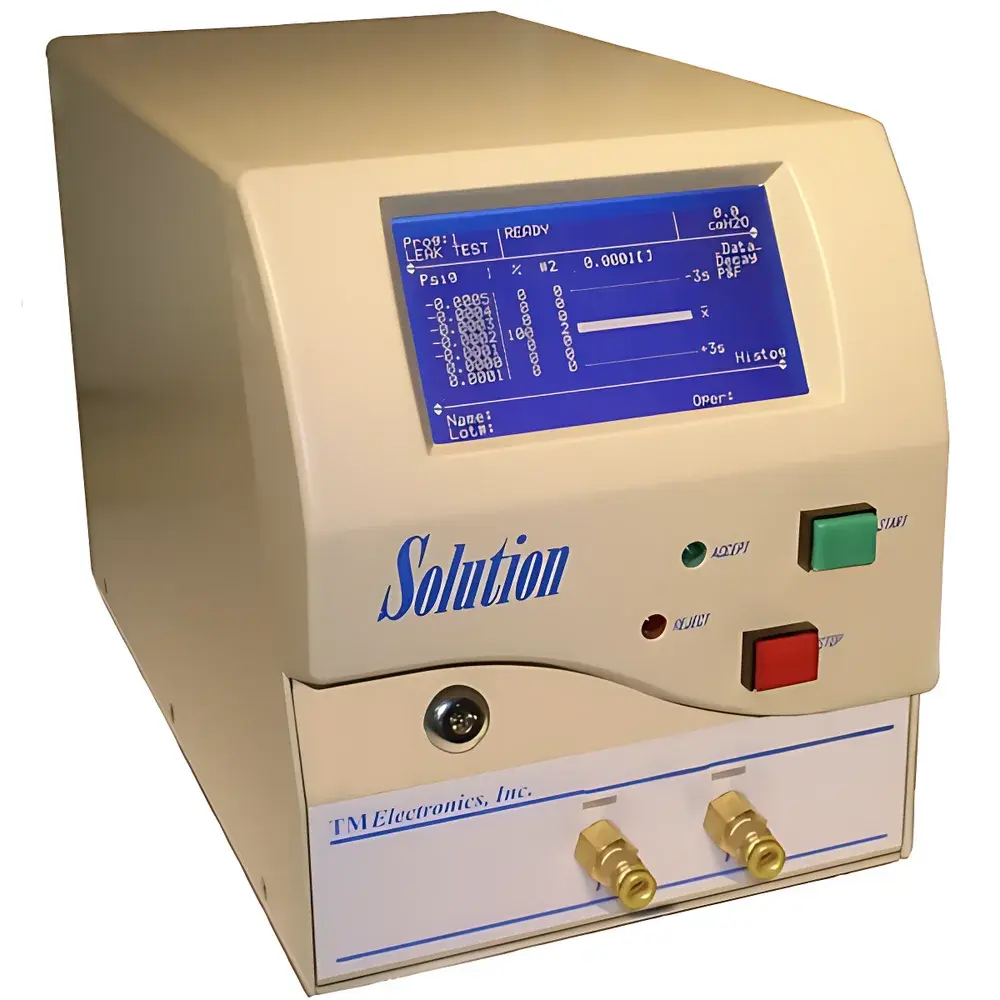

TME Solution High-Resolution Leak and Flow Tester

Overview

The TME Solution is a high-precision, microprocessor-controlled leak and flow tester engineered for quantitative, repeatable assessment of package integrity, component hermeticity, and system pressure containment. It operates on two primary physical principles: differential pressure decay measurement (for sealed systems under vacuum or overpressure) and calibrated mass flow measurement (for open-path or continuous-flow scenarios). Its architecture integrates dual-sensor pressure transduction with real-time thermal mass flow sensing, enabling detection sensitivity down to 0.0001 psig—equivalent to sub-microliter-per-minute leakage rates in typical test volumes. The instrument supports both single-point pass/fail verification and dynamic process monitoring, making it suitable for in-line QC stations, R&D validation labs, and regulatory submission testing environments. Unlike analog or threshold-based testers, the Solution employs digital signal processing algorithms that compensate for temperature drift, barometric variation, and volumetric compliance—ensuring consistent performance across ambient shifts and diverse test fixtures.

Key Features

• Configurable 1–4 channel operation: Supports simultaneous multi-part testing or sequential evaluation without hardware reconfiguration.
• True differential pressure capability: Measures absolute, gauge, or differential pressure modes—including bidirectional vacuum/overpressure transitions within a single test sequence.
• Real-time process control dashboard: Embedded touchscreen interface enables live graphing of pressure decay curves, flow rate trends, and statistical deviation alerts.
• NIST-traceable calibration architecture: Factory-calibrated transducers include full uncertainty budgets; field recalibration kits and documentation support ISO/IEC 17025-compliant lab practices.
• Modular auxiliary compatibility: Integrates seamlessly with LA-05 desiccant-filtered air supply modules, RS-01 radial-seal pneumatic fixtures, and custom-engineered clamping solutions for flexible packaging, medical devices, and automotive components.
• Robust data governance: All test executions generate timestamped, operator-ID-tagged records with full audit trail metadata—aligned with FDA 21 CFR Part 11 requirements when deployed with validated software extensions.

Sample Compatibility & Compliance

The TME Solution accommodates a broad spectrum of test specimens—from rigid IV bags and blister packs to flexible pouches, syringes, and hollow metallic housings. Its semi-porous fixture plates stabilize expansion during pressurization without occluding material porosity—a critical feature for validating seal integrity in heat-sealed laminates per ASTM F2096. Radial-seal fixtures (RS-01) ensure uniform stress distribution across circumferential seals on tubing and connectors (ID range: 0.002–6 in), eliminating false negatives caused by localized compression failure. The system meets functional requirements of USP <1207> for deterministic leak testing methodologies and supports IQ/OQ/PQ protocol development for pharmaceutical and biotech manufacturing. When paired with NIST-traceable reference leaks and documented environmental controls, it satisfies GLP/GMP audit expectations for method validation and equipment qualification.

Software & Data Management

The embedded firmware provides native CSV export via RS-232, supporting direct integration into LIMS, MES, and SPC platforms. Test configuration files (.cfg) store all parametric settings—including pressure ramp profiles, dwell times, acceptance thresholds, and pass/fail logic trees—for version-controlled reuse. Each result record includes raw sensor timestamps, compensated pressure differentials, derived leakage rates (ccm or sccm), and statistical summaries (mean, SD, Cp/Cpk). Optional PC-based software adds automated report generation (PDF/XLSX), SPC charting (X-bar/R, CUSUM), and electronic signature workflows compliant with 21 CFR Part 11 Annex 11. All data storage adheres to ALCOA+ principles: Attributable, Legible, Contemporaneous, Original, Accurate, and Complete—with immutable log files preventing post-hoc editing.

Applications

• Pharmaceutical packaging: Validation of sterile barrier integrity for vials, cartridges, and pre-filled syringes per USP <1207>.
• Medical device manufacturing: Leak testing of implantable housing assemblies, catheter manifolds, and disposable diagnostic cartridges.
• Automotive fluid systems: Verification of fuel rail, brake line, and EV battery coolant loop hermeticity under thermal cycling conditions.
• Flexible food packaging: Quantitative detection of micro-leaks in retort pouches and modified-atmosphere packaging using ASTM D3078 bubble emission correlation.
• R&D prototyping: Rapid iteration of seal design parameters (temperature, dwell time, pressure) with statistical confidence intervals derived from multi-channel replication.

FAQ

What pressure ranges does the TME Solution support?
The standard operating range spans –13.5 to 300 psig, with customizable low-pressure vacuum modes (–13.5 to 0.5 psig) and high-resolution decay measurement down to 0.0001 psig.
Can the instrument perform both pressure decay and mass flow measurements in one test sequence?
Yes—it dynamically switches between differential pressure decay and calibrated mass flow modes based on user-defined test logic, enabling hybrid verification protocols.
Is the system compatible with cleanroom environments?
All external surfaces are electropolished stainless steel or anodized aluminum; optional HEPA-filtered purge kits and Class 100-compatible fixtures are available upon request.
How is calibration traceability maintained over time?
Each unit ships with a NIST-traceable calibration certificate including uncertainty budgets; annual recalibration services include full sensor linearity verification and drift compensation updates.
Does the TME Solution support automated reporting for regulatory submissions?
When used with validated PC software, it generates 21 CFR Part 11-compliant reports containing electronic signatures, audit trails, and raw data archives required for FDA, EMA, and PMDA filings.
