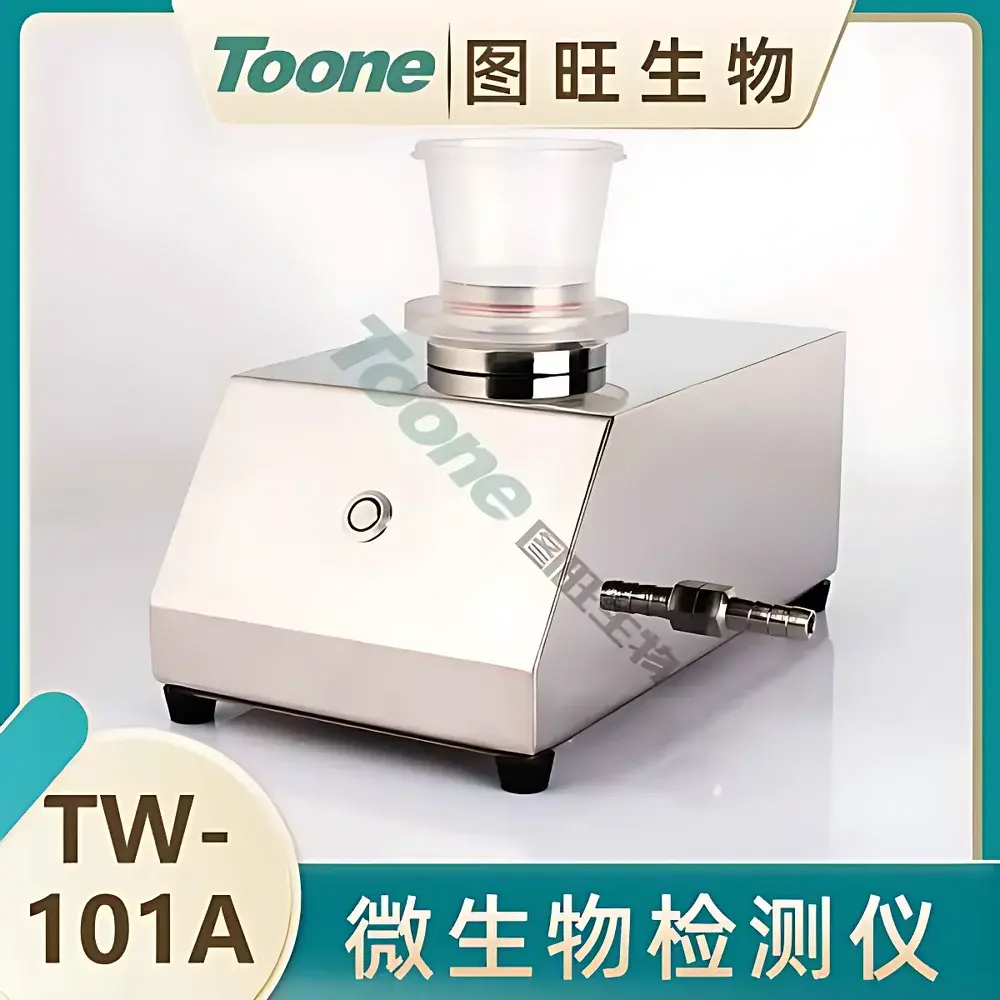

Toone TW-101A Microbial Limit Tester

Overview

The Toone TW-101A Microbial Limit Tester is a compact, semi-automatic membrane filtration system engineered for routine microbial enumeration and limit testing in pharmaceutical, cosmetic, food & beverage, and clinical laboratory environments. It operates on the principle of vacuum-assisted membrane filtration—where liquid samples are drawn through sterile, low-protein-binding cellulose ester or mixed cellulose ester (MCE) membranes under controlled negative pressure. Retained microorganisms are subsequently cultured on appropriate solid media (e.g., Soybean–Casein Digest Agar or Tryptic Soy Agar) and enumerated via colony-forming unit (CFU) counting. Designed to comply with core pharmacopoeial requirements—including USP <61>, EP 2.6.12, and ChP 1105—the TW-101A supports validated microbial quality control workflows without requiring integration into fully automated platforms.

Key Features

• Integrated high-efficiency diaphragm pump eliminates the need for external vacuum sources or bulky filtration flasks—reducing benchtop footprint by over 40% compared to conventional setups.
• Tactile push-button interface with status-indicating LEDs ensures intuitive, error-resistant operation across shifts and user skill levels.
• Smooth, mirror-finished stainless steel housing (electropolished 304 SS) minimizes surface roughness (Ra < 0.4 µm), inhibiting biofilm formation and enabling rapid, residue-free disinfection with 70% isopropyl alcohol or sodium hypochlorite solutions.
• Optimized internal fluid path geometry features zero dead-leg tubing and seamless welded joints—eliminating harborage zones for microbial retention and facilitating full-system sterilization validation (e.g., steam-in-place or VHP compatibility assessment).
• Low-noise operation (≤60 dB at rated load) meets ISO 14644-1 Class 8 cleanroom ambient noise guidelines, supporting use within laminar flow hoods or ISO-certified QC laboratories.

Sample Compatibility & Compliance

The TW-101A accommodates standard 47-mm diameter filtration units (e.g., Toone TW-M50A), compatible with both hydrophilic and hydrophobic membrane types (0.22 µm or 0.45 µm pore size). It supports aqueous, low-viscosity, non-corrosive liquid samples—including purified water, saline buffers, ophthalmic solutions, and diluted topical formulations—within ISO 8573-1 Class 3 air quality limits. The system conforms to mechanical safety standards IEC 61010-1 and electromagnetic compatibility per EN 61326-1. While not intrinsically compliant with FDA 21 CFR Part 11 out-of-the-box, its manual operation mode aligns with GLP/GMP Annex 11 principles when paired with paper-based or LIMS-integrated recordkeeping protocols.

Software & Data Management

As a semi-automatic instrument, the TW-101A does not include embedded firmware or proprietary software. All operational parameters—including filtration duration, pump activation sequence, and operator identity—are documented externally via laboratory notebooks or electronic batch records (EBRs). Its design facilitates audit-ready traceability: each unit bears a permanent serial number engraved on the chassis, and consumable lot numbers (e.g., TW-M50A filters) are manually logged alongside sample IDs. For regulated environments, laboratories may integrate the TW-101A into validated digital workflows using third-party LIMS modules that support equipment-linked metadata capture (e.g., time-stamped start/stop events via optional dry-contact relay outputs).

Applications

• Routine microbial limit testing of non-sterile pharmaceutical dosage forms (tablets, capsules, syrups) per USP <61> and Ph. Eur. 2.6.12.
• Bioburden assessment of raw materials, excipients, and process water in API manufacturing facilities.
• Environmental monitoring support—filtration of rinse water from cleanroom surfaces or equipment swab eluates.
• Quality release testing of cosmetics and personal care products under ISO 16212 and CPNP notification requirements.
• Educational use in university microbiology labs for teaching membrane filtration methodology and aseptic technique fundamentals.

FAQ

Is the TW-101A suitable for sterility testing?
No—it is designed exclusively for microbial limit testing and bioburden enumeration. Sterility testing requires full ISO 13408-1 compliance, including double-membrane filtration capability, HEPA-filtered air handling, and validation-grade documentation not supported by this platform.
Can it be used with aggressive solvents like acetone or ethanol?
Not recommended. The silicone drain tubing and internal pump diaphragm are rated for aqueous and mild organic solutions only; exposure to strong solvents may cause swelling, permeation, or premature failure.
Does the system include calibration certificates or IQ/OQ documentation?
No. As a Class I electrical device per MDR 2017/745, the TW-101A does not require mandatory factory calibration. Users must perform in-house performance qualification (PQ) using calibrated flow meters and pressure gauges per their internal SOPs.
What maintenance intervals are recommended?
Diaphragm pump inspection every 6 months or after 500 operating hours; visual verification of tubing integrity and housing cleanliness before each use; full disinfection with sporicidal agents after processing high-bioburden samples.
