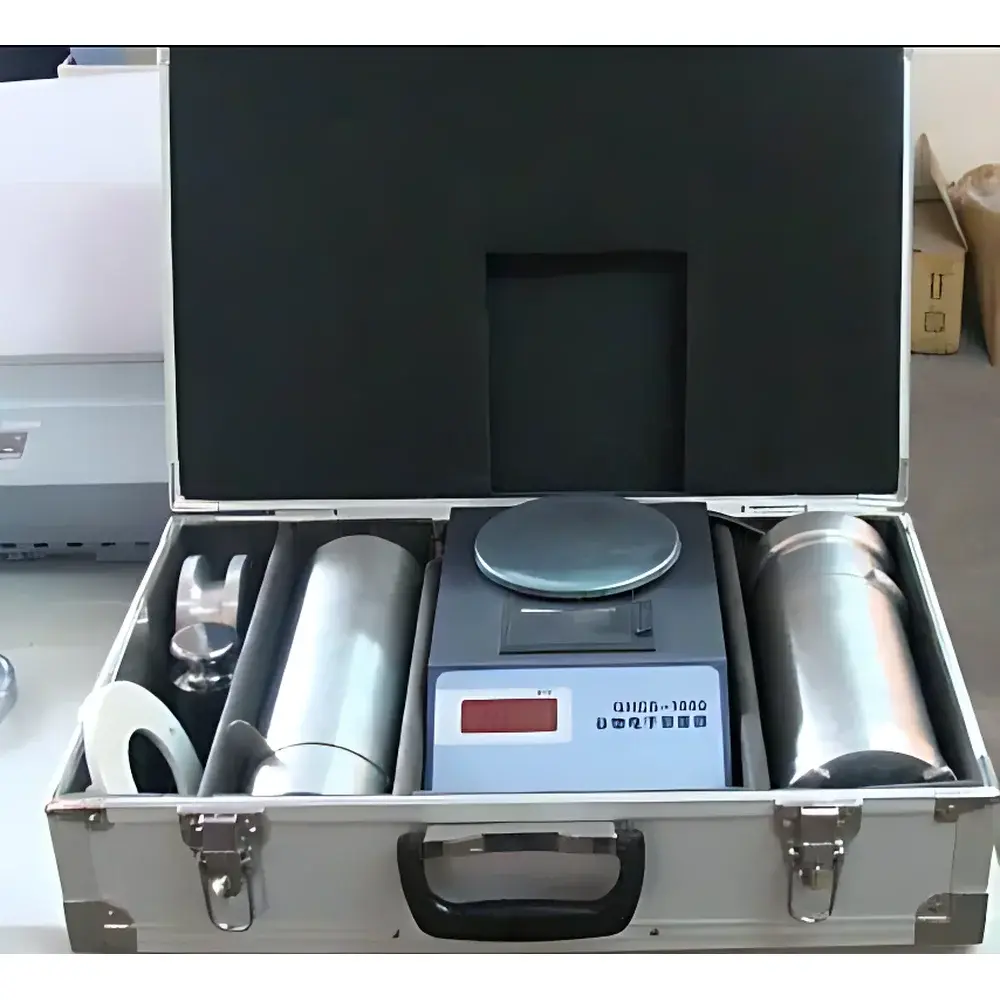

Top Cloud-agri GHCS-1000AP Dual-Mode Electronic Test Weight Meter

Overview

The Top Cloud-agri GHCS-1000AP Dual-Mode Electronic Test Weight Meter is a precision agricultural instrumentation system engineered for standardized determination of grain test weight (also known as bulk density or hectoliter weight) in accordance with national and international cereal quality protocols. It operates on the principle of volumetric displacement combined with high-resolution digital weighing: a fixed-volume cylinder (typically 1.0 L per standard specification) is filled with a representative, cleaned grain sample under controlled gravitational settling conditions; the mass of that volume is then measured using a calibrated load cell integrated into a microprocessor-controlled weighing module. The resulting value—expressed in g/L or kg/hL—is directly traceable to SI mass and length units and serves as a primary indicator of grain compactness, kernel plumpness, maturity, and post-harvest handling integrity. Unlike manual volumetric methods requiring repeated tamping and manual weighing, the GHCS-1000AP automates sample filling consistency and eliminates operator-induced variability, delivering repeatable results essential for grain grading, procurement settlement, storage planning, and feed formulation.

Key Features

• True dual-mode operation: supports both automatic gravity-fed filling and manual pour-in configurations to accommodate varying laboratory workflows and grain flow characteristics.
• High-precision weighing system with 1/3000 internal resolution and temperature-compensated strain-gauge load cell, ensuring long-term stability and minimal drift across ambient operating ranges (10–35°C).
• Dedicated 1.0 L calibrated measuring cylinder manufactured from anodized aluminum alloy, resistant to abrasion and corrosion from abrasive grains such as maize and sorghum.
• Integrated LED display with backlighting provides real-time readout of test weight (g/L), sample mass (g), and unit conversion (kg/hL), with auto-zero and tare functions accessible via tactile membrane keys.
• Microprocessor-based control unit stores calibration parameters, enables user-defined tare offsets, and supports firmware-upgradable measurement algorithms aligned with evolving national standards.
• Robust mechanical architecture designed for field-deployable use in grain receiving stations, county-level agro-testing labs, and QC facilities—meets IP54 ingress protection rating for dust and splash resistance.

Sample Compatibility & Compliance

The GHCS-1000AP is validated for routine use with major cereal and leguminous crops including but not limited to Triticum aestivum (wheat), Zea mays (corn/maize), Glycine max (soybean), Sorghum bicolor (sorghum), Hordeum vulgare (barley), and Oryza sativa (paddy and hulled rice). Prior to measurement, samples must be conditioned to equilibrium moisture content and processed per GB/T 5491–2017 (General Rules for Sampling of Cereals and Pulses) and GB/T 5492–2008 (Methods for Inspection of Impurities and Damaged Kernels). The instrument conforms to the procedural requirements of GB/T 5498–2013 (Determination of Test Weight of Cereals) and GB/T 21304–2007 (Test Weight Determination for Maize), and aligns with the metrological framework of ISO 7971-1:2017 (Cereals — Determination of Bulk Density — Part 1: Method Using a Standardized Cylinder). Its measurement uncertainty budget has been assessed per ISO/IEC 17025:2017 Annex A.3 for accredited testing laboratories performing grain quality certification.

Software & Data Management

While the GHCS-1000AP operates as a standalone benchtop instrument without embedded PC connectivity, its design incorporates data integrity safeguards required under GLP and GMP-aligned grain quality management systems. All measurements are timestamped and stored in non-volatile memory with capacity for ≥500 records, each containing test weight result, net mass, fill mode identifier, operator ID (manually entered), and environmental temperature reading (via integrated sensor). Export is supported via RS-232 serial interface to external LIMS or Excel-based QA databases. Audit trail functionality—including calibration event logging, parameter modification history, and user access timestamps—is enabled through optional firmware upgrade (v2.3+), compliant with FDA 21 CFR Part 11 electronic record requirements when deployed in regulated feed or food manufacturing environments.

Applications

• Grain procurement centers: rapid classification of incoming lots against national grade thresholds (e.g., Grade I wheat ≥790 g/L per GB 1351–2008).
• Regional grain quality monitoring networks: longitudinal tracking of test weight trends across harvest seasons and geographical zones.
• Seed certification laboratories: verification of varietal purity and physiological quality indicators correlated with bulk density.
• Feed mill raw material inspection: early detection of shriveled, frost-damaged, or pre-sprouted kernels affecting energy density and pelleting efficiency.
• Research institutions: correlation studies between test weight and compositional parameters (protein, starch, moisture) or milling yield predictions.
• International trade compliance: generation of test weight documentation supporting phytosanitary certificates and export declarations under WTO/SPS frameworks.

FAQ

What grain types are officially supported by the GHCS-1000AP per Chinese national standards?
Wheat (GB/T 5498), maize (GB/T 21304), rice (GB/T 21305), soybean (GB/T 22603), and sorghum (GB/T 8612) are explicitly covered in factory validation reports.
Does the instrument require annual recalibration by an accredited metrology lab?
Yes—annual verification against certified reference weights (Class M2 or better) and volumetric standards is recommended per JJF 1001–2011 General Metrological Terminology and JJF 1188–2008 Calibration Specification for Grain Test Weight Meters.
Can the GHCS-1000AP be used for paddy rice with husk intact?
Yes, provided the sample is free of adhering straw, stones, and unfilled spikelets, and the measurement follows GB/T 21305–2007 procedure for unhulled rice.
Is the 1.0 L cylinder interchangeable with other volumes for research applications?
No—the cylinder is permanently calibrated at 1.000 ± 0.005 L per ISO/IEC 17025 requirements; alternate volumes would invalidate traceability and require full revalidation.
How does the GHCS-1000AP handle high-moisture corn (>18% w.b.)?
It measures physical bulk density accurately, but users must dry samples to standard moisture (14.0 ± 0.5% w.b. per GB/T 21304) before final grade assignment, as test weight is moisture-dependent.
