Top Instruments FW-4 Manual Powder Pellet Press
| Brand | Top Instruments |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | FW-4 (New Generation) |
| Pricing | Available Upon Request |
Overview

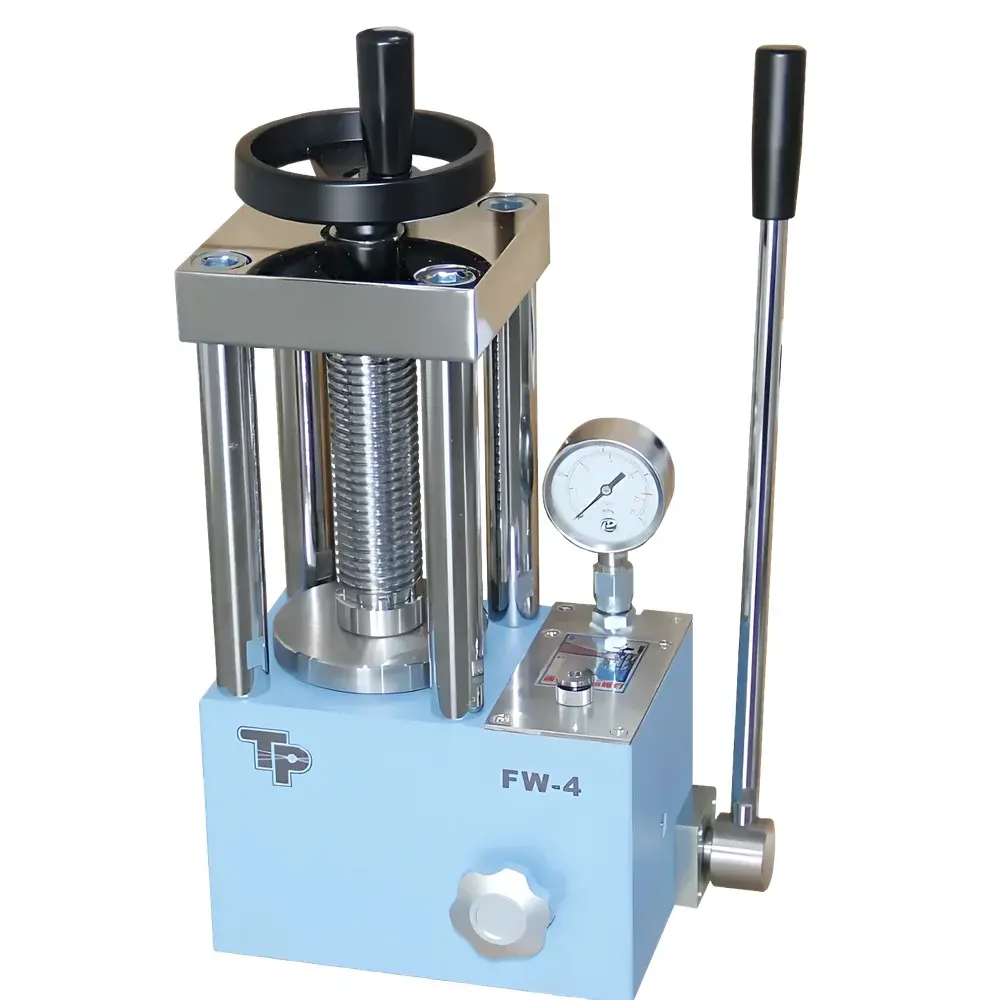

The Top Instruments FW-4 Manual Powder Pellet Press is a compact, benchtop hydraulic press engineered for reproducible sample preparation in analytical laboratories, materials science research, and quality control environments. Designed around a dual-acting manual hydraulic system, the FW-4 applies controlled compressive force to powdered specimens—enabling consistent formation of flat, uniform pellets suitable for Fourier Transform Infrared (FTIR) spectroscopy, X-ray fluorescence (XRF), X-ray diffraction (XRD), and elemental analysis. Unlike motorized or pneumatic presses, the FW-4 delivers precise, operator-adjustable pressure via calibrated hand-lever actuation, eliminating variability from electrical supply fluctuations or compressed air inconsistencies. Its rigid C-frame architecture ensures minimal frame deflection under load, preserving dimensional accuracy across repeated compression cycles.
Key Features
- Manual dual-stage hydraulic system with integrated pressure gauge (0–20 MPa range, ±1.5% full-scale accuracy) for real-time force monitoring and repeatability
- Adjustable stroke limit and mechanical stop mechanism to maintain consistent pellet thickness (typical range: 0.5–5 mm) without over-compression
- Corrosion-resistant stainless steel platen surfaces (304 grade) with fine-ground finish (Ra ≤ 0.8 µm) to minimize surface adhesion and ensure clean pellet ejection
- Modular die set compatibility—including standard 13 mm, 16 mm, and 25 mm diameter dies—with optional hardened steel or tungsten carbide inserts for abrasive or high-density samples
- Ergonomic lever design with low-effort mechanical advantage (12:1 ratio), enabling full rated pressure with ≤ 120 N hand force
- Compact footprint (280 × 180 × 420 mm) and lightweight construction (≤ 22 kg) for easy integration into fume hoods, gloveboxes, or shared instrumentation labs
Sample Compatibility & Compliance
The FW-4 accommodates a broad spectrum of powder types—including inorganic oxides, pharmaceutical excipients, geological standards, polymer blends, and ceramic precursors—provided particle size distribution falls within typical analytical ranges (D90 < 100 µm). It supports both binder-free compaction and matrix-assisted pressing using KBr, CsI, or polyethylene dispersions. All structural components comply with ISO 9001 manufacturing controls, and surface finishes meet ASTM B487-19 requirements for metallic coating thickness measurement substrates. The press is routinely validated per USP guidelines for analytical sample preparation equipment used in regulated pharmaceutical environments, supporting GLP documentation workflows.
Software & Data Management
As a manually operated instrument, the FW-4 does not incorporate embedded electronics or proprietary software. However, its mechanical design enables seamless integration into digital lab infrastructure: pressure gauge readings can be logged via external digital transducers (e.g., analog 4–20 mA or RS-485 output sensors), and pellet dimensions are compatible with automated metrology systems (e.g., optical profilometers or laser micrometers). Laboratories implementing 21 CFR Part 11–compliant electronic records may document pressing parameters—including applied force, dwell time, die ID, and operator initials—in LIMS or ELN platforms using standardized SOP templates. Calibration certificates for the pressure gauge are traceable to CNAS-accredited national standards.
Applications
- Preparation of transmission-mode FTIR pellets for qualitative and quantitative functional group analysis
- Production of homogeneous XRF calibration standards with certified reference materials (CRMs)
- Consolidation of battery cathode/anode powders for electrochemical characterization
- Routine QC pressing of catalyst powders prior to BET surface area or pore size distribution testing
- Supporting ASTM E1312-21 (Standard Practice for Preparation of Solid Samples for Spectrochemical Analysis) and ISO 18385:2016 (forensic trace evidence pelletization protocols)
FAQ
What is the maximum recommended pressure for the FW-4 press?
The FW-4 is rated for continuous operation up to 20 MPa (≈200 bar); exceeding this limit may compromise platen parallelism and die integrity.
Can the FW-4 be used inside a nitrogen-purged glovebox?
Yes—the fully mechanical design contains no electrical components or outgassing elastomers; all seals are Viton®-rated for inert atmosphere compatibility.
Is die alignment adjustable?
The upper and lower platens are factory-aligned to ≤ 5 µm parallelism tolerance; no field adjustment is required or supported to preserve calibration integrity.
Does Top Instruments provide calibration services?
Yes—annual pressure gauge recalibration and platen flatness verification are available through authorized service centers with ISO/IEC 17025 accreditation.
Are replacement dies and punches supplied with serial-number traceability?
All tooling shipped post-2023 includes engraved serial numbers and material certification (EN 10204 3.1), enabling full audit trail compliance for regulated users.
