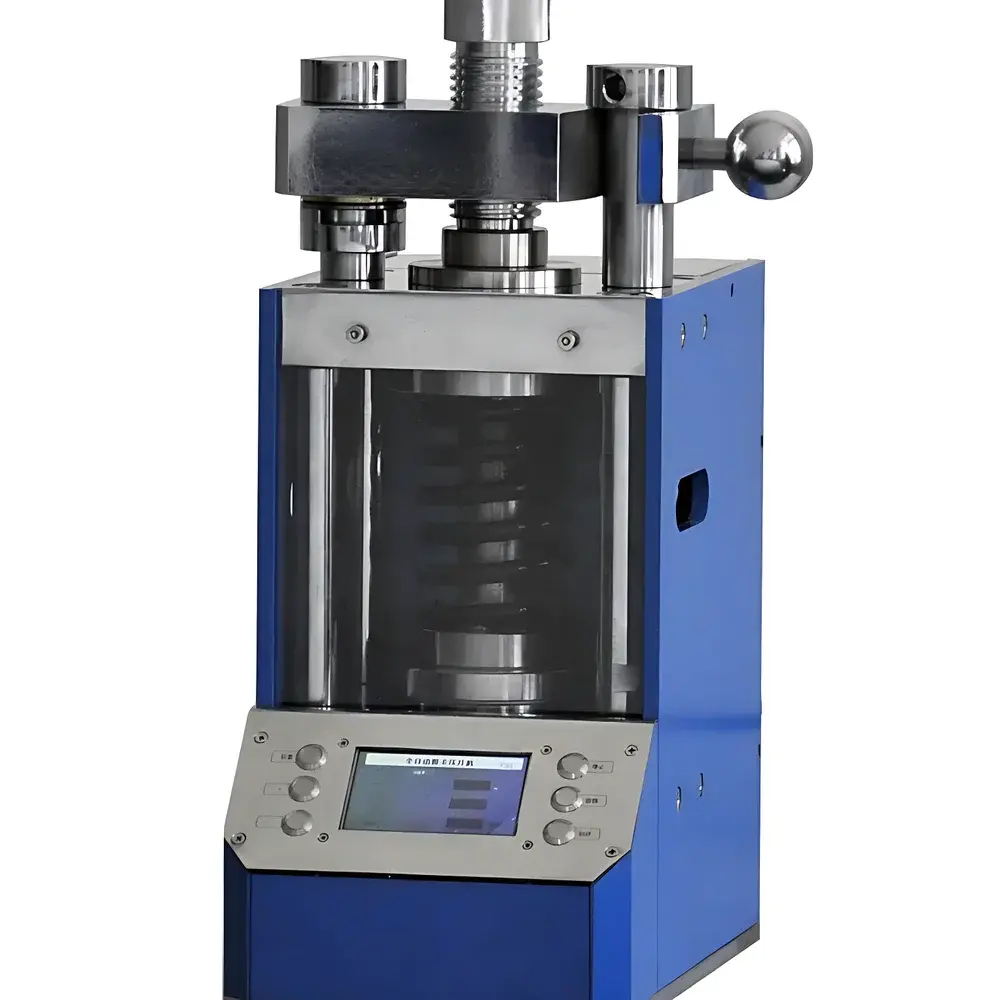

Top Instruments FWY-30X, FWY-40X, and FWY-60X Fully Automated Fluorescence Pellet Presses

Overview

The Top Instruments FWY-30X, FWY-40X, and FWY-60X series are fully automated hydraulic pellet presses engineered specifically for the preparation of high-density, low-porosity sample discs used in wavelength dispersive X-ray fluorescence (WDXRF) and energy dispersive X-ray fluorescence (EDXRF) spectroscopy. These systems operate on a programmable hydraulic principle, utilizing closed-loop pressure feedback control to ensure repeatable force application across diverse matrix types—including oxides, carbonates, silicates, metals, and powdered geological or metallurgical samples. Each model is calibrated to deliver nominal maximum forces of 30, 40, or 60 metric tons (MN), corresponding to peak pressures exceeding 300 MPa when applied through standard 40 mm diameter dies—sufficient to achieve >95% theoretical density in most inorganic powders. The press architecture integrates a rigid C-frame with precision-ground platens, minimizing lateral deflection and ensuring uniform stress distribution critical for homogeneous pellet microstructure and minimized spectral interferences.

Key Features

• Fully programmable pressure profile: user-defined ramp rate (MPa/s), target force, hold duration (up to 10³⁰ seconds), and controlled depressurization slope—enabling reproducible compaction cycles compliant with ISO 20072:2018 (XRF sample preparation) and ASTM E1621–22 (standard guide for XRF analysis of ceramics).
• Integrated digital pressure transducer with ±0.25% full-scale accuracy and real-time force monitoring via front-panel LCD and RS-232/USB interface.
• Automatic die alignment and platen parallelism compensation via dual-axis mechanical leveling system—reducing edge cracking and thickness variation to <±2 µm across 32 mm diameter pellets.
• Interlocked safety enclosure with light-curtain protection and emergency stop circuitry meeting IEC 60204-1 requirements for industrial machinery.
• Tool-free die and punch change mechanism compatible with industry-standard 13 mm, 32 mm, and 40 mm diameter stainless steel or tungsten carbide tooling sets.
• Low-oil-consumption servo-hydraulic drive with integrated heat exchanger—enabling continuous operation over 8-hour shifts without thermal drift in force calibration.

Sample Compatibility & Compliance

The FWY-X series accommodates powder masses from 0.1 g to 15 g depending on die geometry and material compressibility. It supports binder-free pressing of refractory oxides (e.g., Al₂O₃, SiO₂), flux-assisted fusion pellets (using Li₂B₄O₇/LiBO₂ mixtures), and metal alloy powders with minimal cold welding. All models conform to CE marking directives (2006/42/EC Machinery Directive, 2014/30/EU EMC Directive) and support GLP-compliant audit trails when paired with optional firmware upgrade (FWY-LOG v2.1). Data integrity meets FDA 21 CFR Part 11 requirements for electronic records when used with validated LIMS integration protocols.

Software & Data Management

Standard firmware includes embedded cycle logging (force vs. time, hold stability deviation, cycle count) stored on internal non-volatile memory (≥10,000 cycles). Optional TopPress Control Suite (v4.3) provides Windows-based remote operation, method library management, PDF report generation (including traceable calibration certificates), and CSV export for statistical process control (SPC) analysis. Audit logs record operator ID, timestamp, parameter modifications, and error events—retained for ≥36 months per internal retention policy. Firmware updates are delivered via signed USB firmware packages with SHA-256 verification to prevent unauthorized modification.

Applications

• Routine production of pressed pellets for cement, slag, and fly ash analysis in QA/QC laboratories (ASTM C114, ISO 29581-1).
• Research-grade sample preparation for geochemical mapping of rare earth elements (REEs) in soil and sediment matrices.
• Metallurgical lab use in alloy grade verification (e.g., stainless steels, Ni-base superalloys) where homogeneity and surface flatness directly impact detection limits for trace Cr, Mo, or Nb.
• Environmental testing labs preparing airborne particulate filters (e.g., PM_2.5) for multi-element quantification by EDXRF.
• Academic teaching labs requiring robust, intuitive instrumentation for hands-on instruction in analytical sample preparation principles.

FAQ

What is the maximum recommended die diameter for the FWY-60X model?

The FWY-60X is optimized for dies up to 40 mm in diameter; larger diameters require recalibration and are not covered under standard warranty.
Does the system support vacuum-assisted de-airing prior to compression?

No—de-airing must be performed externally using a dedicated vacuum desiccator; the FWY-X series does not integrate vacuum chambers.
Can pressure calibration be performed in-house?

Yes—calibration is traceable to NIST-certified load cells; procedures and documentation are provided in the Technical Manual Rev. 3.2.
Is there an option for nitrogen-purged pressing environment?

Not as a factory-installed feature; however, third-party glovebox integration is supported via custom mounting flanges and feedthrough ports.
How often does the hydraulic oil require replacement under continuous operation?

Every 12 months or 2000 operating hours—whichever occurs first—as verified by ISO 4406:2017 particle count analysis of oil samples.
