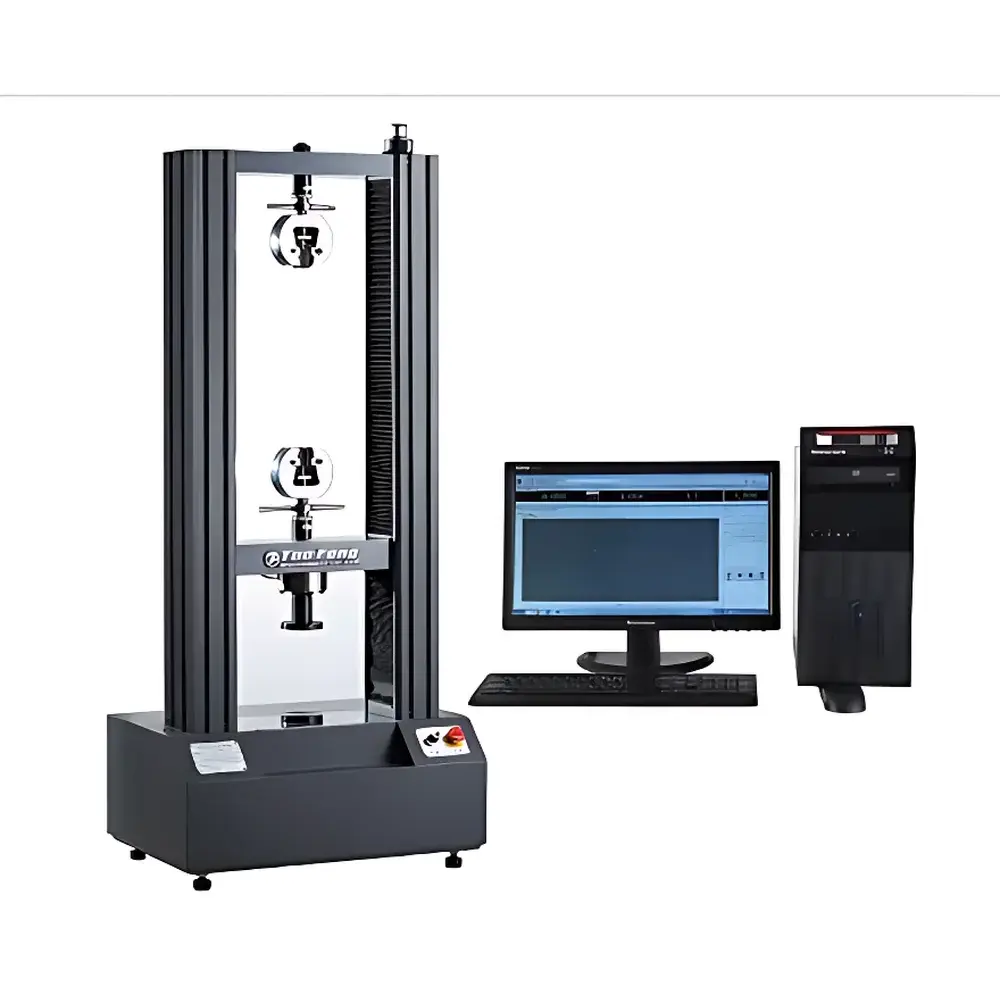

TopFeng TFW-85 Electronic Universal Tensile Testing Machine

Overview

The TopFeng TFW-85 Electronic Universal Tensile Testing Machine is a high-precision, servo-controlled mechanical testing system engineered for static mechanical characterization of metallic, polymeric, composite, and ceramic materials. Based on the principle of controlled displacement actuation via precision ball-screw transmission and high-fidelity load cell feedback, the system delivers repeatable force–displacement data under uniaxial tension, compression, bending, shear, peel, tear, and puncture loading conditions. Its dual-closed-loop control architecture—integrating real-time load and displacement feedback—ensures stable strain rate control and accurate stress–strain curve generation across wide dynamic ranges. Designed to meet stringent international metrological requirements, the TFW-85 complies with GB/T 16491–2008 (Chinese standard for electronic universal testing machines), JJG 475–2008 (verification regulation), and harmonized methods in ASTM E4 (load verification), ASTM E8/E8M (tension testing of metallic materials), ISO 6892-1 (metallic materials – tensile testing at ambient temperature), and DIN 50125 (standardized specimen geometries). The machine operates within an accuracy class of 0.5 per ISO 7500-1, supporting traceable calibration and audit-ready documentation.

Key Features

• High-capacity load frame rated for 200 kN maximum static load, constructed from rigid welded steel with reinforced crosshead guidance for minimal deflection during high-force testing.
• Precision ground ball-screw drive system coupled with imported servo motor and planetary gear reducer, enabling smooth, low-noise motion across the full speed range of 0.001–500 mm/min (infinitely variable, no gear shifting required).
• Integrated high-resolution load cell with ±0.5% force accuracy over 0.2–100% FS, calibrated to NIST-traceable standards; internal resolution of 1 part in 500,000 codes, maintained uniformly across all load ranges without auto-ranging or range switching.
• Optical encoder-based displacement measurement system with 0.001 mm resolution and ±0.005% of reading accuracy; supports optional extensometer integration (contact or non-contact) for true strain measurement per ASTM E83.
• Dual-speed motorized crosshead adjustment (fast/slow modes) with jog control and programmable return-to-start function; equipped with electronic limit switches, emergency stop circuitry, and hardware-based overload protection (>110% FS).
• Modular fixture interface compatible with standardized wedge-action grips, compression platens, bend fixtures, peel jigs, and custom-designed tooling per ASTM D638, D790, D1876, D624, and ISO 178 specifications.

Sample Compatibility & Compliance

The TFW-85 accommodates specimens ranging from miniature metal coupons (e.g., ASTM E8 subsize) to full-thickness structural plates, with adjustable test width up to 600 mm and vertical clearance of 1000 mm. It supports standardized geometries per GB/T 228.1, ASTM E8/E8M, ISO 6892-1, DIN 50145, JIS Z 2241, and BS EN ISO 6892-1. All mechanical and software functions adhere to GLP-compliant operation protocols, including user-access-level management, electronic signature support, and full audit trail logging for FDA 21 CFR Part 11 readiness. Calibration certificates include uncertainty budgets per ISO/IEC 17025 requirements.

Software & Data Management

The proprietary Windows-based testing software provides multi-mode control—including constant rate of extension (CRE), constant load ramping, hold-at-load, hold-at-strain, and cyclic loading profiles. Real-time visualization includes synchronized force–time, force–displacement, stress–strain, and displacement–time plots, with on-screen display of current and peak values. Automated calculations deliver standardized mechanical properties: ultimate tensile strength (UTS), yield strength (0.2% offset), Young’s modulus, elongation at break, reduction in area, compressive strength, flexural modulus, peel adhesion, and tear resistance. Data export supports CSV, XLSX, and PDF formats; batch reporting enables statistical comparison (mean, min, max, CV%) across multiple specimens. Software architecture supports multi-language UI (English, Simplified/Traditional Chinese), unit conversion (N/kN/lbf, mm/in, MPa/psi), and modular expansion for specialized test routines (e.g., creep, relaxation, ISO 527-2).

Applications

The TFW-85 serves as a primary mechanical characterization platform in R&D laboratories, QC/QA departments, and third-party certification bodies. Typical applications include tensile property validation of aerospace aluminum alloys (e.g., 7075-T6 per AMS 4027), yield strength verification of structural steels (ASTM A615/A706), interfacial adhesion testing of metal–polymer laminates, compressive behavior analysis of sintered powder metallurgy parts, and mechanical screening of weld joints per AWS D1.1. It is routinely deployed in automotive component validation (e.g., seat rail tensile integrity), construction material compliance (rebar, prestressed concrete tendons), and regulatory submission testing for CE marking and CCC certification.

FAQ

What international standards does the TFW-85 support out of the box?
The system is pre-configured with test templates and calculation logic aligned with ASTM E8, ISO 6892-1, GB/T 228.1, DIN 50125, and JIS Z 2241.
Can the machine perform closed-loop strain control using an extensometer?
Yes—via optional high-accuracy clip-on or video extensometers compliant with ASTM E83 Class B-1 or ISO 9513 Class 1, enabling true strain-controlled tests.
Is the software compliant with FDA 21 CFR Part 11 requirements?
The software supports role-based access control, electronic signatures, and immutable audit trails—fully configurable for Part 11 compliance when deployed in validated environments.
What is the warranty and service coverage for the TFW-85?
TopFeng provides a 24-month comprehensive warranty covering parts and labor, plus lifetime technical support and free software updates for registered users.
Does the system support automated test sequencing for production line integration?
Yes—the software SDK allows integration with PLCs and MES systems via TCP/IP or Modbus RTU for unattended batch testing and SPC data streaming.
