Topo FW-12T Manual Hydraulic Pellet Press

Overview

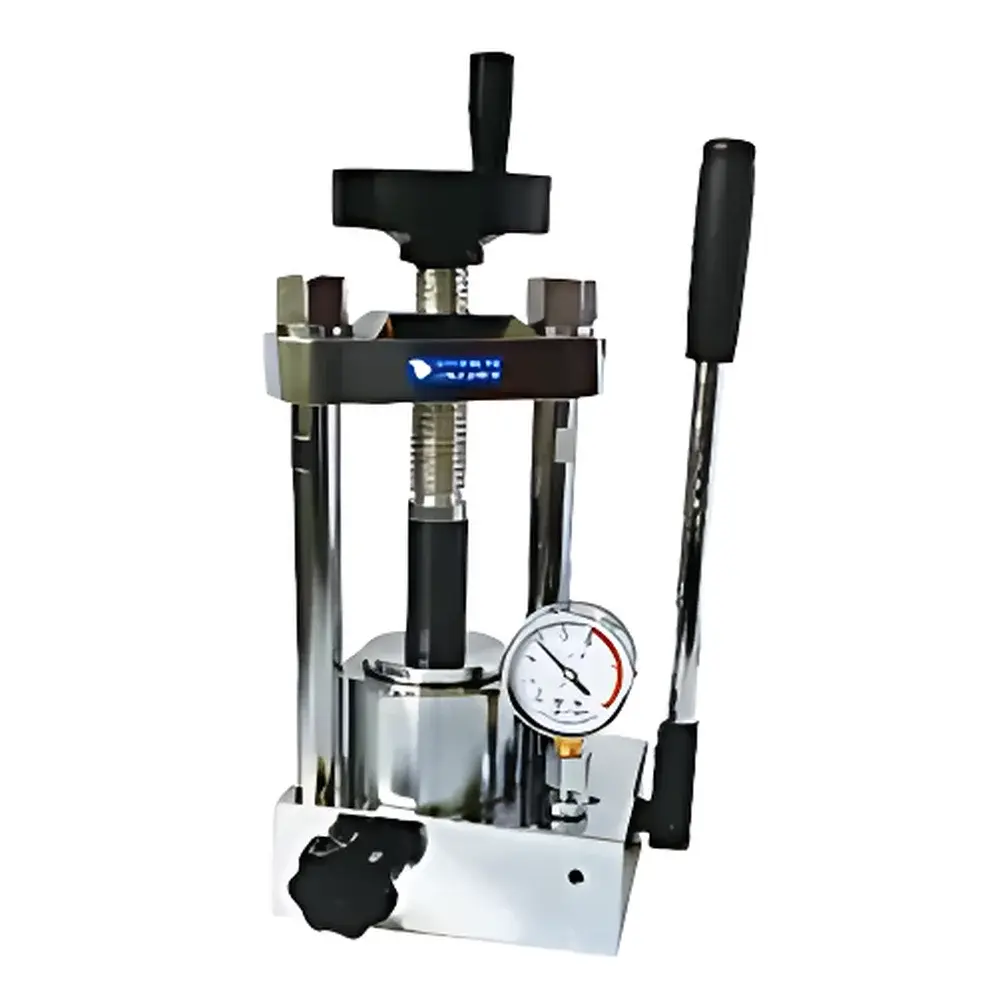

The Topo FW-12T Manual Hydraulic Pellet Press is a compact, precision-engineered laboratory instrument designed for reproducible sample compaction in analytical and materials science workflows. It operates on fundamental hydraulic force multiplication principles: manual actuation of a lever-driven pump pressurizes mineral oil within a sealed system, transmitting uniform pressure to a vertically aligned piston with a 70 mm diameter. This generates a maximum compressive load of 12 metric tons (117.6 kN), sufficient for preparing homogeneous, binder-free pellets of powders used in X-ray fluorescence (XRF), Fourier-transform infrared (FTIR), and near-infrared (NIR) spectroscopy. Its robust cast-iron frame and hardened steel cylinder ensure long-term dimensional stability and minimal elastic deformation under load—critical for achieving consistent pellet density and thickness across repeated preparations. Unlike motorized or pneumatic systems, the FW-12T’s fully manual operation eliminates electrical dependencies and provides tactile feedback essential for optimizing compression protocols during method development.

Key Features

• Manually operated hydraulic system with integrated pressure relief valve for operator safety and load control
• Stainless-steel anvil and die set compatible with standard 13 mm, 25 mm, and 32 mm die punches (sold separately)
• Adjustable stop mechanism enabling precise control over final pellet thickness (±0.02 mm repeatability)
• Low-profile design (420 mm height) optimized for benchtop integration in confined fume hoods or gloveboxes
• Oil reservoir accessible via top-mounted filler cap; mineral oil specified per ISO 6743-4 HV classification for viscosity stability across 15–40 °C ambient range
• No external power supply required—ideal for field labs, teaching laboratories, or environments with strict electromagnetic compatibility (EMC) constraints

Sample Compatibility & Compliance

The FW-12T accommodates dry, free-flowing, and moderately cohesive powders including metal oxides (e.g., Al₂O₃, SiO₂), geological standards (e.g., certified reference materials NIST SRM 278, GBW series), pharmaceutical excipients (microcrystalline cellulose, lactose monohydrate), and catalyst precursors. It supports preparation of pellets meeting ASTM E1361 (Standard Practice for Preparation of Solid Samples for XRF Analysis) and ISO 20059 (X-ray fluorescence spectrometry — Calibration and verification of wavelength dispersive instruments). All structural components comply with GB/T 19001–2016 (equivalent to ISO 9001:2015) manufacturing quality management requirements. While not intrinsically rated for hazardous area use, its non-sparking construction permits safe operation in Class I, Division 2 environments when paired with appropriate grounding.

Software & Data Management

As a manually actuated mechanical device, the FW-12T does not incorporate embedded electronics, firmware, or digital interfaces. Consequently, it requires no software installation, driver configuration, or cybersecurity validation. This architecture inherently satisfies regulatory expectations for auditability and traceability under GLP (Good Laboratory Practice) and GMP (Good Manufacturing Practice) frameworks: each compression event is documented manually in lab notebooks with operator ID, date/time stamp, sample ID, die size, applied pressure estimate (via calibrated lever position scale), and post-compaction pellet dimensions. For laboratories requiring electronic recordkeeping, integration with LIMS platforms is achieved via standardized manual entry templates compliant with 21 CFR Part 11 Annex 11 principles—no electronic signature or audit trail functionality is embedded in the instrument itself.

Applications

• Preparation of pressed pellets for quantitative elemental analysis by wavelength-dispersive (WDXRF) and energy-dispersive (EDXRF) X-ray fluorescence
• Production of translucent KBr or polyethylene disks for transmission-mode FTIR spectroscopy of inorganic salts and polymers
• Compaction of battery cathode/anode material powders (e.g., LiCoO₂, graphite) for electrochemical characterization and density measurement
• Routine quality control of ceramic green bodies prior to sintering, verifying green density uniformity per ISO 2738
• Teaching core concepts of powder rheology, compaction behavior, and Heckel analysis in undergraduate materials engineering laboratories

FAQ

What is the maximum recommended operating pressure for routine use?
For optimal longevity of seals and consistent performance, sustained operation above 10 t (98 kN) is discouraged unless required for specific high-density applications. Periodic recalibration of the pressure scale is advised every 6 months or after 500 compression cycles.
Can the FW-12T be used with corrosive samples such as halide-containing compounds?
Yes—provided stainless-steel die sets (e.g., AISI 316) are employed and all surfaces are thoroughly cleaned and passivated after each use per ASTM A967. Avoid prolonged contact with aqueous halide solutions.
Is third-party calibration certification available?
Topo provides factory calibration documentation traceable to CNAS-accredited metrology labs (certificate included with shipment). NIST-traceable recalibration services are offered through authorized service centers in North America and EU member states.
Does the press include die sets or punches?
No—die sets, punches, and alignment collars are optional accessories ordered separately to match specific analytical requirements (e.g., 13 mm flat-faced punches for XRF, 25 mm concave punches for FTIR).
What maintenance schedule is recommended?
Monthly visual inspection of hydraulic oil clarity and level; biannual replacement of O-rings (kit TP-O-RK-FW12); annual torque verification of cylinder mounting bolts per ISO 898-1 Class 8.8 specification.
