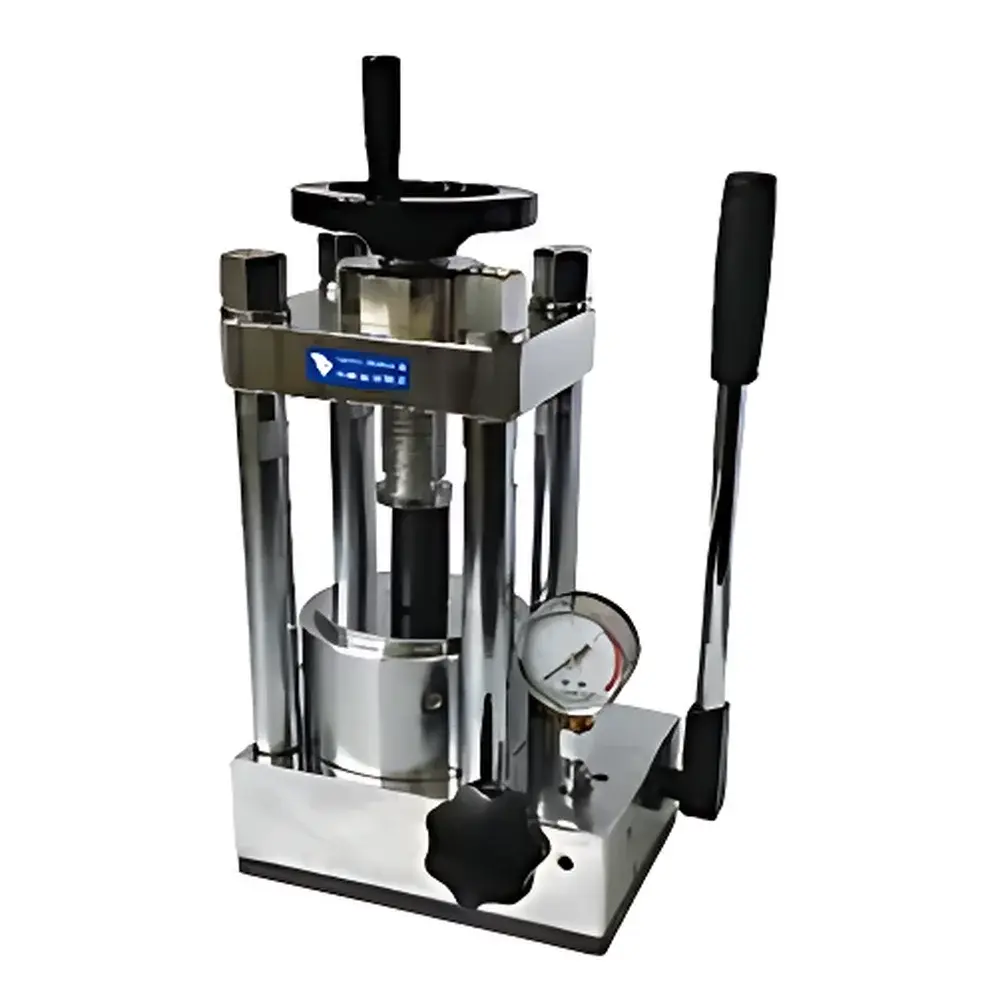

Topo FW-4A-1 Manual Hydraulic Pellet Press
| Brand | Topo |
|---|---|
| Model | FW-4A-1 |
| Type | Manual Hydraulic Pellet Press |
| Maximum Pressure | 0–24 tons |
| Piston Diameter | 110 mm |
| Max Stroke | 20 mm |
| Working Chamber Dimensions | 110 mm × 120 mm |
| Oil Reservoir Capacity | 600 mL |
| Overall Dimensions | 220 mm × 150 mm × 420 mm |
| Origin | Tianjin, China |
| Manufacturer | Topo (OEM Producer) |
Overview
The Topo FW-4A-1 Manual Hydraulic Pellet Press is a compact, benchtop hydraulic press engineered for reproducible sample compaction in analytical and materials science laboratories. It operates on the principle of manually actuated hydraulic force multiplication—leveraging Pascal’s law to convert hand-applied input force into high, controllable compressive load across a precision-machined piston-cylinder assembly. Designed specifically for solid-sample preparation prior to spectroscopic analysis (e.g., FTIR, XRF, XRD), this press enables consistent formation of uniform, binder-free pellets from powders including inorganic salts, pharmaceutical excipients, geological specimens, and ceramic precursors. Its mechanical design emphasizes stability, minimal thermal drift, and long-term calibration retention—critical attributes for method transfer between labs and routine QC workflows.
Key Features
- Manually operated hydraulic system with dual-stage pressure amplification, delivering precise load control up to 24 metric tons (235 kN) without electrical or pneumatic dependency.
- Robust cast-iron frame with hardened steel platen surfaces (HRC ≥ 58) ensures dimensional stability under repeated loading and minimizes elastic deformation during compression.
- Large-diameter 110 mm piston provides uniform stress distribution across sample area—reducing edge effects and enhancing pellet density homogeneity.
- Adjustable stroke limit (0–20 mm) allows fine-tuning of final pellet thickness; integrated depth gauge enables repeatable positioning within ±0.1 mm tolerance.
- Sealed 600 mL oil reservoir uses ISO VG 46 mineral hydraulic fluid, compatible with ASTM D6158 specifications, and features sight glass and air-bleed valve for maintenance transparency.
- Benchtop footprint (220 × 150 × 420 mm) supports integration into fume hoods or gloveboxes; non-slip rubber feet and recessed handle improve ergonomic operation.
Sample Compatibility & Compliance
The FW-4A-1 accommodates a wide range of dry, free-flowing, and moderately cohesive powders—including metal oxides, zeolites, polymer blends, and API intermediates—with particle sizes typically below 150 µm. It supports standard die sets (e.g., 13 mm, 25 mm, and 32 mm diameter) conforming to ASTM E1971 and ISO 13320 powder compaction guidelines. While not certified for GMP production environments, its construction and repeatability meet GLP requirements for sample prep documentation. All metallic components comply with RoHS Directive 2011/65/EU, and surface finishes are passivated to resist corrosion from halide-containing samples.
Software & Data Management
As a manual hydraulic instrument, the FW-4A-1 does not incorporate embedded electronics or digital readouts. Load application is monitored via calibrated analog pressure gauge (0–30 MPa scale, Class 1.6 accuracy per EN 837-1). For traceability in regulated settings, users may integrate external digital load cells (e.g., S-type or piezoresistive transducers) with third-party DAQ systems compliant with FDA 21 CFR Part 11—enabling electronic signature, audit trail, and metadata logging (operator ID, date/time, target load, dwell time). Topo provides mechanical calibration certificates upon request, traceable to CNAS-accredited metrology labs.
Applications
- Preparation of translucent KBr pellets for mid-IR transmission spectroscopy (ASTM E1252).
- Compaction of pressed powder discs for wavelength-dispersive X-ray fluorescence (WD-XRF) quantitative analysis (ISO 21043).
- Formation of dense ceramic green bodies for sintering trials and density measurement (ASTM C20).
- Standardized tablet fabrication in pharmaceutical development for dissolution testing pre-screening.
- Consolidation of soil/sediment samples for elemental mapping by SEM-EDS or micro-XRF.
- Supporting ASTM D7348 (determination of ash content in coal) via standardized pelletization prior to combustion.
FAQ
What is the maximum recommended operating pressure for routine use?
For optimal longevity and repeatability, continuous operation above 20 tons is discouraged unless validated for specific high-density applications.
Can the FW-4A-1 be used with heated dies?
No—the unit lacks temperature control or insulation; it is strictly designed for ambient-temperature compaction. Heated die operation requires dedicated hot-press systems.
Is die alignment adjustable?
Yes—upper and lower platens feature precision-ground parallelism (≤ 5 µm deviation over 100 mm), and centering is maintained via concentric dowel pins in standard die holders.
How often should hydraulic oil be replaced?
Under normal lab usage (≤ 50 cycles/week), oil replacement is recommended every 12 months or after 500 full-stroke cycles—whichever occurs first—to maintain viscosity stability and prevent oxidation-induced seal degradation.
Does Topo supply calibration services outside China?
Topo partners with ISO/IEC 17025-accredited service providers in North America and EU regions; onsite calibration and certification can be arranged through authorized distributors.
