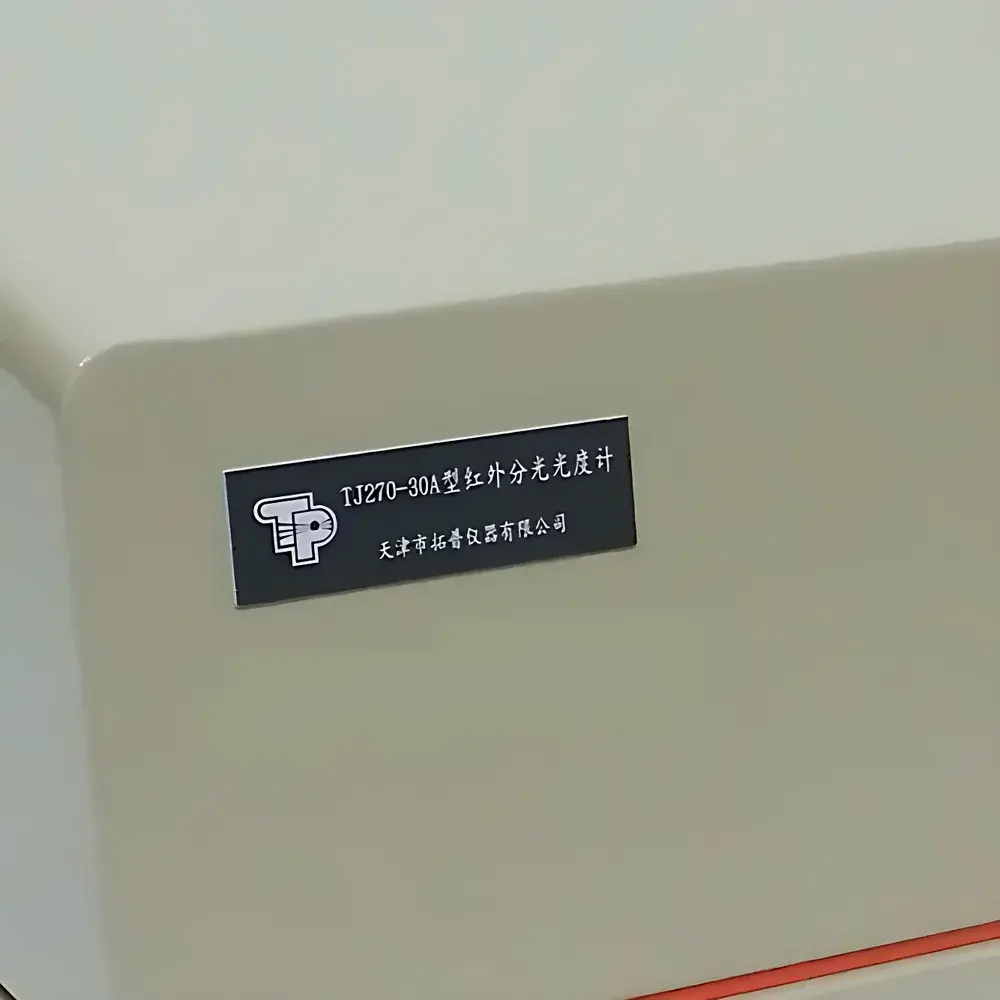

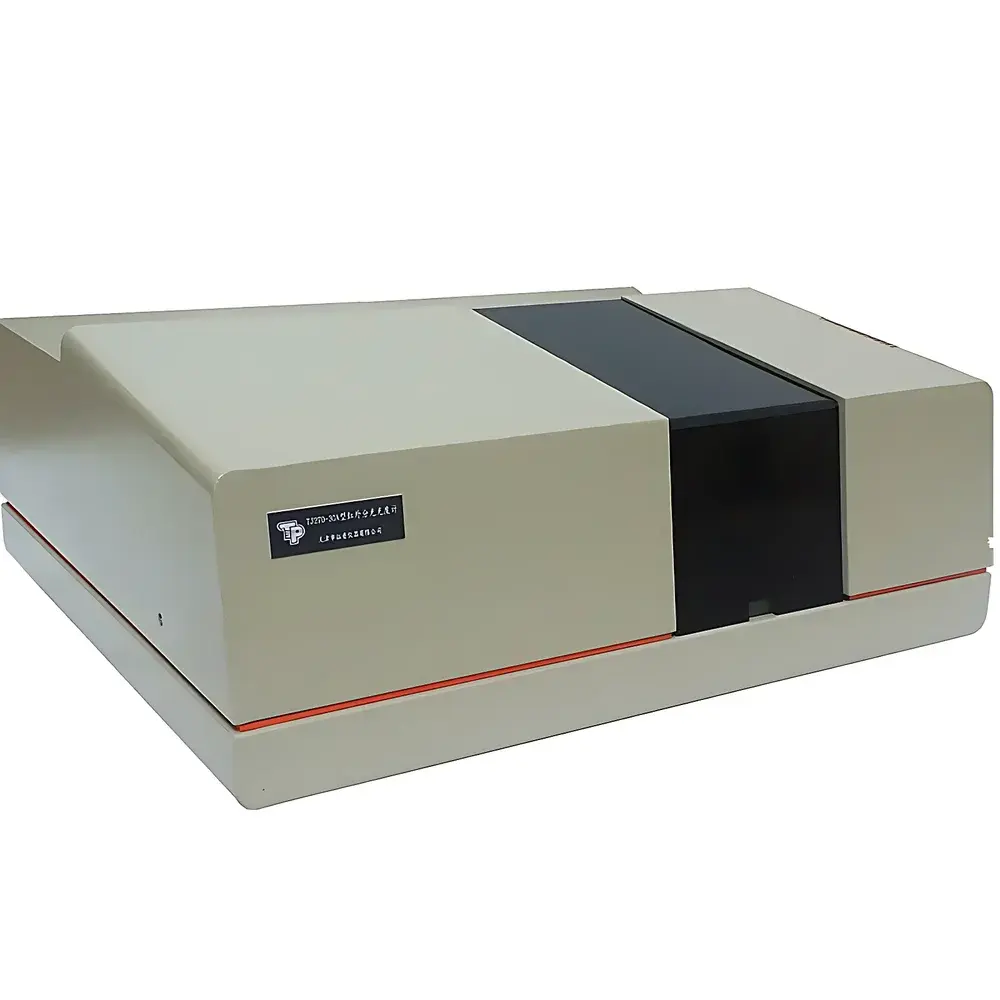

Topo TJ270-30A Double-Beam Dispersive Infrared Spectrophotometer
| Brand | Topo/TP |
|---|---|
| Origin | Tianjin, China |
| Manufacturer Type | Manufacturer |
| Origin Category | Domestic |
| Model | TJ270-30A |
| Price Range | USD 1,400–7,000 |
| Instrument Type | Dispersive |
| Configuration | Laboratory Benchtop |
| Wavenumber Range | 4000–400 cm⁻¹ |
| Spectral Resolution | 1.5 cm⁻¹ |
| Scan Speed | Five Adjustable Settings |
| Signal-to-Noise Ratio | 15,000:1 |
Overview
The Topo TJ270-30A is a double-beam dispersive infrared spectrophotometer engineered for precision molecular identification and quantitative analysis in regulated laboratory environments. Based on classical grating-based dispersion optics and dual-beam ratio-recording architecture, it measures absolute and relative absorbance across the mid-infrared region (4000–400 cm⁻¹), enabling characterization of functional groups—including C=O, O–H, N–H, C–H, and C–O—via vibrational absorption signatures. As an upgraded successor to the pharmacopoeial TJ270-30 reference instrument, the TJ270-30A integrates a high-stability pyroelectric detector with low thermal drift and minimal maintenance requirements, ensuring long-term spectral reproducibility under routine QC and R&D conditions. Its optical design eliminates baseline drift through real-time reference beam compensation, making it suitable for both transmission and reflectance measurements of solids, liquids, and pastes without hardware reconfiguration.
Key Features
- Double-beam ratio-recording optical path with automatic background correction, minimizing environmental and instrumental drift
- Pyroelectric detector optimized for mid-IR sensitivity and thermal stability—no liquid nitrogen or thermoelectric cooling required
- Five-step adjustable scan speed for balancing throughput and resolution in method development and routine analysis
- 1.5 cm⁻¹ nominal spectral resolution compliant with USP , EP 2.2.24, and ChP IV General Chapter 0401 for identity testing
- Integrated USB interface supporting plug-and-play connectivity to Windows-based host systems
- Pre-aligned optical bench with sealed grating housing to reduce dust contamination and maintain calibration integrity
Sample Compatibility & Compliance

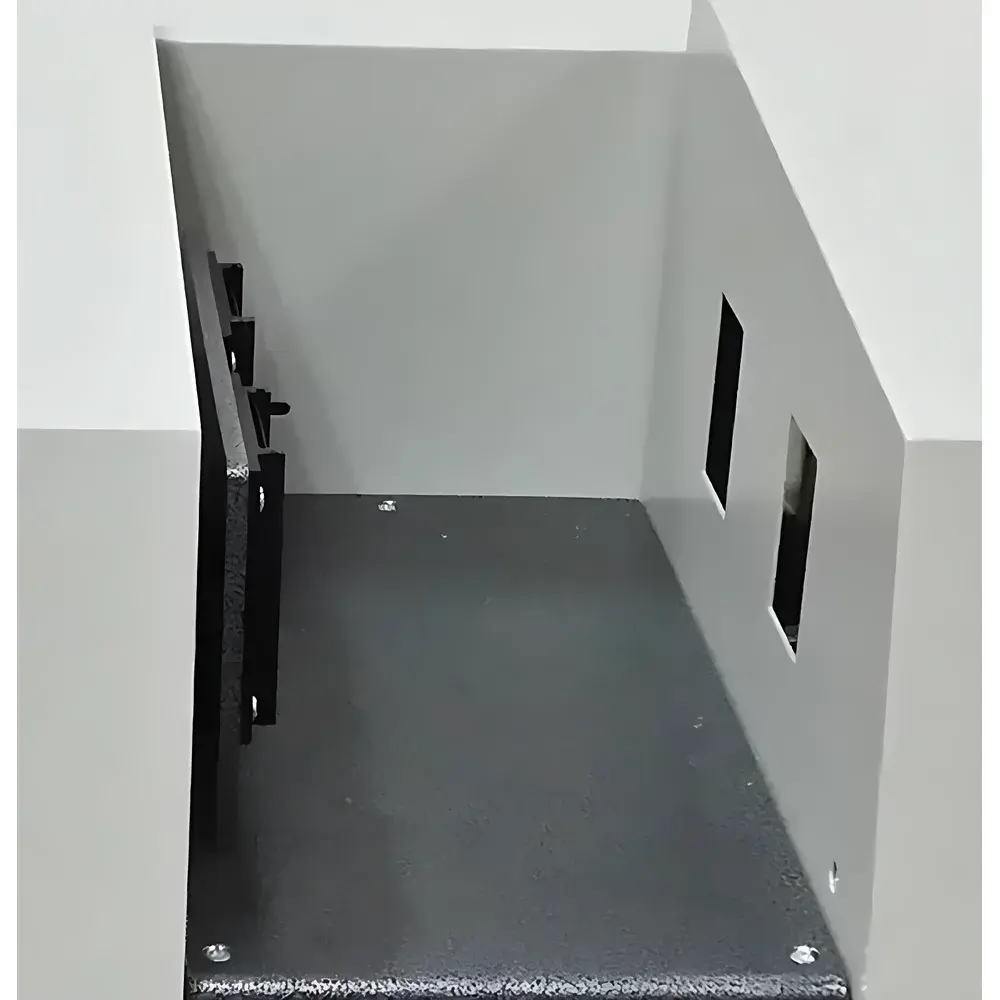

The TJ270-30A supports standard FTIR-compatible sampling accessories—including KBr pellet holders, ATR prisms (ZnSe, diamond), liquid cells (CaF₂ windows), and diffuse reflectance cups—enabling direct analysis of pharmaceutical actives, polymers, excipients, lubricants, and hydrocarbon fractions. All operational protocols adhere to GLP and GMP principles as defined in FDA 21 CFR Part 11 and EU Annex 11. The system implements role-based user authentication, electronic signatures, immutable audit trails (recording login events, parameter changes, spectrum acquisition timestamps, and operator IDs), and encrypted database storage—all validated per ICH Q5A(R2) and WHO TRS 992 Annex 6 guidelines. Software-generated reports include full metadata headers compliant with ALCOA+ data integrity standards.
Software & Data Management
The dedicated IRControl Pro software (v3.2+) provides full instrument control, spectral processing, and regulatory-compliant data handling. Core capabilities include baseline memory and dynamic correction, spectral smoothing (Savitzky-Golay, moving average), peak detection with customizable thresholds, spectral subtraction, derivative transformation, and overlay comparison with library spectra. Users may construct searchable local spectral libraries (e.g., USP Reference Standards, Ph. Eur. monographs) with configurable access permissions. All data export functions—including Excel (.xlsx), CSV, and image (PNG/TIFF) formats—are executable offline. Audit trail logs are stored separately from raw spectra and cannot be edited or deleted; they are exportable in PDF/A format for regulatory submission.
Applications
- Pharmaceutical: Identity confirmation of APIs and excipients per USP and ChP IV; counterfeit drug screening; blend uniformity assessment
- Chemical manufacturing: Raw material verification, reaction monitoring, polymer crystallinity evaluation
- Petrochemicals: Hydrocarbon type analysis, oxidation product detection in lubricants, additive quantification
- Materials science: Surface functionalization verification, coating thickness estimation via interference fringe analysis
- Academic research: Teaching spectroscopy fundamentals, method validation studies, spectral library curation
FAQ
Is the TJ270-30A compliant with 21 CFR Part 11?
Yes—the software includes electronic signature enforcement, audit trail logging, and permission-controlled user roles, all validated for Part 11 compliance.
Does the instrument require external cooling or purge gas?
No—it operates at ambient temperature with no purge gas requirement; the pyroelectric detector does not need cryogenic cooling.
Can spectral libraries be imported from third-party sources?
Yes—libraries in JCAMP-DX format can be imported, indexed, and searched within the IRControl Pro environment.
What is the recommended calibration frequency?
Annual wavelength calibration using polystyrene film (included) is advised; intensity calibration is performed automatically during each background acquisition.
Is remote operation supported?
Remote desktop access is permitted via IT-approved secure channels; however, instrument control requires local USB connection—no Ethernet or Wi-Fi interface is provided.
