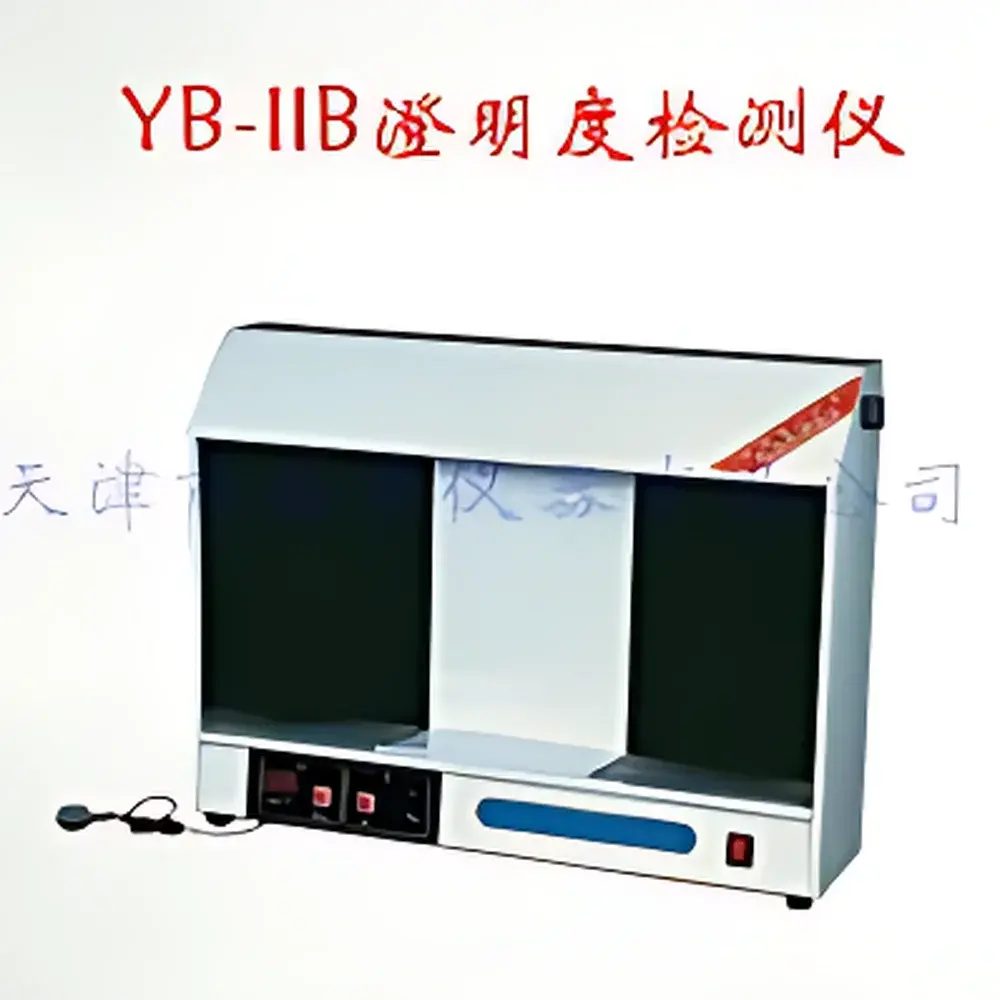

Topo YB-IIB Clarity Tester

Overview

The Topo YB-IIB Clarity Tester is a dedicated optical instrumentation system engineered for quantitative visual assessment of solution clarity in parenteral preparations, ophthalmic solutions, and other sterile liquid pharmaceuticals. It operates on the principle of controlled transmitted-light inspection under standardized photometric conditions, aligning with internationally recognized pharmacopoeial methodologies—including the Chinese Pharmacopoeia (ChP) General Chapter 0901, United States Pharmacopeia (USP) , and European Pharmacopoeia (EP) 2.9.20. The instrument employs a tri-phosphor fluorescent light source calibrated to approximate the CIE Standard Illuminant D65, ensuring spectral fidelity critical for consistent human observer response. Unlike generic light boxes, the YB-IIB integrates metrologically traceable illuminance control and time-gated inspection protocols—enabling reproducible detection of sub-visible particles, haze, fibers, and undissolved matter without reliance on subjective ambient lighting or uncalibrated fixtures.

Key Features

• Tri-phosphor fluorescent lamp assembly optimized for spectral power distribution matching daylight (CIE D65), minimizing metamerism and enhancing particle contrast against background.
• Continuously adjustable illuminance from 1000 to 4000 lux—precisely meeting the minimum 1000 lx requirement of ChP WS1-235/WS1-236-87 and exceeding the 2000–3000 lx range recommended by USP for high-sensitivity inspection.
• Integrated digital illuminance meter enables real-time verification and adjustment of light intensity prior to and during inspection—eliminating drift-related uncertainty caused by lamp aging or voltage fluctuation.
• Programmable inspection timer (10–30 seconds) enforces strict adherence to pharmacopoeial dwell time requirements, preventing observer fatigue-induced variability and supporting GLP-compliant documentation workflows.
• Rigid black-anodized aluminum chassis with anti-reflective baffling minimizes stray light ingress and ensures uniform field illumination across the viewing aperture (Ø100 mm).
• Modular lamp housing allows rapid replacement and alignment verification—supporting routine maintenance without recalibration.

Sample Compatibility & Compliance

The YB-IIB accommodates standard USP/ChP-compliant sample containers including 5–100 mL clear glass vials, ampoules, and syringes (with optional holder kits). Its viewing geometry satisfies the 25°–45° observation angle specified in EP 2.9.20 and supports both upright and inverted orientation inspection modes. The system is validated for use in environments governed by Good Manufacturing Practice (GMP) and Good Laboratory Practice (GLP) frameworks. While not inherently 21 CFR Part 11 compliant (as it lacks electronic audit trail functionality), its operational parameters—including illuminance stability, timer accuracy, and lamp spectral output—are documented per ICH Q5A and ISO/IEC 17025 calibration guidelines. Routine verification can be performed using NIST-traceable lux meters and spectral radiometers.

Software & Data Management

The YB-IIB is a standalone hardware platform with no embedded microprocessor or data logging capability. All operational parameters—including set illuminance value, timer duration, and lamp usage hours—are manually recorded in laboratory notebooks or integrated into paper-based or LIMS-linked SOP templates. For laboratories requiring electronic records, external USB-connected lux loggers or time-stamped video capture systems may be deployed in conjunction with the instrument—provided such configurations undergo risk-based validation per Annex 11 (EU GMP) or FDA guidance on computerized system validation. The absence of firmware or network interfaces simplifies qualification (IQ/OQ/PQ) and reduces cybersecurity exposure in regulated QC labs.

Applications

• Final container inspection of injectables (e.g., saline, dextrose, monoclonal antibody formulations) per ChP 0901 and USP .
• Stability study monitoring of solution turbidity and particulate formation over accelerated and long-term storage conditions.
• In-process clarity checks during filtration validation and buffer preparation in biomanufacturing cleanrooms.
• Educational demonstration of pharmacopoeial visual inspection principles in university pharmacy and analytical chemistry laboratories.
• Supplier qualification testing for primary packaging components where extractables or leachables may induce haze or opalescence.

FAQ

Does the YB-IIB meet USP requirements for clarity testing?
Yes—the instrument’s illuminance range (1000–4000 lx), spectral quality (D65-mimicking tri-phosphor lamp), and timed inspection capability align with USP Section 3.2 “Apparatus” specifications.
Is calibration certificate included with shipment?
No factory calibration certificate is supplied; however, the unit includes a built-in reference-grade lux sensor enabling user-performed verification against a NIST-traceable standard prior to each use cycle.
Can the lamp be replaced with LED modules?
No—LED retrofitting is not supported. The optical design, thermal management, and spectral output are engineered specifically for the OEM tri-phosphor fluorescent tube (T8, 36W, 6500K); substitution invalidates compliance with ChP WS1-235/236-87.
What is the expected service life of the fluorescent lamp?
Rated at 8,000 hours under continuous operation at nominal voltage; luminous flux depreciation exceeds 20% after ~5,000 hours, necessitating scheduled replacement per preventive maintenance SOPs.
Is the YB-IIB suitable for automated particle counting?
No—it is strictly a visual inspection aid. For quantitative particle enumeration, orthogonal methods such as light obscuration (USP ) or membrane microscopy (USP ) must be employed.
