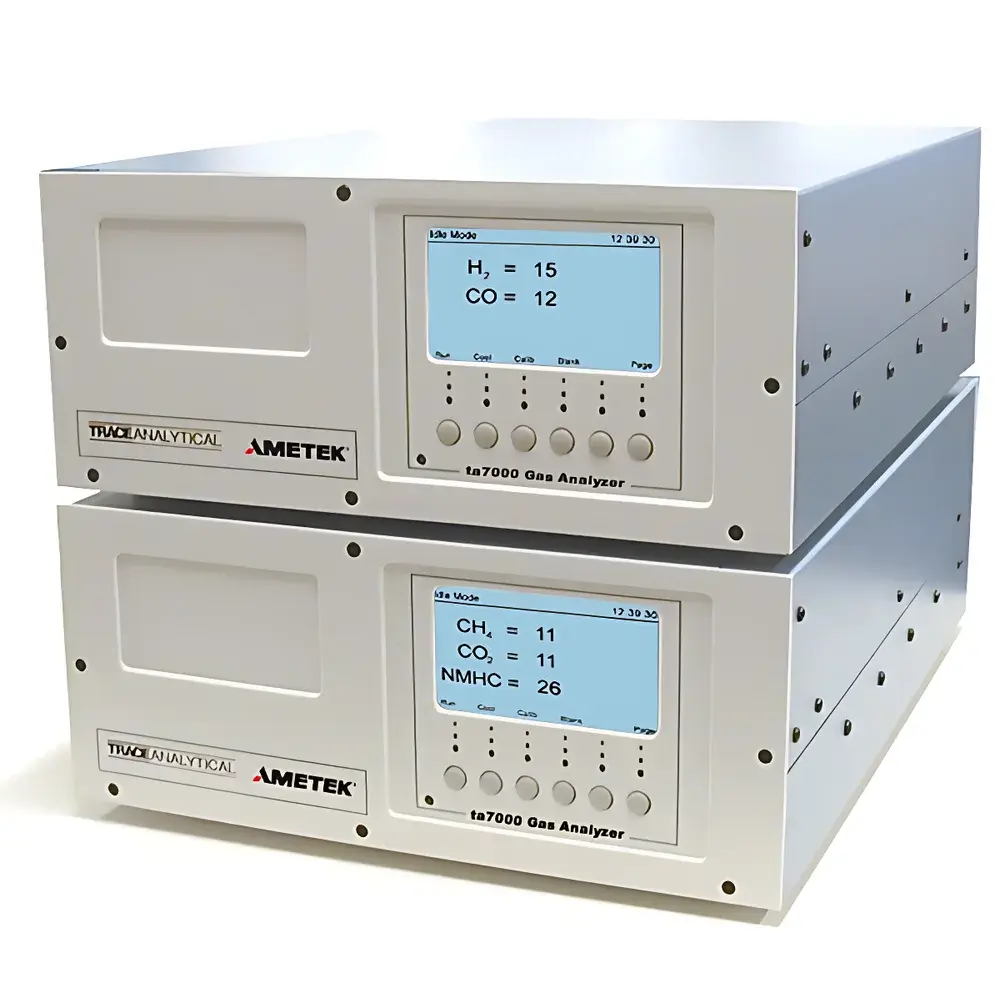

Trace Analytical TA7000 High-Purity Gas Analyzer
| Brand | PROCESS INSTRUMENTS |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | TA7000 |
| Pricing | Available Upon Request |
Overview
The Trace Analytical TA7000 High-Purity Gas Analyzer is an engineered solution for real-time, sub-part-per-trillion (ppt) impurity monitoring in ultra-high-purity (UHP) process gases used throughout semiconductor fabrication. Designed specifically for front-end-of-line (FEOL) and back-end-of-line (BEOL) manufacturing environments, the TA7000 operates on two distinct analytical platforms—reduction gas detection (RGD) and flame ionization detection (FID)—to deliver trace-level quantification of critical contaminants that compromise gate oxide integrity, epitaxial layer uniformity, and etch selectivity. Its architecture integrates a fully passivated, heated sampling train compliant with ASTM E2859–21 for UHP gas analysis, coupled with proprietary low-dead-volume valving and electro-polished 316L stainless-steel flow paths to eliminate surface adsorption and memory effects. The system meets SEMI F57 and F63 specifications for gas purity verification and supports qualification under ISO/IEC 17025-accredited laboratories when deployed with documented calibration protocols.
Key Features
- Dual-platform configuration: TA7000R utilizes a reduction gas detector (RGD) optimized for H₂ and CO detection with verified limits of detection (LOD) <500 ppt in Ar, N₂, He, and H₂ carrier matrices
- TA7000F employs a high-stability, low-background flame ionization detector (FID) calibrated for CO₂, CH₄, and non-methane hydrocarbons (NMHCs), achieving LOD <500 ppt across standard UHP gas streams
- Integrated heated sample conditioning system (up to 180 °C) with inertized surfaces to prevent condensation, adsorption, or catalytic decomposition of reactive analytes
- Modular, rack-mountable chassis with redundant power supply and dual-stage pressure regulation (0–100 psig input, ±0.1% stability)
- Automated zero/span validation with integrated calibration gas manifold supporting multi-point drift correction per ASTM D6245
- Real-time diagnostics with embedded self-test routines for detector response, flow integrity, and temperature stability
Sample Compatibility & Compliance
The TA7000 accommodates gaseous samples at pressures from 10 to 100 psig and flow rates between 50–200 mL/min. It is validated for use with nitrogen, argon, helium, hydrogen, oxygen, and synthetic air—each meeting ASTM D8092 Grade 1A or higher purity standards. All wetted materials comply with SEMI C10–11 (electropolished 316L SS, VCR® fittings, Kalrez® seals) and are certified free of extractables per USP . The analyzer supports audit-ready operation under FDA 21 CFR Part 11 via optional electronic signature and audit trail modules. Data acquisition and reporting conform to GLP/GMP documentation requirements, including timestamped raw signal logs, calibration history, and maintenance records.
Software & Data Management
The TA7000 is operated through TraceView™ v4.2 software—a Windows-based platform supporting local HMI and remote SCADA integration via Modbus TCP or OPC UA. Software features include configurable alarm thresholds (with hysteresis), automated report generation (PDF/CSV), trend visualization over 30-day rolling windows, and export of chromatograms with peak integration metadata. All data are stored in an encrypted SQLite database with write-once-read-many (WORM) archiving capability. Audit trails record user actions, method changes, and instrument events with ISO/IEC 17025-compliant timestamps. Optional cloud synchronization enables centralized fleet monitoring across multiple fab tools without compromising data sovereignty.
Applications
- In-line monitoring of bulk and cylinder-delivered UHP gases prior to point-of-use delivery in diffusion, CVD, ALD, and plasma etch tools
- Verification of gas purity after purification systems (e.g., getter beds, cryo-traps) and before chamber introduction
- Root-cause analysis of particle excursions, wafer discoloration, or film resistivity anomalies linked to trace carbon or hydrogen contamination
- Qualification of new gas suppliers and lot acceptance testing per JEDEC JESD22-A109 and SEMI E10 standards
- Supporting IATF 16949 and ISO 9001 quality system requirements for traceable, repeatable gas certification
FAQ
What is the difference between the TA7000R and TA7000F models?
The TA7000R uses a reduction gas detector (RGD) for hydrogen and carbon monoxide; the TA7000F uses a flame ionization detector (FID) for hydrocarbons and CO₂.
Does the TA7000 require carrier gas or external combustion gases?
The TA7000R operates without auxiliary gases; the TA7000F requires certified hydrogen and zero-air supplies meeting ASTM D1946 purity specifications.
Can the TA7000 be integrated into a fab’s MES or APC system?
Yes—via native Modbus TCP or OPC UA interfaces, with configurable tag mapping and alarm forwarding to enterprise-level control systems.
Is routine maintenance required beyond scheduled calibrations?
Yes—quarterly inspection of FID nozzle cleanliness, RGD catalyst activity verification, and leak-checking of all heated zones per SEMI E77 guidelines.
How is detection limit validation performed for customer-specific gas matrices?
Using certified reference standards traceable to NIST SRMs, with method validation conducted per ISO/IEC 17025 Clause 7.7 and documented in the site-specific IQ/OQ protocol.
