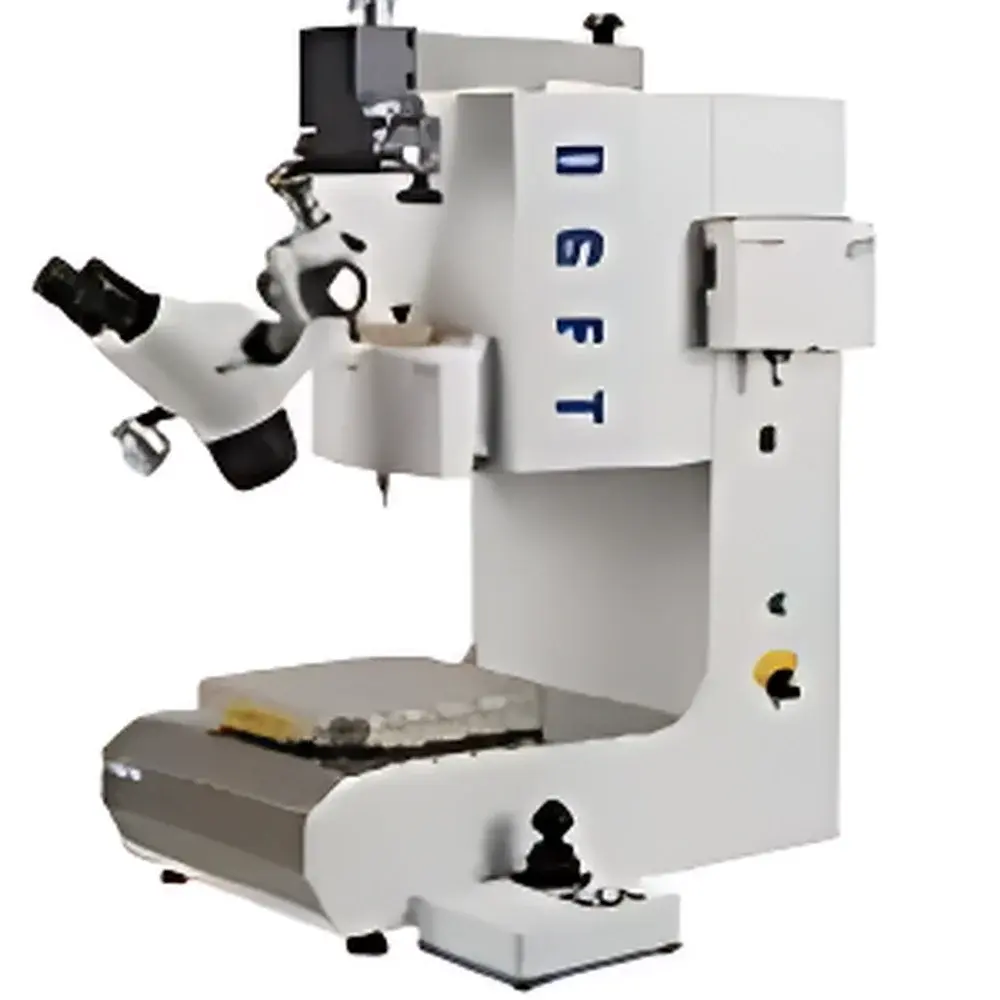

TRY Customized Push-Pull Bond Tester for Semiconductor IC Packaging and Automotive Electronics
| Brand | TRY |
|---|---|
| Model | Customized |
| Application Scope | High-power IC packaging (e.g., IGBT modules), semiconductor manufacturing, materials R&D, automotive electronics |
| XY Stage | 150 × 150 mm |
| Max Shear Force Capacity | 1000 kg |
| Compliance | ASTM F468, ISO 13473-2, JEDEC JESD22-B116 (Bond Strength), MIL-STD-883 Method 2011 |
| Sensor Technology | Digital load cell with thermal drift compensation |
| Control Interface | Touchscreen HMI + Ethernet/RS232 for integration into factory MES/LIMS |
| Software | TRY-BondTest Suite v3.2 with audit trail, user role management, and 21 CFR Part 11–compliant electronic signatures |
Overview
The TRY Customized Push-Pull Bond Tester is an electromechanical force measurement platform engineered specifically for quantitative mechanical validation of microelectronic interconnects and package-level reliability in semiconductor manufacturing and automotive electronics. It operates on the principle of controlled displacement-driven force transduction—applying calibrated axial push (compression) or tensile pull loads to bond wires, solder joints, die attach interfaces, clip bonds, and leadframe terminations while recording real-time load-displacement curves. Unlike generic universal testers, this system integrates semiconductor-specific kinematics—including programmable Z-axis approach velocity (0.01–500 µm/s), position-synchronized trigger logic for bond integrity detection, and sub-micron resolution stage feedback—to meet the metrological rigor required by JEDEC, AEC-Q200, and IATF 16949-aligned production environments.
Key Features
- Auto-Range Digital Load Cell Architecture: Eliminates manual range selection; automatically switches between high-resolution low-force (±0.01 mN) and high-capacity shear modes (up to 1000 kgf) without recalibration or sensor swapping.
- Modular Test Head Configuration: Supports interchangeable tooling—ball bond pull hooks (25–500 µm), wedge bond shear chisels (100–2000 µm), die shear blades, and custom fixtures for IGBT module clip bonding verification.
- 150 × 150 mm Motorized XY Stage with Encoded Position Feedback: Enables precise spatial registration of test sites across wafer-level packages, DIP/SOIC/QFN footprints, and multi-die substrates; repeatability ±0.5 µm.
- Real-Time Load-Displacement Curve Acquisition: Captures full force–displacement profiles at ≥1 kHz sampling rate; supports derivative analysis (dF/dx) to identify bond lift-off onset, plastic deformation thresholds, and failure mode classification (ductile vs. brittle).
- Robust Mechanical Frame with Vibration-Damped Granite Base: Minimizes environmental noise coupling; maintains <0.02% FS thermal drift over 8-hour continuous operation per ISO 13473-2 stability requirements.
Sample Compatibility & Compliance
The system accommodates standard semiconductor packages including TO-247, D2PAK, QFN-56, LFPAK, and bare-die-on-substrate configurations up to 150 mm × 150 mm footprint. It complies with industry-standard test methodologies: JEDEC JESD22-B116 (Wire Bond Pull Test), JESD22-B117 (Ball Bond Shear), MIL-STD-883 Method 2011.1 (Die Shear), and ASTM F468 (Tensile Strength of Solder Joints). All test sequences are pre-configured to satisfy GLP/GMP documentation requirements—including timestamped raw data export, operator ID logging, calibration certificate traceability, and instrument qualification records (IQ/OQ/PQ templates included).
Software & Data Management
TRY-BondTest Suite v3.2 provides a validated, 21 CFR Part 11–compliant software environment. Core capabilities include: configurable pass/fail criteria per bond site (e.g., min. pull force ≥ 8.5 gf @ 25°C); statistical process control (SPC) dashboards with Cpk/Ppk calculation; automated report generation in PDF/XLSX formats compliant with internal quality audits; and secure database archiving with encrypted SQLite backend. The system supports OPC UA and SECS/GEM protocols for seamless integration into Smart Factory ecosystems and semiconductor front-end/back-end MES platforms.
Applications
- IGBT Module Qualification: Quantifying solder joint shear strength post-reflow and after thermal cycling (−40°C to 175°C, 1000 cycles).
- Advanced Packaging R&D: Validating Cu-Cu hybrid bonding adhesion under thermocompression conditions.
- Automotive Electronics Reliability: Performing accelerated life testing on power module interconnects per AEC-Q102 stress profiles.
- Failure Analysis Correlation: Cross-referencing mechanical bond strength data with SEM/FIB cross-sections and acoustic microscopy results.
- Process Window Optimization: Mapping wire bond parameter sensitivity (USG, force, time) to pull/shear strength distributions for DOE-driven yield improvement.
FAQ
What standards does this tester support for automotive-grade semiconductor qualification?
It fully supports AEC-Q100 (stress test qualifications), AEC-Q200 (passive components), and ISO/TS 16949 clause 8.5.1.2 (process validation) through integrated test method libraries and audit-ready reporting.
Can the system be integrated into an existing factory automation infrastructure?
Yes—via native SECS/GEM, Modbus TCP, and OPC UA drivers; supports recipe download, status polling, and alarm forwarding to central SCADA/MES systems.
Is calibration traceable to national metrology institutes?
All load cells are factory-calibrated against NIST-traceable reference standards (certificate included); annual recalibration services available with ISO/IEC 17025-accredited lab reports.
Does the software support multi-user role-based access control?
Yes—administrator, engineer, operator, and QA reviewer roles with granular permissions for test execution, parameter editing, report approval, and audit log review.
What is the maximum specimen height accommodated under the test head?
Standard configuration supports specimens up to 120 mm in height; extended Z-column options (up to 250 mm) are available for large-format power modules.
