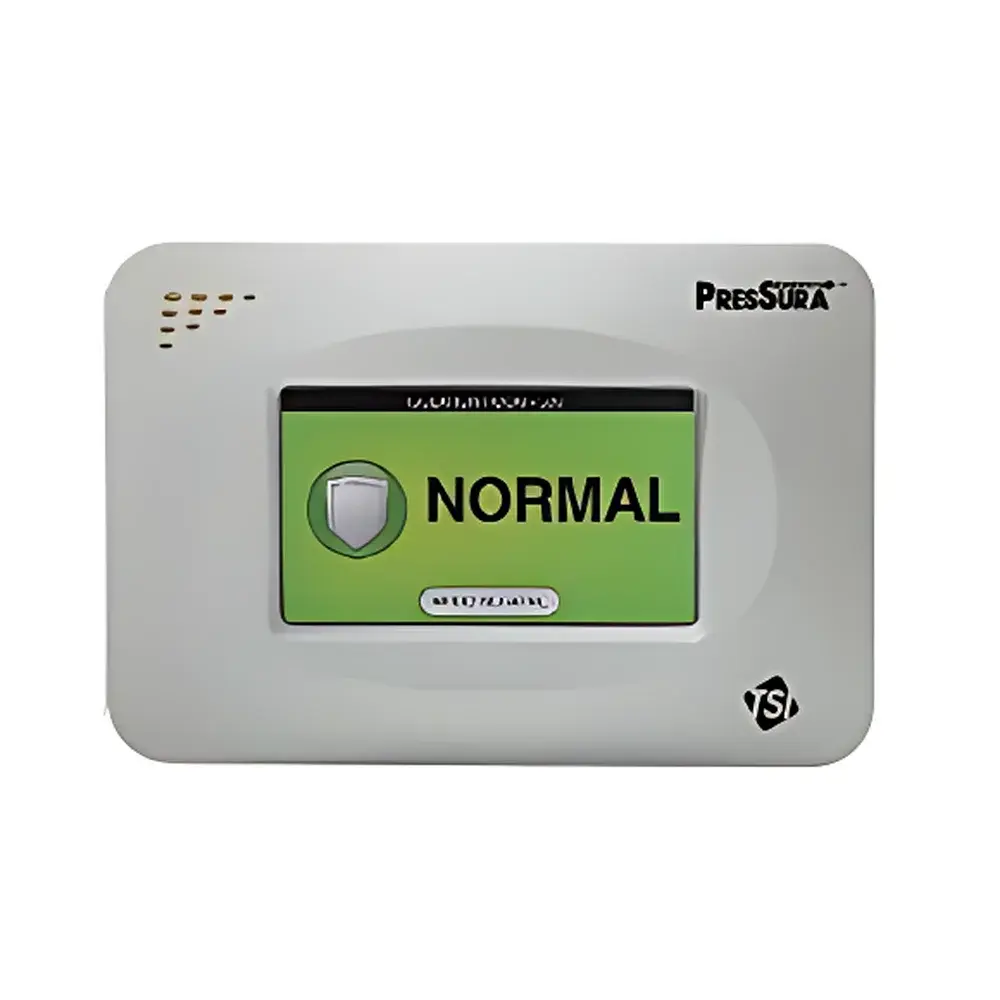

TSI PRESSURA RPM10 Room Pressure Monitor

Overview

The TSI PRESSURA RPM10 Room Pressure Monitor is an engineered solution for continuous, high-stability differential pressure monitoring in critical healthcare environments. It employs TSI’s proprietary thermal mass flow sensor architecture—calibrated to detect minute pressure differentials (±0.001 in. w.c. resolution typical) across doorways, anterooms, and HVAC boundary zones. Unlike traditional piezoresistive or capacitive transducers, the thermal-based sensing principle delivers long-term zero stability and immunity to barometric drift, making it especially suited for applications where sustained accuracy over months of unattended operation is required. The RPM10 is deployed primarily to verify directional airflow integrity in airborne infection isolation rooms (AII), protective environment (PE) rooms, pharmacy cleanrooms, and other ASHRAE 170–compliant spaces where maintaining prescribed pressure relationships (e.g., −0.01 in. w.c. for AII, +0.01 in. w.c. for PE) is a regulatory prerequisite for patient and staff safety.

Key Features

• Thermal mass flow-derived differential pressure measurement with factory NIST-traceable calibration and <0.5% full-scale repeatability.
• Configurable dual-stage alarm logic: visual status ring (RGB LED) plus audible alert with user-defined delay (0–300 seconds) to suppress transient disturbances.
• Three operational modes—Isolation (AII/PE), Neutral (non-isolation), and Maintenance—selected via front-panel tactile switch or remote command.
• Color touchscreen interface with real-time graphical display of pressure trend, setpoint deviation, and system health indicators.
• BACnet MS/TP and Modbus RTU communication protocols support integration into existing building automation systems (BAS) without gateway dependency.
• Password-protected local configuration ensures compliance with GLP/GMP documentation requirements and prevents unauthorized parameter modification.
• IP42-rated enclosure suitable for wall-mount installation in clinical corridors, anterooms, and mechanical utility spaces.

Sample Compatibility & Compliance

The RPM10 is validated for use in environments governed by multiple U.S. and international healthcare infrastructure standards. It meets the functional verification requirements of ANSI/ASHRAE/ASHE Standard 170-2008 Section 6.3.3.2 (pressure monitoring for AII and PE rooms), aligns with FGI 2010 Guidelines Chapter 2.1–2.4 for ventilation performance validation, and supports CDC’s 2003 and 2019 Environmental Infection Control recommendations for airborne pathogen containment. For compounding pharmacies, it satisfies USP <797> Section 2.5.2 on environmental monitoring of ISO Class 5 buffer areas. While not a medical device per FDA 21 CFR Part 820, its data logging and audit trail capabilities (via optional software) are compatible with facilities operating under FDA 21 CFR Part 11-compliant quality management systems.

Software & Data Management

The RPM10 operates autonomously but supports optional TSI TrakPro™ Lite or enterprise-grade TrakPro™ Suite for centralized monitoring, historical trend analysis, and PDF report generation. Logged data includes timestamped pressure values, alarm events (with cause code), mode transitions, and sensor diagnostics. All configuration changes are recorded with user ID and timestamp—enabling full traceability during internal audits or Joint Commission surveys. Firmware updates are performed via USB or network push, preserving all calibrated parameters and site-specific settings.

Applications

• Airborne Infection Isolation Rooms (AII): Continuous verification of negative pressure relative to corridor (≥−0.01 in. w.c.) and proper air change rate correlation.
• Protective Environment (PE) Rooms: Monitoring positive pressure maintenance (≥+0.01 in. w.c.) to prevent ingress of ambient contaminants.
• Hazardous Drug Compounding Areas: Ensuring ISO Class 5 primary engineering controls meet USP <797> pressure cascade requirements.
• Biocontainment Labs & Animal Research Facilities: Supporting IBC-mandated directional airflow validation per NIH OLAW guidelines.
• Burn Units & Immunocompromised Care Zones: Maintaining pressure differentials aligned with facility risk assessment protocols.
• Laundry & Food Prep Support Areas: Verifying pressure boundaries that prevent cross-contamination between clean and soiled zones.

FAQ

Does the RPM10 require annual recalibration?
No scheduled recalibration is mandated; however, TSI recommends verification against a NIST-traceable reference manometer every 12 months as part of routine QA/QC procedures.
Can the RPM10 interface with non-TSI HVAC controllers?
Yes—it supports standard BACnet MS/TP and Modbus RTU protocols, enabling interoperability with major BAS platforms including Siemens Desigo, Honeywell EBTRON, and Schneider EcoStruxure.
Is the touchscreen interface accessible to users with gloves?
The capacitive touchscreen is optimized for gloved-finger operation and includes haptic feedback confirmation for menu navigation and mode selection.
How does the RPM10 handle power loss or network interruption?
It retains all configuration and alarm history in non-volatile memory and resumes monitoring within 5 seconds of power restoration; no reconfiguration is required.
What mounting options are available?
Standard wall-mount bracket included; optional surface-mount box and flush-mount adapter kits are available for new construction or retrofit installations.
