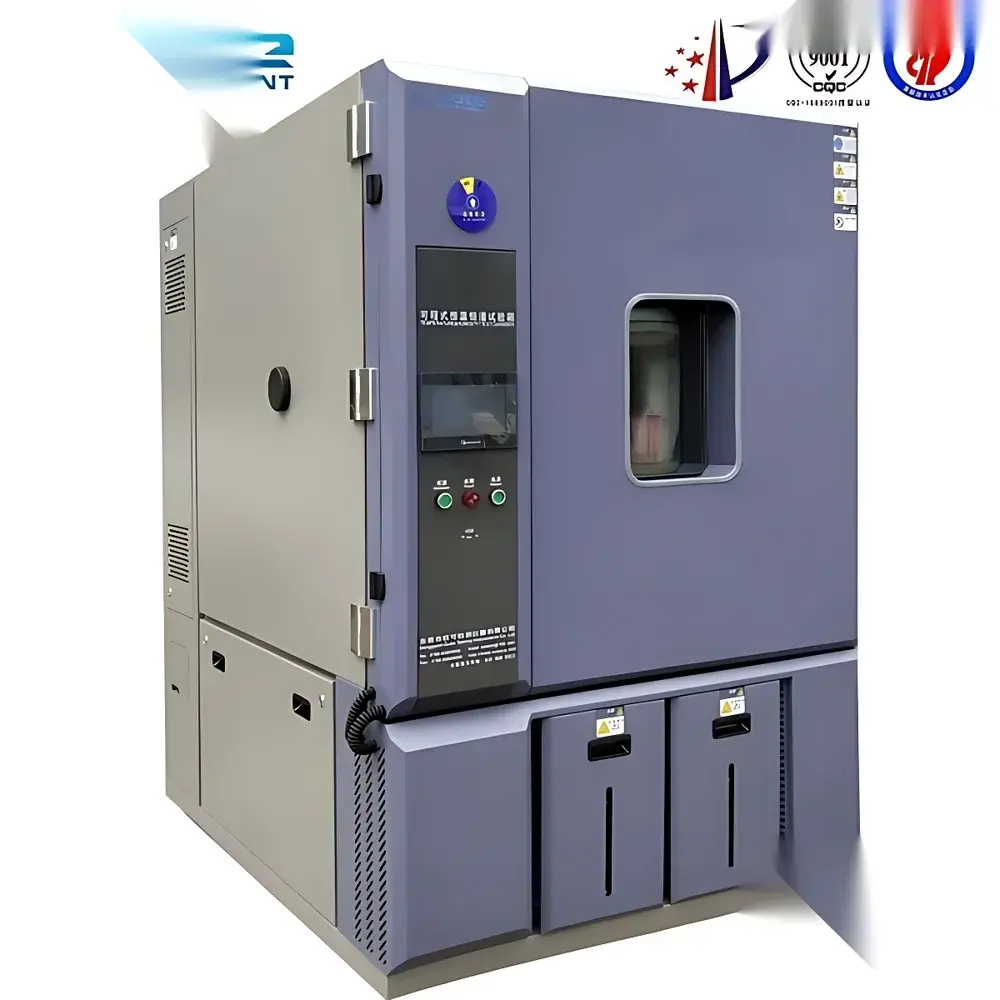

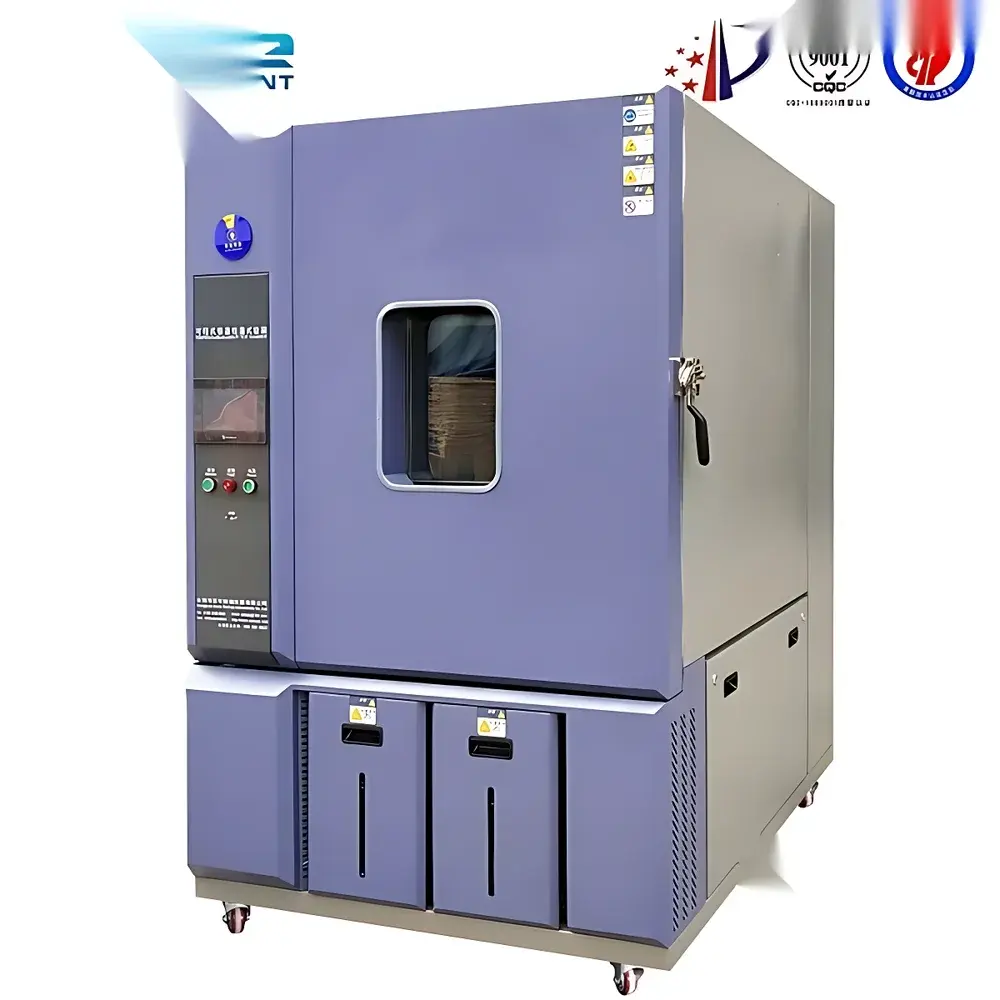

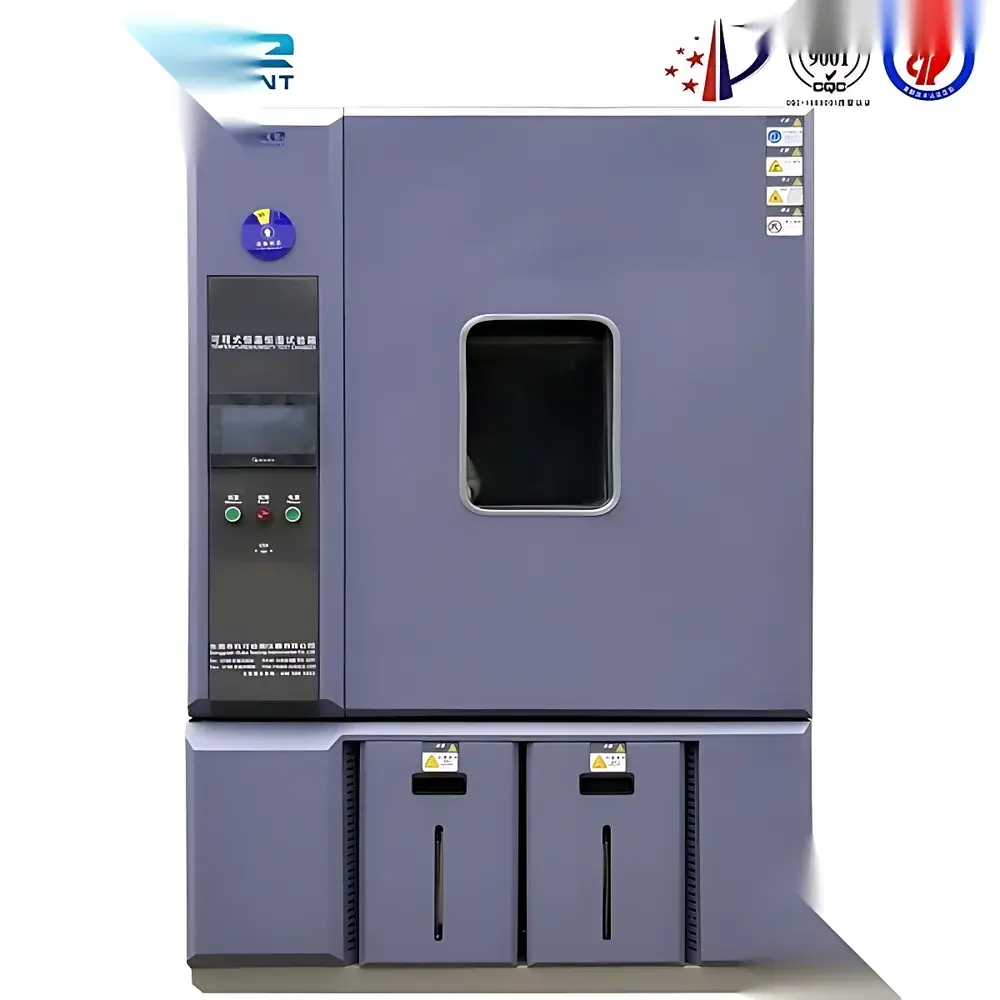

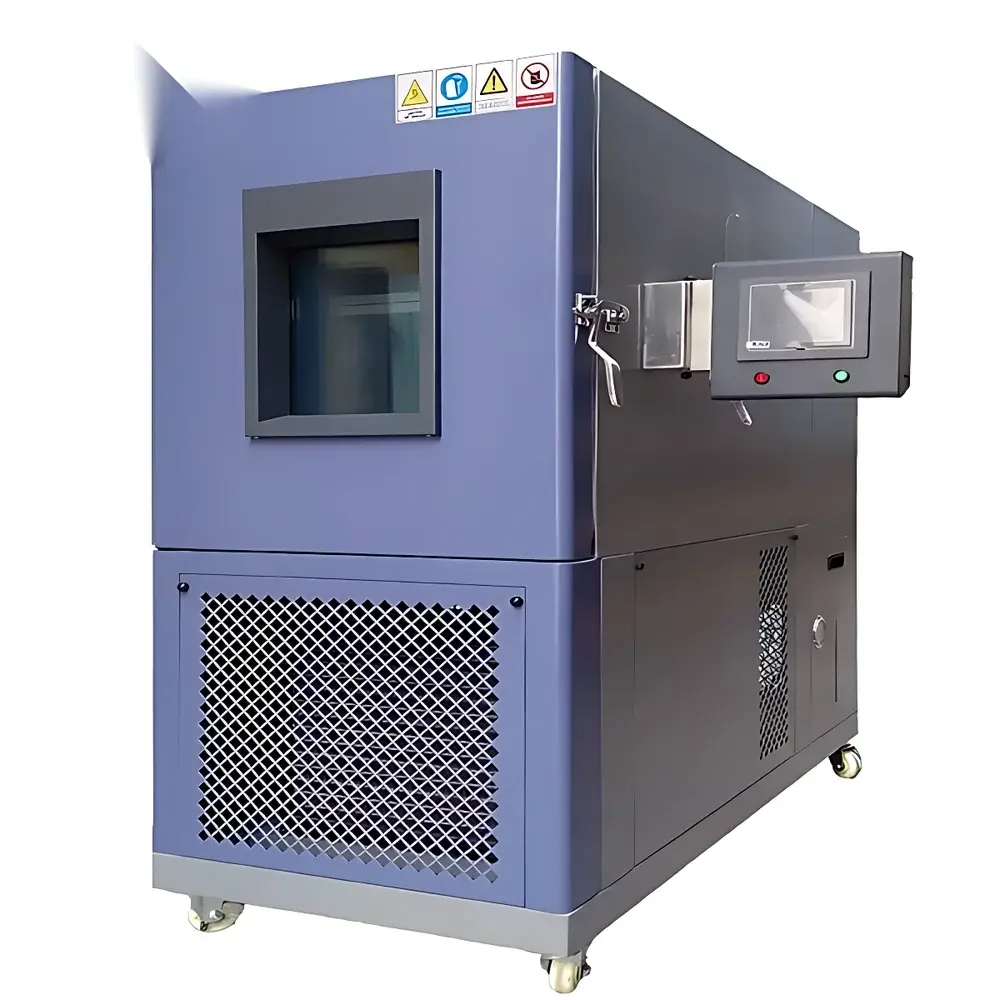

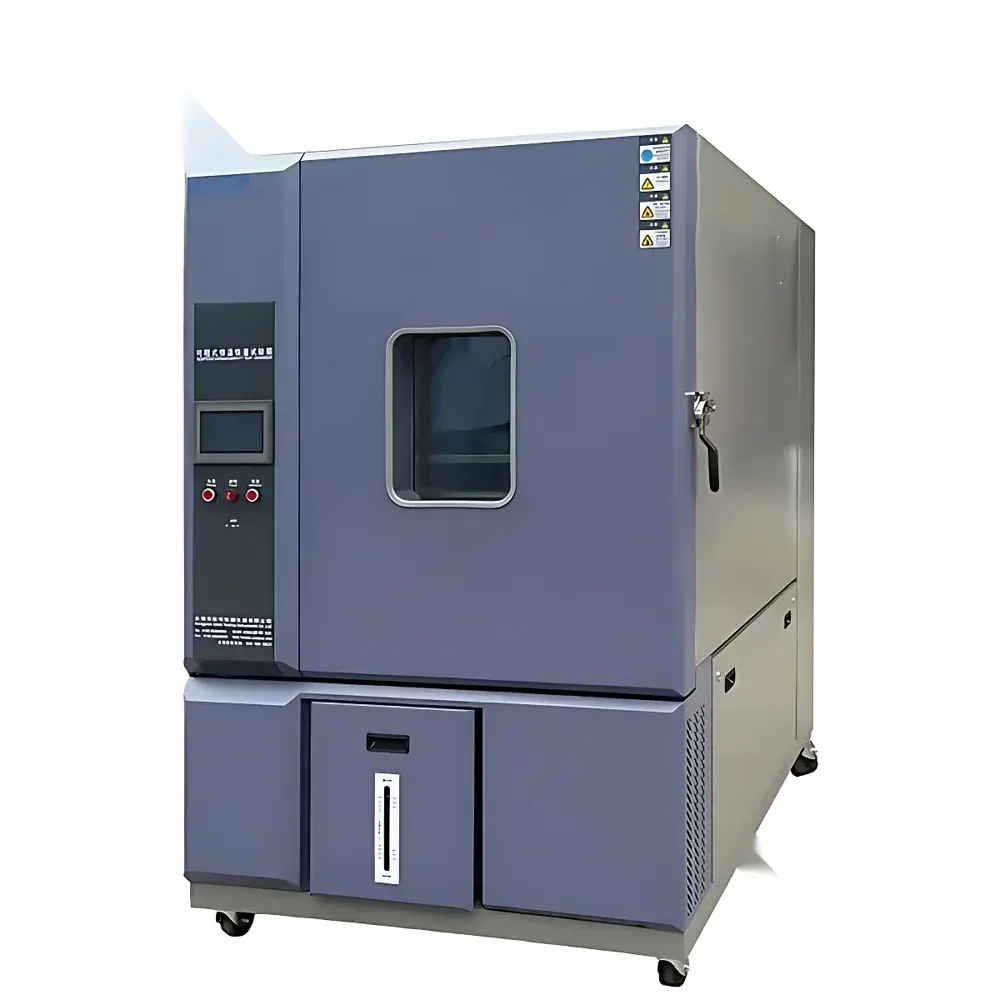

Ultra-Low Temperature Environmental Test Chamber

Overview

The Ultra-Low Temperature Environmental Test Chamber is a precision-engineered thermal stress testing system designed to simulate extreme low-temperature environments for reliability validation of electronic components, automotive modules, aerospace materials, and industrial hardware. Operating on the principle of forced-air convection with dual-stage cascade refrigeration, this chamber achieves stable temperature control down to –70 °C (typical minimum), enabling compliance-driven thermal cycling, storage, and operational testing per international environmental test standards. Its fully enclosed structural architecture minimizes thermal leakage and external interference, while optimized airflow dynamics ensure uniform temperature distribution (±1.5 °C tolerance across working volume per IEC 60068-3-5) — critical for repeatable qualification under GLP, GMP, and MIL-STD-810D protocols.

Key Features

• Streamlined ergonomic design with matte-finish curved cabinet surfaces and flat, non-reactive door handles for intuitive, safe operation.
• Hermetically sealed chamber construction integrated with high-efficiency, low-noise cascade compressors and reinforced insulated panels (≥120 mm polyurethane foam).
• Integrated anti-vibration mounting pads to suppress mechanical resonance during prolonged thermal cycling — ensuring measurement stability and minimizing test artifact generation.
• Optional powered test port configuration (standard 4–6 x Ø50 mm cable ports with silicone grommets) supporting real-time electrical load monitoring of DUTs under thermal stress.
• Double-glazed observation window with Philips LED interior lighting and built-in high-temperature-resistant defogging heater for unobstructed visual inspection without condensation interference.
• Comprehensive safety architecture including over-temperature cut-off, compressor high-pressure shutdown, phase failure protection, and door-open alarm with automatic cooling suspension.

Sample Compatibility & Compliance

This chamber accommodates standard test specimens up to 500 L internal volume (custom configurations available). It supports mounting fixtures for PCB assemblies, battery packs, sensors, and molded polymer housings. The system conforms to mandatory verification requirements outlined in GB/T 5170.2–1996 (Temperature Test Equipment), GB 10592–1993 (Technical Specifications for High/Low-Temperature Chambers), and GB/T 2423.1–2008 / IEC 60068-2-1 (Cold Testing). It also satisfies military-grade validation criteria per GJB 150.4–2009 (Low-Temperature Testing) and GJB 150.3–2009 (High-Temperature Testing), as well as accelerated life testing per GJB 360B–2009 Method 108 (High-Temperature Life). Calibration traceability follows ISO/IEC 17025-accredited procedures.

Software & Data Management

Equipped with a programmable 7-inch TFT touchscreen controller featuring PID-based temperature ramping logic and multi-segment profile programming (up to 99 cycles, 999 steps). Data logging records temperature, time, alarm status, and setpoint deviations at user-defined intervals (1–600 sec). Export options include CSV via USB 2.0; optional Ethernet interface enables remote monitoring and integration into centralized MES or LIMS platforms. Audit trail functionality complies with FDA 21 CFR Part 11 requirements when paired with validated software packages — supporting electronic signatures, user access levels, and immutable record retention.

Applications

• Qualification testing of lithium-ion battery cells and modules under sub-zero operating conditions (–40 °C to –60 °C).
• Thermal shock screening of avionics enclosures per DO-160 Section 4.5.
• Material embrittlement assessment of elastomers, adhesives, and thermoplastics used in cryogenic instrumentation.
• Long-term storage validation of medical diagnostic devices prior to cold-chain deployment.
• Environmental stress screening (ESS) for automotive ECUs subjected to ISO 16750-4 temperature profiles.
• Pre-compliance verification for CE marking under EN 60068-2 series climatic test directives.

FAQ

What is the lowest achievable temperature for continuous operation?
The standard configuration maintains stable operation down to –70 °C; extended-range models reach –80 °C upon request.
Does the chamber support humidity control?
No — this is a dry-temperature-only system. Humidity-capable variants are available under separate model designations.
Is calibration certificate included with shipment?
A factory calibration report (traceable to NIM or equivalent national metrology institute) is provided; ISO/IEC 17025-certified calibration is available as an add-on service.
Can the controller be upgraded to support Ethernet-based data export?
Yes — the base controller supports optional firmware upgrade and hardware module installation for TCP/IP communication and SCADA integration.
What power supply requirements apply?
Standard units require three-phase 380 V ±10%, 50 Hz; single-phase 220 V versions are offered for smaller capacity models.
