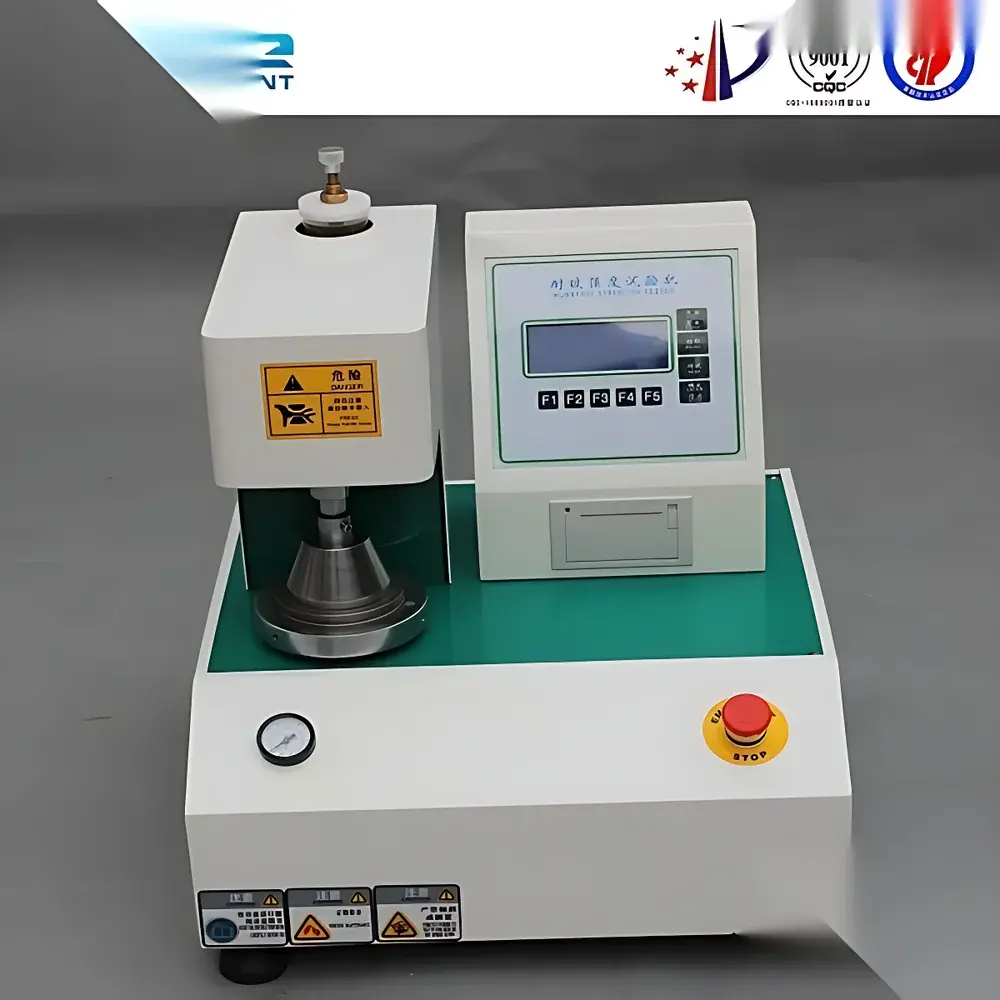

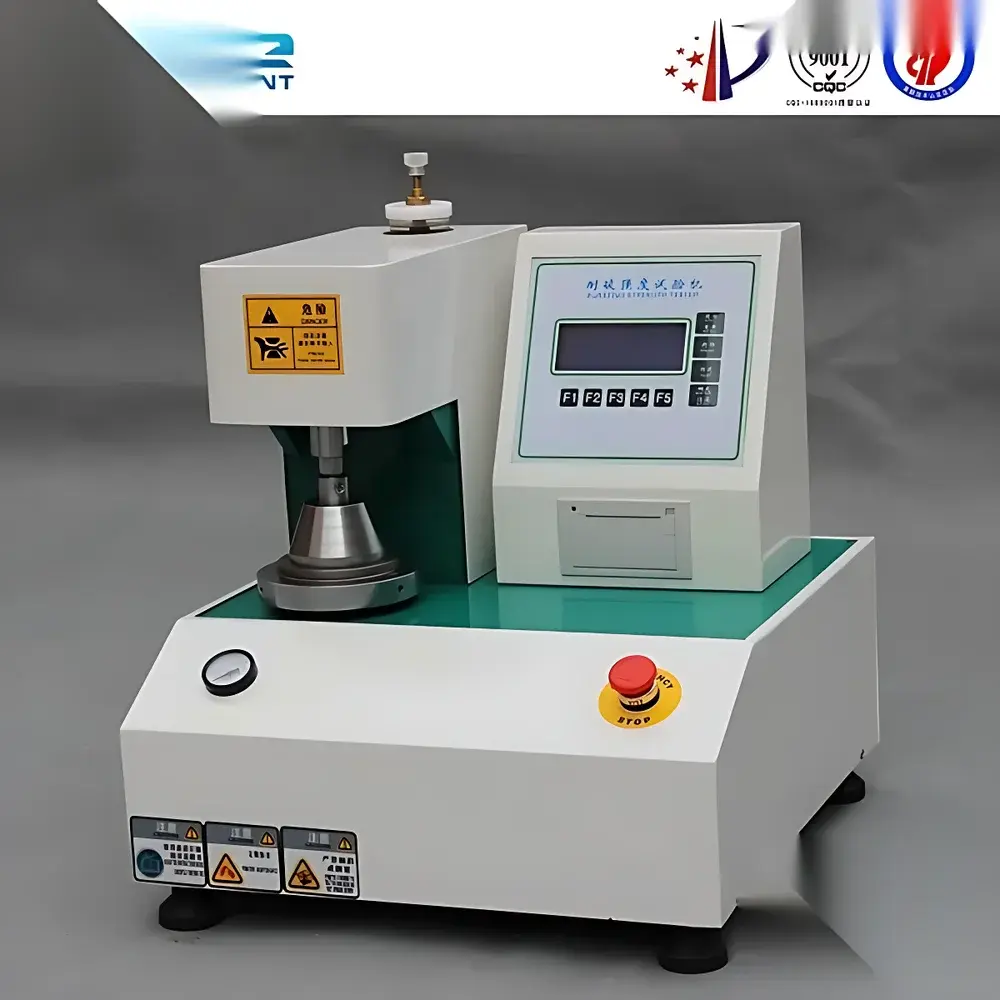

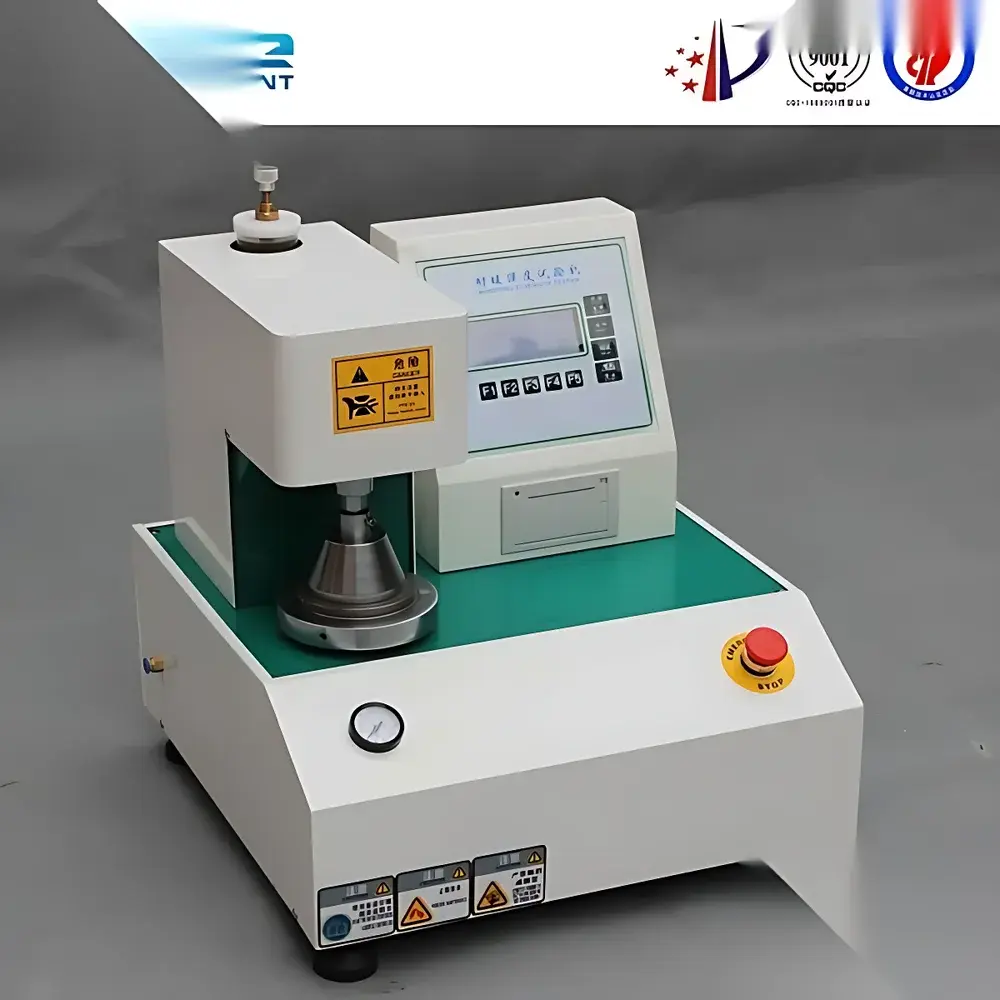

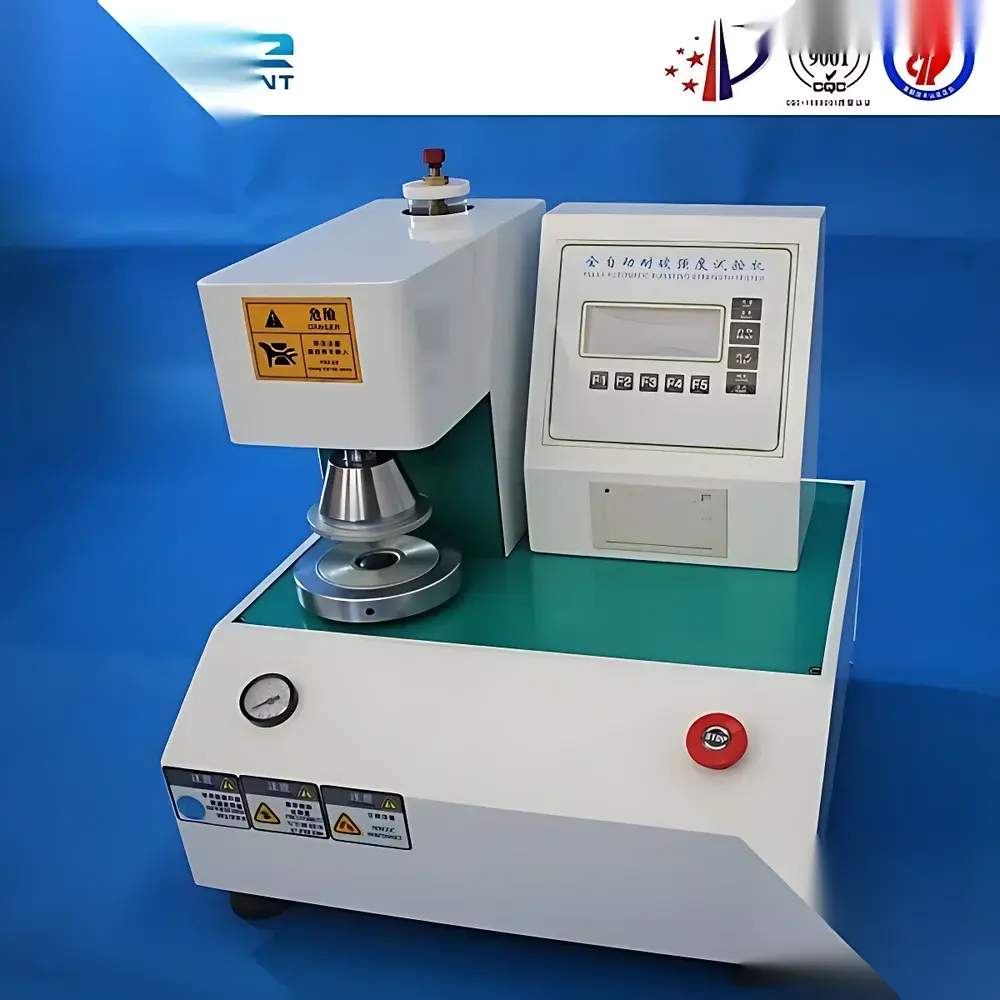

Universal Bursting Strength Tester for Corrugated Boxes and Paperboard

Overview

The Universal Bursting Strength Tester is a precision electromechanical instrument engineered for the quantitative determination of bursting strength—the maximum uniform hydraulic or pneumatic pressure a sheet of paper, paperboard, or corrugated fiberboard can withstand before rupture—under controlled, standardized loading conditions. Based on the Mullen principle (hydraulic diaphragm method), the tester applies gradually increasing pressure via an elastomeric diaphragm sealed against the specimen until failure occurs. The resulting burst strength value, expressed in kPa or psi, serves as a critical indicator of structural integrity, material consistency, and packaging performance under compressive stress during storage, stacking, and transit. Designed to meet global regulatory and industrial benchmark requirements, this instrument delivers high reproducibility across laboratories operating under GLP, ISO/IEC 17025, or internal QC protocols. Its robust architecture supports routine high-volume testing in R&D centers, quality assurance departments, and third-party certification labs serving electronics, automotive, consumer goods, and logistics sectors.

Key Features

• Hydraulically actuated diaphragm system with digital pressure transducer and closed-loop feedback control for ±0.5% full-scale accuracy
• Auto-zero calibration and real-time pressure curve visualization during test cycle
• Adjustable clamping force (10–150 N) with concentric pneumatic sealing to ensure consistent specimen confinement without edge deformation
• Integrated microprocessor controller with LCD interface, programmable test parameters (ramp rate, hold time, auto-stop on rupture), and non-volatile memory for up to 500 test records
• Compliance-ready design: pre-configured test modes aligned with ISO 2759, GB/T 6545, and ASTM D2210 methodologies
• Modular mechanical frame with stainless-steel platen surfaces and precision-ground sealing gasket grooves for long-term dimensional stability

Sample Compatibility & Compliance

The tester accommodates standard specimens measuring 100 mm × 100 mm (as specified in ISO 2759 and GB/T 6545), with optional adapters for smaller formats down to 70 mm × 70 mm. It is validated for use with single- and multi-wall corrugated board, solid bleached sulfate (SBS) board, recycled fiberboard, kraft linerboard, chipboard, and coated/uncoated paper grades. Non-paper substrates—including synthetic leather, woven and nonwoven textiles, thin rubber sheets, and laminated composites—may be evaluated subject to thickness limitations (≤ 6 mm) and surface flatness requirements. All operational procedures and calibration routines conform to ISO/IEC 17025 traceability guidelines. Instrument validation documentation includes as-delivered verification reports, uncertainty budgets per GUM (JCGM 100), and compatibility statements for FDA-regulated packaging environments where applicable.

Software & Data Management

The embedded firmware supports USB data export in CSV format for direct import into LIMS, Excel, or statistical process control (SPC) platforms. Optional PC-based software (Windows 10/11 compatible) provides extended functionality: automated report generation compliant with ISO 10012 and ASTM E29; audit trail logging with user authentication (role-based access); electronic signature capability aligned with FDA 21 CFR Part 11 requirements; and trend analysis across batch, shift, or supplier datasets. Raw pressure-time waveforms are stored with timestamp, operator ID, environmental temperature/humidity metadata (when connected to optional external sensors), and pass/fail status flags per predefined specification limits.

Applications

This tester is routinely deployed in packaging engineering labs to assess carton stack resistance prior to distribution trials; in supplier qualification programs to verify incoming board specifications against purchase agreements; and in sustainability initiatives evaluating recycled content impact on burst resistance. End-use applications span electronics packaging (ESD-safe corrugated enclosures), medical device secondary packaging (ISO 11607-compliant barrier boards), e-commerce fulfillment centers (ASTM D642-compliant compression simulation correlation), and food-grade fiberboard compliance (FDA 21 CFR 176.170). It also supports comparative studies of starch-based adhesives, moisture-barrier coatings, and nanocellulose-reinforced substrates in academic and industrial pulp & paper research.

FAQ

What standards does this instrument fully support out-of-the-box?

ISO 2759, GB/T 6545, ASTM D2210, TAPPI T403, JIS L1004/L1018/L1031, and QB/T 1057 — all test modes are preloaded with correct ramp rates, dwell times, and acceptance criteria.

Is calibration traceable to national metrology institutes?

Yes — each unit ships with a UKAS-accredited calibration certificate (NIST-traceable pressure standard), valid for 12 months under normal usage conditions.

Can the instrument integrate with our existing MES or SAP QA module?

Via optional OPC UA or Modbus TCP gateway, enabling real-time test result ingestion and automated nonconformance flagging.

What maintenance intervals are recommended?

Diaphragm replacement every 10,000 cycles; annual verification of hydraulic seal integrity and pressure transducer linearity; quarterly cleaning of clamping surfaces with isopropyl alcohol.

Does it support dual-language UI (e.g., English + Spanish)?

Yes — firmware supports eight languages including English, Spanish, French, German, Chinese, Japanese, Korean, and Portuguese, configurable via system settings.
