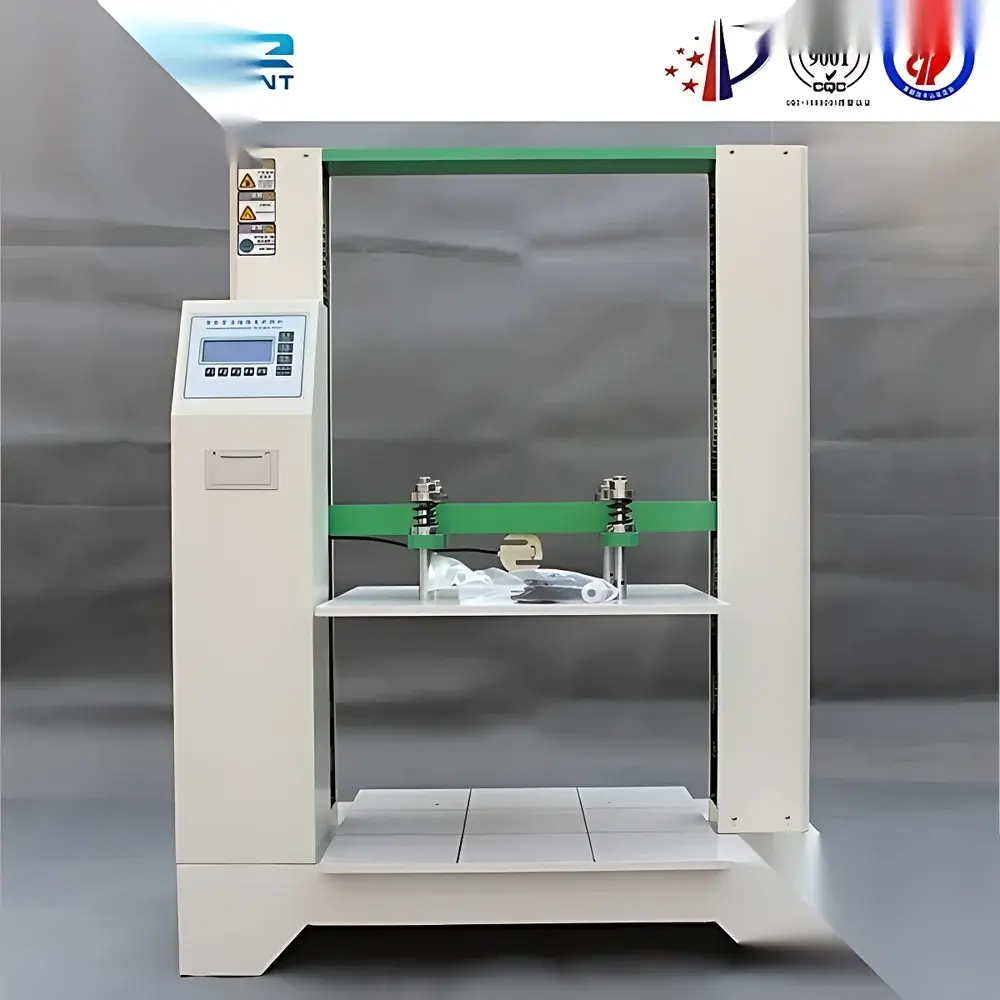

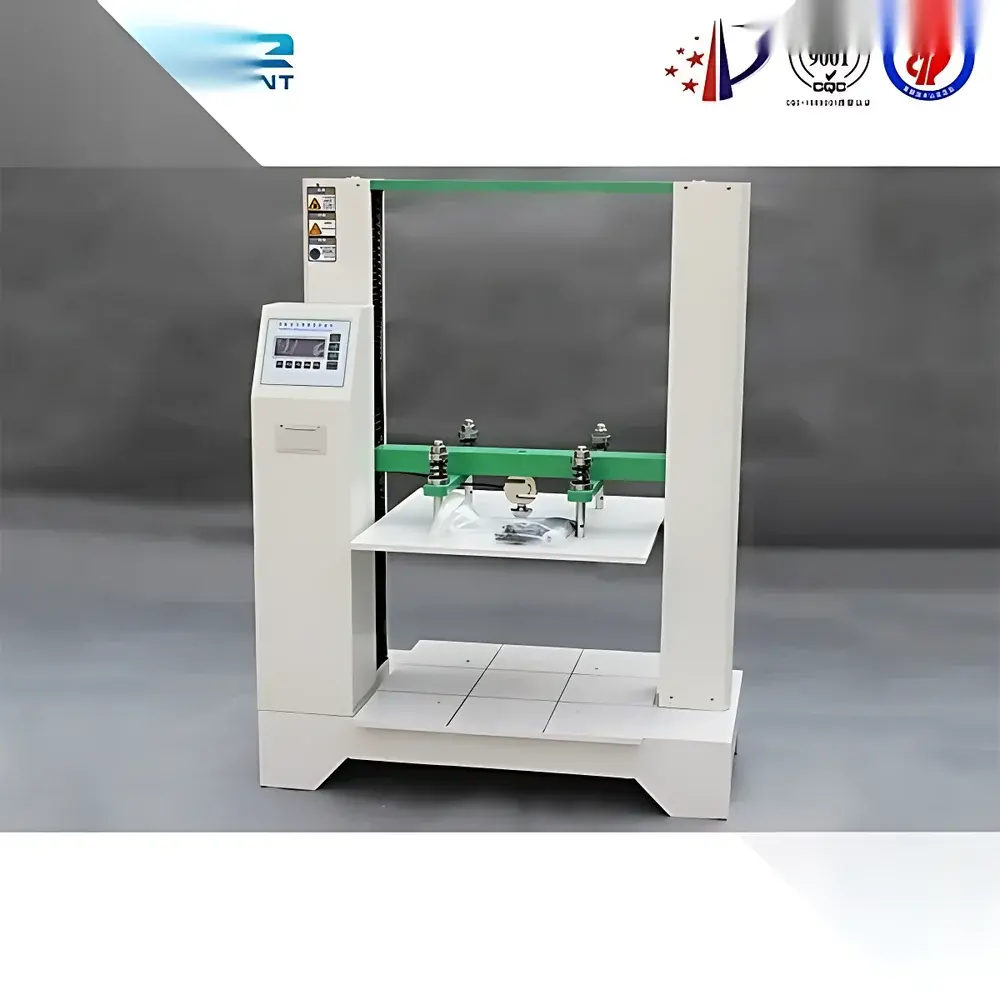

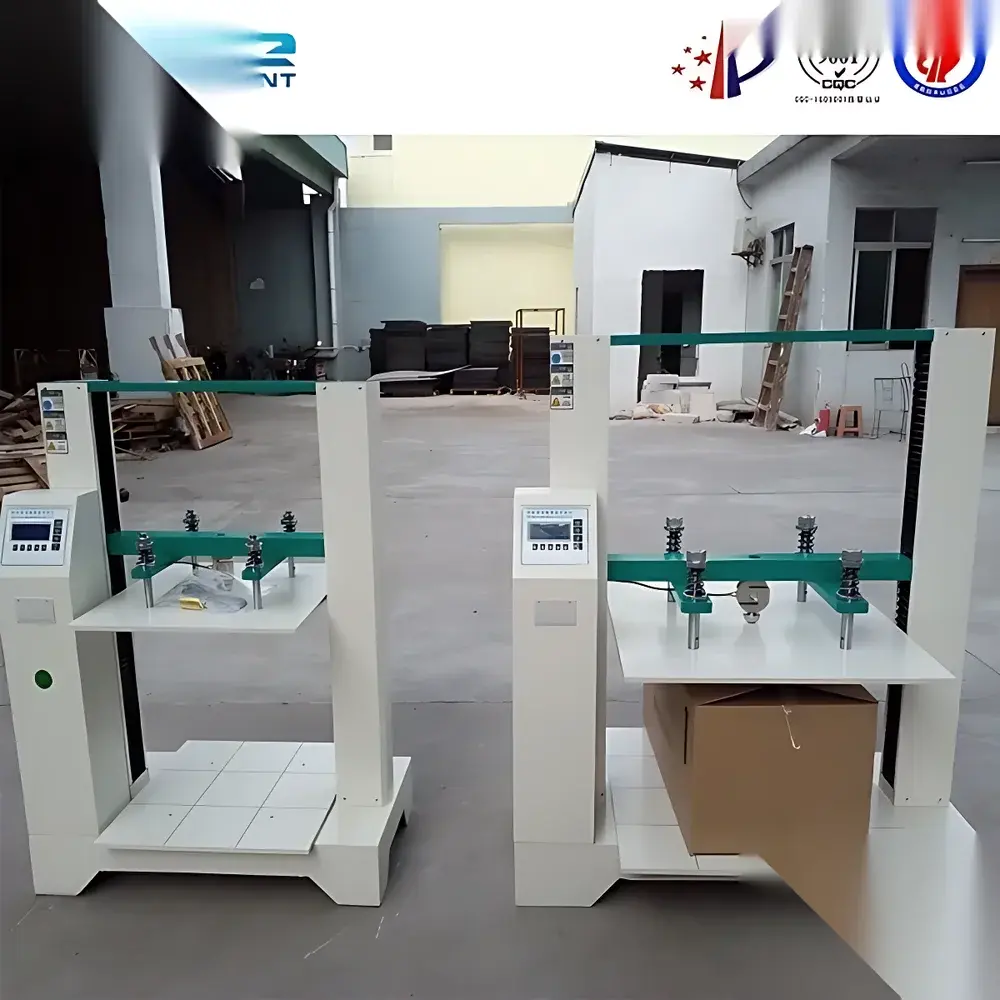

Universal Compression Tester for Corrugated Boxes
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 1,700 (FOB) |
| Compliance | GB/T 4857.3–1992, GB/T 4857.4–1992 |
| Load Capacity | Up to 5,000 N (configurable) |
| Displacement Resolution | 0.01 mm |
| Test Speed Range | 1–500 mm/min (adjustable) |
| Data Storage | 20 test records |
| Output | Thermal printer interface, USB data export |
Overview
The Universal Compression Tester for Corrugated Boxes is a dedicated mechanical testing system engineered for quantitative evaluation of compressive strength and deformation behavior of corrugated fiberboard containers under controlled axial loading. Based on the principle of uniaxial quasi-static compression, the instrument applies a steadily increasing or sustained load to simulate real-world stacking conditions—such as warehouse storage, palletized transport, and long-term static loading—enabling objective assessment of structural integrity, collapse resistance, and creep performance. Designed in accordance with internationally referenced packaging test methodologies, it delivers repeatable, traceable force-displacement curves essential for quality assurance, package design validation, and regulatory compliance documentation in logistics and manufacturing environments.
Key Features
- Electromechanical architecture integrating high-precision load cell (±0.5% FS accuracy), servo-controlled actuator, and rigid dual-column frame for minimal deflection during high-load testing.
- Three standardized test modes: (1) Compression Strength Mode — measures peak compressive force and corresponding displacement at failure; (2) Constant-Load Mode — holds preset force for defined duration to assess deformation stability; (3) Stacking Simulation Mode — executes time-dependent static load application per GB/T 4857.3 (e.g., 12 h or 24 h hold periods) with automatic load maintenance and drift compensation.
- Embedded calculation engine preloaded with industry-standard formulas—including McKee equation-based estimated burst strength correlation and stack-height safety margin derivation—supporting rapid interpretation of box performance metrics without external software.
- Backlit LCD interface with full Chinese/English toggle capability; supports parameter configuration, real-time curve plotting, auto-return-to-start after test completion, and programmable rapid traverse (up to 300 mm/min) for efficient specimen setup.
- Integrated thermal printer and USB port for direct report generation and raw data export in CSV format; internal memory retains up to 20 complete test records with timestamp, operator ID, and environmental metadata fields.
Sample Compatibility & Compliance
The tester accommodates standard corrugated boxes (RSC, HSC, FOL configurations) with dimensions up to 1,200 mm × 1,200 mm × 1,200 mm (L×W×H). Specimen alignment is facilitated by adjustable horizontal platens with non-slip rubber coating and vertical centering guides. All mechanical and software functions conform to GB/T 4857.3–1992 (Static Load Stacking Test for Transport Packages) and GB/T 4857.4–1992 (Compression Test Method for Transport Packages), ensuring alignment with domestic certification requirements for packaging validation in China. While not certified to ISO 12048 or ASTM D642, its measurement methodology is functionally equivalent and widely accepted for internal QC, supplier qualification, and third-party audit support under GLP-aligned laboratory practices.
Software & Data Management
No proprietary PC software is required for core operation; however, exported CSV files are compatible with Excel, Minitab, and JMP for statistical process control (SPC) analysis—including Cp/Cpk calculation, trend charting, and outlier detection. The embedded firmware logs test parameters, maximum load, yield point, deformation at 10% height loss, and time-to-failure (in stacking mode) with automatic unit conversion (N, kgf, lbf). Audit trail functionality includes operator login, test start/stop timestamps, and firmware version stamp—supporting basic 21 CFR Part 11 readiness when deployed in regulated manufacturing facilities with documented SOPs and access controls.
Applications
This instrument serves critical roles across packaging R&D, production QA/QC, and supply chain engineering: validating carton design iterations against target stacking heights; benchmarking supplier material consistency (e.g., flute type, linerboard basis weight, adhesive bond strength); supporting ISTA 3A/3E simulation protocols; generating data for FEA model calibration; and fulfilling mandatory testing requirements for export shipments subject to China’s CCC packaging certification. It is routinely deployed in paper mill labs, contract packaging providers, e-commerce fulfillment centers, and FMCG product development units where physical package integrity directly impacts damage-in-transit KPIs.
FAQ
What standards does this tester directly support?
It is fully aligned with GB/T 4857.3–1992 and GB/T 4857.4–1992 for static stacking and compression testing of transport packages.
Can test data be integrated into enterprise quality management systems (QMS)?
Yes—CSV exports support import into common QMS platforms (e.g., MasterControl, ETQ Reliance) via custom mapping scripts or middleware connectors.
Is calibration certification included with shipment?
A factory calibration certificate traceable to national metrology institutes is provided; annual recalibration using certified deadweight standards is recommended per ISO/IEC 17025 guidelines.
Does the system support variable-speed ramping profiles?
Yes—test speed is continuously adjustable between 1 and 500 mm/min in 1 mm/min increments, enabling simulation of both slow warehouse settling and rapid impact-like loading scenarios.
How is specimen misalignment mitigated during testing?
The upper platen features self-centering spherical seating, while lower platen leveling screws allow ±2 mm fine adjustment to ensure parallel load application across uneven box surfaces.
