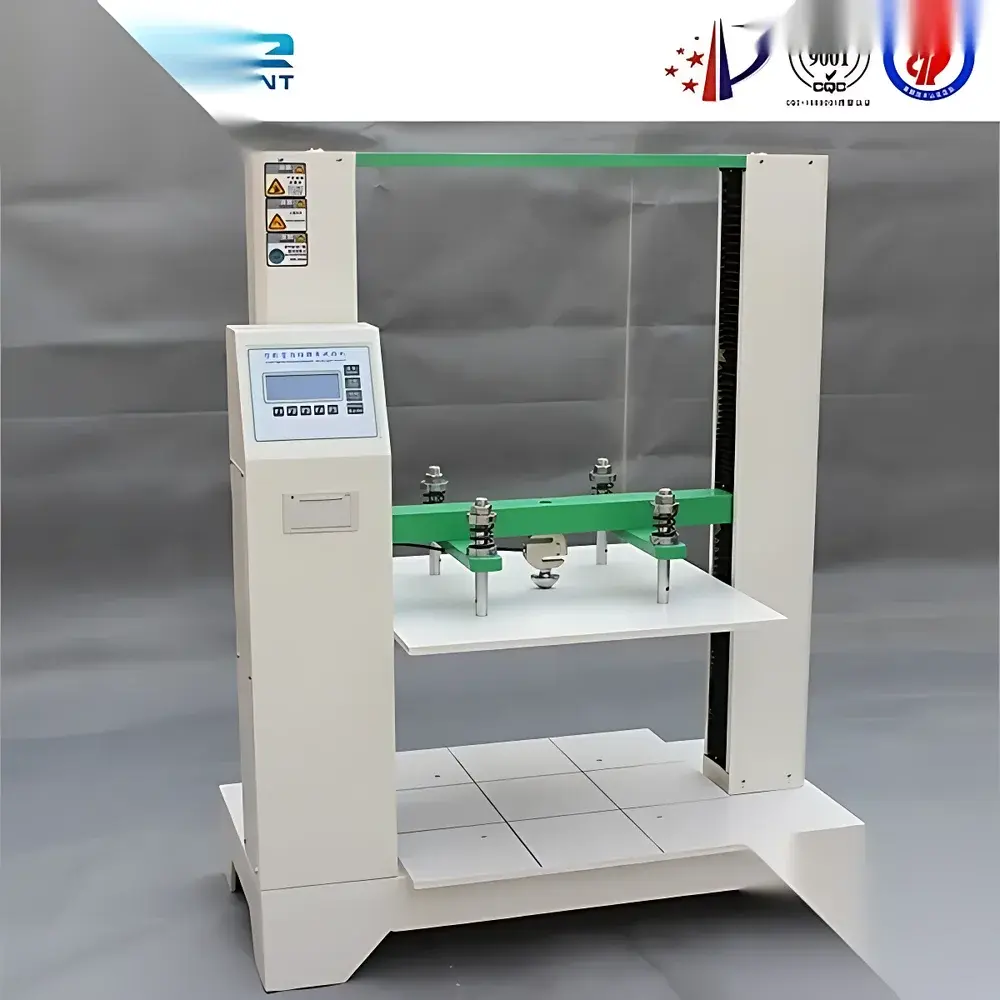

Universal Computer-Controlled Compression Tester for Corrugated Boxes

Overview

The Universal Computer-Controlled Compression Tester for Corrugated Boxes is a dedicated mechanical testing system engineered to quantify the compressive strength and stacking resistance of corrugated fiberboard containers under controlled, standardized loading conditions. Based on ASTM D642 (Standard Test Method for Determining Compressive Resistance of Shipping Containers), ISO 12048 (Packaging—Complete, filled transport packages—Compression and stacking tests), and GB/T 4857.3–2008 (Chinese national standard for packaging compression testing), this instrument applies uniaxial compressive force at a defined rate until specimen failure or preset hold time is reached. Its primary purpose is to simulate real-world warehouse stacking loads and evaluate structural integrity across production batches—providing objective, repeatable data essential for packaging validation, logistics risk assessment, and regulatory compliance in food, pharmaceutical, electronics, and e-commerce supply chains.

Key Features

• Precision-engineered ball screw actuation system ensures smooth, backlash-free vertical motion with minimal mechanical hysteresis and long-term dimensional stability.
• U.S.-sourced explosion-proof load cell with integrated temperature compensation delivers high linearity (<±0.5% FS), low creep (<0.02% FS/30 min), and robust immunity to electromagnetic interference in industrial environments.
• AC frequency-controlled motor from Taiwan provides consistent torque output across the full speed range, enabling stable 10 ± 3 mm/min compression rate per ASTM D642 requirements.
• Dedicated microprocessor-based controller features real-time force–displacement curve acquisition, automatic peak detection, and immediate shutdown upon collapse event recognition—ensuring operator safety and data fidelity.
• Integrated thermal printer outputs calibrated test reports including maximum compressive load, deformation at peak, time-to-failure, and pass/fail status against user-defined thresholds.
• Modular frame architecture supports optional upgrades: digital height gauge integration, environmental chamber coupling (for humidity/temperature-conditioned testing), and USB data export for LIMS or ERP synchronization.

Sample Compatibility & Compliance

This tester accommodates standard and non-standard corrugated boxes, double-wall cartons, palletized unit loads, and rigid intermediate bulk containers (IBCs) up to 1200 mm × 1200 mm footprint. Custom platens and alignment fixtures are available for irregular geometries. All operational parameters align with GLP-compliant documentation practices: test logs include timestamp, operator ID, calibration certificate number, and equipment serial number. The system supports audit-ready traceability per FDA 21 CFR Part 11 when paired with validated software modules (available as optional add-on). Routine verification follows ISO/IEC 17025 guidelines using certified reference standards traceable to NIST or equivalent NMIs.

Software & Data Management

While the base configuration includes embedded firmware with local display and print functionality, optional PC-based software (compatible with Windows 10/11) enables advanced analysis: multi-curve overlay, statistical process control (SPC) charting (X̄–R, Cpk), batch reporting, and PDF/CSV export. All raw data files are stored with immutable metadata—including calibration history, sensor drift compensation coefficients, and environmental ambient readings (if external sensors are connected). Audit trails record every parameter change, user login/logout, and report generation event—meeting stringent QA/QC documentation requirements for ISO 9001-certified facilities.

Applications

• Validation of box design specifications prior to mass production launch.
• Quality assurance screening of incoming corrugated board material from suppliers.
• Stacking height optimization studies for warehouse racking systems.
• Failure mode analysis (e.g., corner crush vs. face buckling) via synchronized video capture (optional).
• Regulatory submission support for ISTA 3A, ASTM D4169, and Amazon Frustration-Free Packaging certification.
• Root cause investigation of field failures linked to compression-induced product damage.

FAQ

What standards does this tester comply with?

It meets core requirements of ASTM D642, ISO 12048, TAPPI T811, and GB/T 4857.3. Full compliance documentation—including uncertainty budgets and metrological traceability statements—is provided with each unit.

Can it perform constant-load hold tests?

Yes. The controller supports programmable dwell periods (up to 999 minutes) at any target load level, enabling simulation of long-term static stacking conditions per ASTM D4169 Cycle 3B.

Is calibration service included?

A factory calibration certificate (NIST-traceable) is supplied at shipment. On-site recalibration and annual verification services are available through authorized regional partners.

How is overload protection implemented?

Hardware-level current limiting, dual-stage software force ceiling enforcement, and mechanical end-stop switches operate independently to prevent actuator overtravel or load cell saturation.

Does it support network connectivity?

Ethernet and RS-232 interfaces are standard; Modbus TCP and OPC UA protocols are supported via optional firmware upgrade for MES/SCADA integration.
