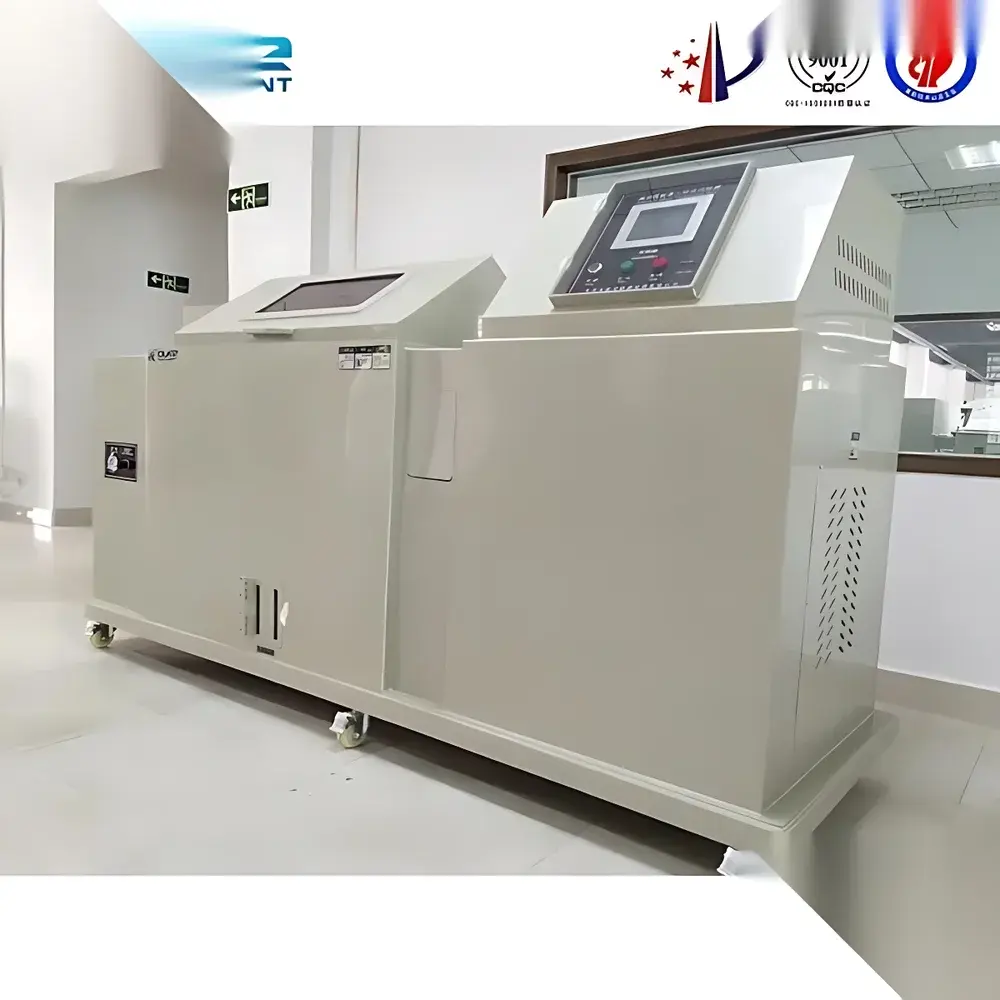

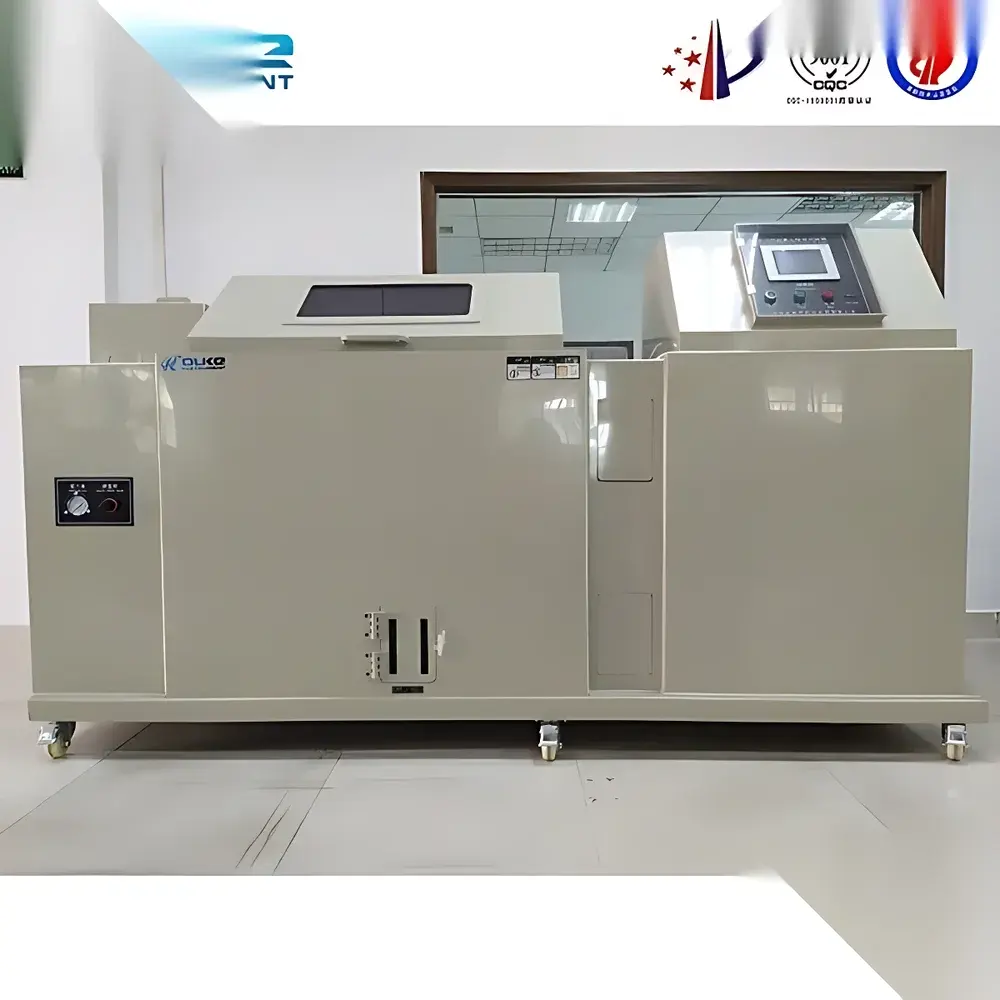

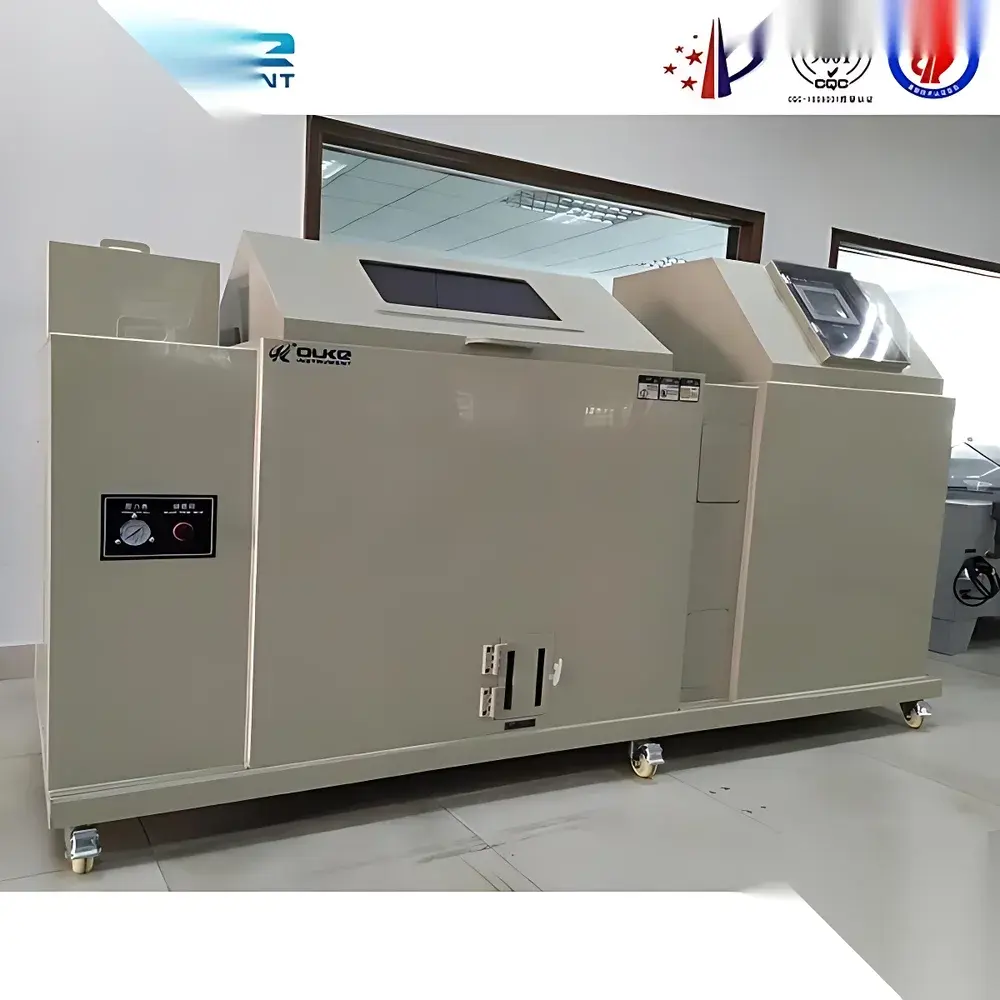

Universal Environmental Test Chamber for Temperature, Humidity, and Salt Spray Testing

Overview

The Universal Environmental Test Chamber for Temperature, Humidity, and Salt Spray Testing is an integrated corrosion and environmental stress simulation system engineered for precision evaluation of material resistance under combined climatic stressors. It operates on the principle of controlled salt fog generation via compressed air atomization through a borosilicate glass nozzle, coupled with precise thermal and humidity regulation in accordance with internationally recognized accelerated corrosion test methodologies. The chamber supports both continuous salt spray (per ASTM B117 and ISO 9227) and cyclic salt spray/humidity/temperature profiles (per GB/T 2423.17 and GJB 150.11A), enabling laboratories to replicate field-relevant degradation mechanisms—including electrochemical corrosion, hygroscopic swelling, and interfacial delamination—in a reproducible, time-compressed environment. Its water-jacketed heating architecture ensures uniform thermal distribution and rapid stabilization, minimizing thermal gradients that could compromise test validity.

Key Features

• Programmable control system supporting dual-mode operation: continuous salt spray (ASTM-compliant) and programmable cyclic testing (GB/GJB-compliant)
• Borosilicate glass (Pyrex®) spray nozzle with conical diffuser for uniform, non-clogging雾 dispersion and natural gravitational deposition onto specimens
• Dual-stage safety protection: independent over-temperature cutoff and real-time low-water-level alarm with auto-refill function to prevent test interruption
• Saturated air tank operating per Henry’s Law principles—precisely heated and humidified to maintain stable relative humidity and salt concentration in the fog stream
• Digital PID temperature controller with ±0.1 °C accuracy and steam-direct heating for rapid, homogeneous chamber temperature ramping
• Energy-efficient titanium-sheathed infrared heating elements embedded in a water-jacketed chamber wall—reducing power consumption by ~50% versus traditional fiberglass jacketed systems

Sample Compatibility & Compliance

This chamber accommodates standard test specimens up to 900 mm (W) × 600 mm (D) × 500 mm (H), compatible with flat panels, coated substrates, electronic enclosures, fasteners, and automotive components. It meets the physical and procedural requirements of multiple international standards including ASTM B117 (neutral salt spray), ISO 9227 (corrosion testing in artificial atmospheres), GB/T 2423.17 (Ka test for electrical and electronic products), GB/T 10587 (salt mist test equipment specifications), GJB 150.11A (military environmental engineering), and DIN 50021 (continuous and cyclic salt spray). All operational parameters—including chamber temperature, saturated air tank temperature, pH of salt solution, and fog deposition rate—are traceable and configurable to support GLP-compliant documentation and audit readiness.

Software & Data Management

The embedded controller provides real-time monitoring of temperature, humidity, and system status via a high-resolution LCD interface. Optional Ethernet or RS-485 connectivity enables integration into centralized lab management platforms. Logged data—including setpoints, actual values, alarm events, and cycle timestamps—is exportable in CSV format for post-test analysis. While the base system does not include FDA 21 CFR Part 11-compliant electronic signature functionality, it supports third-party validation packages for regulated industries requiring audit trails, user access controls, and data integrity assurance per ICH-GCP and ISO/IEC 17025 requirements.

Applications

This chamber serves critical roles across quality assurance, R&D, and regulatory compliance workflows. In the automotive sector, it validates corrosion resistance of painted body panels, brake calipers, and under-hood electronics. Electronics manufacturers use it to assess conformal coating integrity, solder joint reliability, and PCB metallization stability. Aerospace suppliers apply it to evaluate fastener passivation, composite laminate edge sealing, and avionics housing gasket performance. Defense contractors rely on its GJB 150.11A certification for qualification of naval-grade hardware exposed to marine environments. Additionally, it supports comparative studies of inhibitor efficacy, coating thickness optimization, and failure mode analysis under multi-stress exposure.

FAQ

What standards does this chamber support for cyclic corrosion testing?

It supports GB/T 2423.17 (Ka), GJB 150.11A, and custom-defined multi-step cycles integrating salt spray, high-humidity dwell, and dry-off phases.

Is the salt solution delivery system fully automated?

Yes—the chamber features automatic water level detection and refill; users only need to load pre-mixed NaCl solution into the reservoir before initiating a test sequence.

Can the saturated air tank temperature be independently controlled?

Yes—two independent PID controllers regulate chamber temperature and saturated air tank temperature, allowing precise adherence to ASTM B117 (47 °C tank at 35 °C chamber) or corrosion test protocols (63 °C tank at 50 °C chamber).

What maintenance intervals are recommended for the Pyrex® nozzle?

Visual inspection is advised after every 100 hours of cumulative spray operation; cleaning with deionized water is sufficient under normal use—no replacement is required unless physical damage occurs.

Does the system provide calibration certificates traceable to NIST or equivalent national metrology institutes?

Factory calibration reports are supplied with each unit; on-site ISO/IEC 17025-accredited calibration services are available upon request.
