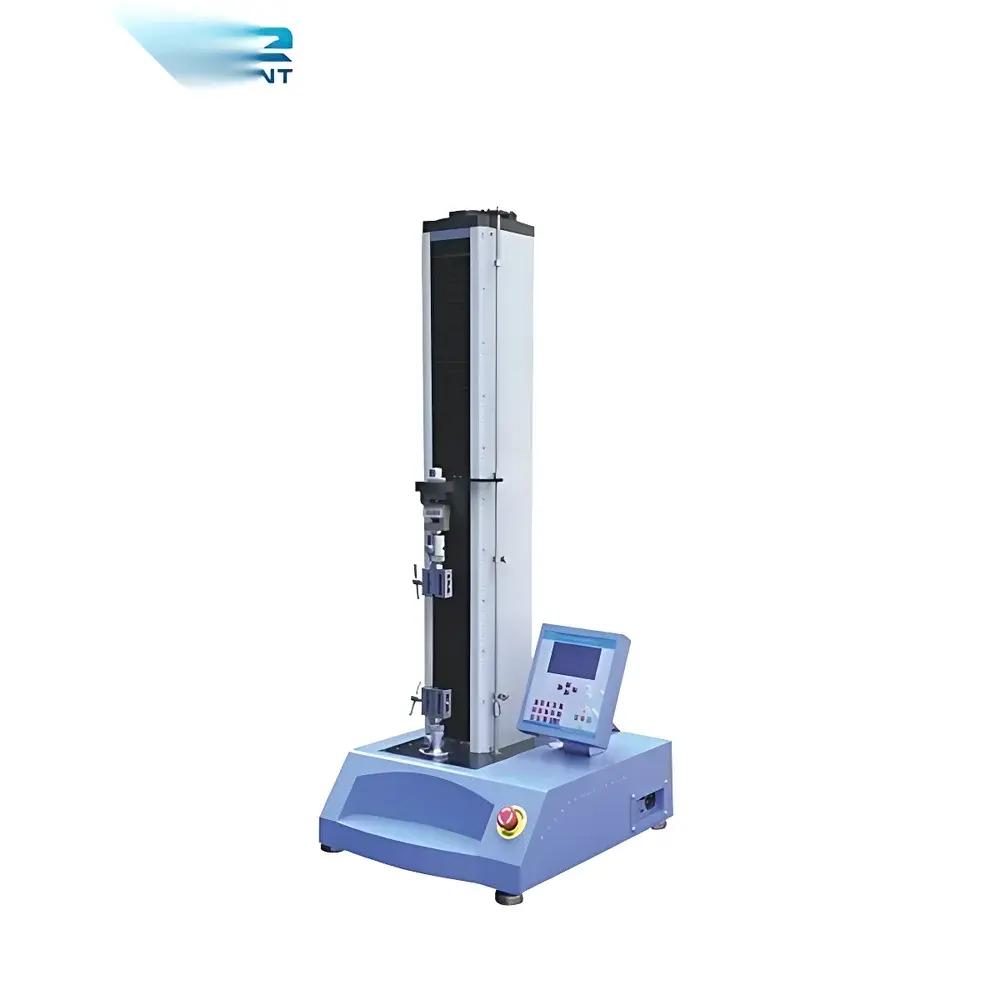

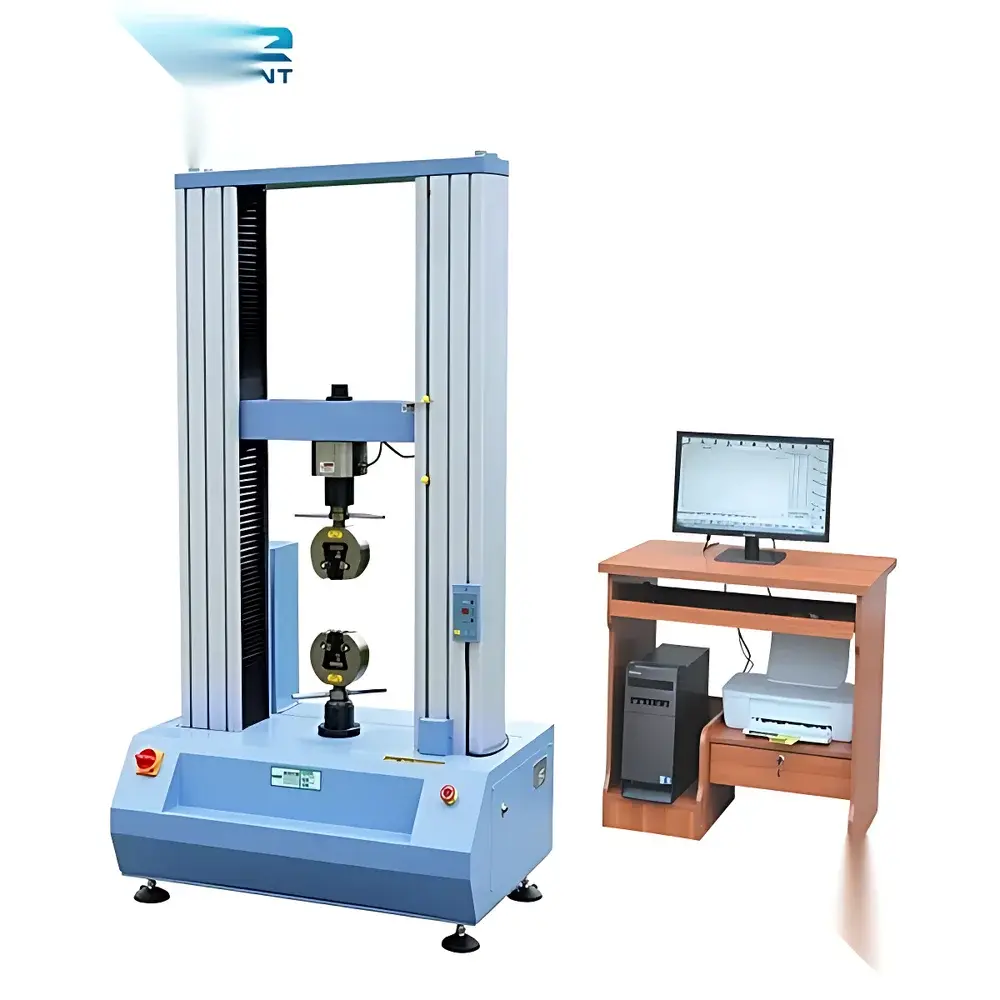

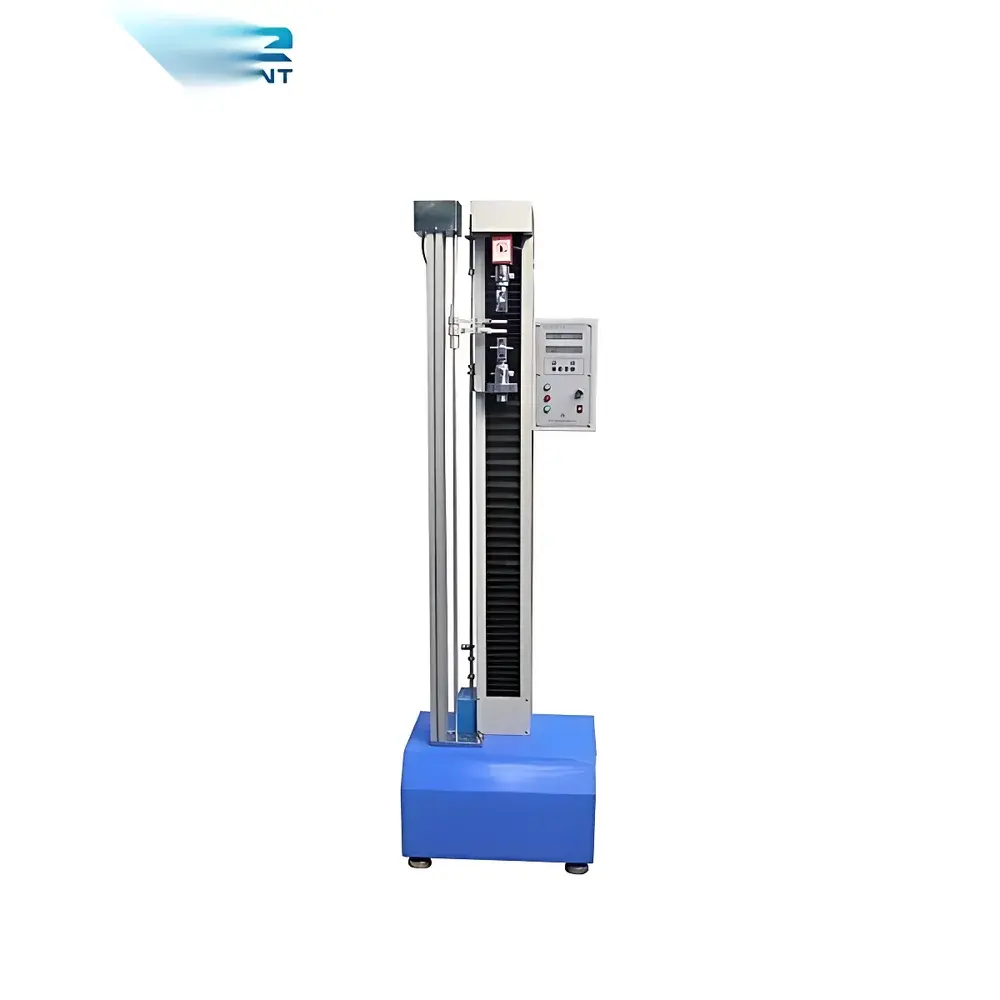

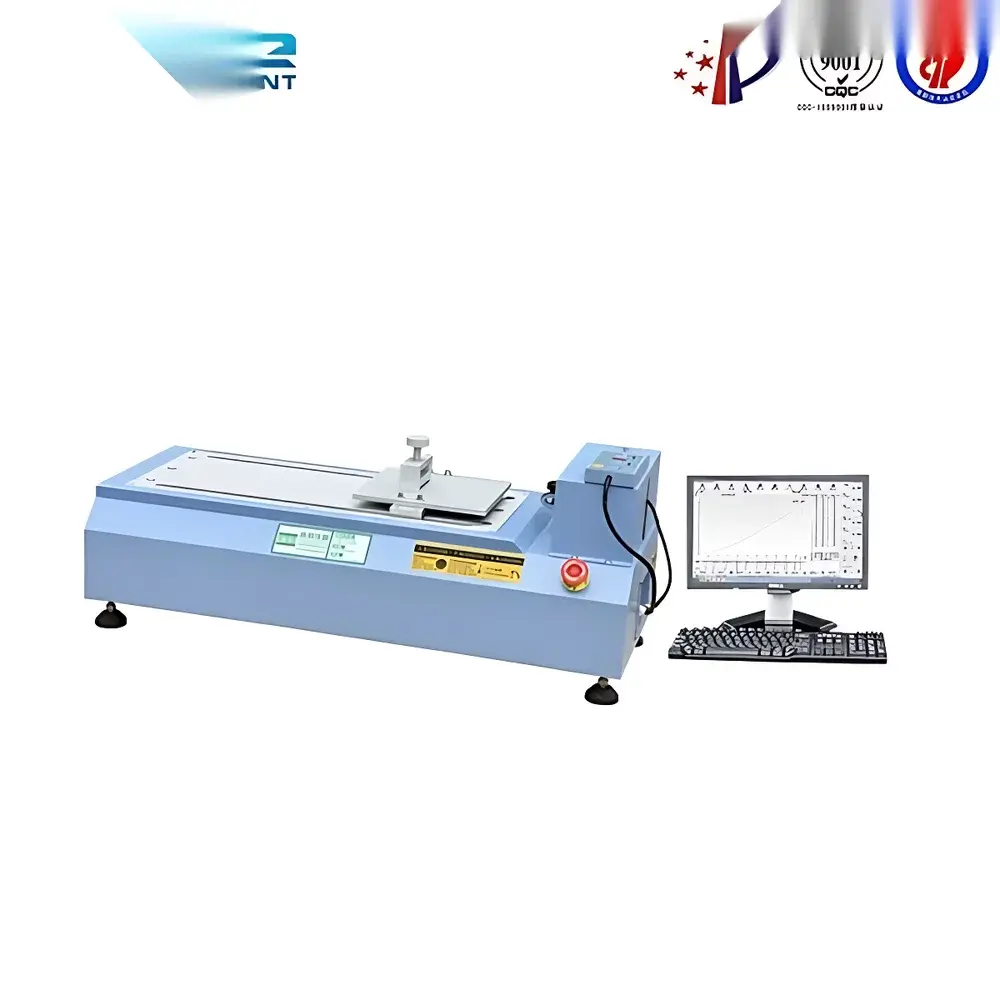

Universal Tensile Testing Machine with Environmental Chamber Integration

Overview

The Universal Tensile Testing Machine with Environmental Chamber Integration is an electromechanical materials testing system engineered for high-precision uniaxial mechanical characterization under controlled thermal conditions. It operates on the principle of servo-controlled displacement-driven loading, where a calibrated load cell measures force response while a high-resolution encoder tracks crosshead displacement in real time. Unlike ambient-only testers, this system integrates a dual-zone environmental chamber capable of maintaining stable temperature ranges from –70 °C to +250 °C (±1.5 °C uniformity), enabling standardized evaluation of tensile strength, elongation at break, Young’s modulus, yield point, compressive yield, flexural modulus, peel adhesion, shear strength, and tear resistance across thermally sensitive or phase-transitioning materials. Designed for compliance with international mechanical testing protocols, it serves as a primary instrument in R&D labs, QC departments, and third-party certification facilities handling polymeric, metallic, composite, and fibrous specimens.

Key Features

• Panasonic AC servo motor drive with 2500-pulse/rev optical encoder ensures smooth, low-noise actuation and sub-micron positioning resolution.
• Preloaded precision ground ball screws and linear guideways deliver consistent axial alignment and minimal friction-induced hysteresis (<0.02% F.S.).
• Explosion-proof S-type load cell with automatic thermal drift compensation, ±0.03% F.S. repeatability, 150% transient overload capacity, and zero drift <0.01% F.S./°C.
• Dual-limit mechanical travel protection plus software-based overload cutoff prevents sensor damage during abrupt failure events.
• Real-time data acquisition at up to 10 kHz sampling rate; force resolution of 1/100,000 full scale; displacement resolution of 0.001 mm.
• Integrated environmental chamber with forced-air circulation, independent PID control loops for inner/outer zones, and validated temperature stability per ISO 17025 calibration requirements.

Sample Compatibility & Compliance

The system accommodates standard and custom specimen geometries per ISO 527–2, ASTM D638 Type I–V, ASTM D3039, ISO 179–1, and GB/T 1040 series. Compatible specimen categories include thermoplastics, elastomers, foams, nonwovens, woven textiles, metal wires (up to Ø6 mm), thin-sheet alloys, laminated composites, adhesive tapes, packaging films, biomedical polymers, and fiber-reinforced prepregs. All test methods adhere to GLP-compliant documentation workflows, supporting audit-ready traceability. Mechanical validation follows GB/T 16491 (equivalent to ISO 7500-1 Class 0.5) and GB/T 2611. Thermal chamber performance is verified per ISO 12100 and IEC 61000-4-2 for ESD immunity.

Software & Data Management

The embedded Windows-based control and analysis platform supports multi-language UI, customizable test templates, and automated report generation compliant with ISO/IEC 17025 Annex A.2. Software features include real-time stress–strain curve plotting, peak hold, auto-stop-on-fracture, adjustable ramp rates (0.001–500 mm/min), unit conversion (N, kN, lbf, MPa, psi, %), and digital filtering for noise suppression. Data export formats include CSV, XML, and PDF with embedded metadata (operator ID, timestamp, environmental log, calibration certificate ID). Audit trail functionality meets FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed in regulated pharmaceutical or medical device manufacturing environments.

Applications

This system is routinely deployed for: qualification of automotive interior trim under thermal cycling (SAE J211); peel strength verification of pressure-sensitive adhesives per PSTC-107; tensile modulus mapping of biodegradable PLA filaments for additive manufacturing; creep compliance assessment of PEEK orthopedic implants per ISO 10993-12; interlaminar shear testing of carbon-fiber prepreg stacks (ASTM D2344); and accelerated aging studies of cable jacketing compounds per UL 1581. Its dual-temperature capability also enables coefficient of thermal expansion (CTE) estimation via constrained extension tests per ASTM E831.

FAQ

Does the system support simultaneous temperature and humidity control?

No — this model integrates only temperature-controlled environmental chambers. Humidity control requires optional add-on modules compliant with ISO 24323 and ASTM D4332.
Can the software generate GLP-compliant test reports with electronic signatures?

Yes — when configured with user role management, time-stamped audit logs, and digital certificate integration, the software satisfies GLP Annex 11 and 21 CFR Part 11 requirements.
What is the maximum specimen length supported within the thermal chamber?

Standard chamber clearance allows specimens up to 300 mm gauge length; extended configurations support up to 500 mm with modified door geometry and airflow optimization.
Is third-party calibration certification included with delivery?

A factory-issued ISO/IEC 17025-accredited calibration certificate covering force, displacement, and temperature subsystems is provided; annual recalibration services are available under service contract SLA.
