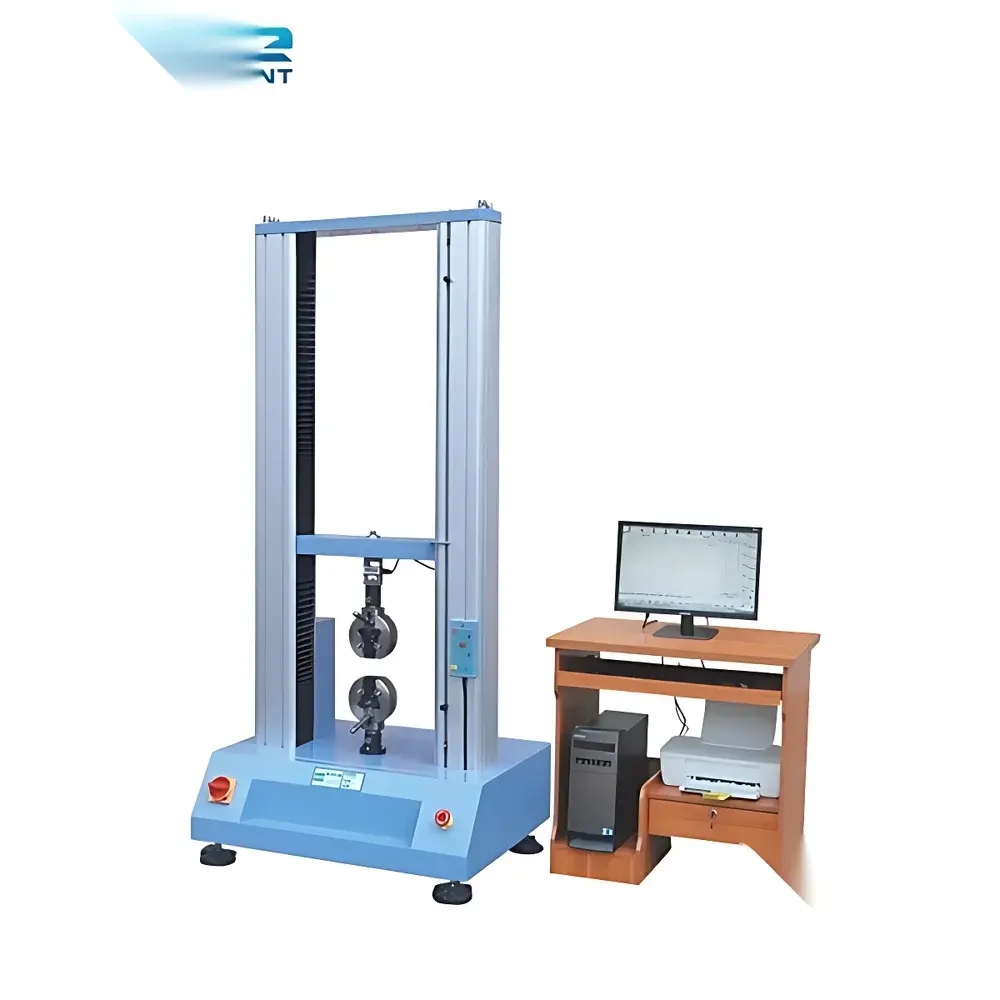

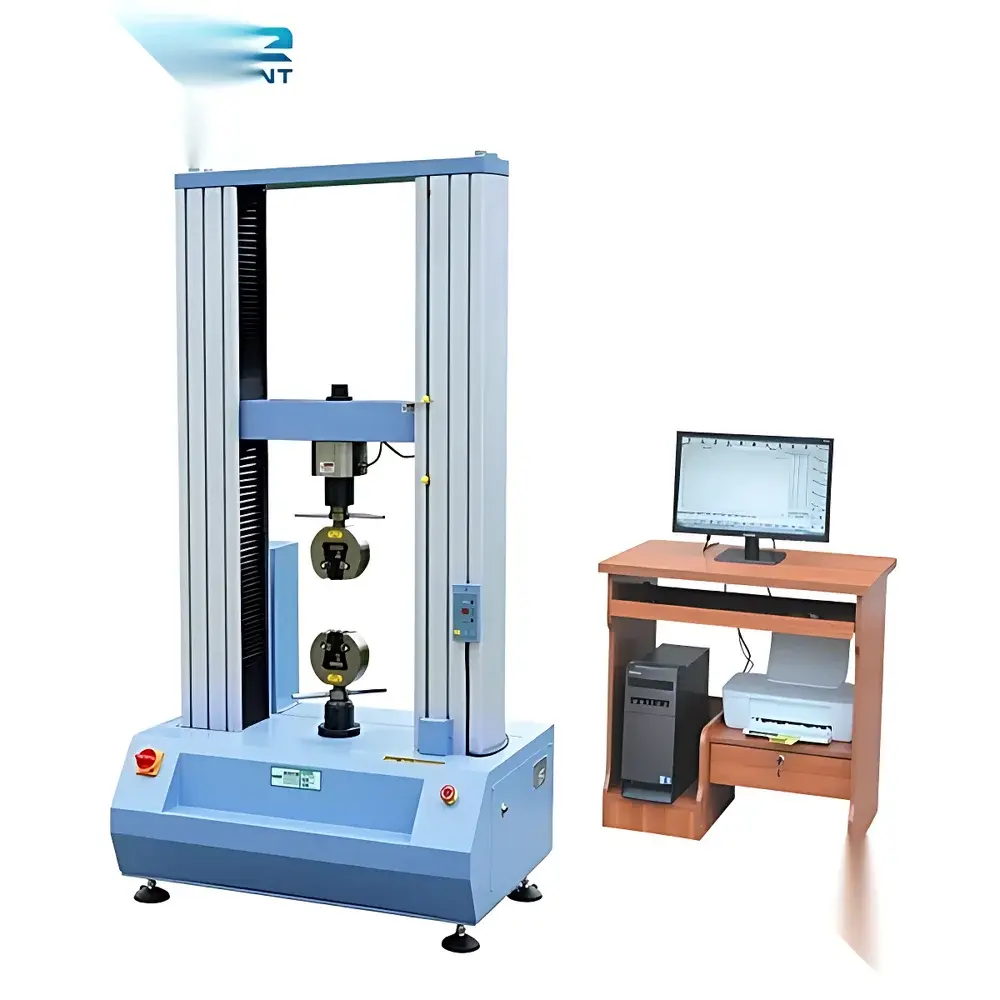

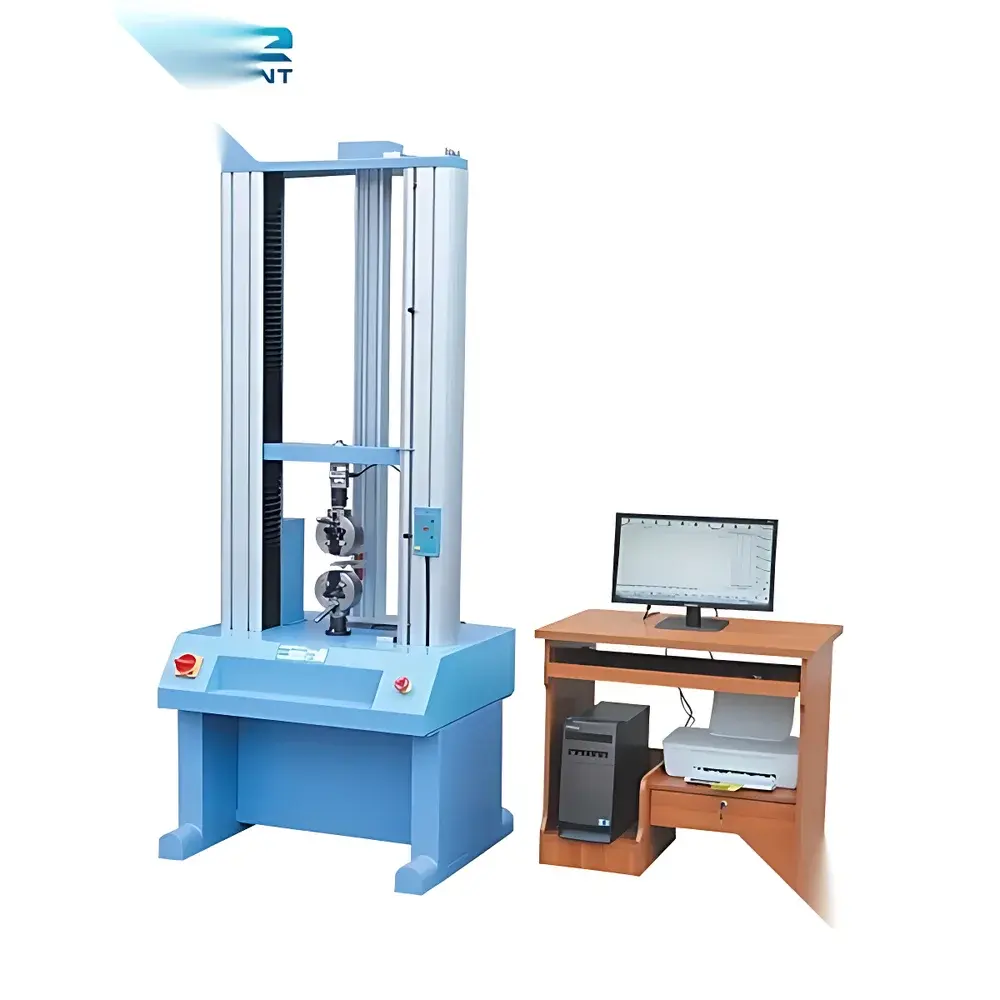

Universal Testing Machine UTM-5000 Series Tensile & Compression Testing System

Overview

The Universal Testing Machine UTM-5000 Series is a dual-column electromechanical testing system engineered for precision mechanical property evaluation of metallic and non-metallic materials under static uniaxial loading conditions. Based on the fundamental principles of Hooke’s Law and stress–strain continuum mechanics, it applies controlled tensile, compression, bending, peel, shear, and tear loads while continuously measuring force, displacement, and strain. Designed for laboratory and quality control environments, the system adheres to international standard test methodologies—including ASTM E8/E21 (metals), ASTM D638/D790 (polymers), ISO 6892-1 (tensile testing of metals), and ISO 527-1 (plastics)—ensuring traceable, repeatable, and auditable results compliant with GLP and ISO/IEC 17025 requirements.

Key Features

• High-fidelity servo-driven actuation using Panasonic AC servo motor with 2500 PPR encoder feedback, delivering smooth motion control, minimal speed ripple (<±0.1%), and dynamic response stability across full speed range (0.001–500 mm/min).
• Precision mechanical architecture featuring preloaded high-accuracy ball screws (C5 grade) and hardened linear guideways with low-friction recirculating rollers—ensuring axial alignment tolerance <0.02 mm over 1000 mm travel.
• Load measurement via explosion-proof, temperature-compensated S-type load cell with ±0.03% FS repeatability, 150% transient overload capacity, and integrated zero-drift suppression algorithm.
• Dual-stage safety system: hardware-based travel limit switches prevent over-travel damage; software-configurable load and displacement thresholds trigger immediate emergency stop with audible alert and visual indicator.
• Real-time data acquisition at 1 kHz sampling rate, supporting simultaneous capture of force, crosshead displacement, extensometer strain (optional), and environmental sensor inputs (e.g., temperature, humidity).
• Integrated PC-based control interface with intuitive workflow navigation, real-time curve plotting (stress–strain, load–displacement, load–time), automatic peak detection, rupture-triggered halt, and programmable test sequences.

Sample Compatibility & Compliance

The UTM-5000 accommodates specimens ranging from ultra-thin polymer films (≥10 µm thickness) to structural metal coupons (up to 50 mm width × 20 mm thickness). Standard fixtures include wedge-action tensile grips (pneumatic/hydraulic options available), compression platens (100 mm Ø), three- and four-point bending fixtures, 90°/180° peel fixtures, and shear adapters per ASTM D1002 and ISO 4587. All configurations comply with mechanical alignment tolerances specified in ISO 7500-1 and ASTM E1012. The system supports full audit trail generation—including user login, method version, calibration history, and raw data timestamps—meeting FDA 21 CFR Part 11 electronic record requirements when deployed with validated software modules.

Software & Data Management

The proprietary UTMControl Suite v4.2 provides ISO/IEC 17025-aligned test execution, analysis, and reporting. It enables method templates compliant with GB/T 228.1, ASTM D638, ISO 527, and EN 10002-1; automated calculation of Young’s modulus, yield strength (0.2% offset), ultimate tensile strength, elongation at break, and Poisson’s ratio. Raw data exports to CSV, XML, or PDF formats; report generation includes embedded test curves, statistical summaries (n ≥ 3), and digital signatures. Calibration certificates are stored with metadata linking to NIST-traceable standards; software validation documentation (IQ/OQ/PQ protocols) is provided upon request.

Applications

• Mechanical characterization of thermoplastics, elastomers, composites, and biodegradable polymers per ISO 527 and ASTM D882.
• Tensile and compressive testing of aluminum alloys, stainless steels, copper foils, and cast iron per ASTM E8 and ISO 6892-1.
• Peel strength assessment of adhesive tapes, laminated packaging, and medical device bonding layers (ASTM D903, ISO 8510-2).
• Bending modulus and flexural strength determination for rigid plastics and fiber-reinforced panels (ASTM D790, ISO 178).
• Quality assurance of automotive gaskets, seatbelt webbing, wire ropes, and orthopedic implant materials under ISO 14242-1.
• R&D validation of nanocomposites, hydrogels, and electrospun membranes where low-force sensitivity (<0.1 N) and sub-micron displacement resolution are critical.

FAQ

What international standards does this system support out-of-the-box?
The UTM-5000 is preconfigured for ASTM E4, ASTM E8, ISO 6892-1, ISO 7500-1, GB/T 16491, and GB/T 228.1. Custom method libraries can be loaded for ISO 179 (impact), ASTM D695 (compression), or ISO 1133 (melt flow), subject to fixture and sensor configuration.
Is the system compatible with third-party extensometers?
Yes—it features analog and digital (LVDT, video, laser) input channels compliant with ASTM E83 Class B-1 specifications, supporting brands including MTS, ZwickRoell, and Instron-compatible displacement sensors.
Can test data be integrated into LIMS or ERP systems?
Via OPC UA and RESTful API interfaces, raw test records and summary reports can be exported directly to LabWare LIMS, SAP QM, or Oracle Manufacturing Cloud without manual re-entry.
What maintenance intervals are recommended for long-term accuracy?
Load cell recalibration every 12 months or after 10,000 cycles; ball screw lubrication every 6 months; annual mechanical alignment verification per ISO 7500-1 Annex C.
Does the system meet regulatory requirements for pharmaceutical packaging testing?
When equipped with peel and puncture fixtures and operated under validated UTMControl Suite, it satisfies USP , ISO 11607-2, and ASTM F88/F903 for sterile barrier system integrity evaluation.
