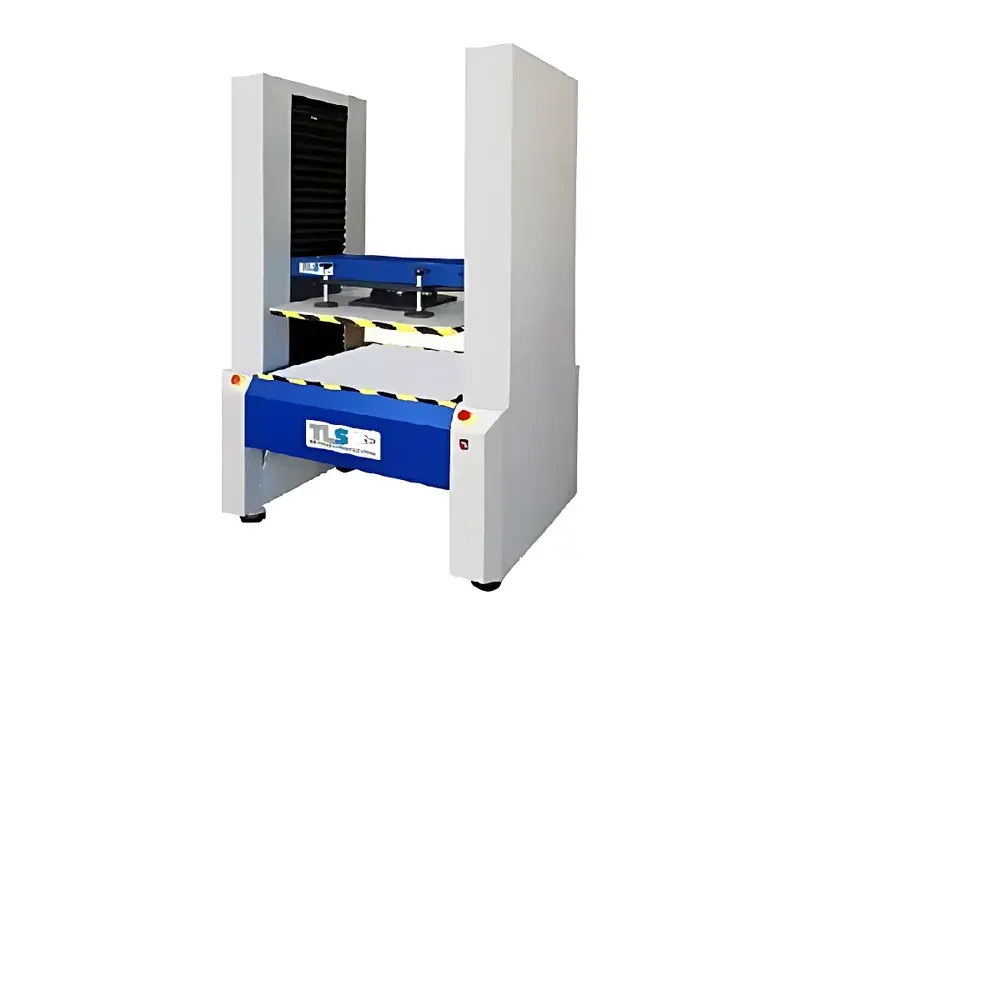

Validator™ Compression Tester for Empty Corrugated Boxes
| Brand | TLS |
|---|---|
| Origin | Spain |
| Model | Validator™ |
| Type | Compression Testing Machine for Physical Property Evaluation |
Overview
The Validator™ Compression Tester is a precision-engineered mechanical testing system designed specifically for evaluating the compressive strength of empty corrugated fiberboard boxes under controlled, standardized loading conditions. Based on the fundamental principle of uniaxial compression testing—where a vertically applied force is incrementally increased until structural failure or predefined deformation occurs—the Validator™ delivers repeatable, traceable, and metrologically sound results essential for packaging integrity validation, shelf-life simulation, and logistics performance assessment. Unlike general-purpose universal testing machines, this dedicated system integrates optimized load frame geometry, rigid platens with parallelism control (±0.02 mm), and a low-friction vertical guidance mechanism to ensure pure axial loading without bending moments—critical for reproducing real-world stacking scenarios in distribution channels.
Key Features
- Dedicated mechanical architecture engineered for ISO 12048, ASTM D642, and TAPPI T804 compliance—ensuring alignment with global packaging performance standards.
- High-resolution load cell with ±0.5% full-scale accuracy and digital signal conditioning for stable force measurement across the 0–5,000 N range (extendable to 10,000 N with optional transducer).
- Programmable crosshead speed from 1–300 mm/min, adjustable in 1 mm/min increments, enabling precise replication of static stack load profiles or dynamic compression ramp tests.
- Integrated platen leveling system with micrometer-adjustable height compensation to maintain parallel contact across variable box heights (up to 1,200 mm).
- Robust steel frame with vibration-dampening base plate, minimizing environmental interference during long-duration creep or holding tests.
- Front-panel tactile interface with real-time load/displacement display and pass/fail threshold indicators—enabling rapid operator verification without PC dependency.
Sample Compatibility & Compliance
The Validator™ accommodates standard corrugated shipping containers ranging from 200 × 200 × 200 mm to 1,200 × 1,000 × 1,200 mm (L×W×H), including RSC, HSC, and die-cut variants. Sample centering is facilitated by laser-guided alignment marks and removable corner stops. All test protocols align with internationally recognized regulatory frameworks: ASTM D642 (Standard Test Method for Determining Compressive Resistance of Shipping Containers), ISO 12048 (Packaging—Complete, Filled Transport Packages—Compression and Stacking Tests), and TAPPI T804 (Compressive Strength of Corrugated and Solid Fiberboard Boxes). The system supports GLP-compliant documentation when paired with validated software—meeting audit requirements for pharmaceutical, food, and e-commerce fulfillment operations subject to FDA 21 CFR Part 11 and EU Annex 11 data integrity mandates.
Software & Data Management
Optional ValidatorLink™ PC software provides full test method configuration, real-time curve visualization (load vs. displacement), automatic peak detection, and customizable reporting per ISO/IEC 17025 requirements. Raw data export is supported in CSV, XML, and PDF formats—with embedded metadata including operator ID, calibration certificate number, environmental temperature/humidity logs (when interfaced with external sensors), and electronic signature fields. Audit trail functionality records all parameter changes, test starts/stops, and result modifications with time-stamped user attribution—fully compliant with FDA 21 CFR Part 11 electronic records and signatures provisions. Calibration history and maintenance logs are stored separately and exportable for internal QA review or third-party accreditation audits.
Applications
- Validation of box design performance against anticipated warehouse stacking loads and transit vibration-induced compression fatigue.
- Comparative evaluation of different flute configurations (A, B, C, E, BC double-wall), linerboard grades, and moisture-resistant coatings.
- Quality control screening of incoming packaging materials prior to production line integration.
- Root-cause analysis of field failures—including correlation of lab-measured crush resistance with actual damage incidence rates in distribution networks.
- Supporting ISTA 3A, 3E, and 3H test protocol execution where compression preconditioning is required prior to shock/vibration exposure.
- Generating data for finite element modeling (FEM) input parameters related to orthotropic elastic modulus and buckling thresholds in corrugated board structures.
FAQ
What standards does the Validator™ comply with for empty box compression testing?
ASTM D642, ISO 12048, TAPPI T804, and GB/T 6543—all configurable via preloaded test templates in ValidatorLink™ software.
Can the system be integrated into an existing LIMS or MES environment?
Yes—via OPC UA or TCP/IP API interfaces; full schema documentation and driver libraries are provided for seamless integration with LabWare, Thermo Fisher SampleManager, or Siemens Opcenter.
Is calibration traceability available to national metrology institutes?
All load cells ship with UKAS-accredited calibration certificates (traceable to NPL), and annual recalibration services include on-site verification with portable reference standards.
Does the Validator™ support holding tests at constant load for extended durations?
Yes—programmable dwell times up to 999 minutes at any target load, with automatic hold termination upon exceeding preset deformation limits or time-based criteria.
