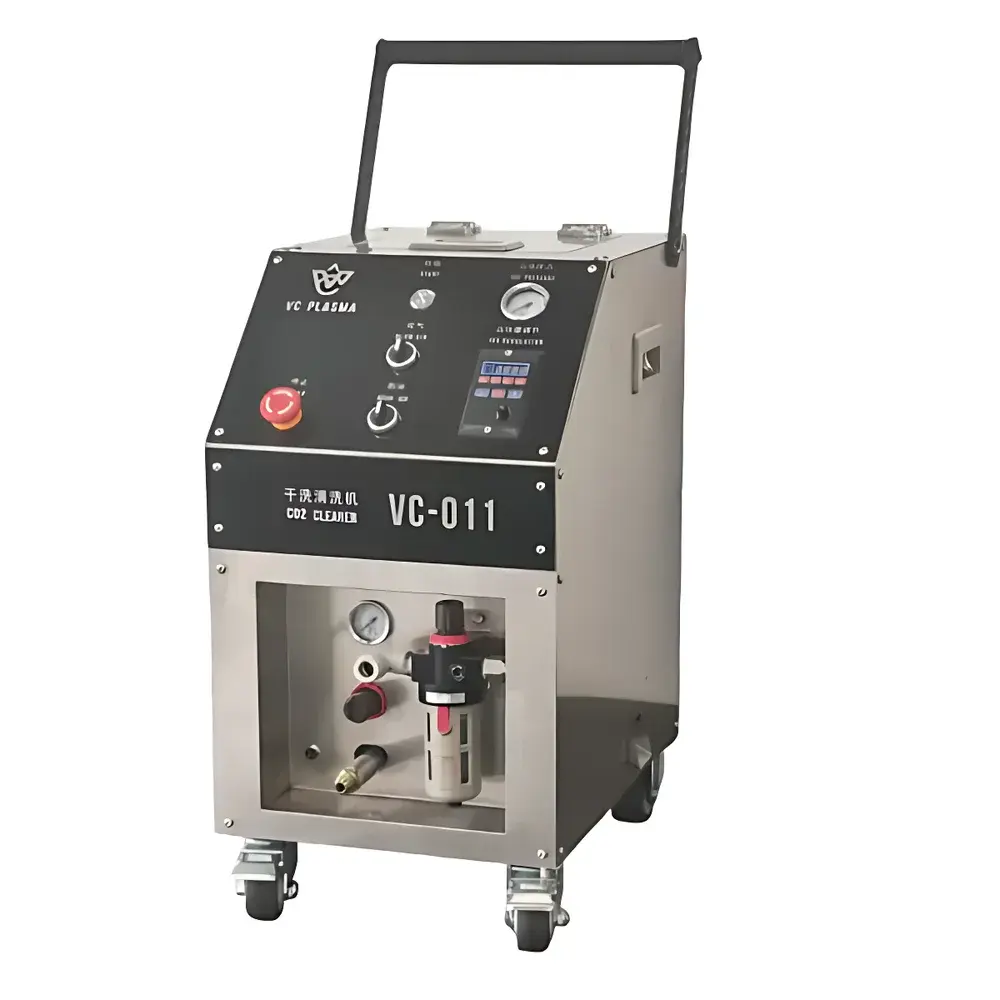

VC Plasma VC-011 Handheld Dry Ice Blasting System
| Brand | VC Plasma |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | Authorized Distributor |
| Country of Origin | China |
| Model | VC-011 |
| Pricing | Available Upon Request |
Overview
The VC Plasma VC-011 Handheld Dry Ice Blasting System is an engineered solution for non-abrasive, residue-free surface cleaning in high-precision semiconductor manufacturing environments. Unlike traditional wet or mechanical cleaning methods, the VC-011 utilizes cryogenic dry ice pellets (solid CO₂) accelerated through a converging nozzle at supersonic velocities. Upon impact, the pellets undergo rapid thermal shock and sublimation—inducing micro-fracturing of contaminants while generating no secondary waste. This physical cleaning mechanism eliminates solvent use, avoids part disassembly, and preserves critical dimensional tolerances on sensitive components such as reflow soldering furnace rails, heating elements, thermocouple ports, and conveyor sprockets. Designed specifically for cleanroom-compatible operation, the system delivers controlled particle removal without introducing moisture, ionic residues, or abrasive wear—making it suitable for Class 100–Class 1000 cleanroom applications per ISO 14644-1.
Key Features
- Handheld ergonomics with balanced weight distribution and low-recoil nozzle design for extended operator use in confined furnace access zones.
- Adjustable blast pressure (0.2–0.7 MPa) and pellet feed rate (1–15 kg/h) to optimize cleaning efficacy across varied contaminant types—including flux residues, solder splatter, carbonized organics, and metal oxide films.
- Integrated CO₂ supply interface compatible with standard 20 lb (9 kg) or 50 lb (22.7 kg) liquid CO₂ dewars; no compressed air drying or filtration required.
- Stainless steel blast hose (6 m length, 10 mm I.D.) with anti-static braiding certified to EN 61340-4-1 for electrostatic discharge (ESD) safety in semiconductor tool environments.
- Nozzle options include straight-bore, vortex swirl, and focused conical tips—each optimized for line-of-sight access, corner cleaning, or thermal uniformity preservation during in-situ furnace maintenance.
Sample Compatibility & Compliance
The VC-011 is validated for cleaning substrates commonly found in front-end and back-end semiconductor process tools: stainless steel 316L furnace rails, Inconel heating elements, ceramic-insulated thermocouples, and polyimide-coated conveyor belts. It meets material compatibility requirements per SEMI F21-0302 (Cleaning Process Validation for Semiconductor Equipment) and supports compliance with ISO 9001:2015 and ISO 14001:2015 quality and environmental management systems. While not classified as a medical device or FDA-regulated instrument, its dry, non-contact methodology aligns with industry best practices for minimizing cross-contamination risk during preventive maintenance (PM) cycles. Documentation packages include calibration records for pressure transducers and flow meters traceable to NIST standards.
Software & Data Management
The VC-011 operates as a standalone pneumatic-mechanical system with no embedded firmware or digital control interface. All operational parameters are manually adjusted via calibrated analog regulators—ensuring deterministic repeatability and eliminating software validation overhead. For traceability in regulated environments, users may integrate external logging via third-party data acquisition systems (e.g., National Instruments CompactDAQ or Keysight DAQ970A), recording blast pressure, CO₂ mass flow, and cycle duration. Such logs support GLP/GMP-aligned maintenance records and satisfy internal audit requirements for equipment servicing history under ISO/IEC 17025 Clause 7.7.
Applications
- Cleaning of reflow soldering furnace interiors—including rail surfaces, nitrogen purge nozzles, and thermocouple mounting brackets—without requiring full furnace cooldown or component removal.
- Removal of hardened flux residues from stencil inspection stations and automated optical inspection (AOI) lens housings.
- Maintenance of plasma etch chamber load locks and transfer arm end-effectors where particulate generation must remain below 0.1 µm threshold.
- Post-process decontamination of wafer probers, handler chucks, and test socket contacts prior to electrical characterization.
- Restoration of vacuum pump inlet filters and exhaust manifolds in cluster tools without solvent exposure or downtime exceeding 30 minutes.
FAQ
Is the VC-011 suitable for use inside ISO Class 5 cleanrooms?
Yes—when operated with filtered CO₂ supply and appropriate PPE (e.g., cleanroom-rated face shield and nitrile gloves), the system generates zero particulate residue and requires no post-cleaning wipe-down.
Does dry ice blasting affect furnace calibration or thermal uniformity?
No—thermal shock is localized and transient; empirical testing shows no measurable drift in furnace profile stability (per IPC-TM-650 2.6.25) after repeated cleaning cycles.
Can the VC-011 be used on aluminum alloy fixtures?
Yes—provided surface temperature remains above −30 °C during operation; no micro-cracking or intergranular corrosion has been observed in 6061-T6 or 7075-T6 alloys under validated parameters.
What maintenance intervals are recommended for the blast nozzle and hose?
Nozzle inspection every 200 operating hours; hose integrity check per SEMI E10-0201 guidelines prior to each PM event.
Is training provided for operators handling the VC-011 in semiconductor fabs?
Yes—VC Plasma offers on-site SOP development, hands-on operator certification, and documentation alignment with customer’s change control and deviation management procedures.
