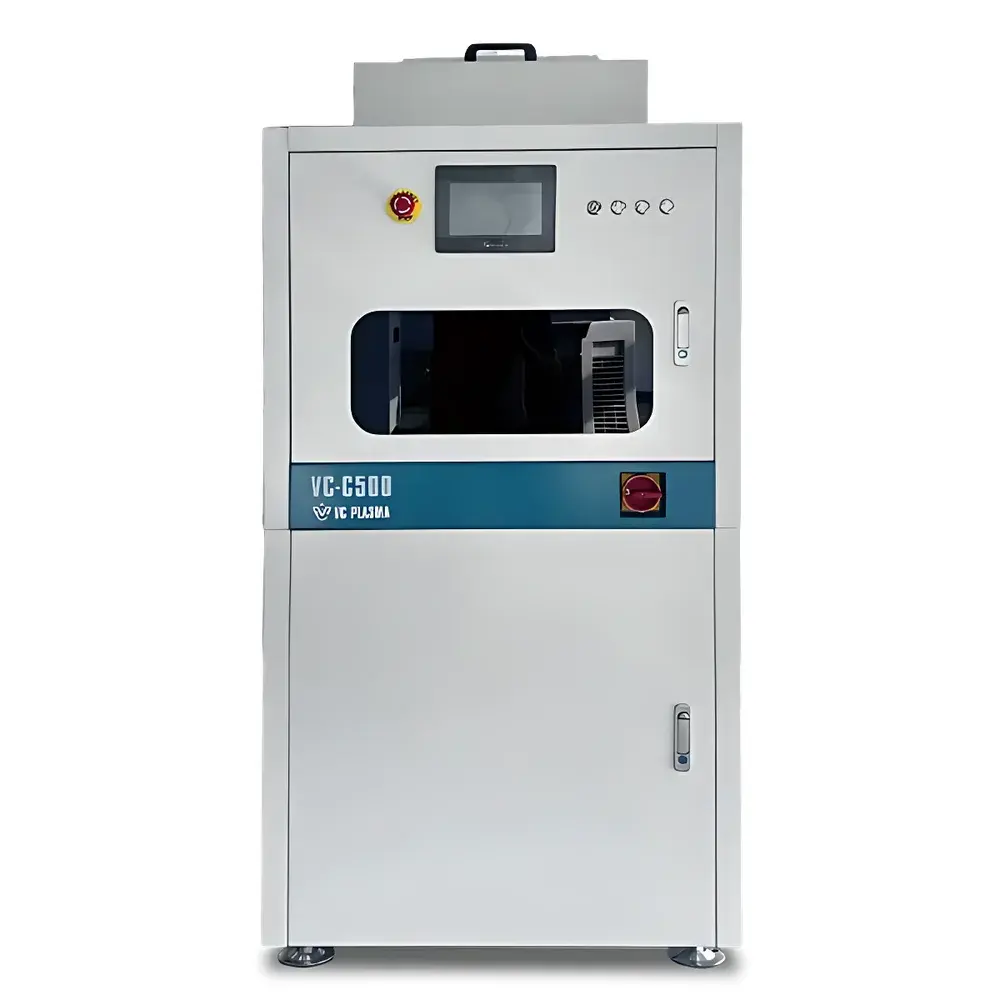

VC Plasma VC-C500 Non-Contact Negative-Pressure Dry Cleaning System for Semiconductor Manufacturing

Overview

The VC Plasma VC-C500 is a purpose-engineered non-contact dry cleaning system designed specifically for semiconductor front-end and back-end processes where particle control, electrostatic mitigation, and material compatibility are critical. Unlike wet chemical or abrasive cleaning methods, the VC-C500 employs a dual-action physical removal mechanism: controlled negative-pressure vacuum capture combined with pulsed DC ionization to neutralize surface charge prior to particulate detachment. This eliminates reliance on consumables—such as solvents, wipes, or filters—while avoiding thermal stress, moisture exposure, or mechanical abrasion that could compromise micro-scale features on wafers, leadframes, substrates, or advanced packaging components. Its architecture conforms to the operational constraints of high-mix, low-volume (HMLV) and high-volume manufacturing (HVM) environments, supporting seamless integration into automated material handling systems (AMHS), inline conveyors, and cluster tools. The system operates without generating secondary contamination or introducing volatile organic compounds (VOCs), making it suitable for pre-bonding, pre-soldering, pre-wirebonding, and post-etch residue management workflows.

Key Features

• Non-contact, dry-cleaning methodology eliminating solvent use, filter replacement, and consumable dependency—reducing total cost of ownership (TCO) over 5+ years of operation.
• Precision mechanical platform with ±0.1 mm positioning accuracy and ±0.05 mm repeatability, engineered for alignment-sensitive applications including flip-chip substrate preparation and fine-pitch QFN cleaning.
• Integrated pulsed DC ionizer delivering balanced ion output (±5 V offset voltage stability) across the cleaning zone, compliant with ANSI/ESD S20.20 requirements for static dissipation in ESD-protected areas (EPAs).
• Modular subsystem architecture: base unit supports field-installation of optional plasma activation module (operating at 13.56 MHz RF frequency, adjustable power 50–300 W) and dry ice micro-blasting module (using food-grade CO₂ pellets ≤0.5 mm diameter, pressure-regulated up to 4 bar).
• PLC-based control system (IEC 61131-3 compliant) with industrial-grade touchscreen HMI, enabling recipe-driven operation, real-time parameter logging, and configurable alarm thresholds for vacuum pressure, ion balance, and conveyor synchronization.
• Z-axis manual adjustment (100 mm travel range) and variable-speed conveyor (2–5 m/min, stepless control) accommodate diverse form factors—from 2-inch wafers to 300 × 300 mm² PCB panels—without mechanical retooling.

Sample Compatibility & Compliance

The VC-C500 is validated for use with silicon wafers (2″ to 12″), ceramic substrates (Al₂O₃, AlN), copper leadframes, molded IC packages (QFP, BGA, WLCSP), and MEMS sensor assemblies. It meets mechanical and environmental specifications aligned with SEMI S2-0215 (safety guidelines) and SEMI E10-0719 (definition of equipment reliability metrics). All internal airflow paths are constructed from electropolished stainless steel and anodized aluminum to prevent outgassing and metal ion leaching. The system supports audit-ready data integrity via timestamped event logs, user-access-level permissions (admin/operator), and optional 21 CFR Part 11-compliant electronic signature modules for GMP-aligned production lines.

Software & Data Management

The embedded HMI firmware provides local data storage (≥16 GB onboard flash) for process logs, alarm history, and calibration records. Export formats include CSV and XML for integration with MES platforms such as Siemens Opcenter Execution (formerly Camstar) and Applied Materials EnduraConnect. Optional OPC UA server enables secure bidirectional communication with factory-wide SCADA systems. Audit trail functionality captures operator ID, timestamp, parameter changes, and mode transitions—fully traceable for GLP/GMP validation protocols. Firmware updates are performed via encrypted USB drive or TLS-secured Ethernet connection, with rollback capability and SHA-256 signature verification.

Applications

• Pre-solder paste application cleaning of SMT stencils and PCB pads to remove nanoscale oxides and organic residues.
• Post-dicing wafer deburring and edge particulate removal prior to wafer-level packaging (WLP).
• Leadframe surface conditioning before molding compound encapsulation to improve adhesion strength (measured per ASTM D4541 pull-off test).
• Plasma-activated cleaning of Au/Ni/Pd metallization layers to enhance wirebond pull strength and reduce void formation.
• Removal of photoresist scum and etch byproducts from TSV (through-silicon via) sidewalls without undercutting.
• CO₂ micro-blasting of hardened flux residues from high-reliability aerospace and automotive electronics assemblies.

FAQ

Does the VC-C500 require compressed air or external vacuum sources?
No—the system integrates a self-contained oil-free vacuum pump and regulated air supply for ionizer operation; only standard 220 VAC / 50 Hz power input is required.
Can the VC-C500 be validated for ISO 14644-1 Class 5 cleanroom use?
Yes—its sealed enclosure design, laminar airflow path, and ULPA-filtered exhaust meet ISO 14644-1 compliance when installed with appropriate cleanroom-rated ducting and differential pressure monitoring.
Is remote diagnostics supported?
Yes—optional remote maintenance port enables secure SSH-based troubleshooting and firmware update deployment under ITAR- and GDPR-compliant network configurations.
What is the mean time between failures (MTBF) for the core vacuum system?
Based on accelerated life testing per IEC 62380, the integrated vacuum module demonstrates ≥15,000 operating hours MTBF under continuous duty cycle at 80% nominal load.
How is calibration maintained across shifts and operators?
The system includes automated self-calibration routines for ion balance and vacuum pressure sensors, executed at startup and configurable intervals; all calibrations are logged with NIST-traceable reference values.
